Special Price: $40.00 $11.9870% off
Product Description: What is COB LED strip light?

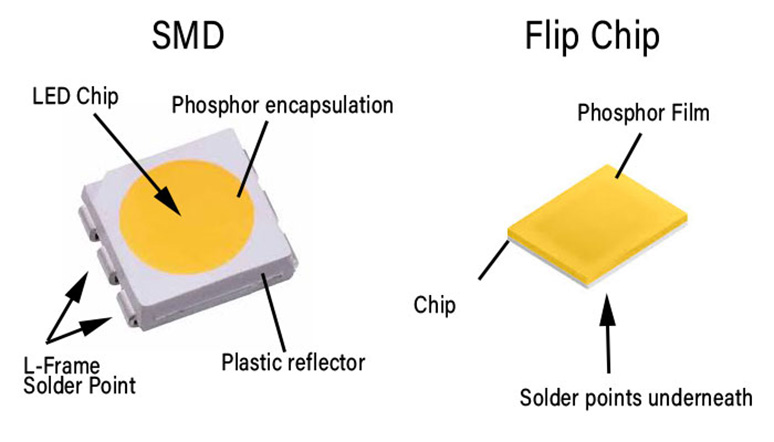

COB is called Chip On Board. Board is PCB. Different from ordinary 5050SMD LED (LED bare chip is built-in plastic reflector), COB LED combined with COB chip and phosphor film LED die are directly packaged on the PCB.
Free up enough space, the COB LED is small, and the LED quantity is very dense. At present, among our products, the densest COB can be 864Chips/m.
LEDs are small and evenly arranged on the PCB, so the COB LED strip light is more flexible, suitable for ultra-narrow environments, the narrowest width can be 3mm, and can be bent to a greater extent.
Onboard chip technology can realize ultra-density LED. With 180 degrees beam angle, COB LEDs can almost achieve no spot. The denser LED, the smaller the spot. With 480Chips/m and above LEDs, almost no light spots can be seen.
High efficiency, the low working power of LEDs but high output lumens, outpur power at 14.4W/m, but can output 100 lumens per watt
Product Feature and Application:
|
►Tiffany Blue Color high CRI ►Wave Length:485nm ►8mm good heat dissipation effect ►DC24V low voltage, safe and stable ►480Chips/m super density, no spot ►180 degrees uniform lighting ►Customized waterproof rating IP67 outdoor rainproof |
►LED Task Lighting ►Art Gallery Lighting ►Off-Grid Lighting ►Exhibition Lighting ►Studio Office Lighting ►Retail Shop Lighting ►Cove Lighting ►Museum Lighting ►Bias Lighting |
Standards and Certifications
Product Specification
| LED Strip Type |
COB LED (COB Flexible led strip light specification  ) |
| LED Chip | Epistar Chip |
| Input Voltage | DC24V |
| Dimensions | L500cm(196.8 in ) x W0.8cm(0.30 in ) x H0.12cm(0.05 in ) |

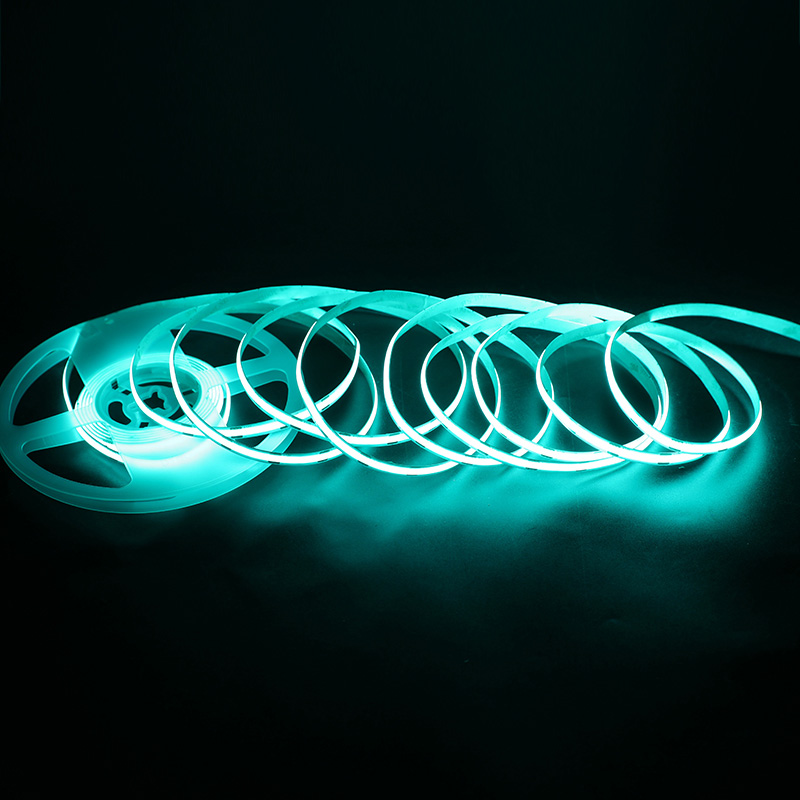

| Light Color | Tiffany Blue |
| Lifespan | 50,000+hours |
| Working Temperature | -20℃~+45℃ |
| Lumen | 1433 lm/m |
| Power | 14.4W/m, 72W/Roll |
| PCB Width | 8mm/0.31in |
| LED Quantity | 480 chips per 1meter (3.28 ft) |
| COB Dimension | L500cm(196.8 in ) x W0.6cm(0.24 in ) |

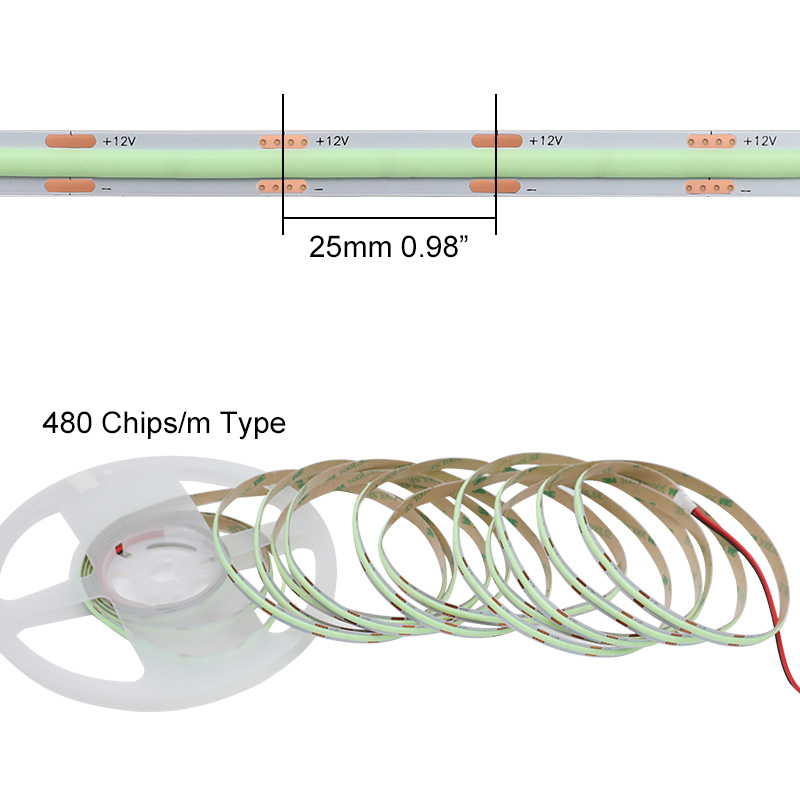

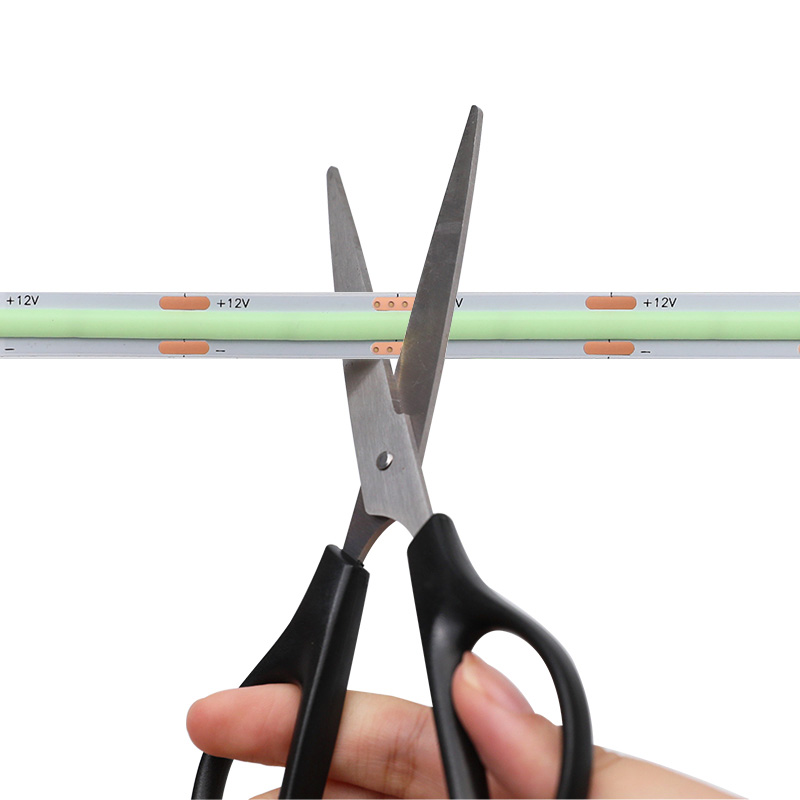

| Cut Length | 0.98"(25mm) |
| PCB color | White |
| Beam Angle | 180° |
| CRI | 90+ |
| Waterproof Rating |
|
Wavelength NM(RGBY):
| Color | Wave Length |
| Blue | 455-465nm |
| Green | 520-530nm |
| Red | 620-630nm |
| Yellow | 585-595nm |
| Orange | 595-605nm |
| Tiffany Blue | 485nm |
| Marrs Green | 510nm |
| Plastic Pink | 430nm |
How to choose LED strip lights kit?
You can choose the controller or power supply or controller plus power option for this COB LED strip. Of course, only the COB LED light is also completely possible. The difference is whether you need to control the LED brightness change of the COB strip and whether you can supply power to the light strip.
In the following table, we list for you which products you will get if you choose the kit. If you have other needs, please check our product categories.
|
LED Strip |
Kit | Knowledge |
| 5m/16.4Ft LED Strip |
Controller: V1 + RT1 , more choice from Single Color Dimmer Series. Power supply: 24V 72W power supply adapter More buy choice DC24V MW power supply series and DC24V Waterproof power supply series |
How to choose led strip light controllers? |
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
Tiffany Blue Desctiption:
Tiffany Blue is clear and transparent, neither ostentatious nor open the color palette.
According to the order of CMYK, iUC is adjusted to 50-60, M is adjusted to Retro 0, Y to 25 to 35, K to 0.
The collocation of Tiffany blue and white is the most classic, deduced blue, blue bottom force 0 on the white circle decoration, clean, fresh, and shocking.
Tiffany blue is not a traditional symbol of melancholy and sadness, but represents a kind of romance and happiness, and interprets love and beauty.

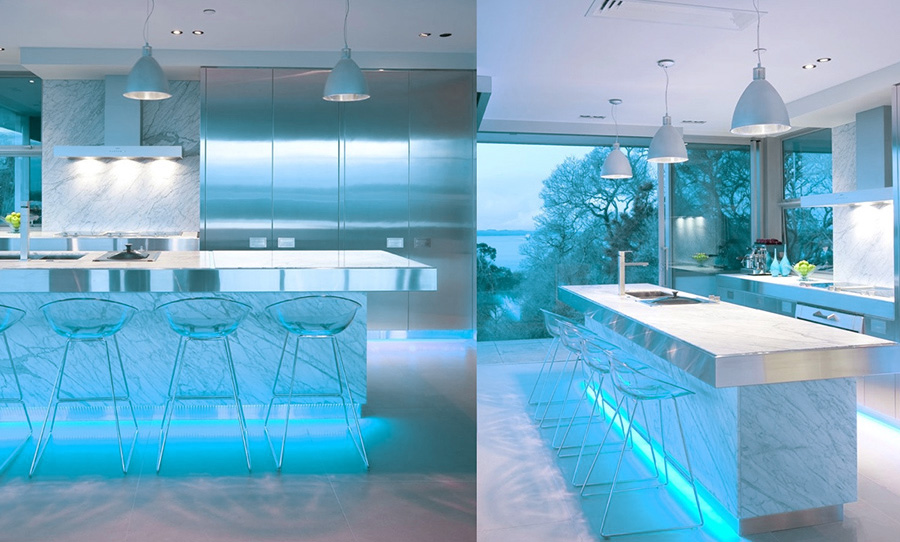

Tiffany blue light exudes a low-key atmosphere, soft and not dazzling, representing romance and love, can keep calm,suitable for indoor environmental lighting and mood lighting

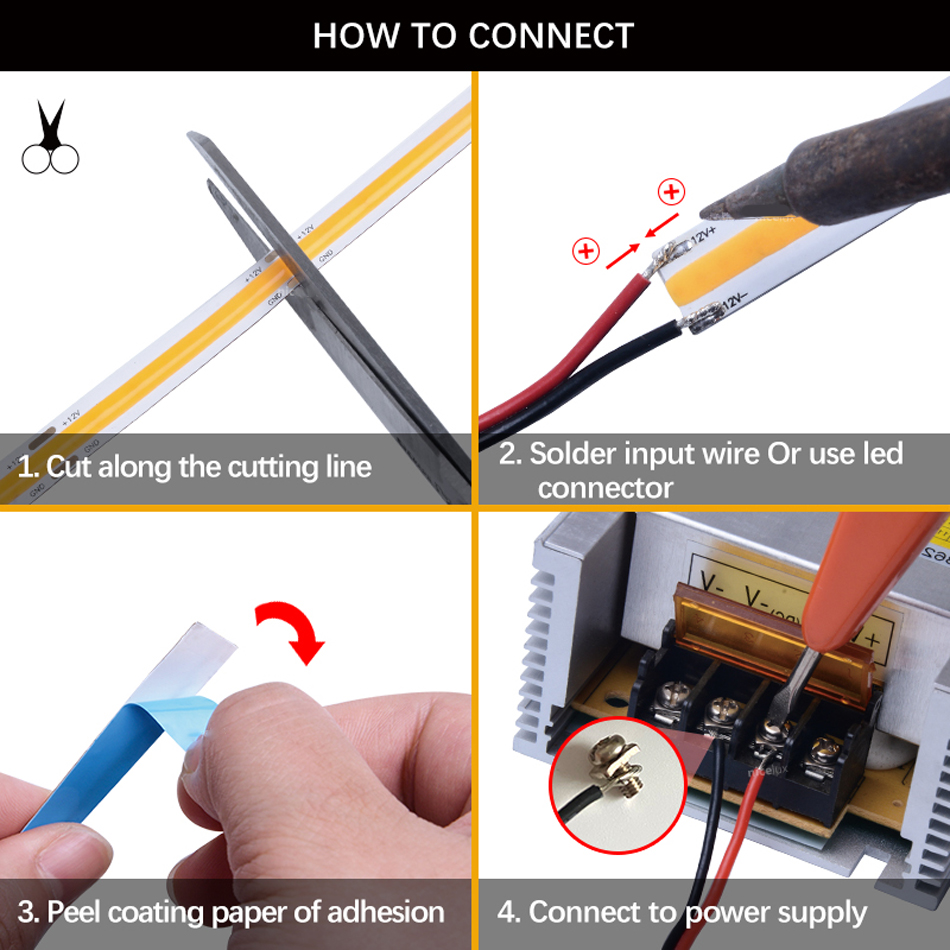

Installation Instruction: How to Install LED Strip Lights?
|
|
|
|
|
|
|
|
|
Don't know how to wire? please read the following article: How to wire the single color LED strip light
COB Light Strip Advantages :

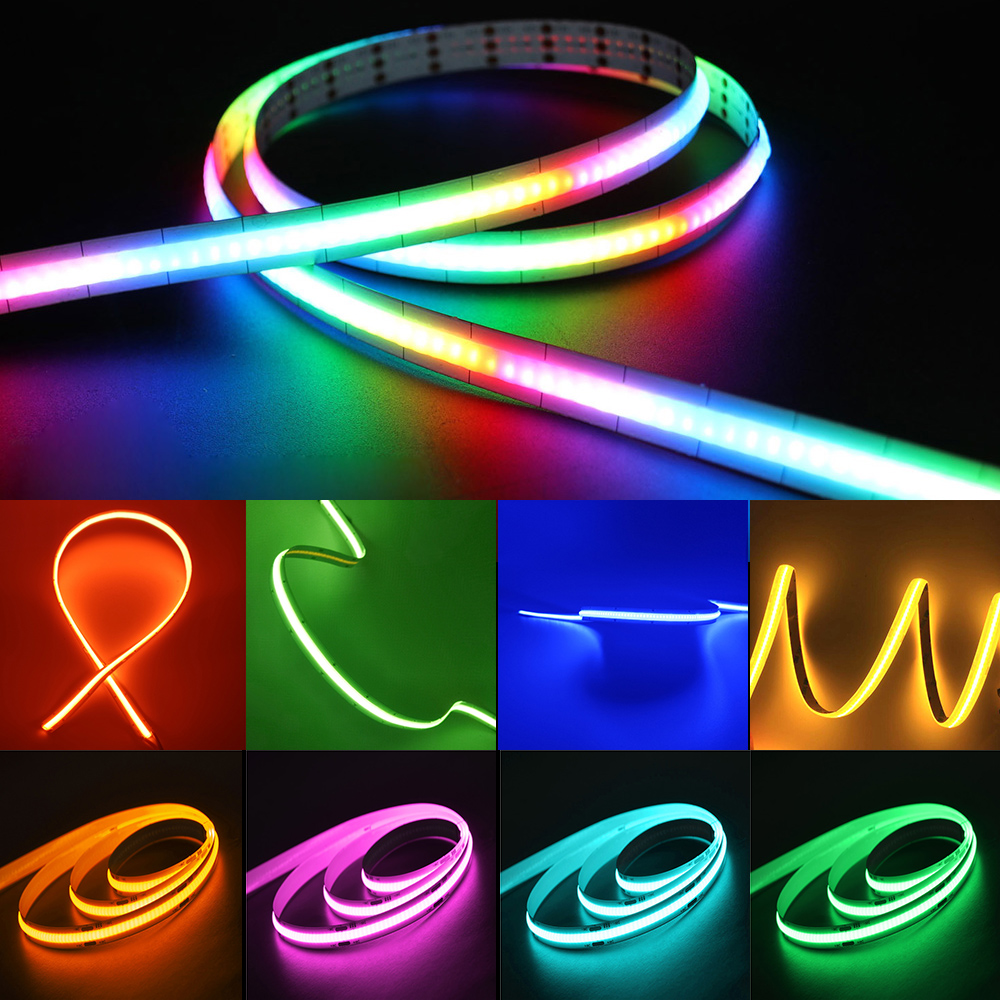

Multiple COB light strip colors optional, such as Single color/CCT/RGB/Addressable RGB light strip can be customized
Flexible choice of multiple sizes, 3mm/4mm/5mm/8mm/10mm/12mm
PCB back with 3M tape, for an easy installation.
COB LED strip ligh series feature:
