Special Price: $36.98

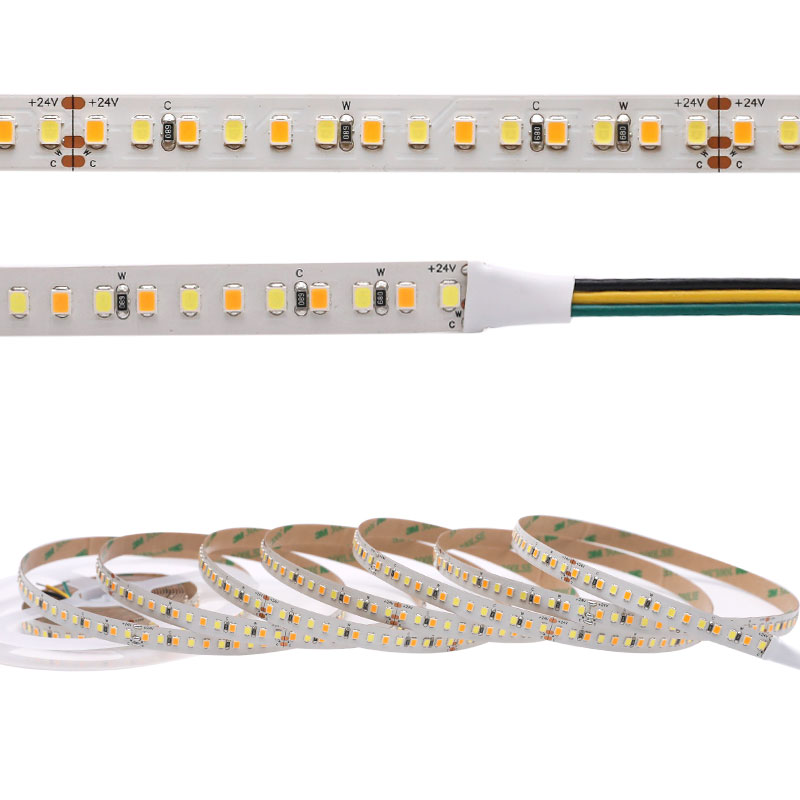

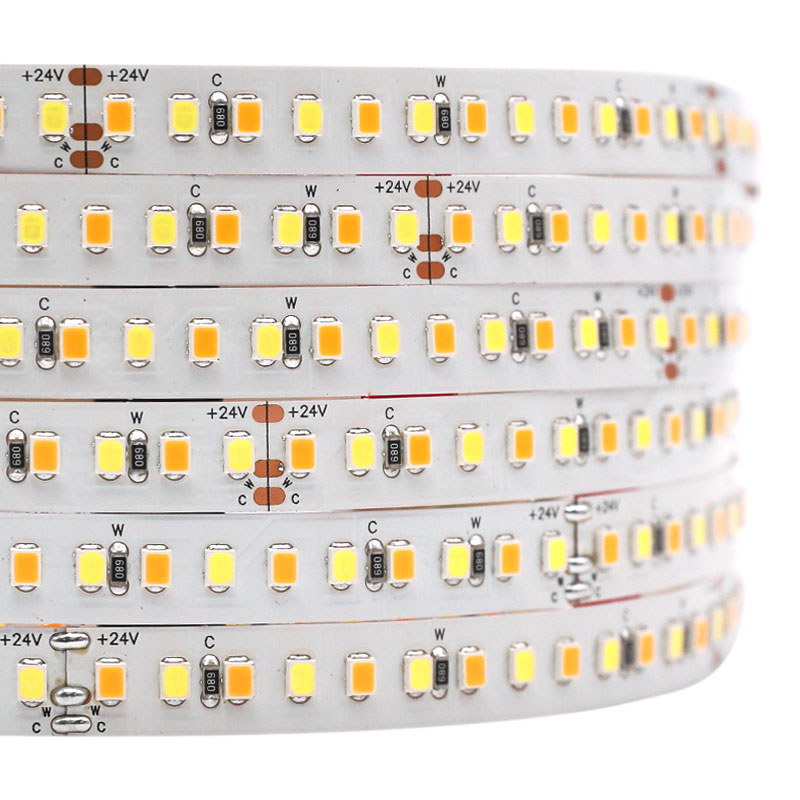

High density CCT led strip lights for sale, 840 SMD2835 LEDs on a 5m/16.4ft reel, including 420 warm white LEDs and 420 pure white LEDs. When you turn on the warm white 2700K light only or the pure white 6000K light only, approx. 12 mm between two LEDs, bringing you higher brightness and more even illumination.
►24V CCT adjustable led strip lights: 24V DC operation. This dimmable white led strip can be cut into 14-LED segments (7 groups of one warm white LED and one pure white LED), so you could cut a different length for your led strip lighting project and request.

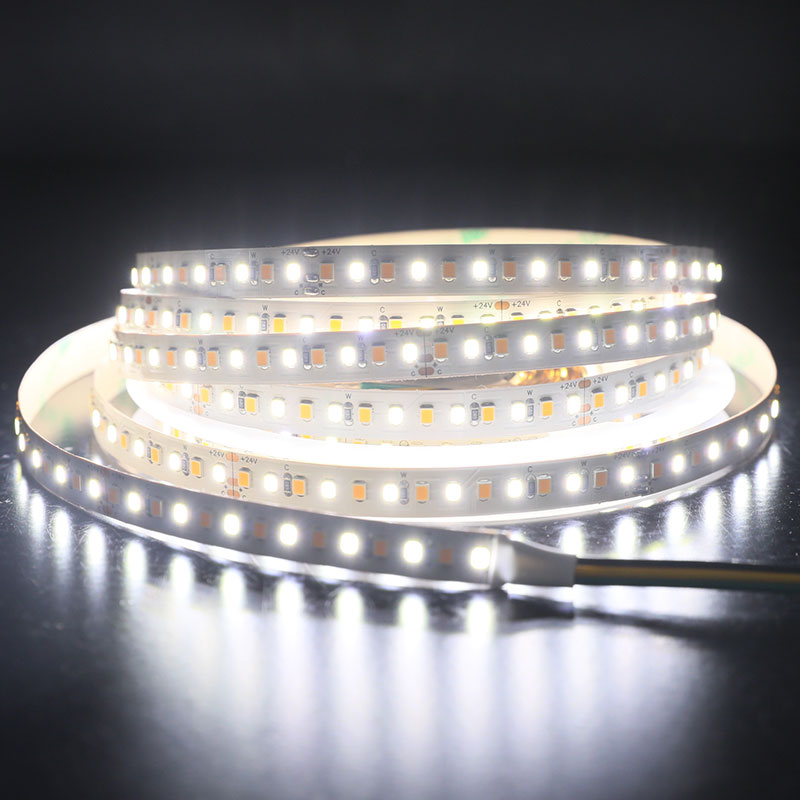

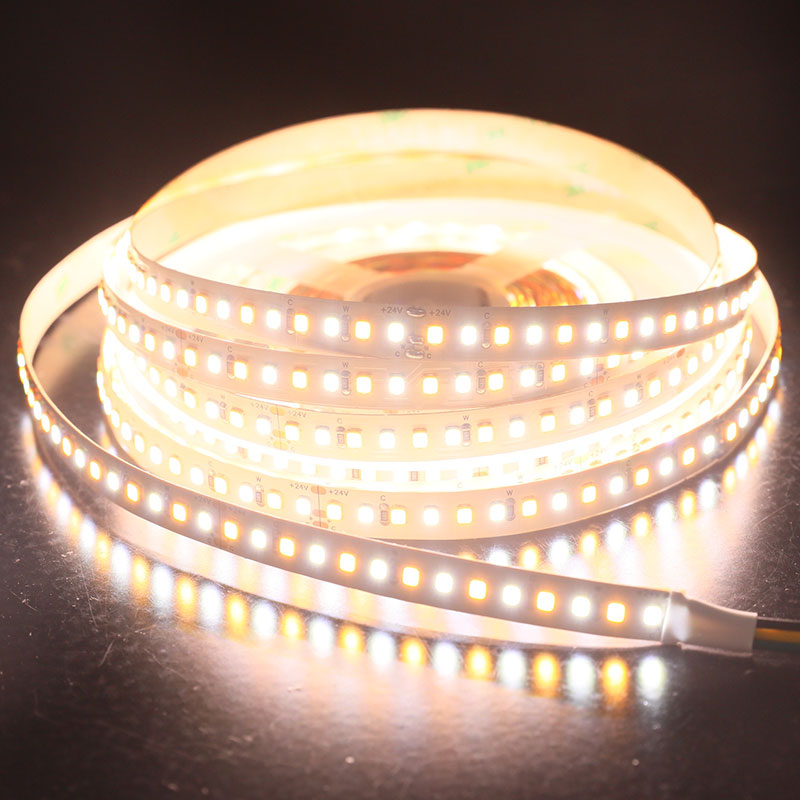

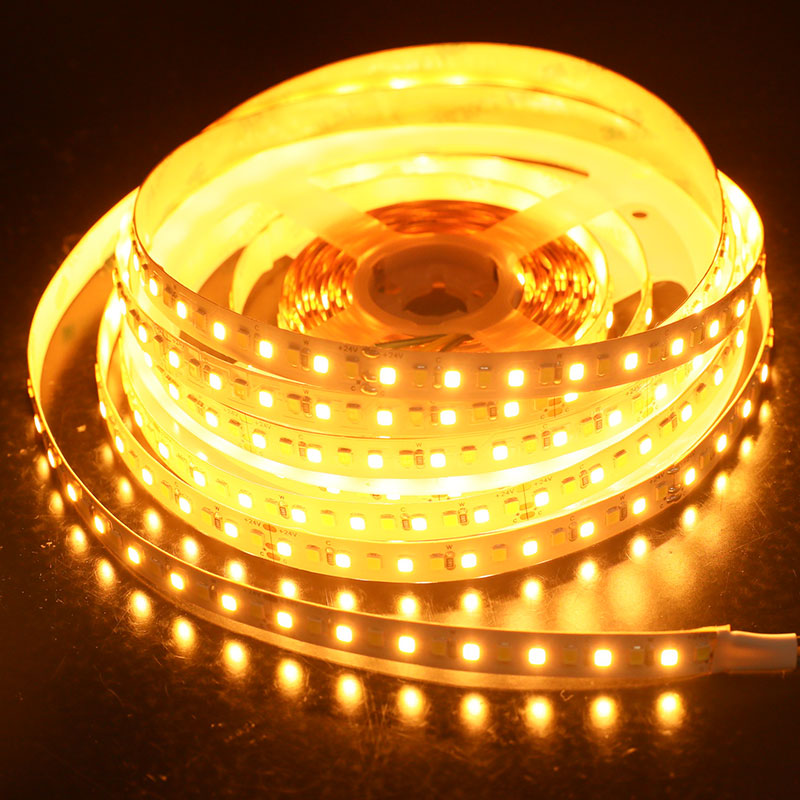

►CCT tunable white light color temperature from 2700K warm white to 6000K cool white: This CCT white led strip can individually light up warm white LED or daylight/pure white LED. Work with the CCT LED light controller, you can adjust the white color temperature from 2800K to 6500K and adjust the LED brightness from 0% to 100%.
►Waterproof optional: IP65, IP67, and IP68 outdoor waterproof dimmable white led strip lights are available. This tunable white led strip light can be used indoor and ourdoor to increase the lighting atmosphere, or increase the lighting brightness at night.
►High color rendering index (+95 CRI) enhances vibrant colors more than traditional LEDs nearly matching the color quality of incandescents.
This CCT adjustable white LED Light strip is perfect for retail shops, supermarkets, museums, galleries, photography or any indoor applications where presentation, appearance, and depth of color are critical, Suitable for the average home lighting as well as lighting professionals.
Standards and Certifications
Product Specification
| LED Strip Type: | SMD 2835 CCT LED Strip Light |
| LED Chip: | Super Bright Epistar Chip |
| Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
| Storage Temperature: | -40°F (-40°C) ~ 176°F (80°C) |
| Light Color: | Warm White + Daylight White (2700K + 6000K) |

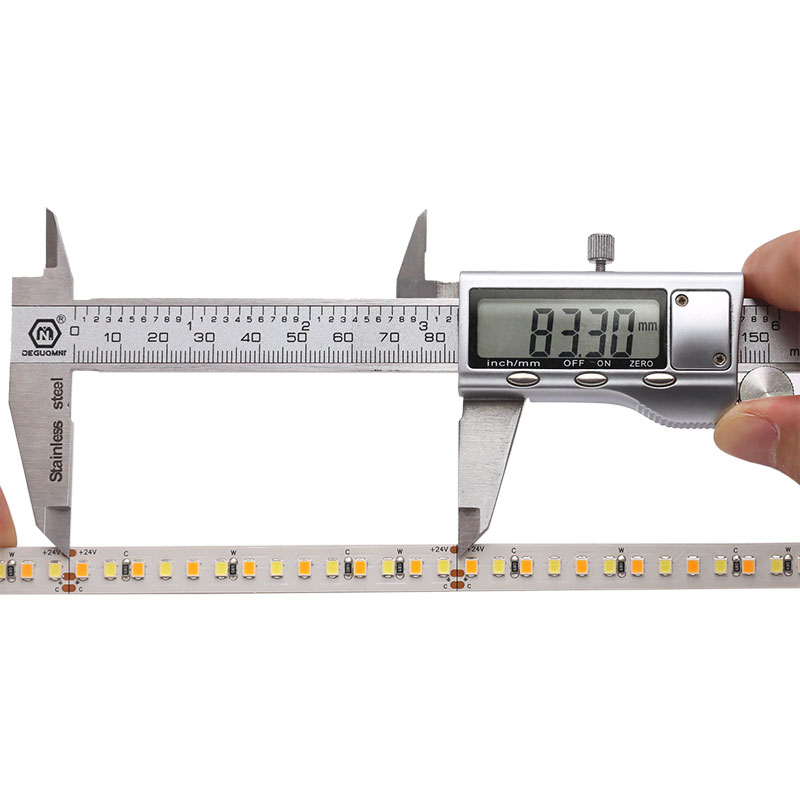

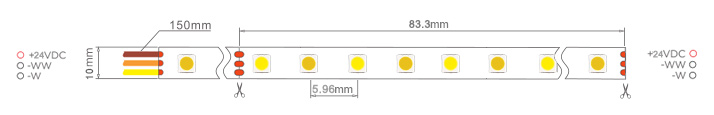

| Dimension: | 16.4ft/roll, every 14 PCS LED can be cut |
| LED Quantity: | 840 LEDs 16.4ft (420 Warm White LEDs+420 Daylight White LEDs) |
| Lifespan: | 50,000+hours |

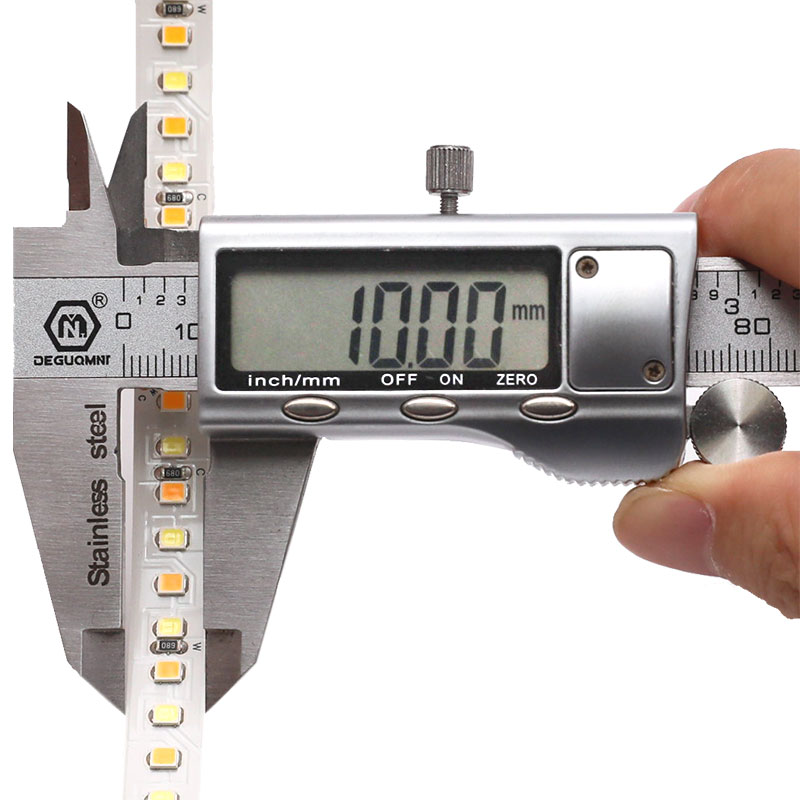

| Dimensions: | L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in ) |
| Input Voltage(V): | 24 VDC |
| Working Power: | 4.16A 100W /16.4ft Max |
| Warantty: | 3 years |
| Lamp Luminous Flux(lm): | 11~13lm/LEDs 10080Lumens/16.4ft, 615Lumens/Ft, 100.8Lumens/watt |
| CRI (Ra>): | 95 |
| Color Temperature CCT(White): | Warm White(2700-3500k), Daylight White(5000-6500k),Nature White(4000-5000k) |
| Beam Pattern: | 120 degree |
| Waterproof: | Non-waterproof; Waterproof IP65; Waterproof IP67; Waterproof IP68 Optional |
How to wire CCT tunable white LED strip lights?
►16.4/32.8 feet (5/10meter) Connection diagram
►65 feet (50meter) Connection diagram
