DC24V 3.6W Diameter 0.49feet 18LEDs UCS1903 Outdoor Waterproof External control Strobe Full Color Digital Programmable DMX Addressable LED Colorful Pixel Modules String
Related Products
DC24V 3.6W Diameter...
$17.00
DC5-24V SP108E WiFi LED...
$21.99
DC5-24V Multi-function...
$148.98
200W8.33A DC24V Constant...
$49.98
12/24VDC LED WiFi Music...
$20.00 $14.9825% off-
Special Price: $17.00

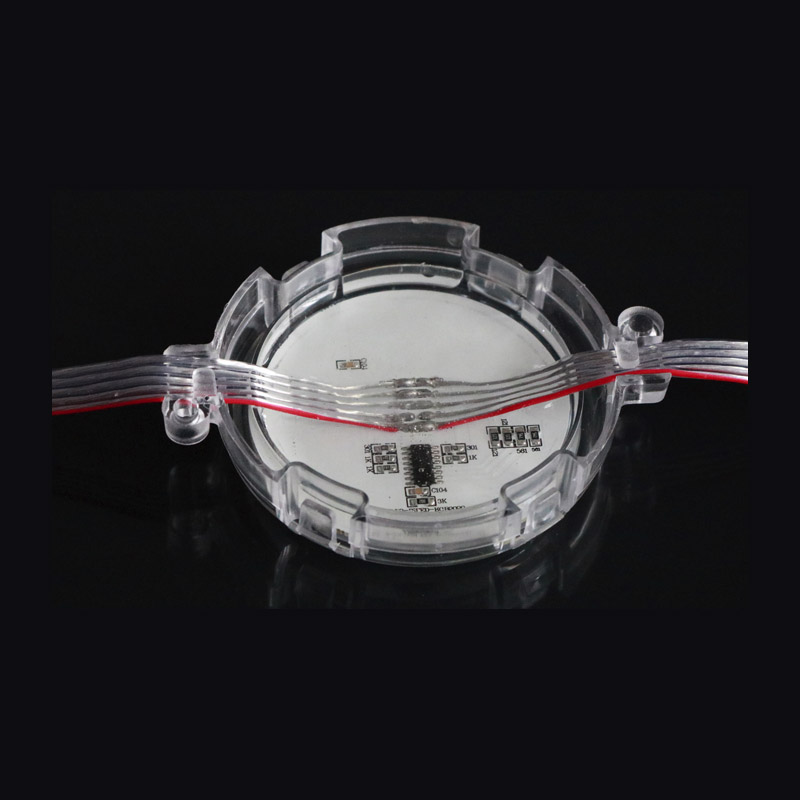

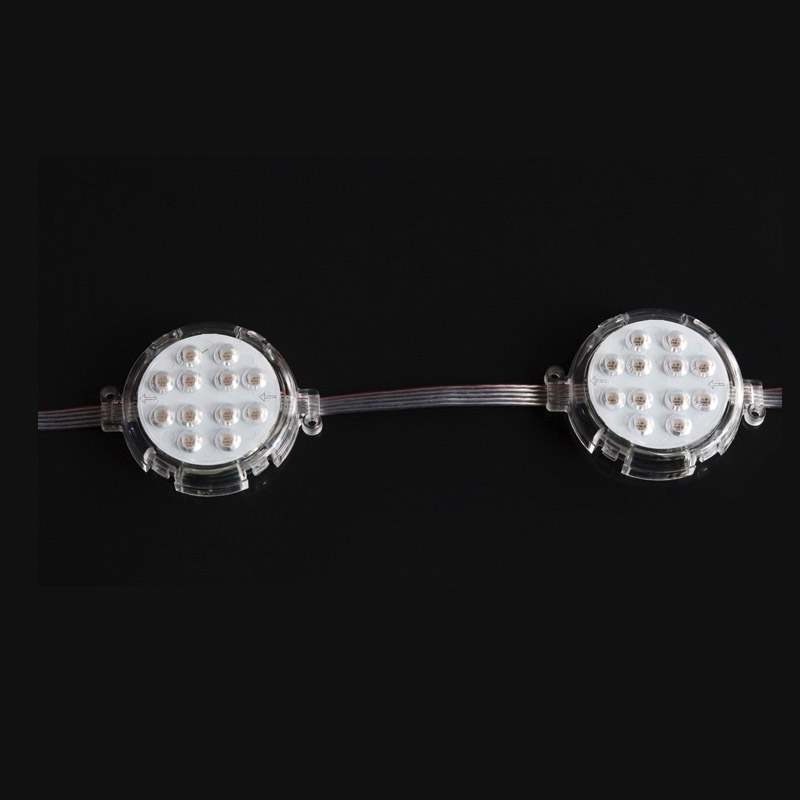

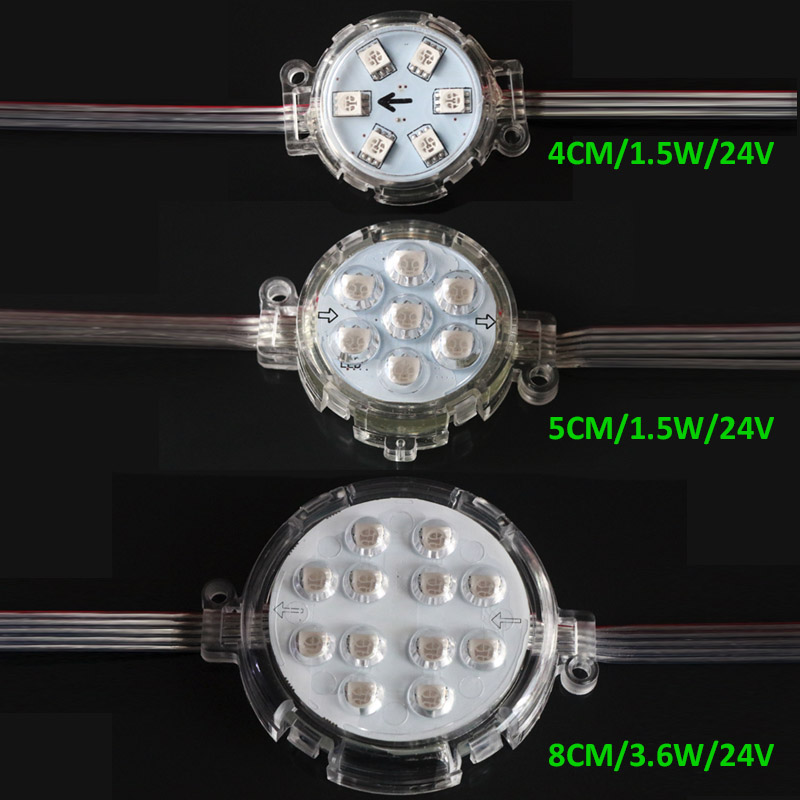

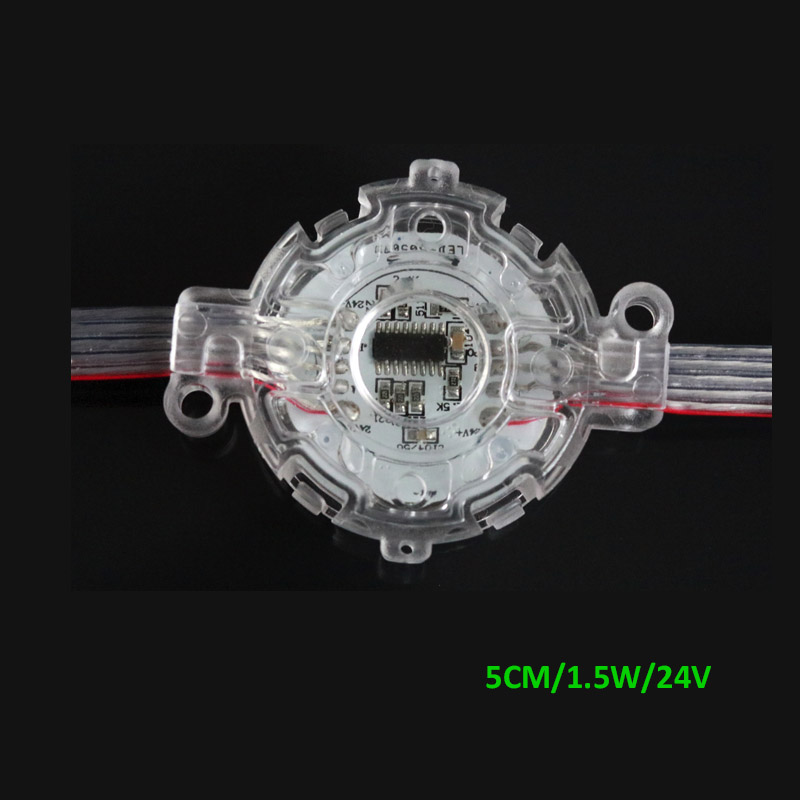

This is Full color 24V Super Bright High Efficiency SMD5050 USC1903 IC LED Pixel Modules. 12LEDs per piece, 3.6W per piece, 10pcs-40pcs per string. The default spacing of 3cm, 4cm, 5cm, 8cm diameter led modulars is 14.5cm/5.7", 14.5cm/5.7", 20cm/7.9", 20cm/7.9".

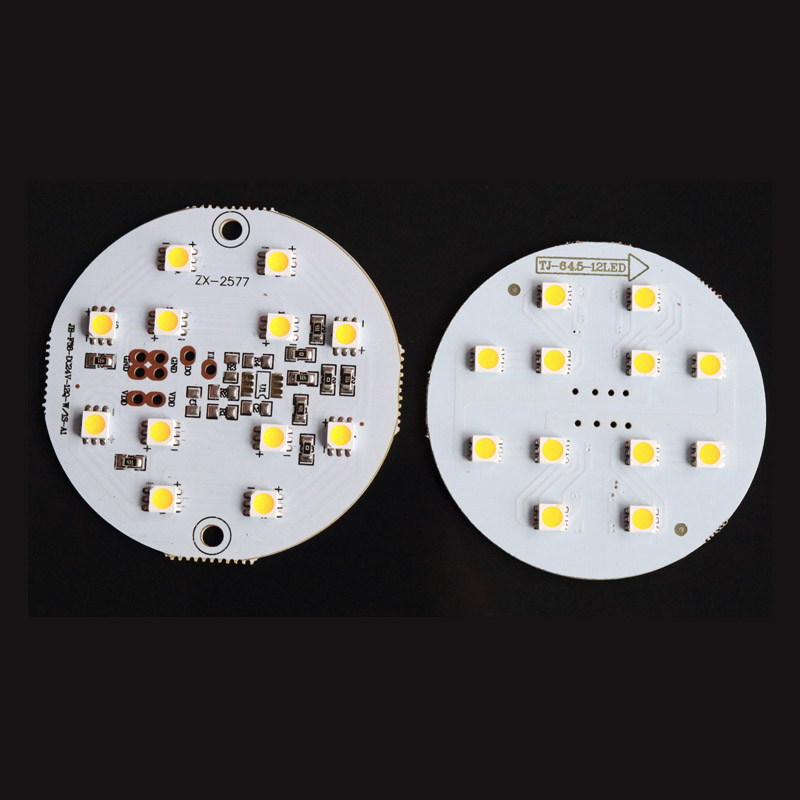

Our LED modules adopt TOP SMD5050 LED light source, these pixels use a USC1903/DMX512 chip for full 24 bit color, constant-current driven light spot, low light decrease, and good consistency. 160 degree wide viewing separable flexible strip to be bent into any shape. Narrow injection molded PVC design has two 4mm/0.15" mounting holes and with double sided adhesive foam tape for quick installation. 30pcs per string, single module can be cut, so you could cut a different length for your project and request. 20AWG 3pin cable, Red cable to connect 24v Positive / +, Green cable to connect Data Signal, Yellow cable to connect Clk Signal, Blue cable to connect 24v Negative /-, over-current capability, lower attenuation. The shell is made of injection molding process, aesthetic appearance, unique and excellent, aluminum PCB, good heat dissipation, heat dissipation. The LED strips Suitable for the commercial lighting as well as lighting professionals, Waterproof IP65, Suitable for both indoor & outdoor decorative application. 24VDC low voltage input operation, Low power consumption, high brightness, long lifespan, maintenance-free, safe and reliable. Quantity ordered will be wired together on a string with 30 modules maximum per strand.
Working with USC1903 full controller, can download the programs in SD card, control Max 8196 Pixel, It have single color running scene, Programmable controller . 24VDC power supply Link.
Standards and Certifications
Product Specification
LED Module Type: Full Color 5050 LED Pixel Module
IC type: USC1903(high mode)
LED quantity: SMD5050 12pcs
Working Temperature: -4°F (-20°C) ~ 149°F (65°C)
Package: 10pcs/string, one string
Lifespan: 50,000+hours
Standards And Certifications: CE/FCC/ISA Approved/ROHS
Red Wiring colors: 24v Positive / +
Green Wiring colors: Data Signal
Yellow Wiring colors: Clk Signal
Black Wiring colors: 24v Negative /-
Input Voltage(V): DC24V
Working Current: 150mA / piece
Output power: 3.6W / piece
Grey scale: 256 levels
Bit: 8
Wavelength: R 470 nm/G 520 nm/B 620 nm
Lumen: 24 Lumen
Warantty: 3 years
Beam Pattern: 160 degree
MCD Per Foot: 6500 mcd/ft
With Controller: Full Controller T-1000S/T-4000/T-8000
Available
-

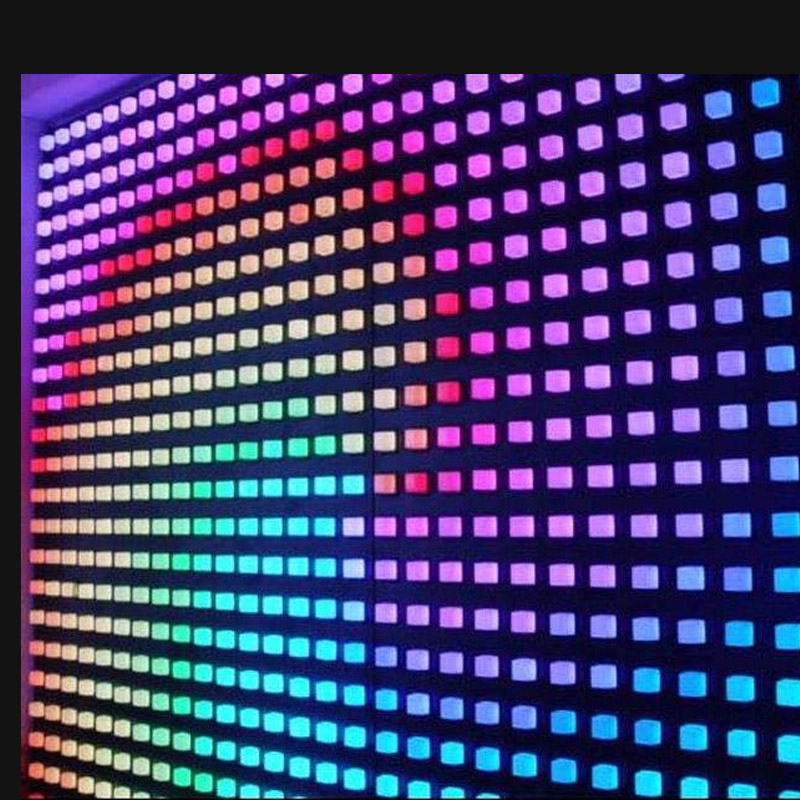

three-dimensional light-emitting word
-
Trademark lighting
-
Logo lighting
-
Channel letters lighting
-
Light boxes lighting
-
Landscape layout lighting
-
Stage decoration lighting
-
Sign cabinets
-
Channel lights
-
Cove LED lighting
-
Edge lit signs
-
Canopy illumination
-
Off grid lighting
