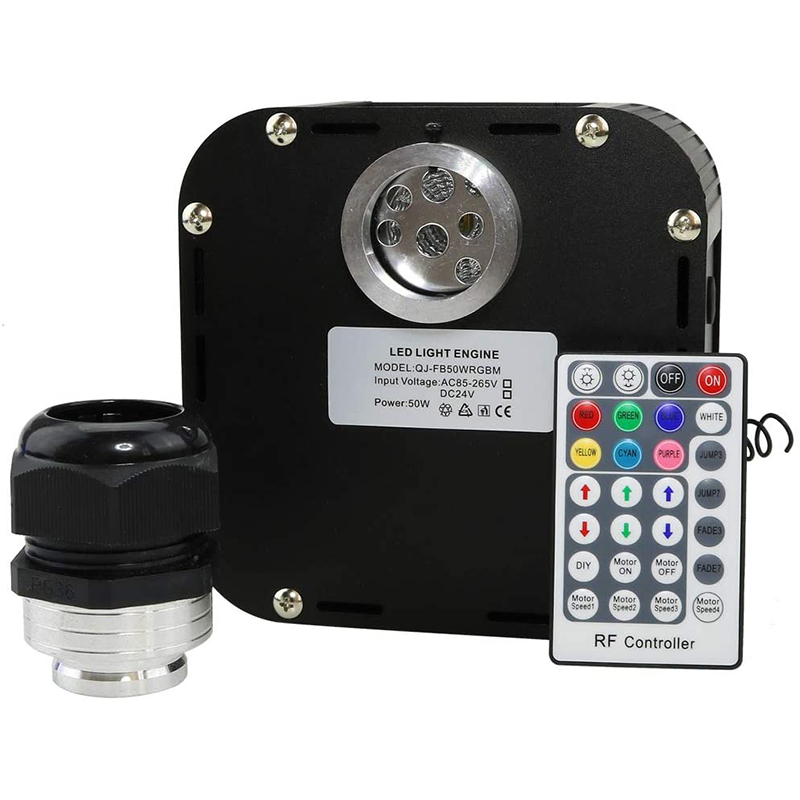

DC24V 50W Twinkle 4 Channels DMX RGBW LED Fibre Optic Light Engine With 28 Keys Remote Controller
Related Products
DC24V 50W Twinkle 4...
$123.99
1.5mm car decoration...
$8.98
0.75/1.0mm 2M PMMA high...
$39.99 +5pcs crystal PMMA Plastic Fiber Optic End Glow.jpg "2~4m*0.75/1.0/1.5mm*(15-250pcs) +5pcs crystal PMMA Plastic Fiber Optic End Glow")
2~4m*0.75/1.0/1.5mm*(15-25
$41.87
2/3 mm 5M Side Glow Car...
$19.98-
Special Price: $123.99

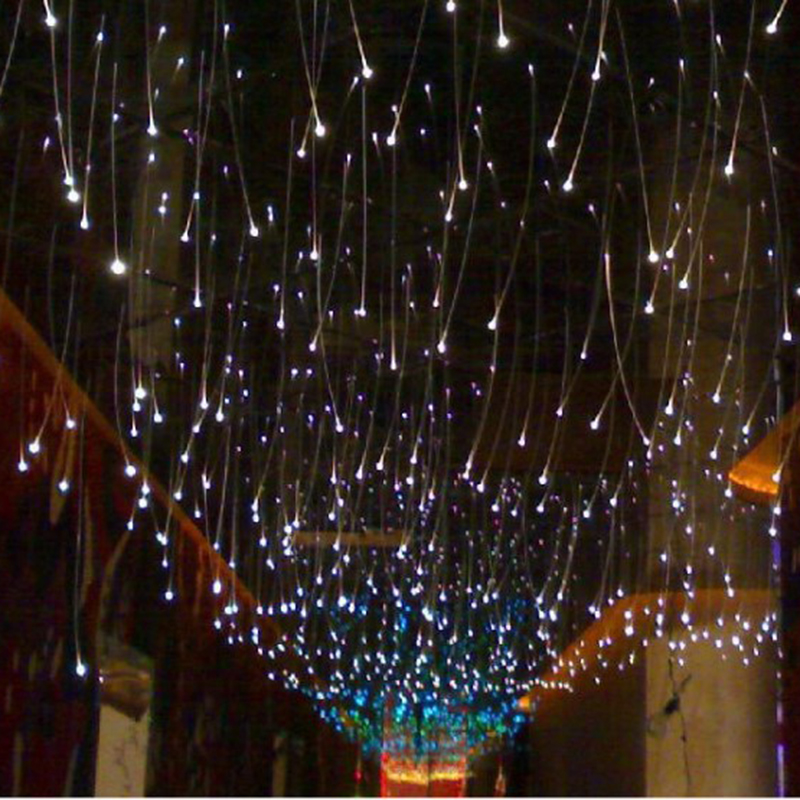

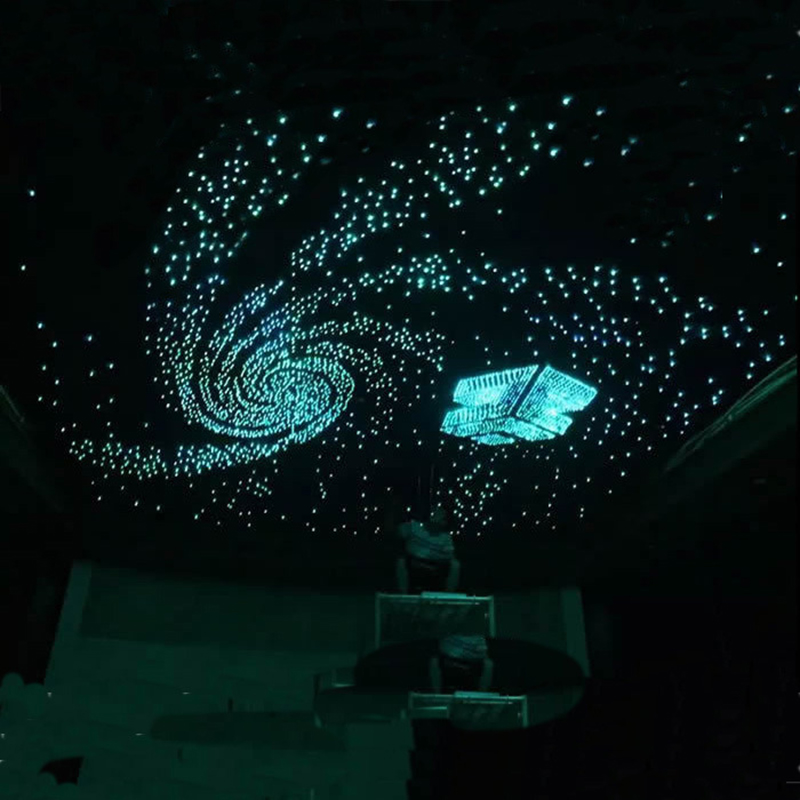

With the use of the twinkle light engine driver, various colours of starlight filled the sky in your house.
Light change mode: stati color (Mixd white,Pure white,Red,Green,Blue,Yellow,Ice blue,Pink+DIYcolor),jump,fade,Brightness control,mode speed

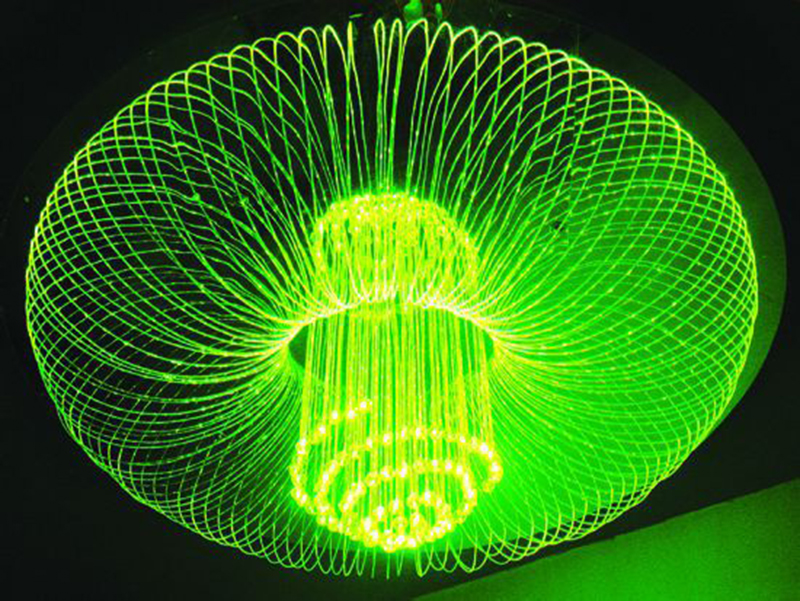

Application: Using RGBW four lamp beads, adjustable white light, the most suitable for the stars widely used to make curtain, screen, ceiling sky decoration. Pools, KTVs, Sauna, Sitting Room, Living Room, Bedroom, Kitchen, Dining Room, Home
This fiber optic transmitter does not contain any fiber optic cables, you need to buy fiber optic cables separately
RGBW-DMX-RF50W PDF Download
Technical Specification:
Work voltage: AC 110~265V 50/60Hz
Power: 50W
Light Color: RGBW (CREE chip)

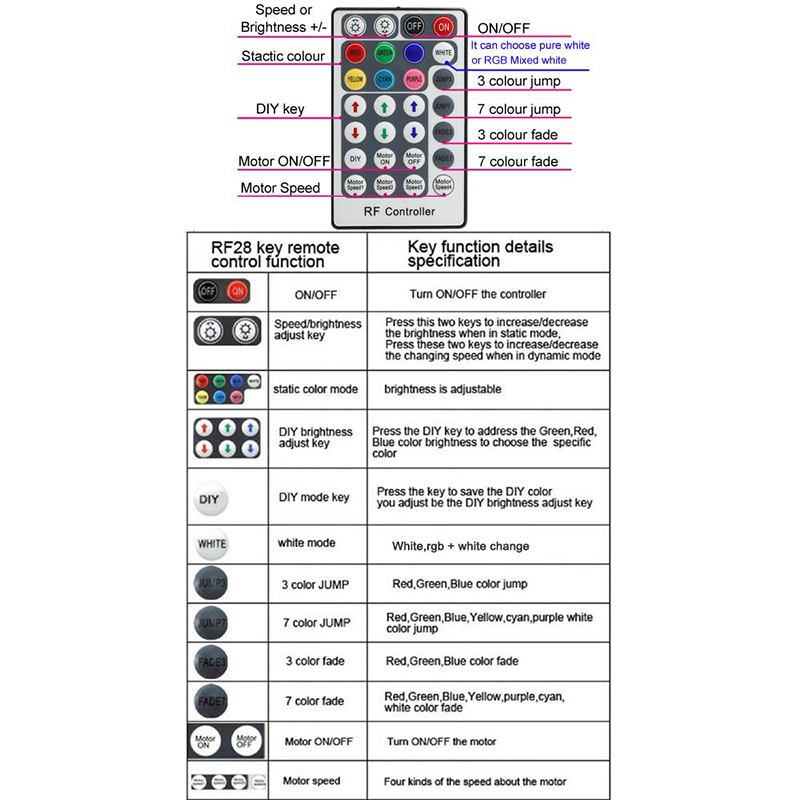

Remote type: 28 key RF remote
Shell material: Aluminum
Diameter of connector: 29mm
Output gray level: 256

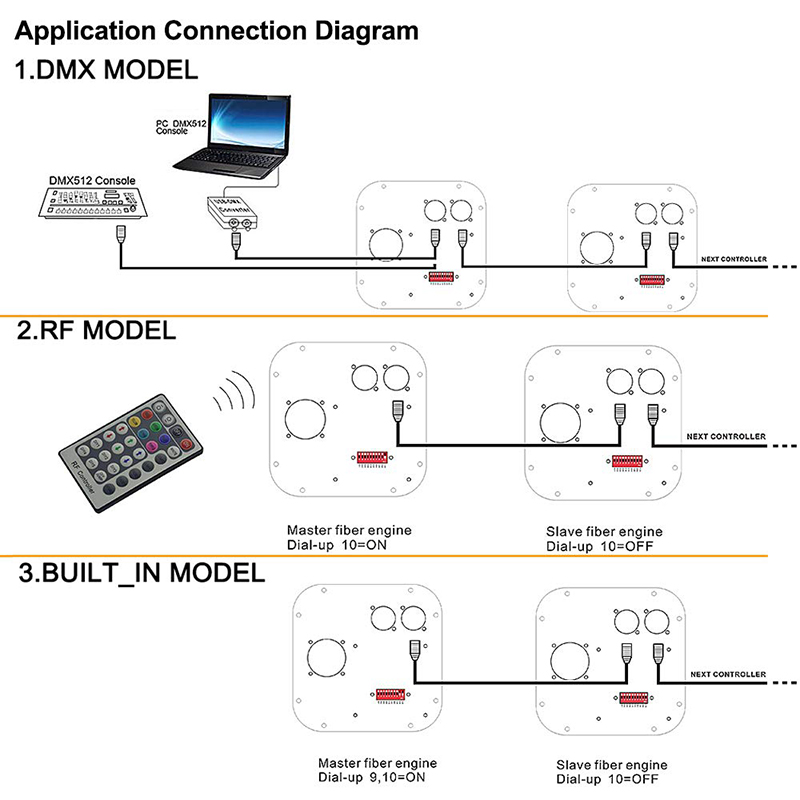

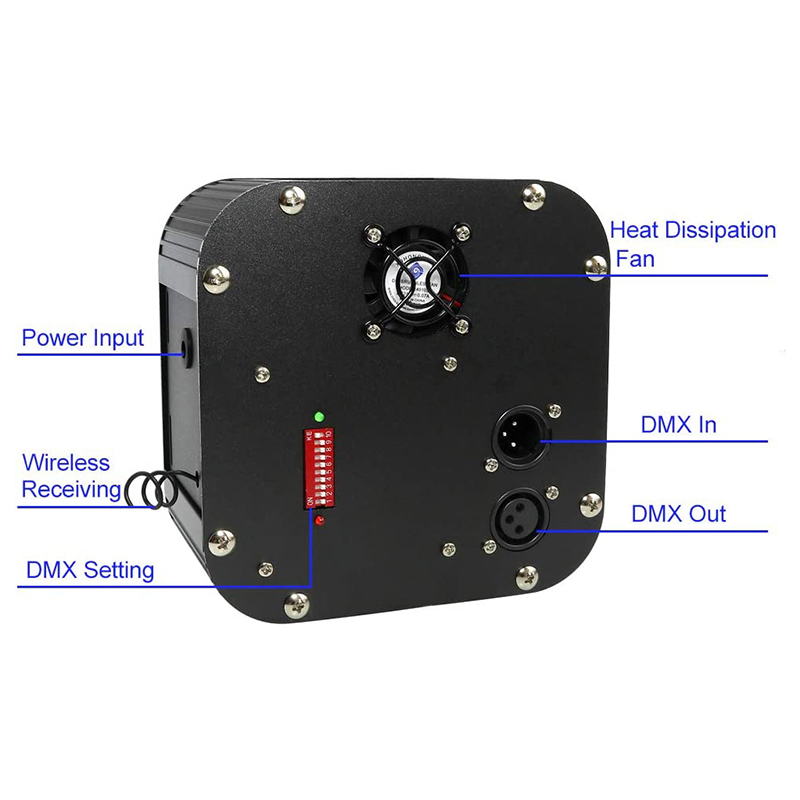

Input Signal: DMX512/1990
Output DMX : 4 channels( RGBW)
DMX512 socket standard XLR
Lifetime: Over 50,000 hours

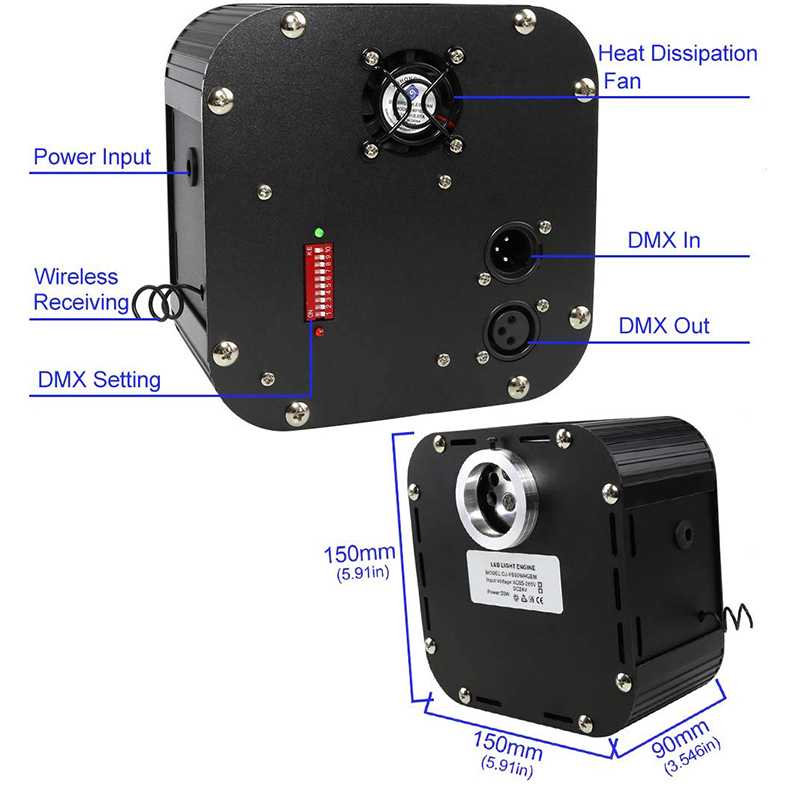

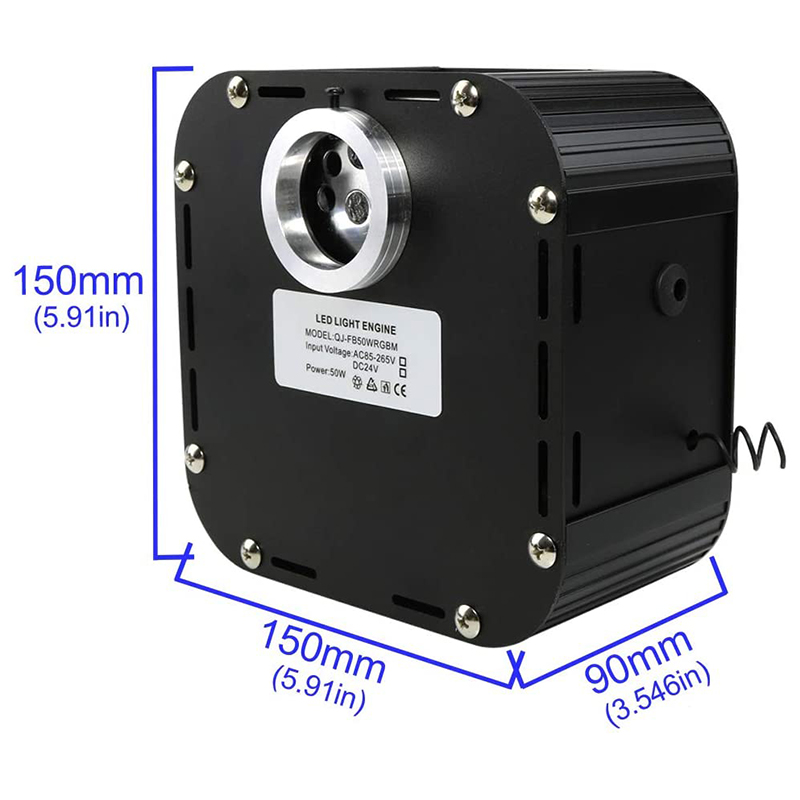

Light source device size: L150*W150*H90mm
Remoter dimension: L85*W52*H7mm

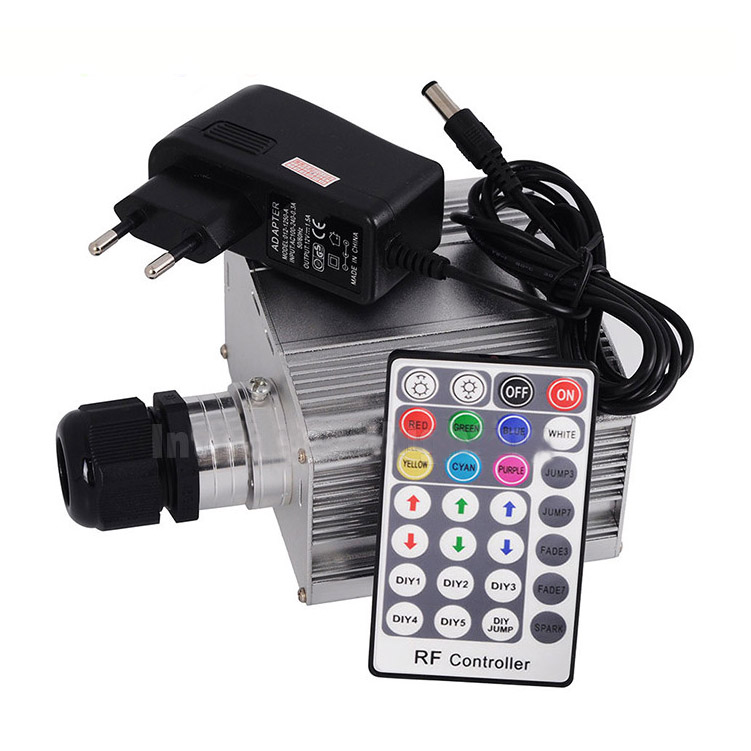

Package included:
1x 50w RGBW twinkle light engine ( Do not include fiber optic cables)
1x 28Key RF remote controller
1 x Adapter plug
1 x User Manual
Number of fiber optic cables that can be inserted:
0.75mm diameter: 1250 pcs max
1.0mm diameter: 700 pcs max
1.5mm diameter: 310 pcs max
