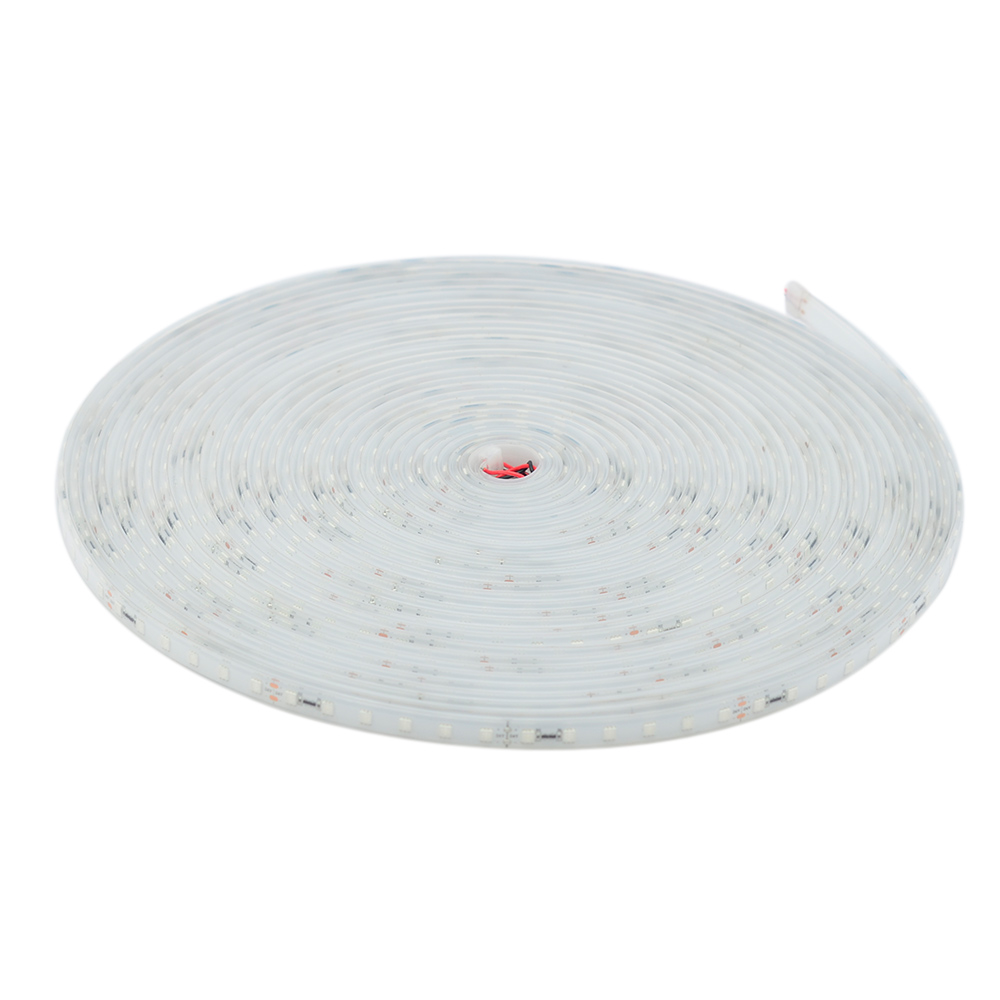

DC24V 65.6ft/20m 1200 High Brightest 5050SMD LEDs Blue Color Lights Waterproof IP68 Outdoor Single Row Flexible LED Tape Lights Apply For Swimming Pool

Model: FSLSR-IP68-5050X300-L20
DC24V 65.6ft/20m 1200 High Brightest 5050SMD LEDs Blue Color Lights Waterproof IP68 Outdoor Single Row Flexible LED Tape Lights Apply For Swimming Pool
  • DC24V 65.6ft/20m 1200 High Brightest 5050SMD LEDs Blue Color Lights Waterproof IP68 Outdoor Single Row Flexible LED Tape Lights Apply For Swimming Pool
  • DC24V 65.6ft/20m 1200 High Brightest 5050SMD LEDs Blue Color Lights Waterproof IP68 Outdoor Single Row Flexible LED Tape Lights Apply For Swimming Pool
  • DC24V 65.6ft/20m 1200 High Brightest 5050SMD LEDs Blue Color Lights Waterproof IP68 Outdoor Single Row Flexible LED Tape Lights Apply For Swimming Pool
  • DC24V 65.6ft/20m 1200 High Brightest 5050SMD LEDs Blue Color Lights Waterproof IP68 Outdoor Single Row Flexible LED Tape Lights Apply For Swimming Pool

Select Specifications:

Select Light Color :

Select Operating Voltage:

Select Waterproof Rating:

Starting at: $169.98

Free worldwide shipping on orders over $199

Various options in stock
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Universal Single row single color and RGB color changing super bright 5050 SMD(SMD:Surface Mounted Devices) Waterproof Optional Flexible LED Tape strips, Epistar chip, 1200LEDs/65.6ft, 65.6ft(20 meters) Per Reel By Sale.

    Our brightest Flexible LED Solid Color light Strips soft and easy bended for installation. Available in 20 meter (788 in) flexible light strips with adhesive backing and can be stuck just about anywhere (except IP67/IP68 type which will come with mounting brackets). can be cut into 3-LED segments, so you could cut a different length for your project and request. The LED strips Suitable for the average home lighting as well as lighting professionals. 24VDC operation.



    Standards and Certifications

    24VDC CE FCC UL RoHS ISA SGS ISO LIFETIME warranty


    Product Specification

    LED Strip Type:   SMD 5050  1200PCS/65.6ft

    LED Chip:   Epistar Chip

    Working Temperature:   -4°F (-20°C) ~ 122°F (50°C)

    Storage Temperature:   -40°F (-40°C) ~ 176°F (80°C)

    Light Color:   Blue

    Dimension:   65.6ft/roll, every 6 PCS LED can be cut

    LED Quantity:   60 LEDs per 1meter (3.28 ft)

    Lifespan:   50,000+hours

    Warantty:   3 years

    Dimensions:     L2000cm(788 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )

    Input Voltage(V):   24V DC

    Working Power:   24V  12A 288W Max

    Lamp Luminous Flux(lm):   24~26lm/LEDs    31200lm/65.6ft

    Color Temperature CCT(White):  Warm White(2800-3500k), Daylight White(5000-6500k), Cool White(7500-10000k)

    Wavelength NM(RGBY):   Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)

    Beam Pattern:   120 degree

    Water Proof:   Waterproof IP68

    CRI (Ra>):  95



    Color Temperature

    led strip color temperature and color compare



    Applications

    1. Back/task lighting

    2. Cove LED lighting

    3. Retail LED lighting

    4. Display case LED lighting

    5. Accent LED lights

    6. Under cabinet lighting



    Waterproof Level Description

    IP20 IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare , with self-adhesive back, For Indoor);

    IP65 IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin,PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);

    IP67 IP67 Waterproof (Silicon sleeve waterproof,PCB is encapsulated with silicon tube, with plastic fastener, better waterproof, For Outdoor);

    IP68 IP68 Waterproof (Fully waterproof plastic irrigation,PCB both surface and back are encapsulated with plastic Gel, with plastic fastener, top level of waterproof, For Outdoor);

    The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.



    Installation Instruction

    how to use led strip lights
