Special Price: $66.98

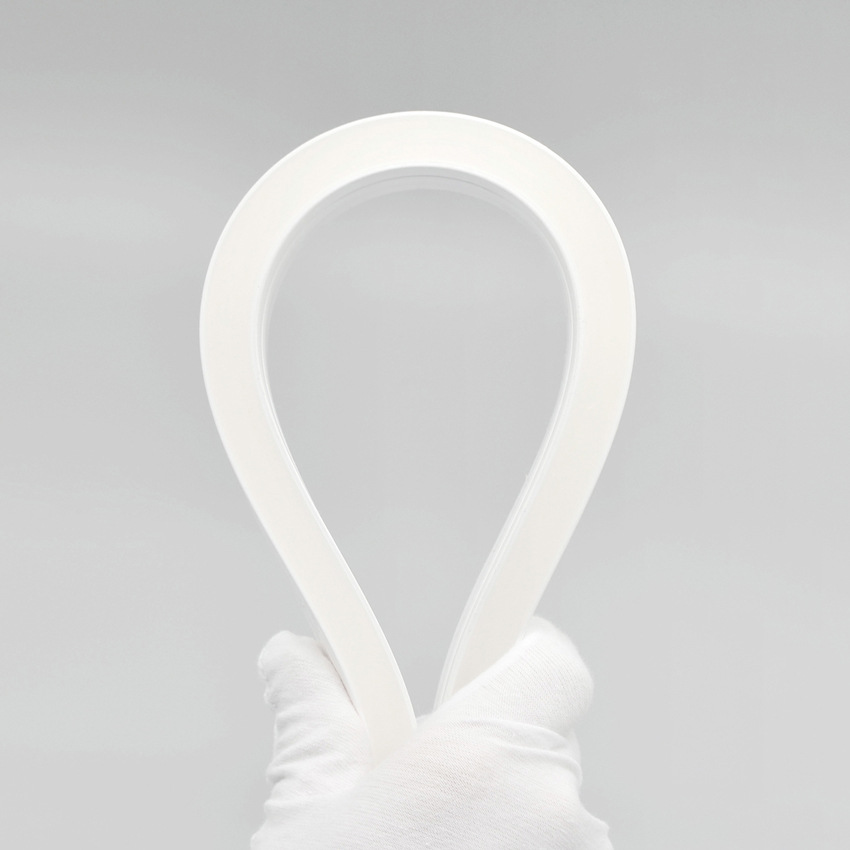

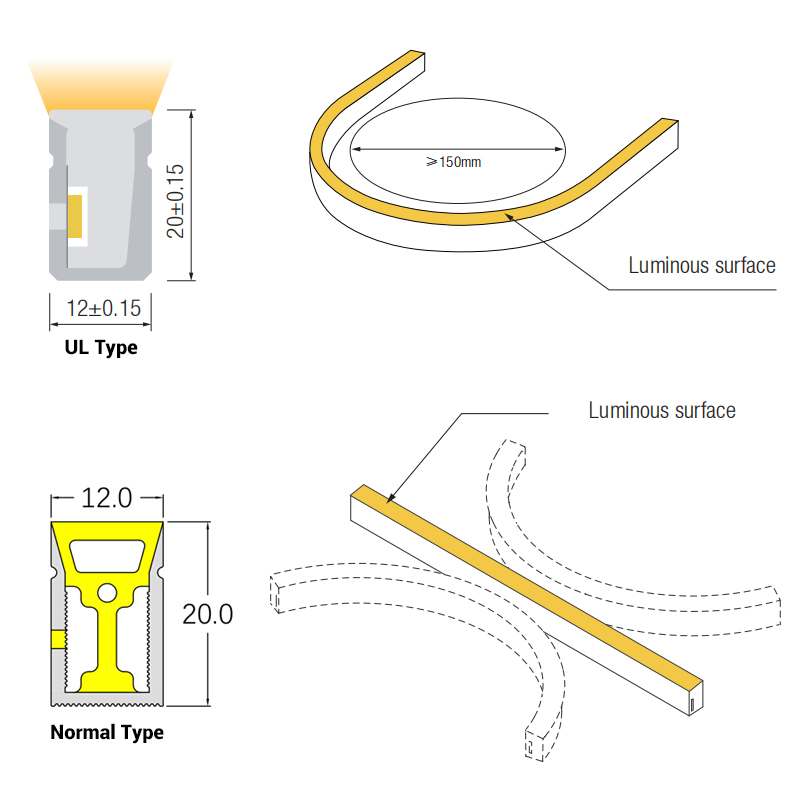

Here is the 12*20mm side-emitting led neon flex light strip with various light colors (single color, CCT, RGB, and RGBW), made of soft silicone material. The horizontal bending design allows this 1220 neon flex led strip to be installed along the edges or contour lines of objects in a curved manner to achieve a precise outline effect.
This type of flex neon lighting is suitable for a variety of scenes, such as building facades, signage, art installations, etc., and can create a unique visual effect and sense of space.
|
LED Neon Lighting Kit:
If you choose the LED controller in the kit, we will send you V1 + RT1 for single color LED strip light or V2+RT2 for CCT led strip light or VP+RT4 for RGB/RGBW led strip light.
If you choose the LED power supply in the kit, we will send you PSPS-24V-96W.
If you choose the LED strip + IP67(controller+power supply), we will send you a WL5-WP 5in1 led controller for single color/CCT/RGB/RGBW/RGBCCT led strip light and PSWP-24V-100W ( including an AC plug) waterproof led power supply.
Standards and Certifications
| LED Product Type: | 12*20mm Dimmable LED Neon Flex Light Strip |
| Light Source: | 2835SMD LED for single color and CCT, 5050 for RGB and RGBW |
| Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
| Storage Temperature: | -40°F (-40°C) ~ 176°F (80°C) |
| Light Colors: | 2700K/3000K warm white, 4000K natural white, 6000K daylight white, red, green, blue, pink, yellow, CCT, multi color RGB, RGBW |

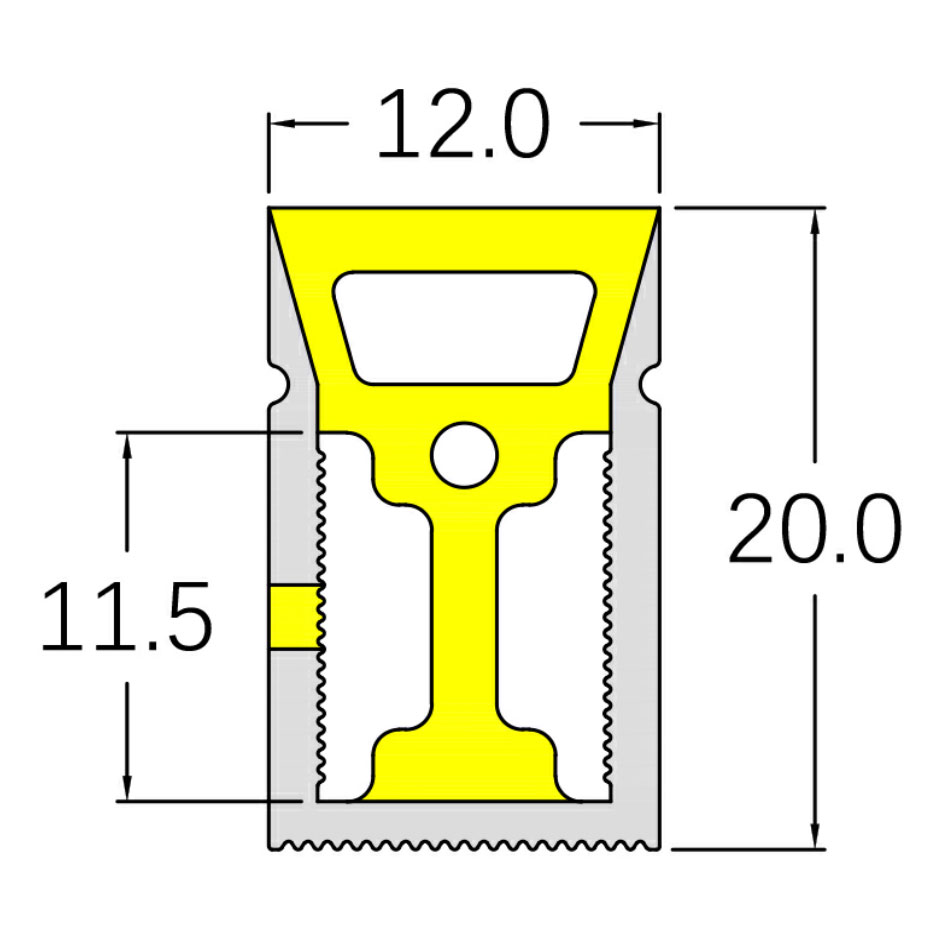

| Size: | 5000*12*20mm |
| LED Quantity: |
120 LEDs per meter, 37LEDs/Ft(single color and CCT, RGB); 96 LEDs per meter, 29LEDs/Ft(RGBW) |
| Lifespan: | 30,000+hours |
| Luminous Way: | Side emitting |
| Input Voltage(V): | 24 VDC |
| Working Power: | 15W/m, 75W /16.4ft Max |
| Material: | Food grade silicone |
| Waterproof Rating: | Waterproof IP67 |
| CRI(Ra>): | 95 (White/CCT) |
| Beam Pattern: | 120 degree |
| Lumen: |
12lm/LED - 439lm/ft for single color and cct, 20lm/LED for RGB and RGBW |
How To Install LED Neon Lights?
1. Cut and install led neon sign light:

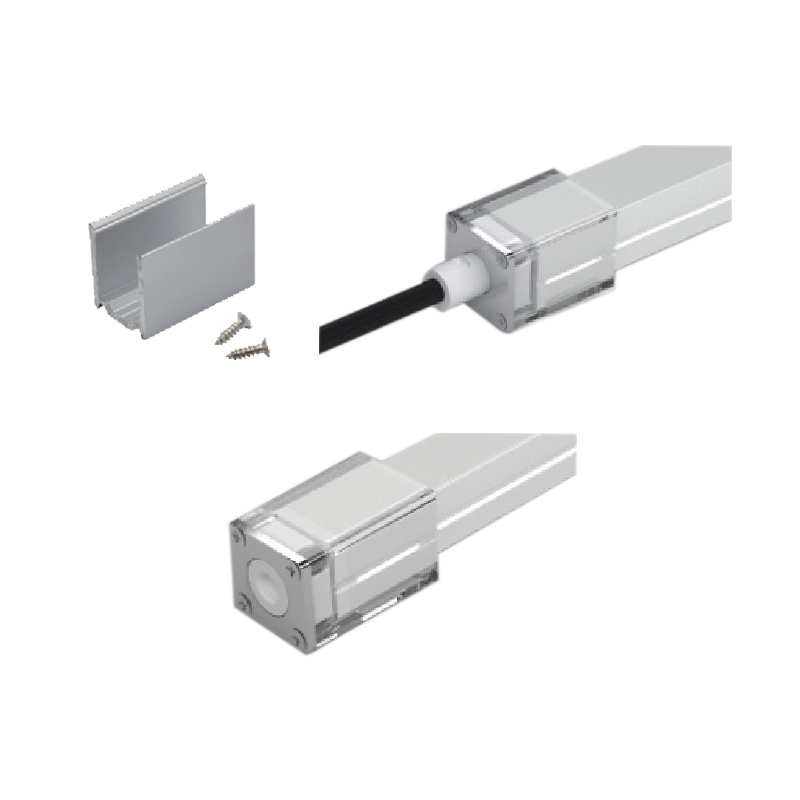

There are three installation methods for the led neon strip lights. One is to install with mounting clips (not included). The second is to put the flex led neon tube light into the aluminum channel for linear lighting projects. And the third is to use flexible profiles for curved path lighting, which has great bending freedom.
3. How to Repair LED Neon Strip Lights?
a. Single color LED neon light wiring diagram:
b. CCT adjustable white neon light wiring diagram:
c. Multi-color RGB neon lights wiring diagram:
d. Color changing RGBW neon light wiring diagram:
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
