Special Price: $26.98

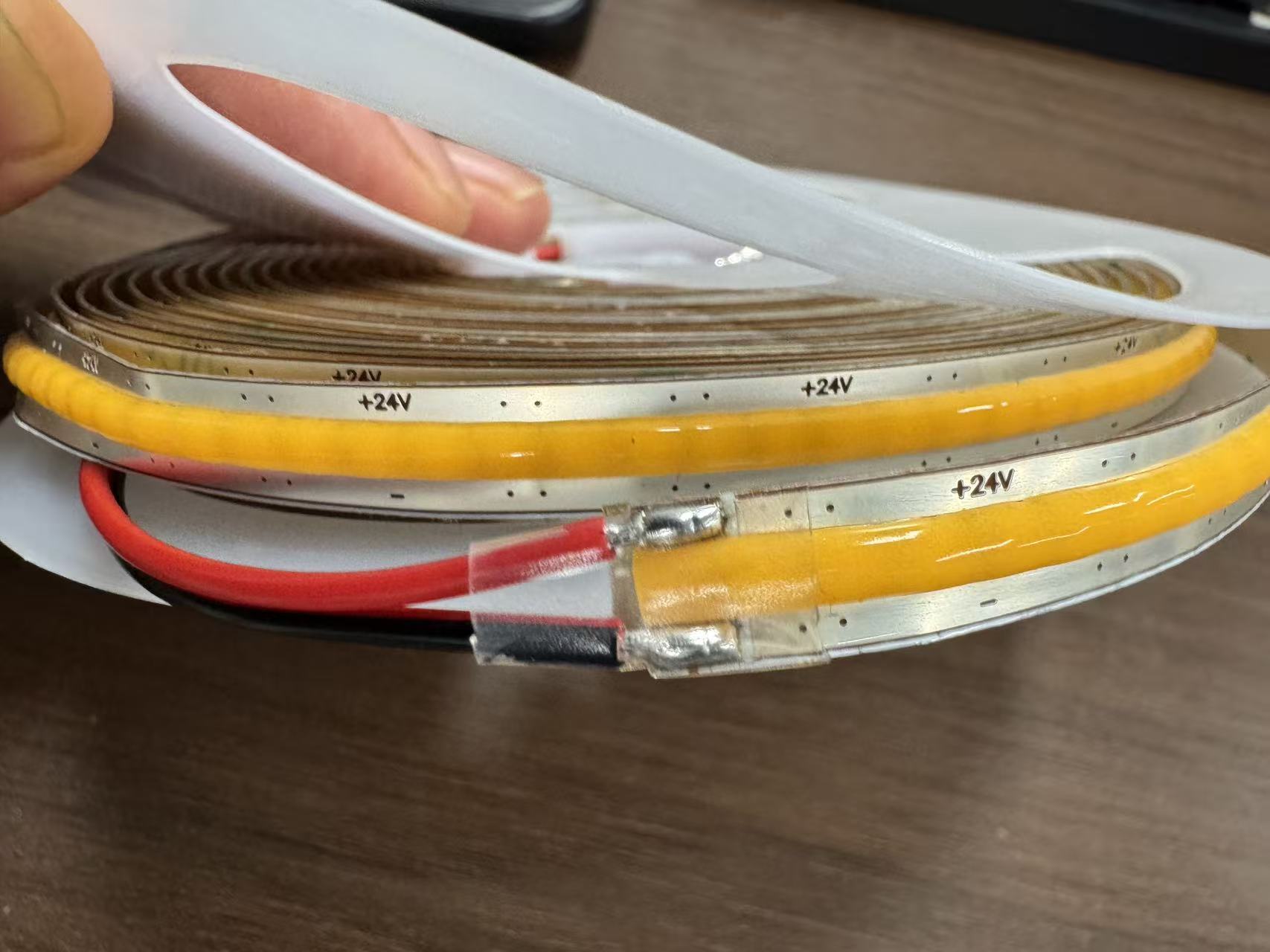

Newest arbitrary cut to length LED light strip. Cut it anywhere you like with scissors to customize a precise strip length. Featuring immersion tin PCB, this special LED tape is less prone to oxidation and easier to solder than traditional copper PIN points.
Our super bright white LED strip, measured 500-700 lumens per meter, has 528 chips per meter, 2640 chips in one roll. (5m/16.4ft) Using a compatible dimmer, the brightness is freely adjustable. In addition, COB technology ensures excellent luminous effect. No light spots to the naked eye, eliminating the need for extra diffusers. However, to help dissipate heat and provide additional physical protection for strip tape, you can consider an aluminum channel.
Adjustable length LED strip lights are flexible and foldable. Designed with a modified version of stronger adhesive backing, our dimmable white LED strip lights are more durable and long-lasting. Both sides have red and black wires for easy connection to the 24V power transformer.
To conclude, combining unique features of free-cutting, easy-soldering, bright and seamless illumination, and stronger adhesive backing, this fresh chip on board LED strip is worth trying.
Tips on how to cut COB LED strip: anywhere can be cut.
Features
1.Free cut COB LED strip lights, perfect for precise strip length customization.
2.Immersion tin PCB, less prone to oxidation, easy to solder.
3.Operate under 12V/ 24V low voltage, safe to use.
4.Bright illumination, dimmable with a dimmer, no spots to the naked eye.
5.Available in 2700K, 3000K warm white, 4000K natural white, 6500K daylight white.
6.Stronger adhesive backing for long-lasting installation.
7.Flexible and bendable to form irregular shapes.
If you choose the COB led strip light kit, you will receive a 5m/16.4ft slim COB led strip, a SP530E single color controller, and a LRS-75-24 power supply with an AC plug.
Cut to Length LED Light Strip Specifications
Standards and Certifications
Product Specification
|
LED Strip Type:
|
Newest Arbitrary Cut to Length LED Light Strip with Immersion Tin PCB
|
| Adhesive Backing: | Yes |
| Input Voltage: | DC 12V/ 24V |
| PCB Width: | 8mm / 0.31in |
| Power: | 9.2W/m, 46W/16.4ft |
| LED Color: | Dimmable White (2700K/3000K/4000K/6500K) |
| LED Quantity: | 528 LEDs/m, 2640 LEDs per roll |
| PCB: | Immersion Tin PCB (Easy to Solder) |
| Cut: | Free Cut |
| Beam Angle: | 180° |
| CRI: | Ra＞90 |
| Length: | 5m/16.4ft |
|
Waterproof Rating:
|
IP20 Non-waterproof, IP67 Outdoor Waterproof, IP68 Underwater Use
|
| Lumen: | 500-700 lm/ m |
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
