Special Price: $80.00 $64.9819% off
This RGBW long led light strip is designed with constant current IC, the current passing through each LED is the same, ensuring that the LEDs have the same brightness no matter how long the light strip runs, and it is the first choice for long-distance LED projects. Only one power supply is injected at one end, saving extra cost due to voltage drop. RGB color changing lights and white lights mix to produce a wide variety of colors, suitable for mood lighting and task lighting. Use the RGBW controller to change the light color, LED brightness, and mode.
|
1. RGBW color mode, RGB+3000K warm white or RGB+6000K daylight white 2. DC24V drive, 6-LED segments can be cut, 3. Constant current IC design, no voltage drop 4. 5 meters, 10 meters, 15 meters, 20 meters length optional 5. Provide IP20, IP65, IP67, and IP68 waterproof grades to suit indoor and outdoor lighting |
LED RGBW Lighting Kit:
If you purchase the WIFI LED controller in the kit, we will send you the YL5/WL5 LED controller (support APP/Amazon Alexa/Google Assistant directly)
If you want to control it by the remote controller, you can purchase an extra LED remote controller, please visit our milight LED remote controller series
If you purchase the LED power supply in the kit, we will send you the LRS-350-24 LED power supply, we will send you an extra AC plug, you will get a plug and play LED strip light kit.
Product Specification Download
Standards and Certifications
Product Specification
| LED Strip Type: | 5050SMD Constant Current RGBW LED Strip |
| LED Chip: | Epistar Chip |
| Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
| Storage Temperature: | -40°F (-40°C) ~ 176°F (80°C) |
| Light Color: | RGB+W3000K, RGB+W6000K |
| Dimension: | 16.4ft/roll, every 6 PCS LED can be cut |
| LED Quantity: | 60 LEDs per meter (3.28 ft) |
| Lifespan: | 50,000+hours |

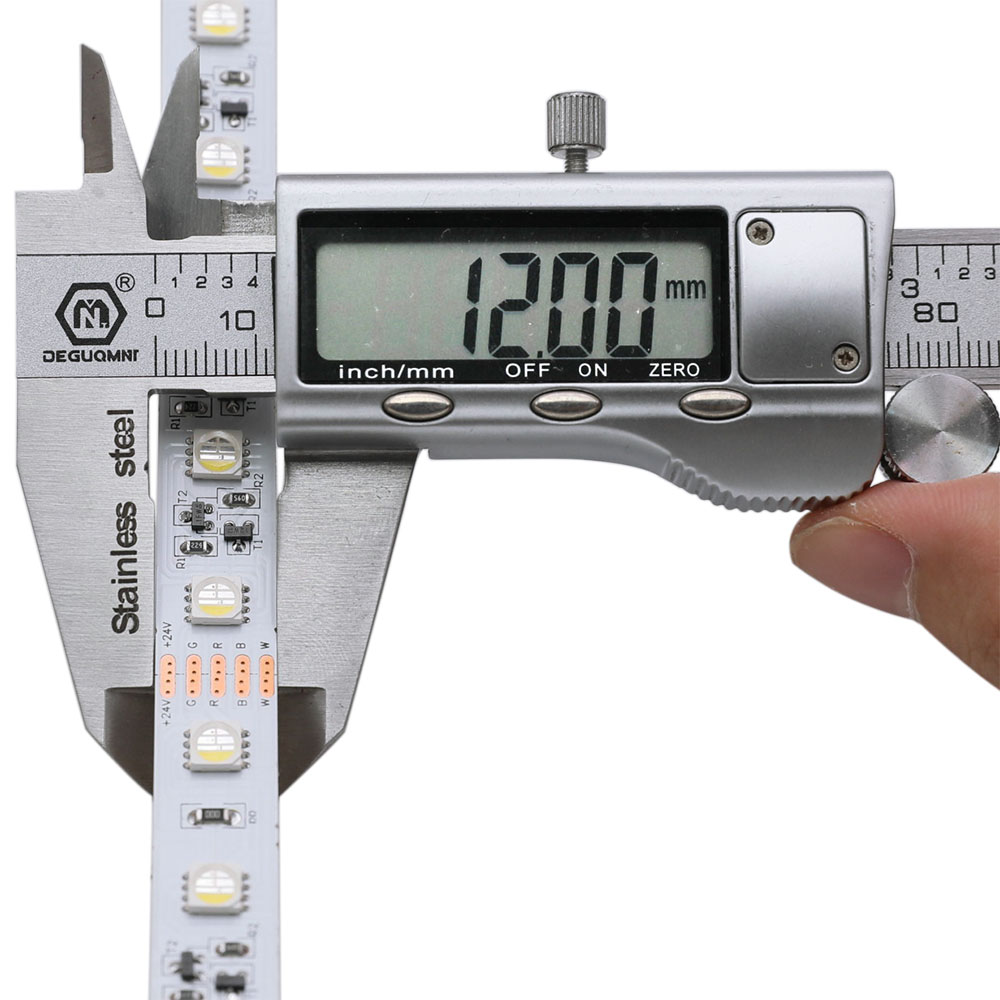

| Dimensions: | L500cm(196.8 in ) x W1.2cm(0.47 in ) x H0.30cm(0.12 in ) |
| Input Voltage(V): | 24 VDC |
| Working Power: | 55W /16.4ft Max |
| Lamp Luminous Flux(lm): | 18lm/LED 54000 lm/16.4ft |
| Wavelength NM(RGBY): | Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm) |
| Beam Pattern: | 120 degree |
| Waterproof: | Non-waterproof IP20, waterproof IP65 IP67 IP68 |
| By : Timothy Davis Date Added: 11/19/2023 | |
| Installed in tray ceiling in our living room. Looks and work great, get compliments from everyone who sees it. | |
Rating:
|
|
| By : Kevin Robinson Date Added: 04/29/2020 | |
| Bought as an under cabinet light for the kitchen. They work exceptionally well and are a good value so far. I have mine co trolled via a phone app (the one noted in the description) or via my Alexa. My only complaint is the adhesive doesn’t hold as well as I would like. It serves well for initial mounting/placement. I used IP65 waterproof, However, I strongly suggest purchasing mounting clips to ensure your final placement remains as intended. | |
Rating:
|
|
| By : Rachelle Schrag Date Added: 02/08/2020 | |
| Easiest thing to install. Just peel and it sticks. 49ft no voltage drop, The quality of these lights is amazing. WL5 Alexa Voice control feature makes this set a perfect set. It is a lot better than the rest of my other set. I am thinking purchasing a couple more to install in my living room. | |
| Rating:
|
|
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
