Special Price: $37.98

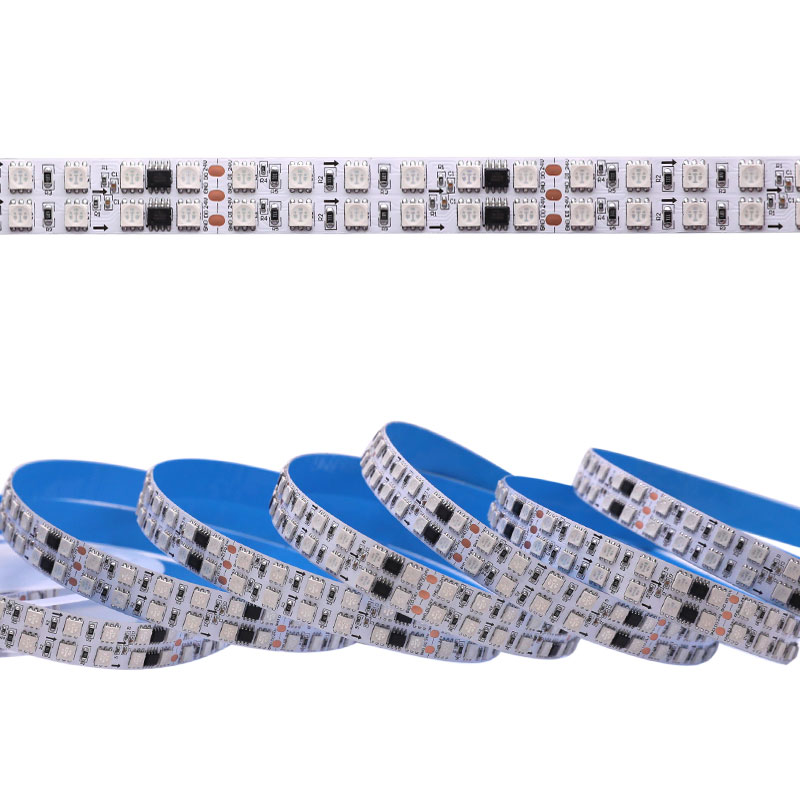

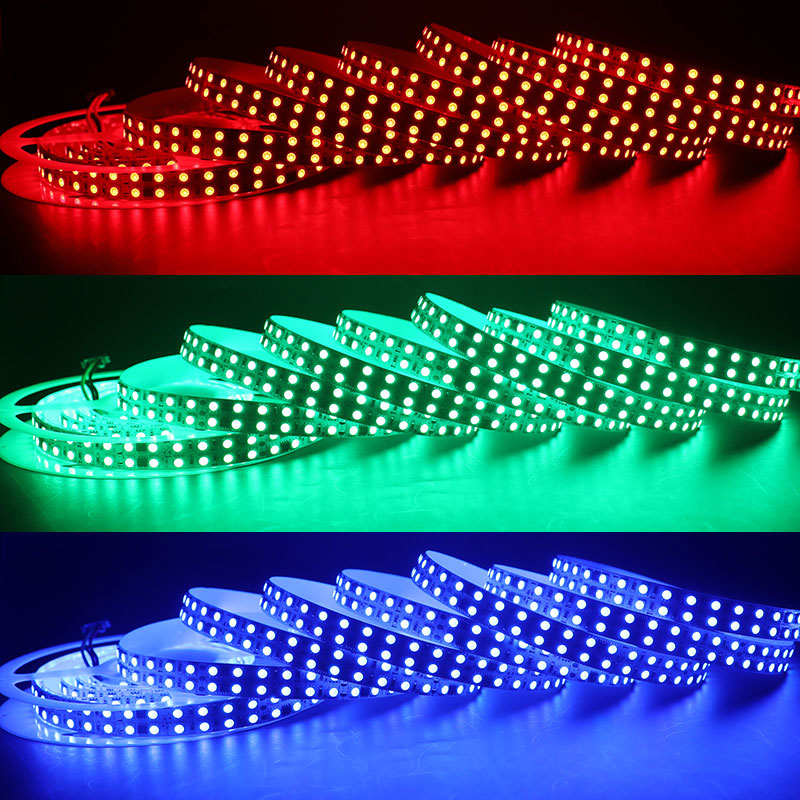

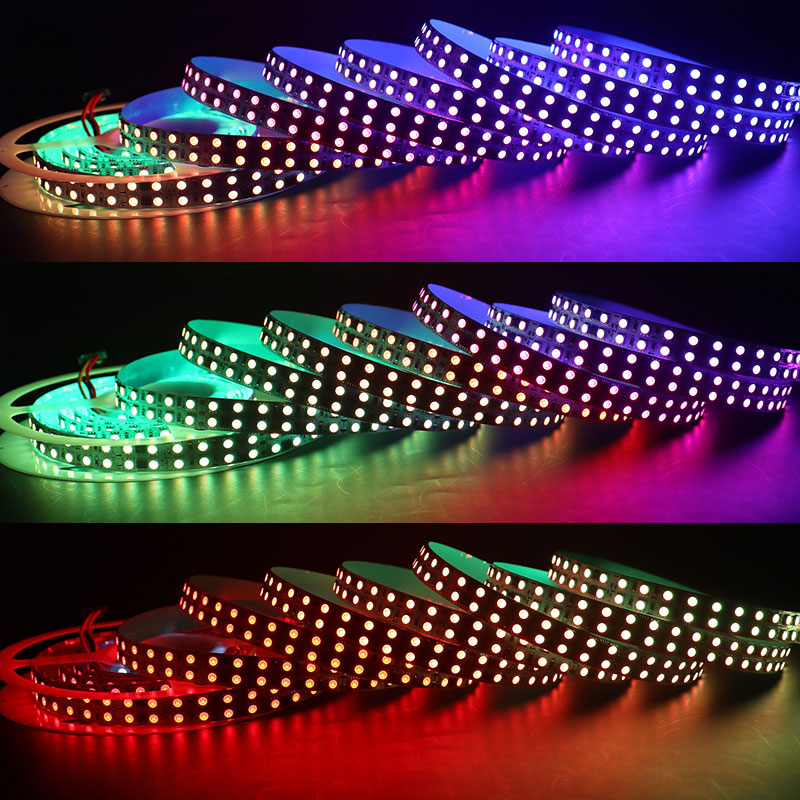

Two rows of SMD5050 RGB LED lights makes this addressabled led strip brighter than single row led strip lights. With a microcontroller, it can display RGB colors and dynamic effects.
This WS2811 led strip can be thought the double rows of DCFLS-24V-WS2811X420. Every 12-LED as a segment, each segment can be different color. You can set the color through a SPI controller (for commom/DIY lighting projects, display the color modes in the controller) or DMX controller (for large comercial lighting projects, program color modes freely). Bluetooth, WiFi, RF controllers are available to remote control the pixel lights.

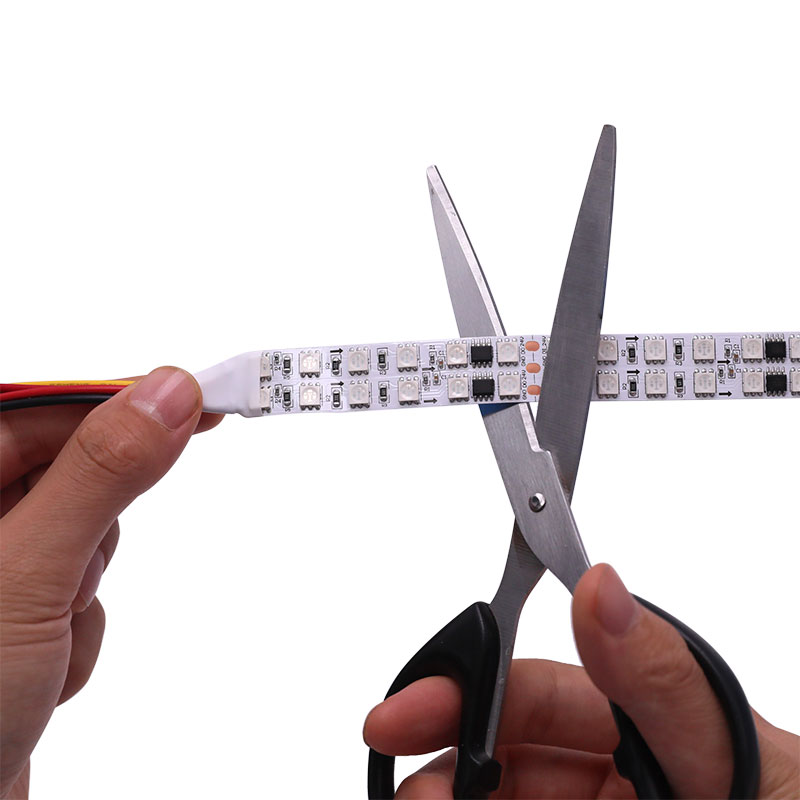

During led strip lights installation, you can cut and reconnect it to suit your needs. The addressable RGB led strip comes with JST connector at both ends, easy to operate. (Wattage capacity of controller/power supply > 1.2*led strip watts. )
There is no voltage drop when power the 5m strip light at one end. High color consistency.
Addressable RGB led strip lights are common holiday/atmosphere decorations that outline the eaves of your house or yard landscape, bringing you a fantastic view at night.
LED channel and silicone neon diffuser (IP67 waterpoof when sealed) are available to create a clean and tidy indoor or outdoor lighting look.
WS2811 Chips Specifications Download
Standards and Certifications
Product Specification
| Light Strip Type: | Double Row Addressable RGB LED Strip |
| LED Chip: | SMD5050 + WS2811 IC |
| Input Voltage: | DC24V |
| Power: | 20W/m max, 100W/16.4ft |
| Working Temperature: | -20℃~+45℃ |
| Storage Temperature: | -20℃~+60℃ |
| LED Color: | RGB Dream Color |

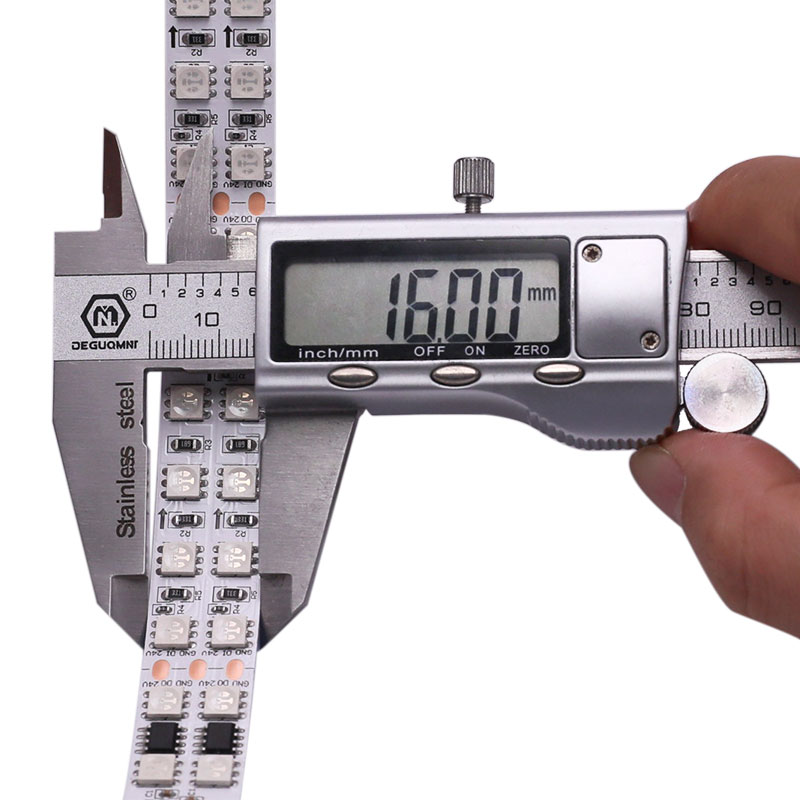

| PCB Width: | 16mm |
| LED Quantity: | 168 LEDs/m, 840 LEDs per roll |
| IC Quantity: | 14 ICs/m, 70 ICs per roll |

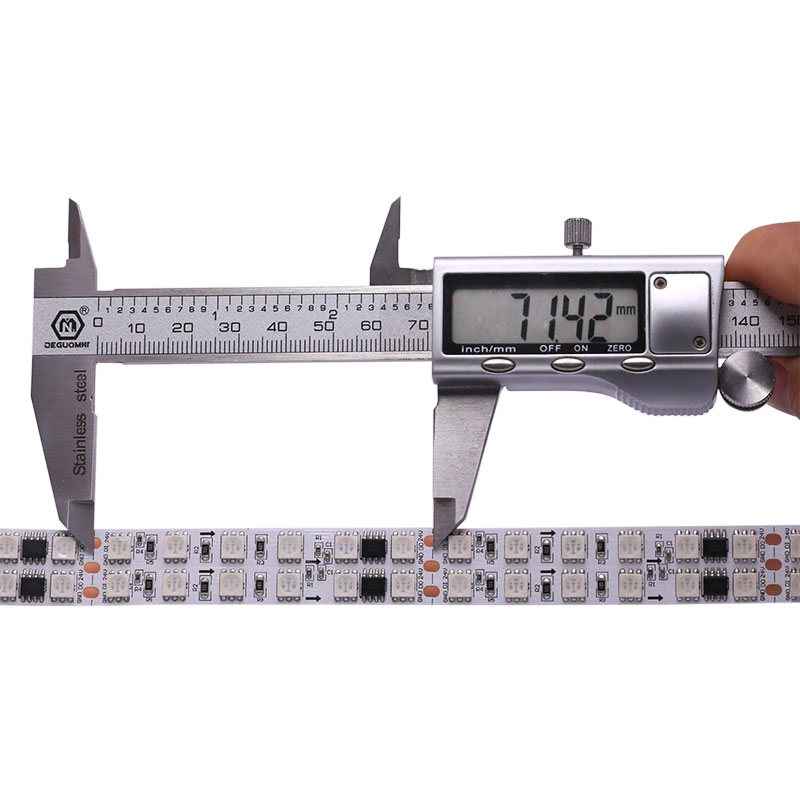

| Cut Unit: | 71.4mm - 12-LED can be cut |
| Waterproof Rating: | Non-waterproof IP20, Outdoor Waterproof IP67 |
| Strip Length: | 5m/16.4ft |
| Beam Angle: | 120° |
| Lifespan: | 50,000+hours |
How to wire 3-pin addressable RGB LED strip lights?
Wire the 24V dual row addressable RGB led strip lights like the following wiring diagram. For more information, please read here.
