DC5/12/24V, High Quality 256 Gradations of Controlling DMX512 8806 Controller SPI Signal Decoder for Programmable IC LED Light Strips
Related Products
DC5/12/24V, High Quality...
$49.98
4-Pin 20AWG/4*0.5mm RGB...
$2.19
LED Guardrail Tube Light...
$14.99
360W DC5/12/24V Rainproof...
$69.98
120W5A DC24V Constant...
$39.98-
Special Price: $49.98

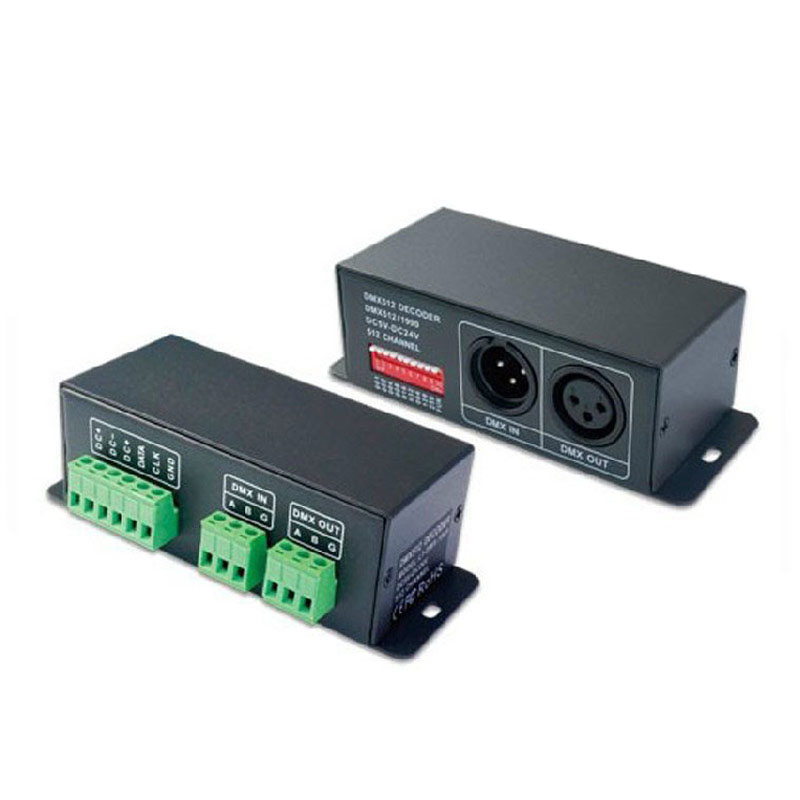

Universal DMX-SPI signal decoder LT-DMX-1809 is to convert the DMX512 digital signal into SPI(TTL) digital signal. It can work on the DMX console to control the LED lights with compatible driving ICs. DMX console can control every channel of the LED Lights, realizing 0-100% dimming and various changing effect.
Our DMX decoder can control LED lights based on following driving ICs: LPD1101, D705, UCS6909, UCS6912, LPD8803, TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, TLS3001, TLS3002, WS2803, WS2811, P9813 IC etc.
The grey scales of DMX decoder depends on the driving IC, the above driving ICs are with a built-in grey scale processor and occupy 70-80% of LED digital lighting market, use our DMX-SPI decoder can simply turn normal LED digital light to DMX512 LED light with international standard communication protocol, which is easy to promote in the international market.
DMX-SPI decoders are widely used in the LED string light, LED dot light, SMD flexible strip, LED digital tube, wall light, pixel screen, high power spot light, wall washer and kinds of LED digital lights.
Standards and Certifications
Product Specification
Input voltage: (5V - 24V DC, depending on the LED used)
Input signal: DMX512
Output: SPI (Compatible with LPD8803 / 8806 LED driver IC)
Decoding channels: 512 channels / unit
LED brightness levels: 256 (8bit / CH)
DMX512 Connection: XLR-3, Green Terminal
Size: 125mm x 52mm x 40mm
Weight: 300g
Operating temperature: -30 - 65 degrees
Specification Instructions Download
Attention
-
The product shall be installed and serviced by a qualified person.
-
This product is non-waterproof. Please avoid the sun and rain. When installed outdoors please ensure it is mounted in a water proof enclosure.
-
Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
-
Please check if the output voltage of any LED power supplies used comply with the working voltage of the product.
-
Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current. Please also ensure that the cable is secured tightly in the connector.
-
Ensure all wire connections and polarities are correct before applying power to avoid any damages to the LED lights.
-
If a fault occurs please return the product to your supplier. Do not attempt to fix this product by yourself.

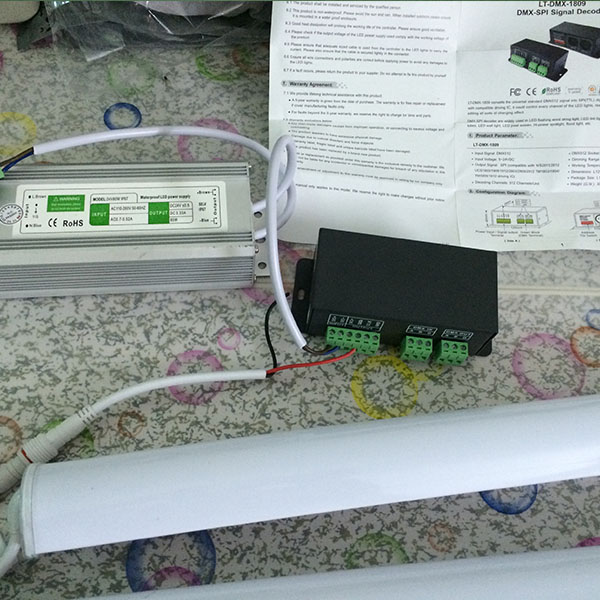

Configuration Diagram

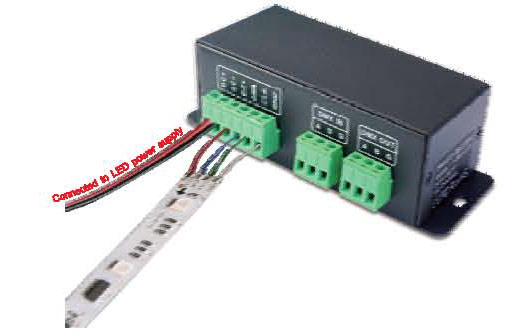

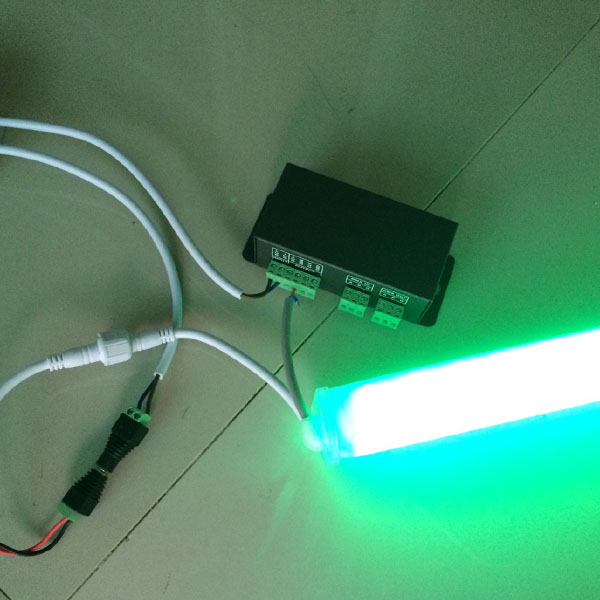

LED Digital Strip Physical Conjunction Diagram:

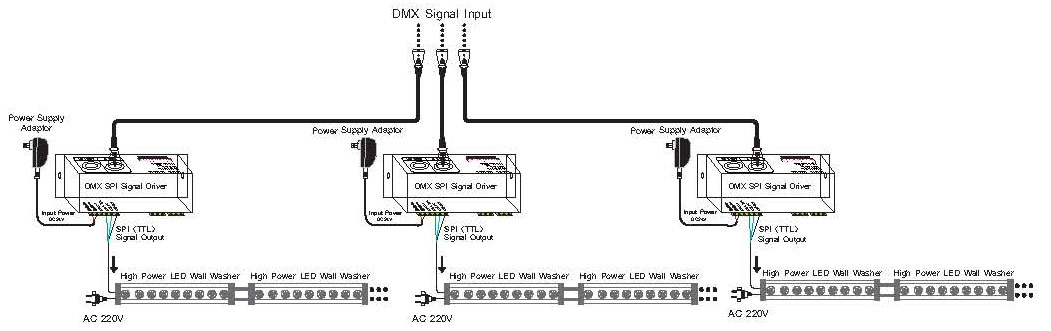

2. LED Wall Washer Conjunction Diagram:

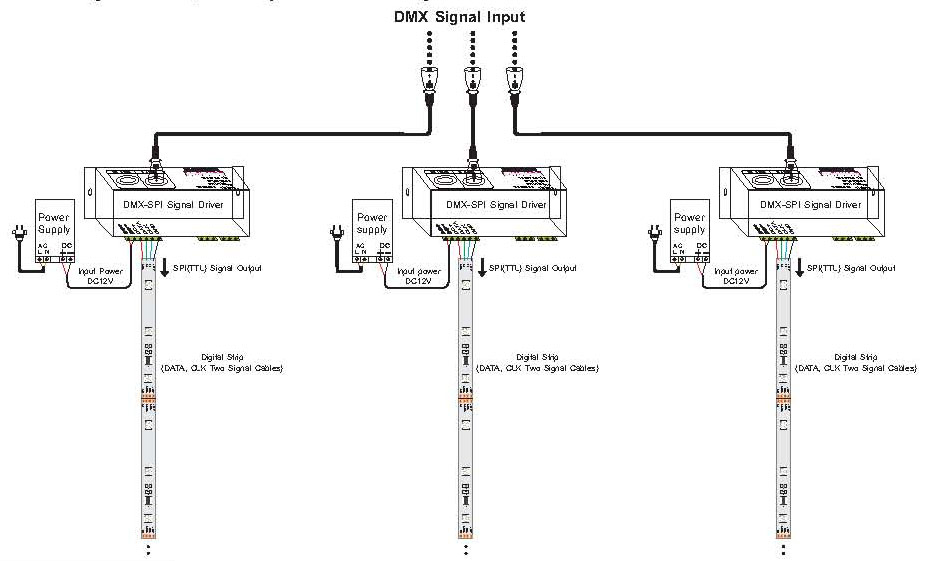

3. LED Digital Strip Conjunction Diagram:
