DC5/12/24V, X2 Dream Color LED Music Controller, Built-in Multi Progams With Wireless RF Touch Remote Audio interface For Addressable LED Strips
Related Products
DC5/12/24V, X2 Dream...
$30.98
Six Rows Color Chasing...
$168.00 $79.9952% off
Mean Well LRS-200-24 ...
$39.00 $36.985% off
WS2811 DC12V 144LEDs ...
$17.98
6CH SPI Signal Amplifier...
$21.98-
Special Price: $30.98
This LED- dream color music controller is following the traditional with infrared, RF technology controller foundation, it is birth of market and customer's demand, it is one type controller which integration the newest wifi technical in the market.
3.5MM Audio Input Port. Different music program has different lighting effect . For example 2001/2002/2003 music program .It’s jump Height is according to Music Rhythm ,Audio Volume and the Audio Sensitive Knob on the receiver.If you want to have a better effect you should read the user manual.
Every music program is adjusted. Not every music program’s jump height is according to the music Rhythm .the user manual will show you every music program description and remark. Music modes make every moment rhythmical , Available for all sorts of constant voltage DC5-24V WS2811/WS2812B/USC1903/SK6812RGB/LPD6803/TM1812/WS2801(not RGBW) LED pixel strip,module,bulb,can control max 1024 Pixels .You can chose 1903IC or 6812 IC chip for WS2812B led strips.

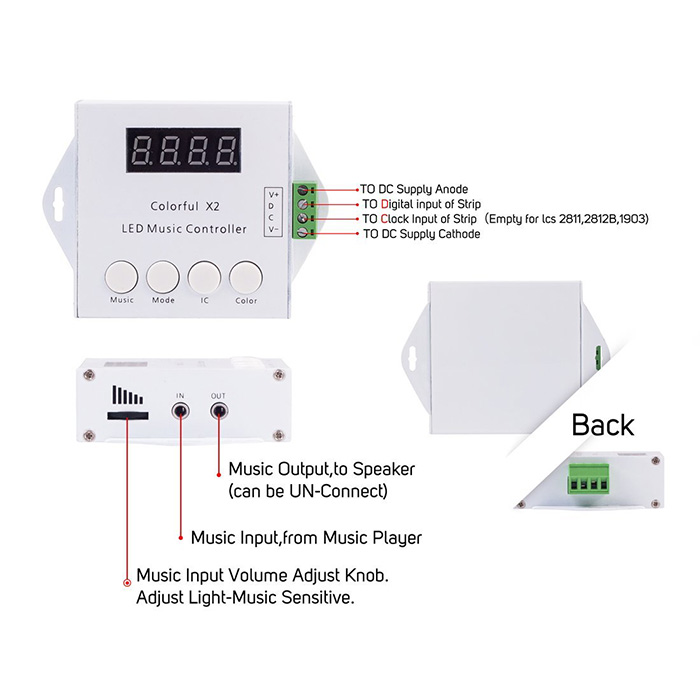

This connector with four interface one the left side GND（V-）,CLK,DATA, V+ is connect led equipment, the fifth interface is connect the anode V+ of power supply, the sixth interface is connect the cathode V- of power supply. This controller now can support 10 kinds of SPI strip in market, for LPD6803 TM1803 UCS1903 WS2811 TM1812 TM1809 WS2801 WS2812B TLS3001 TLS3008 P9813 IC dream color led strip lights or led dream color string module lights.

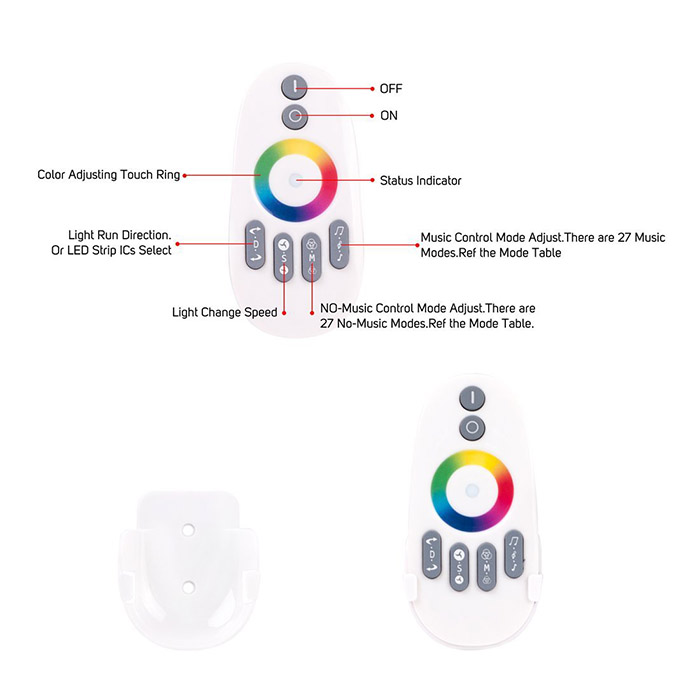

It's multi-function wireless touch remote control,Used conveniently at night with LED backlight.The remote control distance can up to 20 meters.
Product Specification
Remote Distance: >20meters
Operating Temp: -20℃- 55℃
Gross.W: 350g
Package box: L188*W140*H39mm
Remote Control Freq: 433MHz RF
Power Supply: 2*AAA battery ( Products do not contain batteries)
TX Power: 6db
Standby Power Consumption: 10uA
Receiver input: DC5V-DC24V(the same as the led strip) the receiver input voltage must be the same as the LED Strip
Output : Digital Signal ,Max 1000ICs
Output channel: 8 Channels
Operating Noise Level: <80dB
Supporting ICs: UCS1903,WS2811,WS2812B,LPD6803,6812,WS2813,APA102,SK6812
Remote and Controller

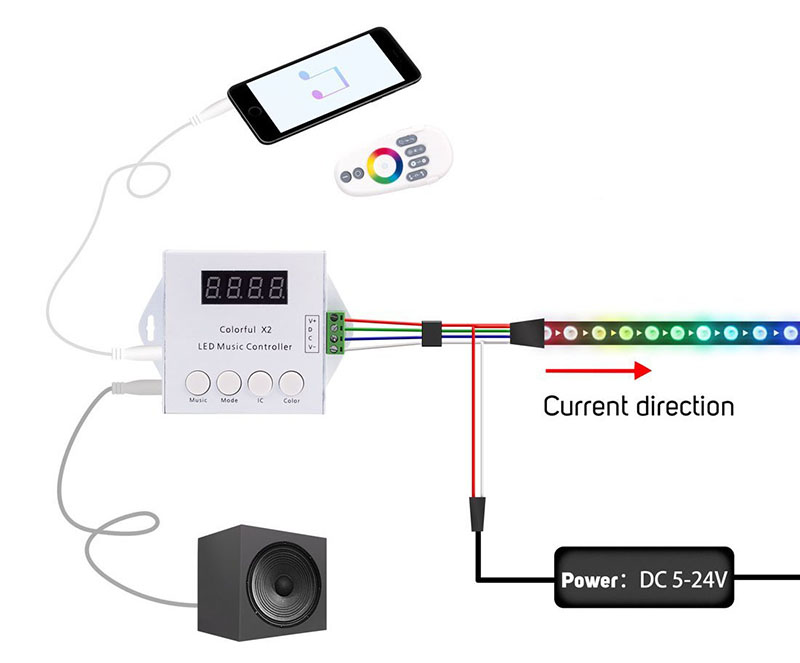

Connection Diagram

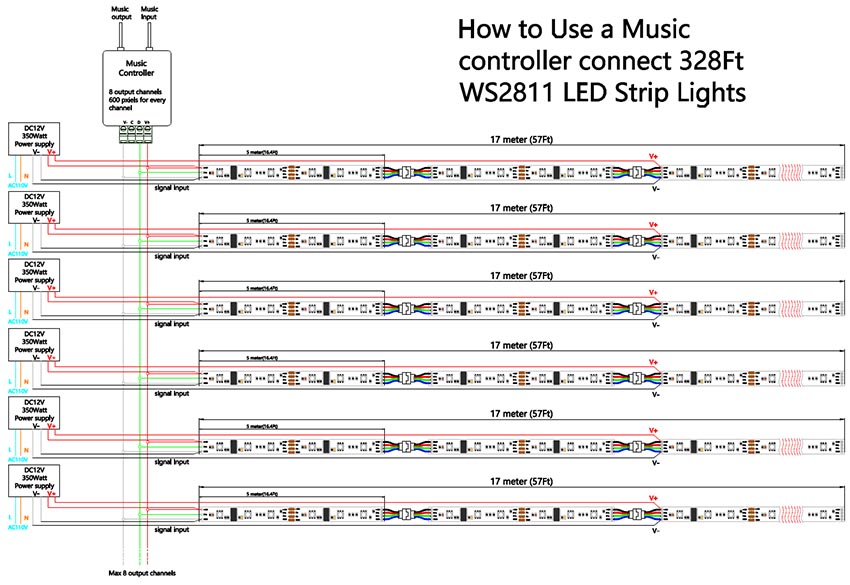

How to connect 328Ft WS2811 led strip lights
Applications
Interior Decoration: Clubs, bars, corridor, room, KTV, clubs, museums, etc.
Outdoor decoration: Plazas, commercial buildings, entertainment clubs, scenic spot light, evening on location, etc.
Safety
Supply voltage of this product is 5/12/24 Volts DC, do not exceed.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.
Precautions
1.The user manual is very important , please read it carefully if you don’t know how to use it .
2.Q:How to pair the Remote to the receiver ?
A:Please check for the PIC5(piture 5) on the user manual .
3.Q:How to select the ICs type of the LED Strip
A:Please check for the PIC6(piture 6) on the user manual .
4.Q:Calibrate the Strip illuminate RGB
A:A:Please check for the PIC7(piture 7) on the user manual .
Note
QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.
Connect according to the Wiring Schematic drawing.
Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your lighting system.

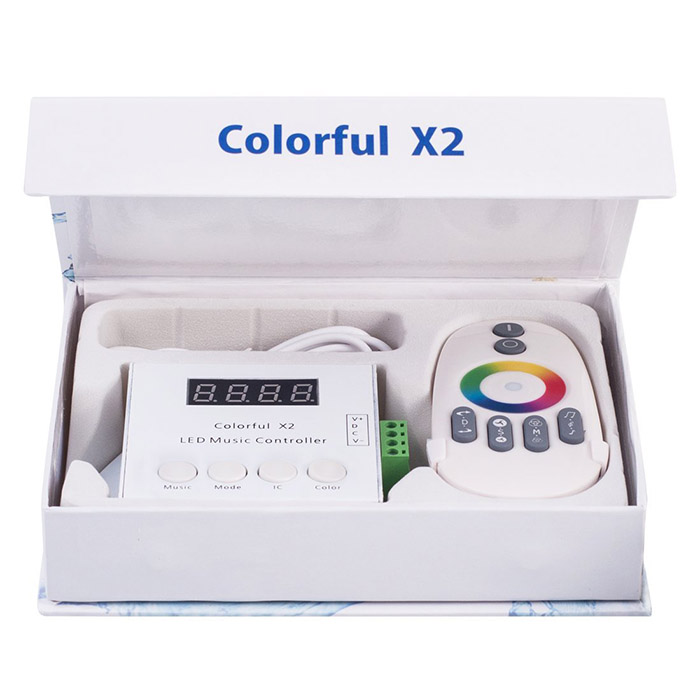

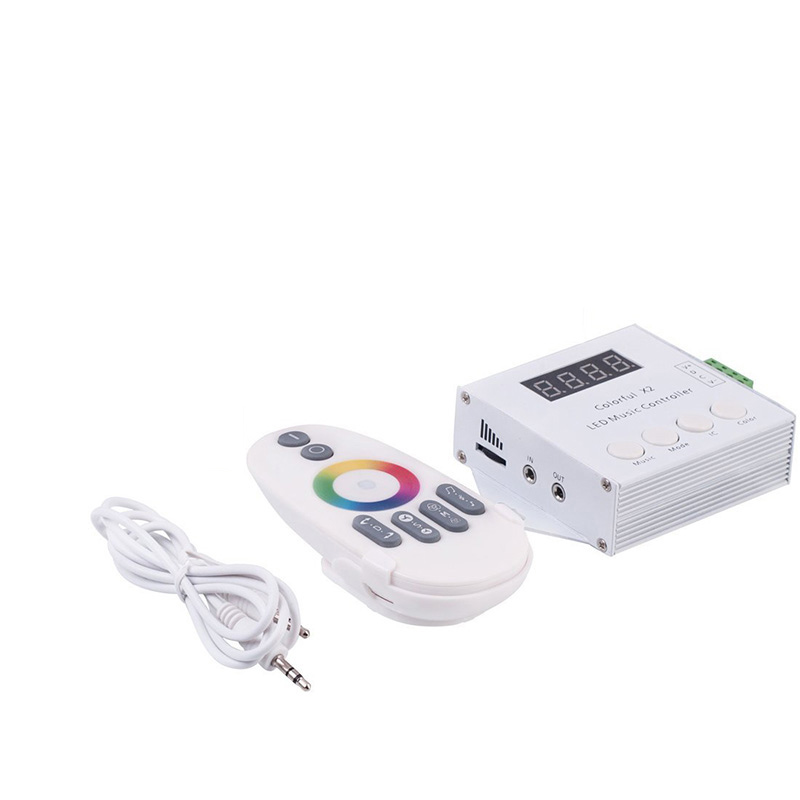

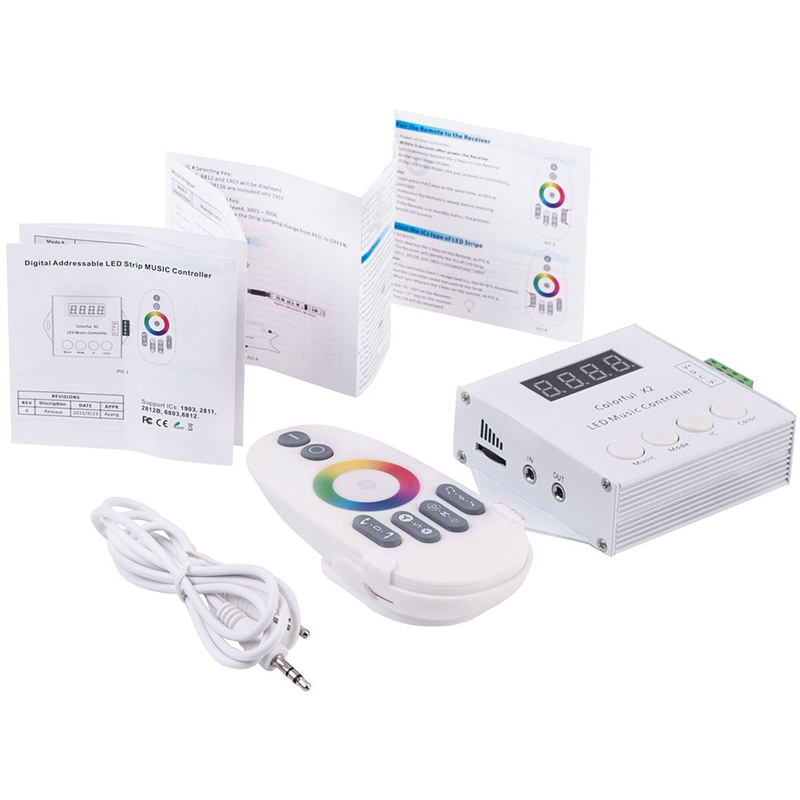

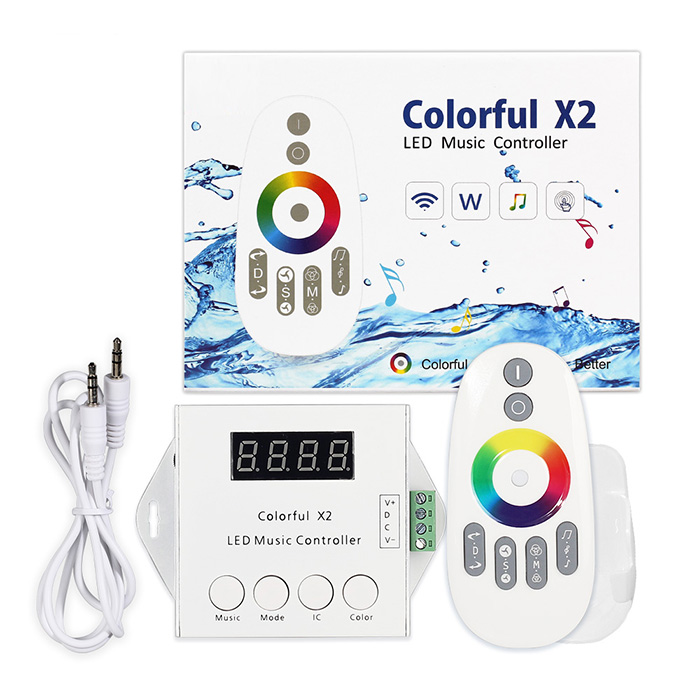

Package including
1x Music Controller
1x Audio Cable
1x RF Remote
1x Remote Seat
1x User Manual
