Special Price: $65.98

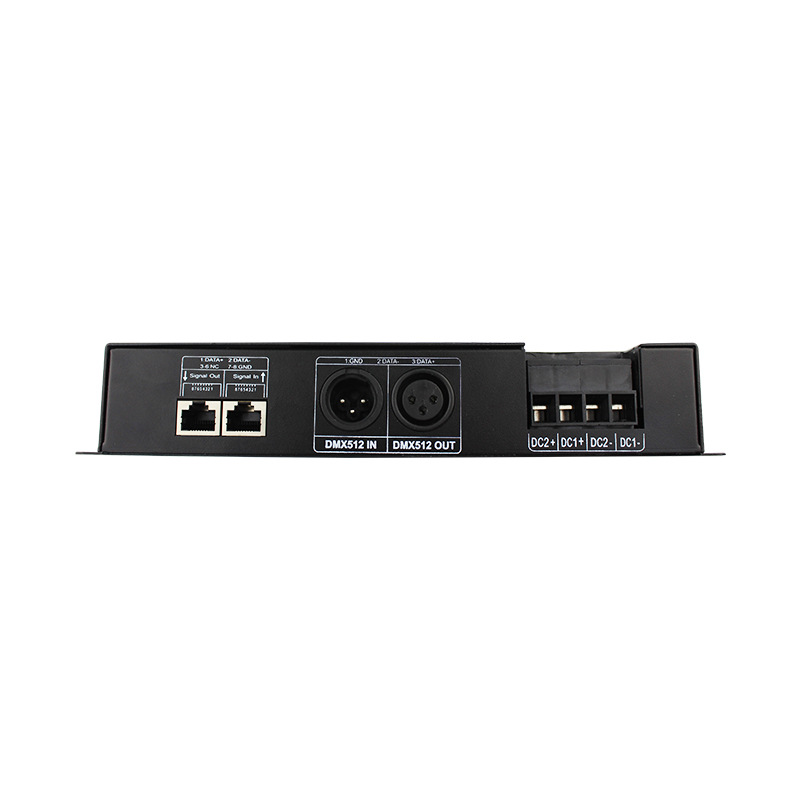

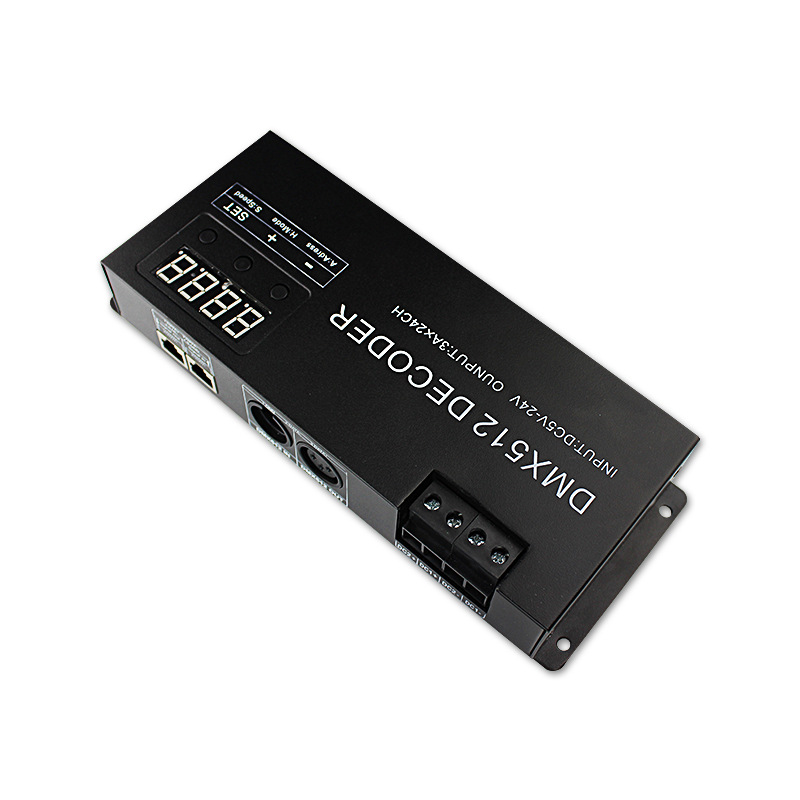

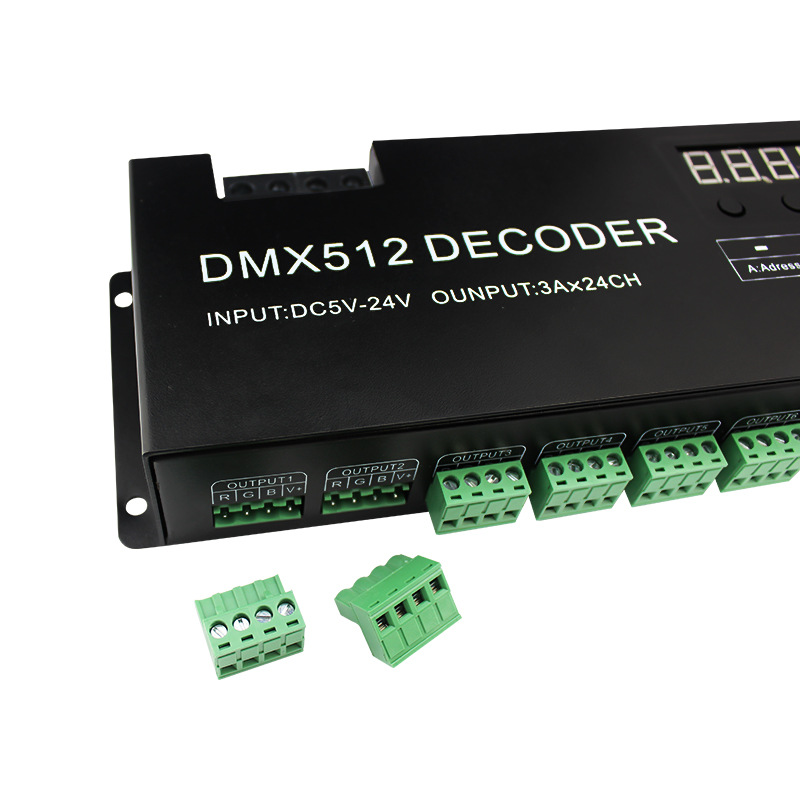

This DMX decoder adopts advanced computer control chip and accepts widely used international DMX-512 standard digital control signal into PWM control signal to drive RGB LED strip lights.
It can be connected with DMX master console, and the led decoder can be increased to continuously expand the output channels to achieve more dimming or various program change effects.
When the RGB led decoder is not connected with the DMX console, the machine can be used as a synchronous controller, which can synchronize the control of multiple decoders and LED lights.

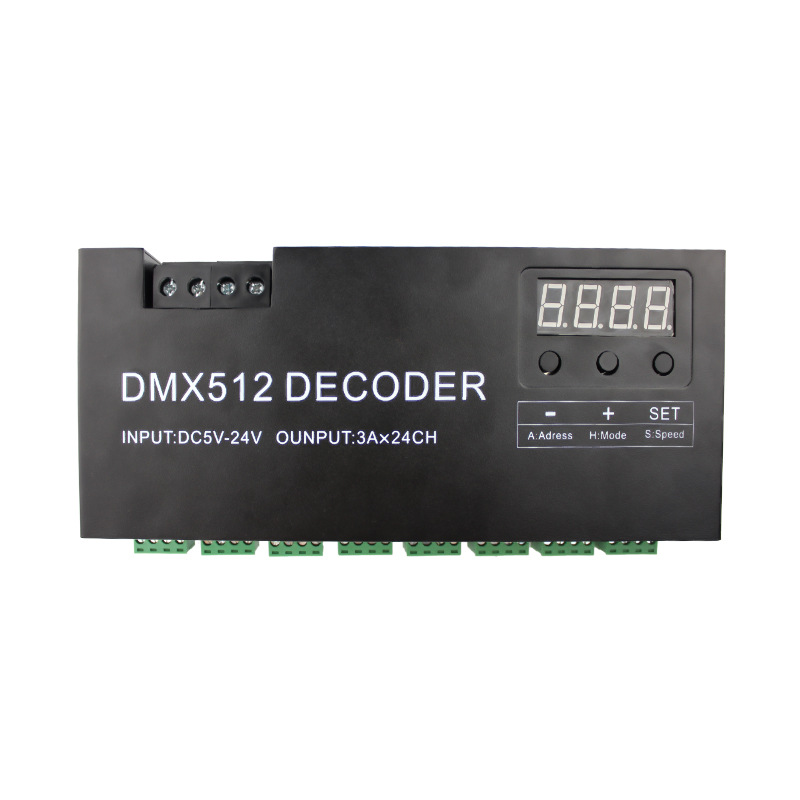

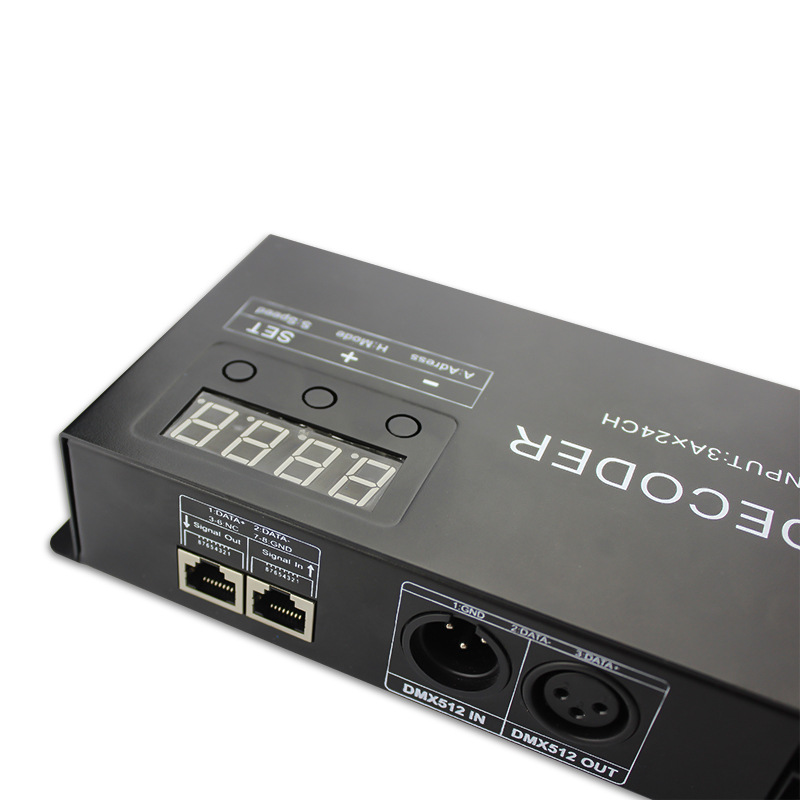

It adopts LED digital tube to display the address code, and the code address can be increased or decreased by button setting, which is flexible and convenient to operate.
Standards and Certifications
Rated voltage: DC5-24V
Drive output: 3A/CH
Working temperature: -20~60℃
Signal mode: DMX512/1990
Dimension: 249*105*43mm
Protection level: IP20
Control range: RGB LED strip
Adjustment range: 0-100%
Control channel: 24 channels
Power: 5V<360W, 12V<864W, 24V<1728W
Weight: 950g
Instructions for use:
When the first digital tube is displayed as A, it is DADS12 state, indicating that the decoder enters the DMX512 signal control state. At this point, the decoder can be controlled by connecting the main console through the network, such as the code tube is shown as A001, indicating that the starting address code of the decoder is 001.
When the first digital tube is displayed as H, it is an internal mode state, indicating that the decoder enters the running state of the internal program mode. The built in pattern table is as follows:
| Display symbol | Mode |
| H-00 | Turn off |
| H-01 | Static red |
| H-02 | Static green |
| H-03 | Static blue |
| H-04 | Static yellow |
| H-05 | Static purple |
| H-06 | Static ice blue |
| H-07 | Static white |
| H-08 | Seven-color gradient |
| H-09 | Seven-color jumping |
When the first digital tube displays s, is to set speed. This state is only used in H-08~H-11 mode, press SET key lightly to enter the speed adjustment, and the speed selection of 20 levels is realized through the - and + keys.
Key function description:
The three keys are named SET, - and +, and the functions are as follows:
SET: Function switching key. Press this key for a long time ( about 2 seconds ) to switch between A and H states, and press it lightly to switch between H and S states.
+: Add key, every time you press it, add 1 to the last three digits of the number tube codes, and set the address time to increase rapidly. Note: The maximum value of address code is 512, plus 1, returns to value 001.
-: Decrease key, every time you press it, the value of the last three digits of the number tube codes is reduced by 1, and the duration of setting a circle address code can be pressed to realize rapid reduction.
Remarks:
When the keys are not operated for 5s, the decoder enters the self-locking working state. At this time, the brightness of the digital tube is dark, and the three keys are invalid when pressed lightly.
If you need to reflect the key function, press any key ( about 2s ) for unlocking.
