Item Type:RGB Controler
Applicable Lights:RGB/RGBW strips
Controled Method:WiFi control
Max. Load Power:48W/channel
Features:WiFi remote control
applicable system:Ios and Android
(1). H802WiFi communicates with iPhone or Android phone through WiFi to realize dimming function.
(2). Connect and control lamps easily by “C-Light”.
(3). Output RGBW, 4 routes PWM data, each route max 6A.
(4). Refresh frequency is 500HZ.
(5). Support 802.11 b/g/n.
(6). Fast transmission, response sensitive.
(7). Built-in dozens of effects.

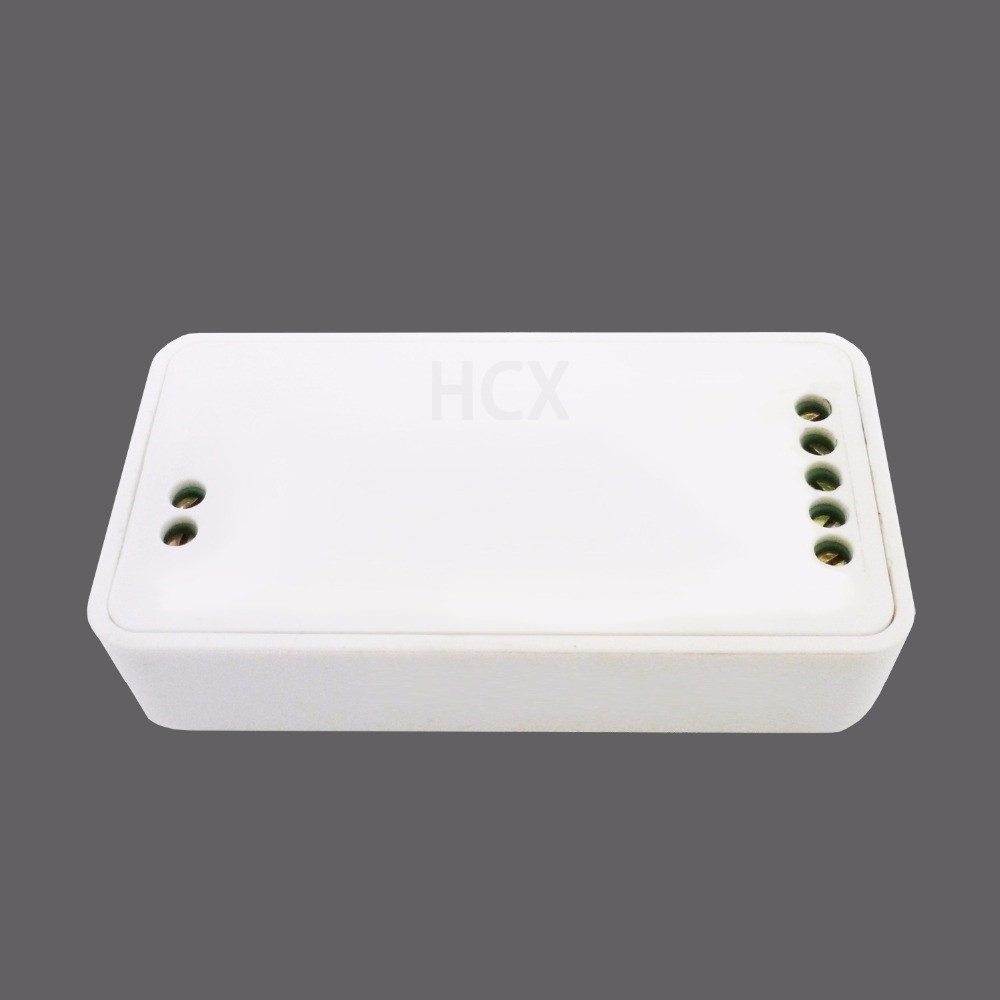

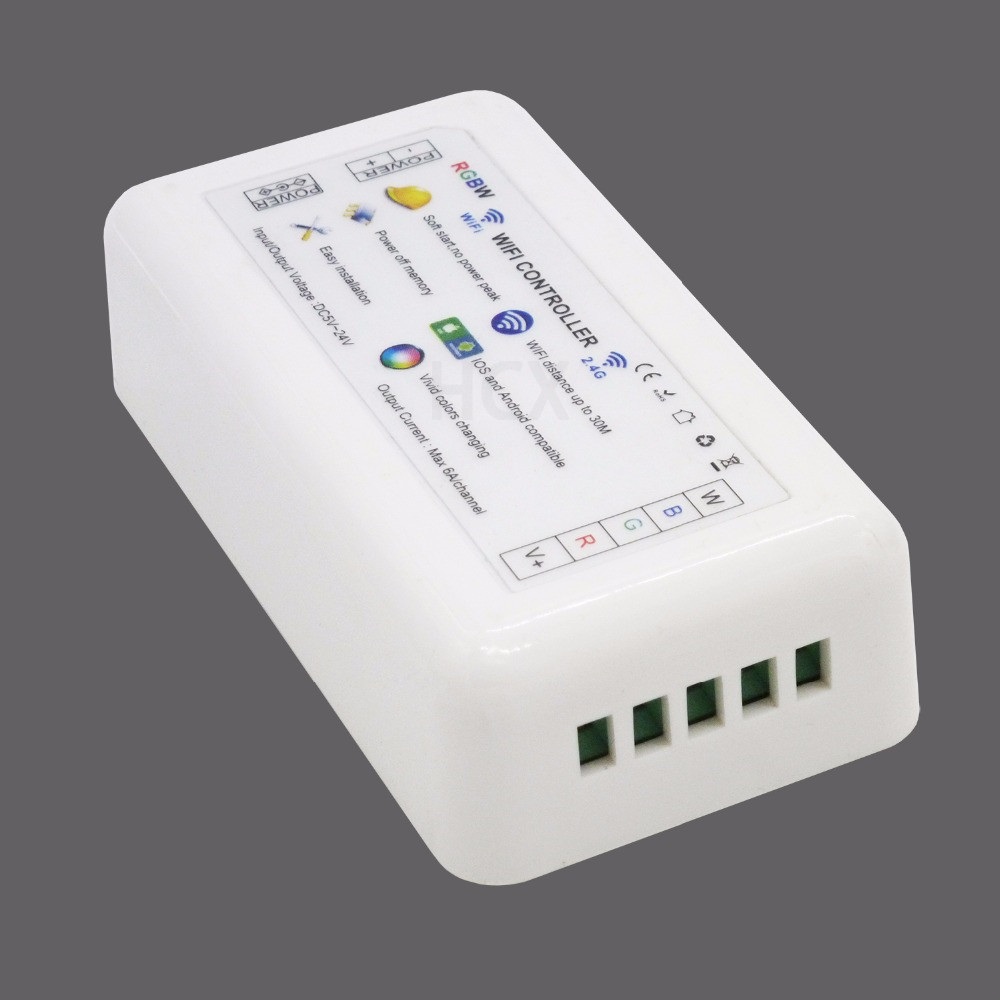

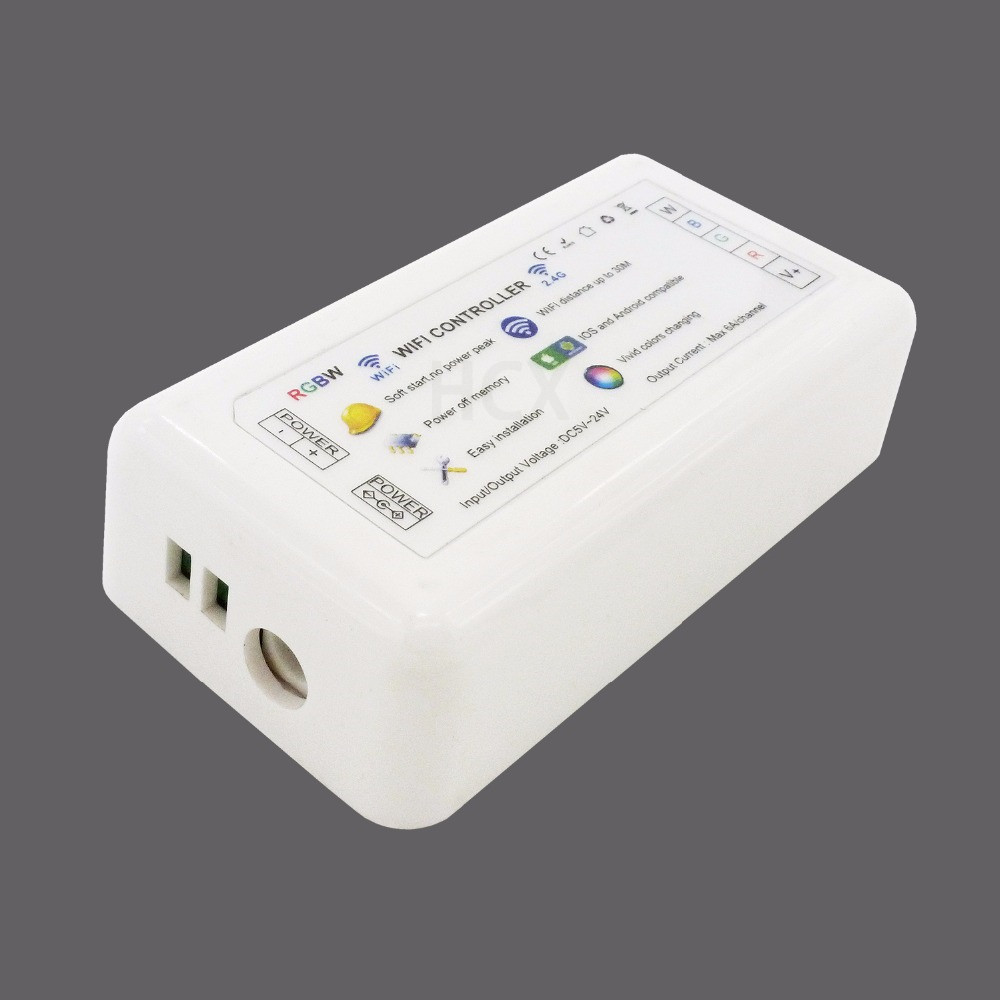

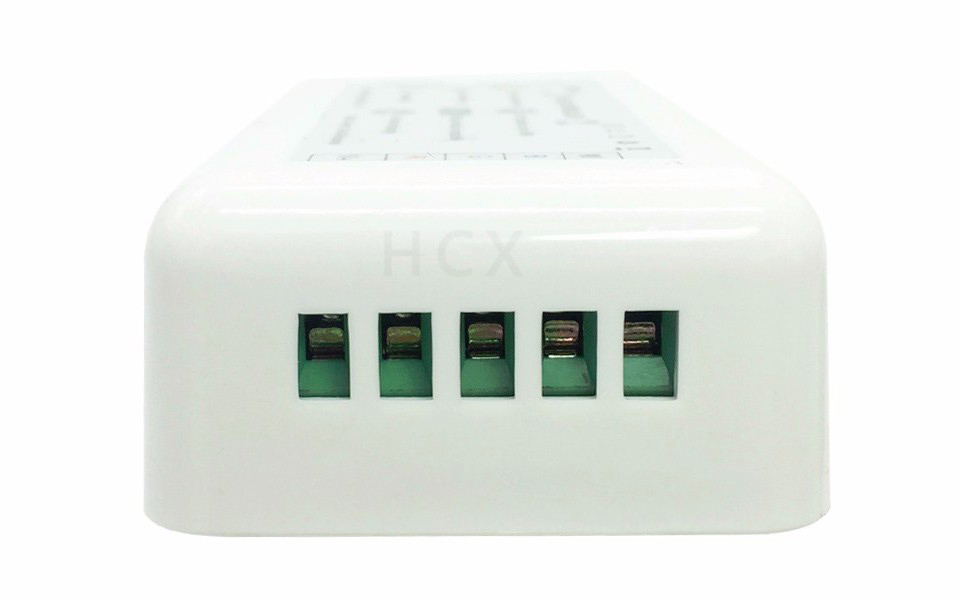

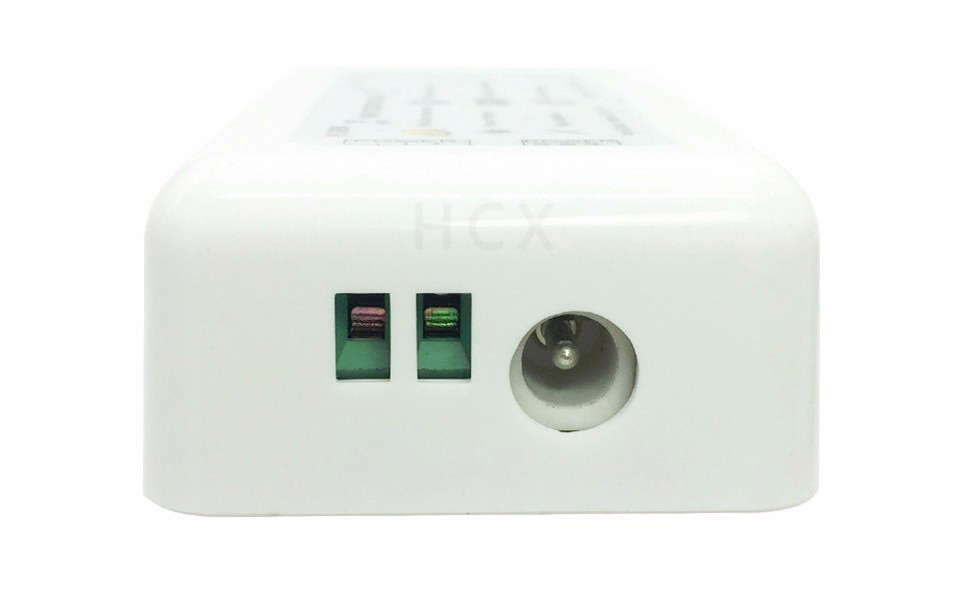

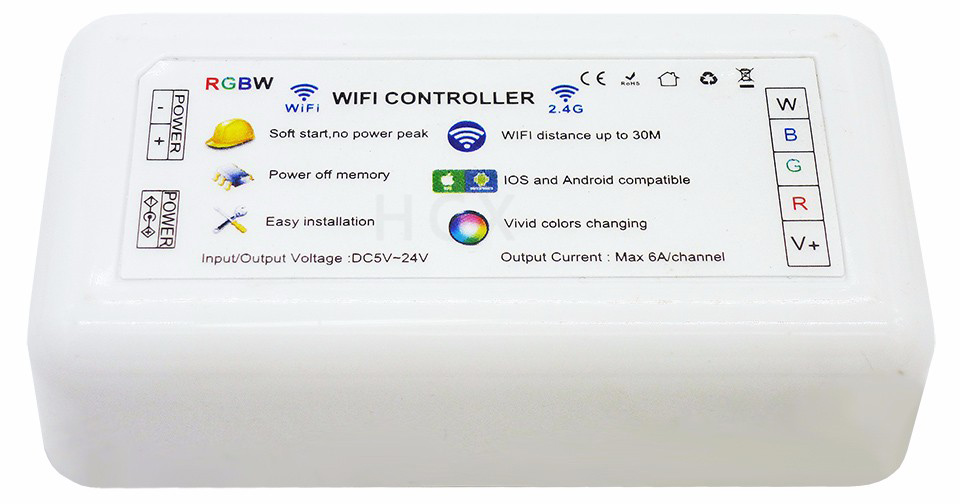

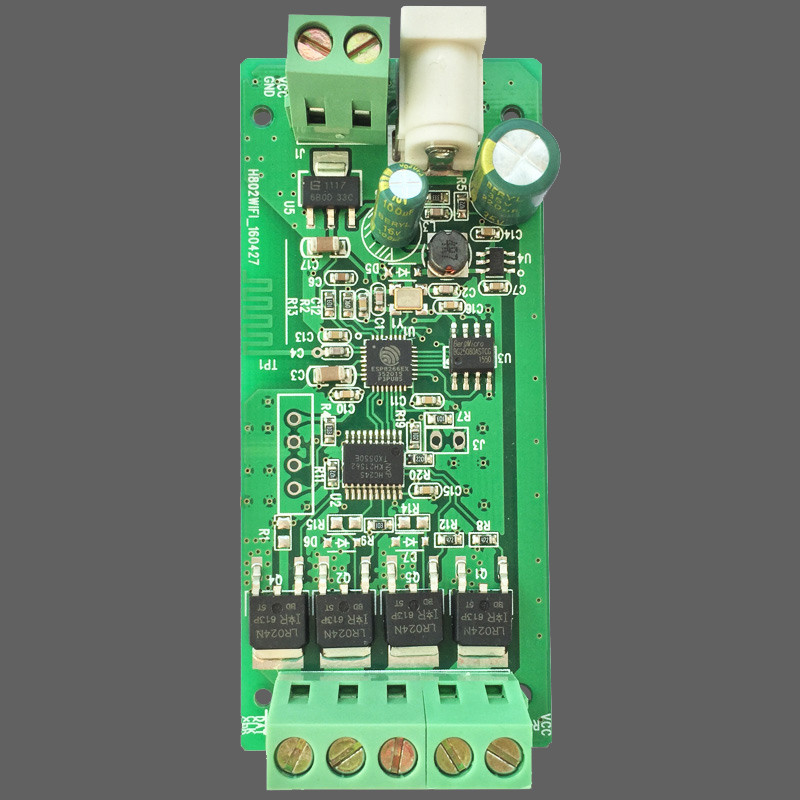

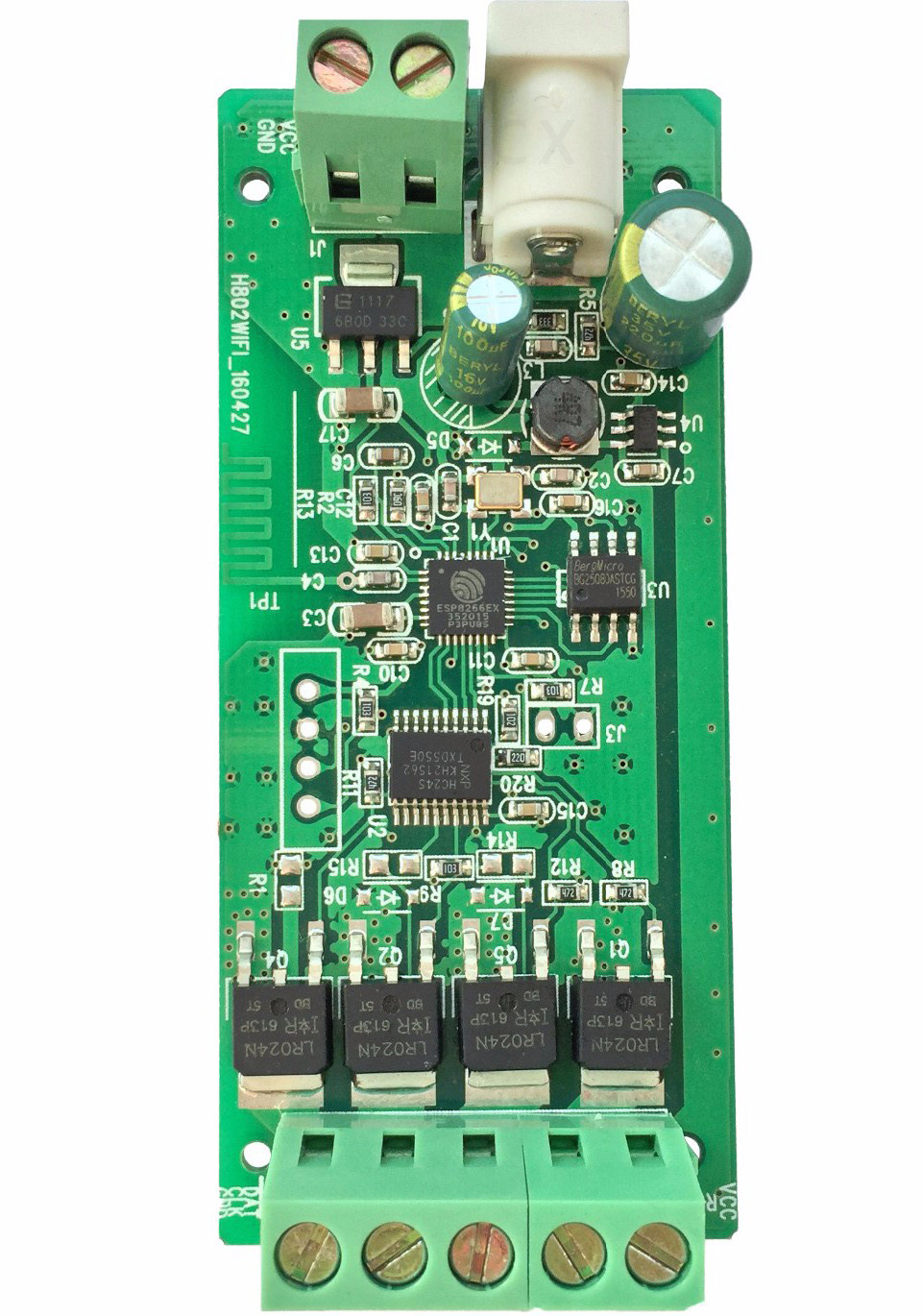

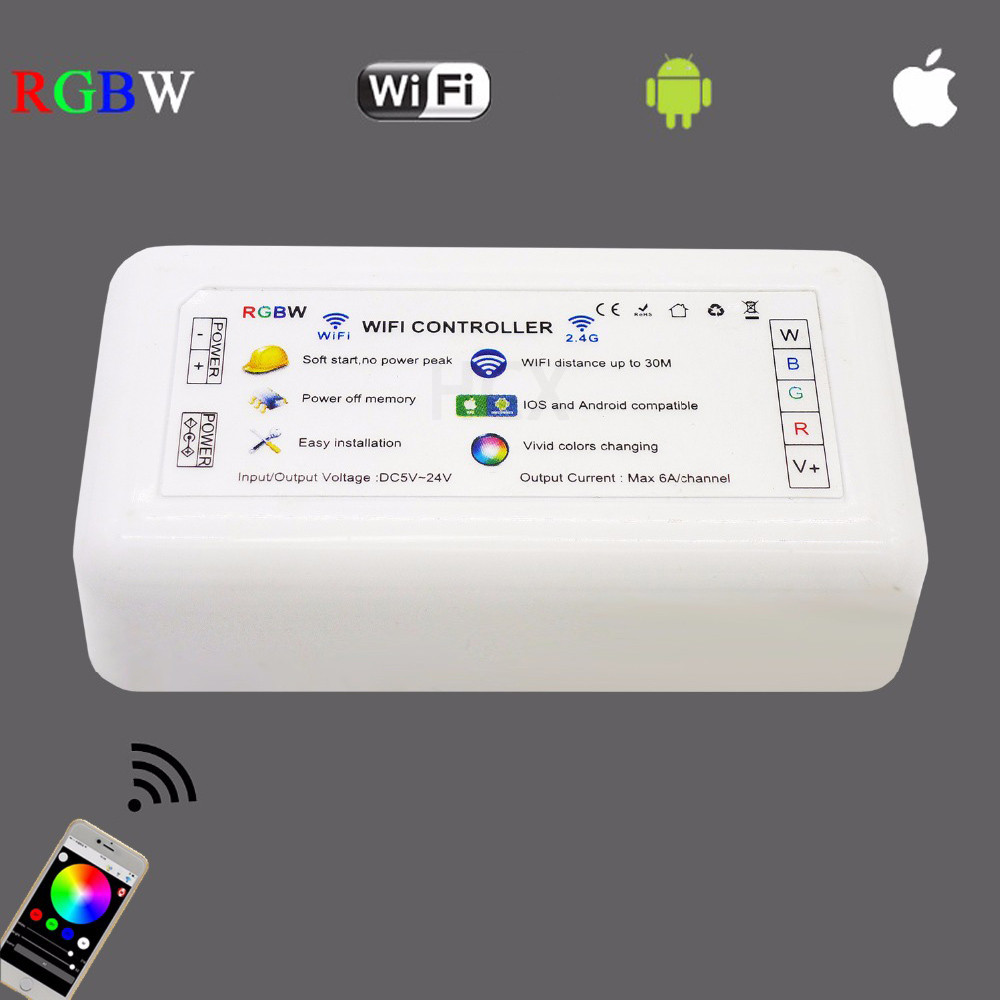

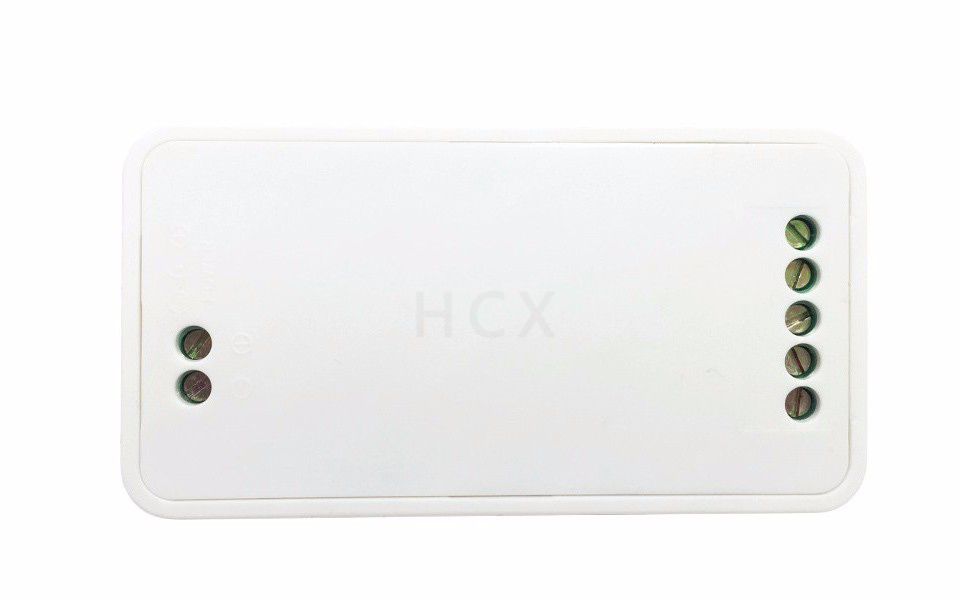

2. Product Display

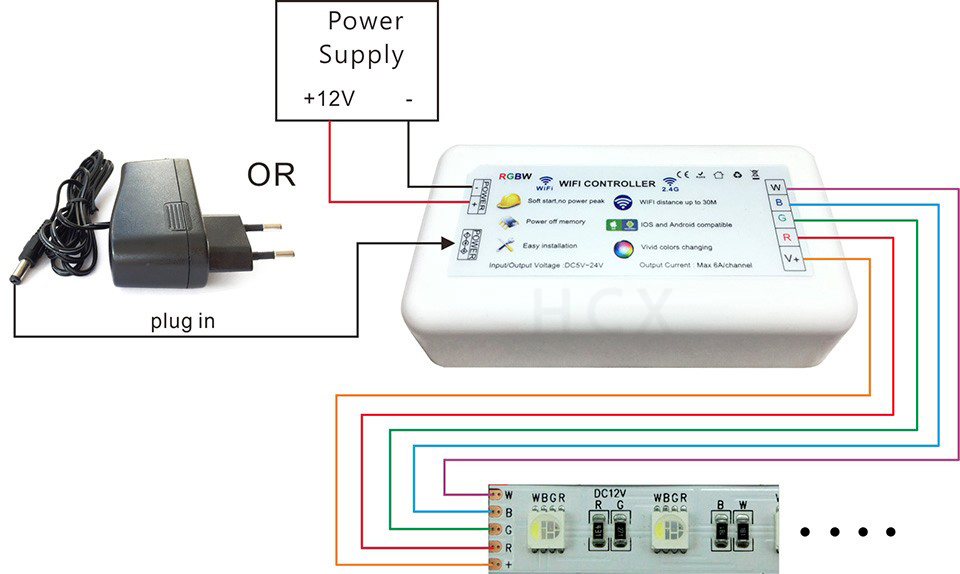

3. Connection Diagram
4. Basic Software Workflow
For iPhone(i test it with iOS version 10.1.1)
one iPhone control one device directly

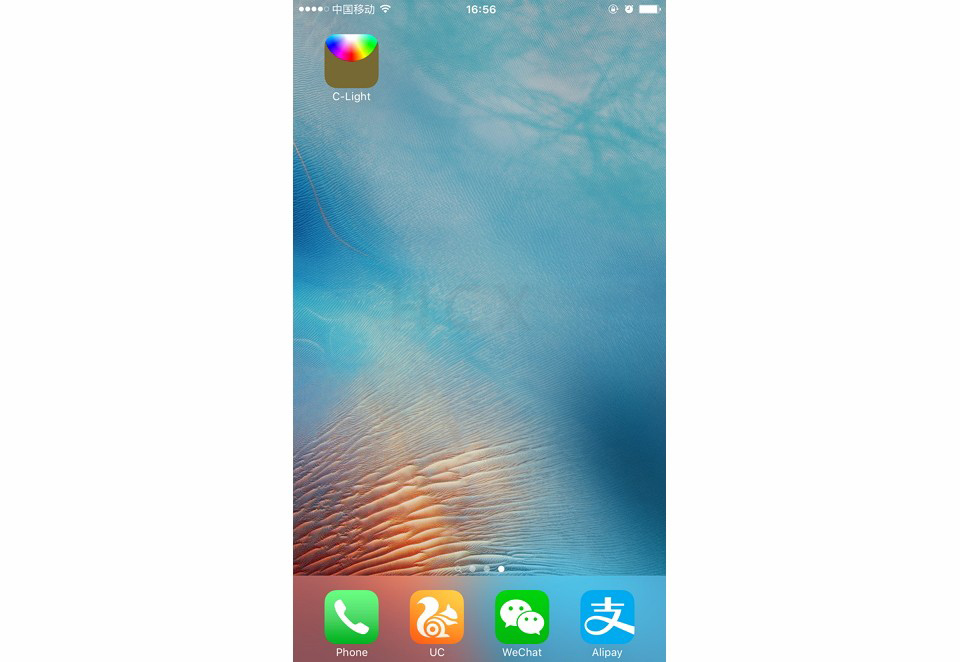

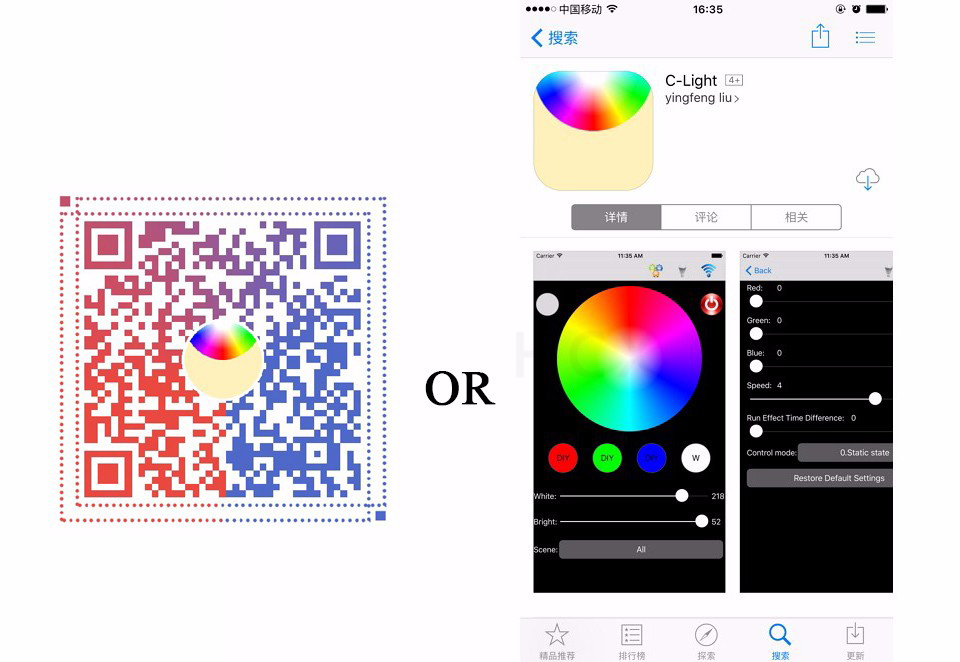

Step1. Scan the QR code or search "c light" in App Store, install it.
Step 2. WiFi Connection

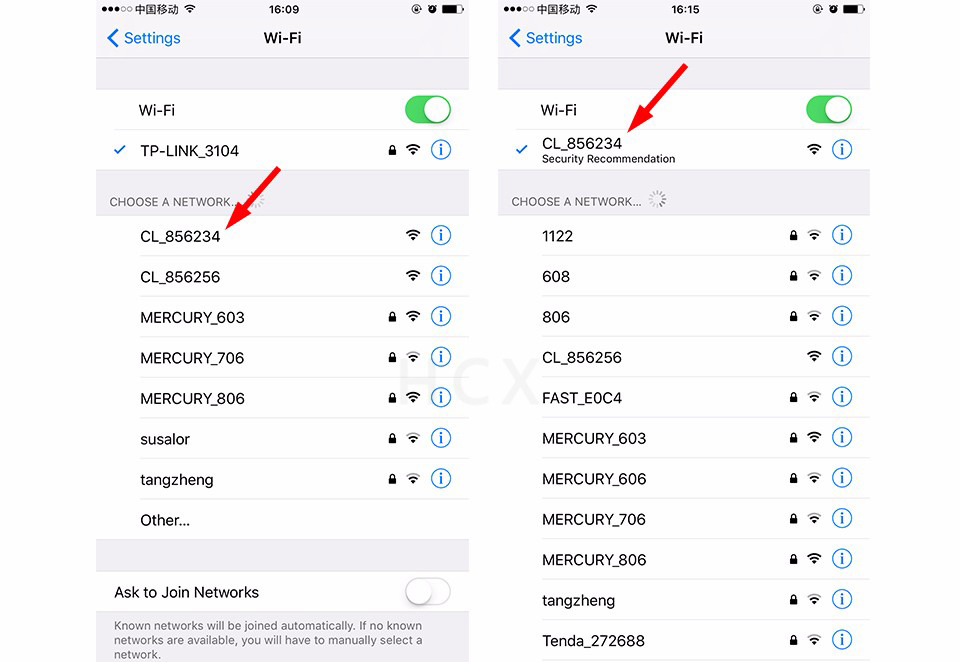

go to "Settings" -- "Wi-Fi", click the name of controller, password is not needed, then open C-Light.

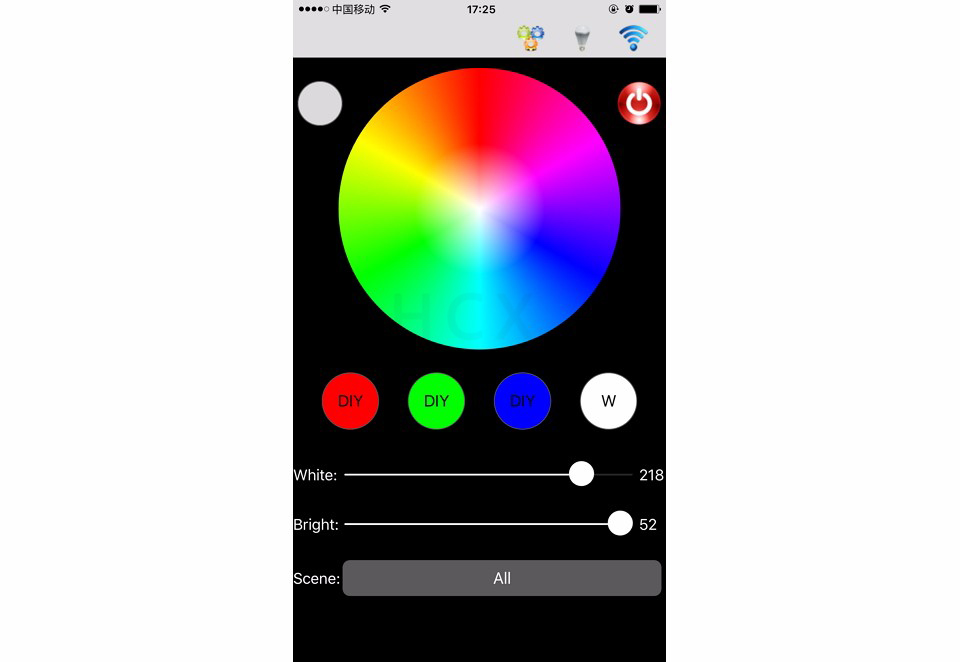

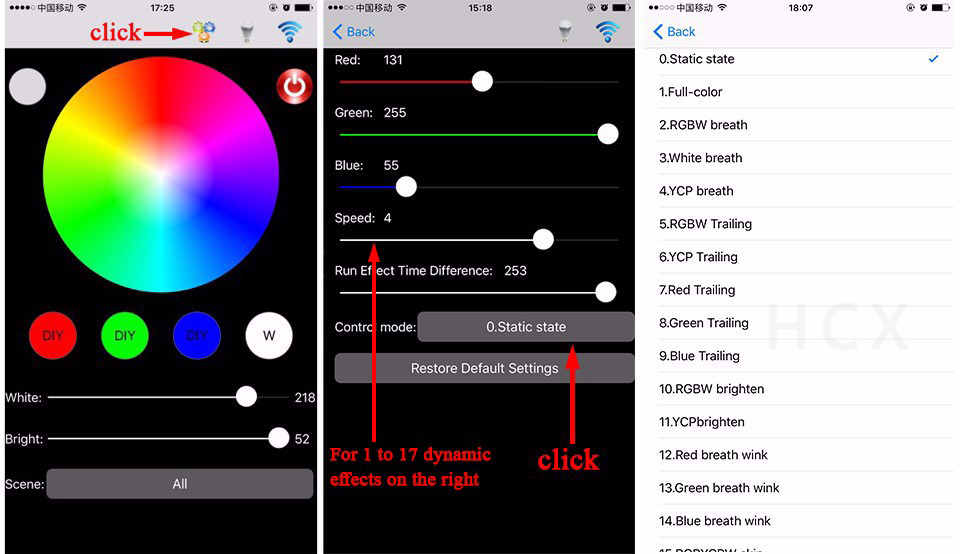

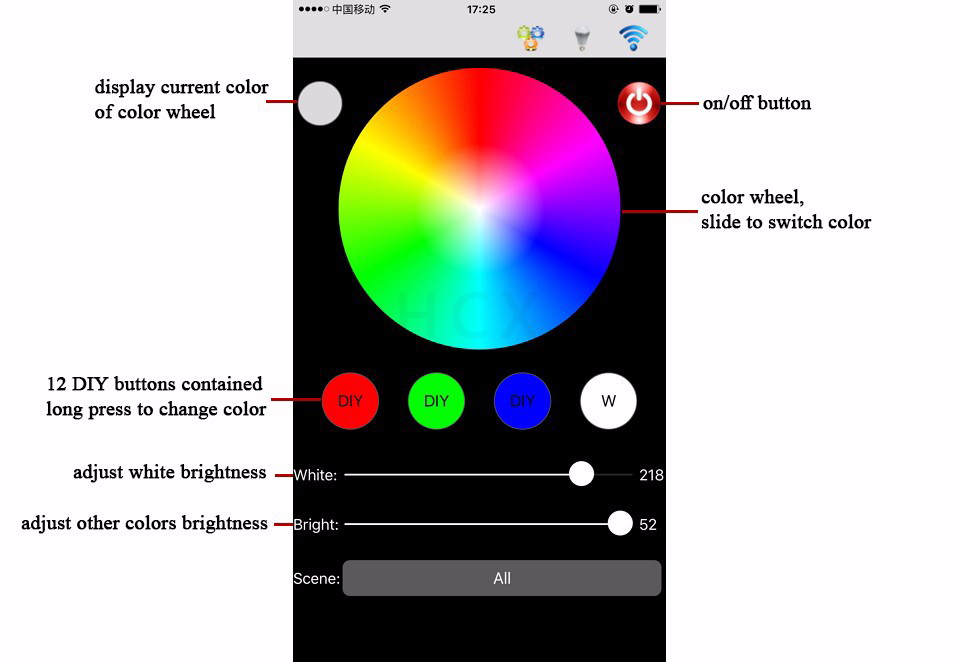

Step 3. Dim in C-Light
One iPhone control one or multiple devices via router(you can surf Internet as well)

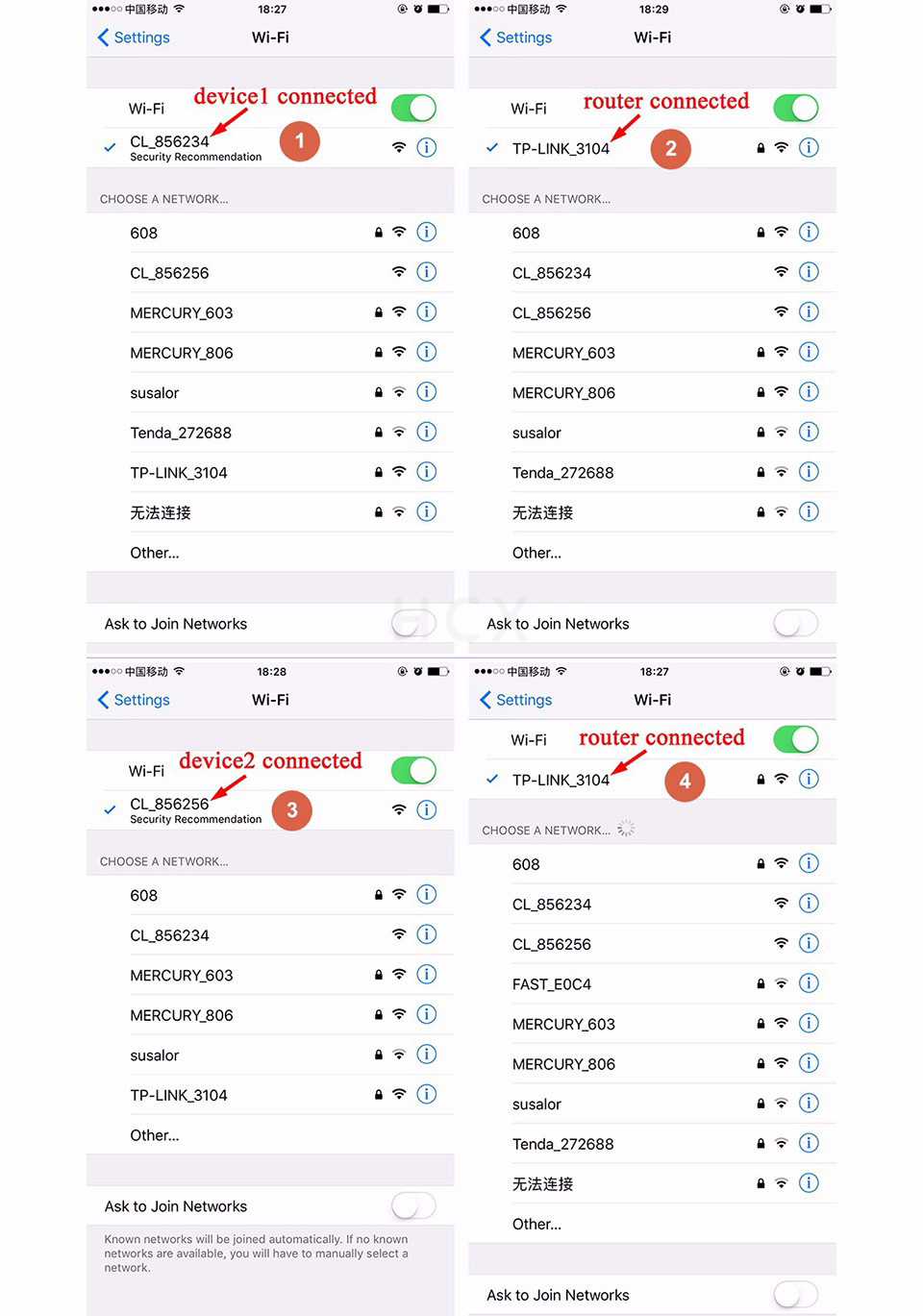

Step 1. WiFi Connection

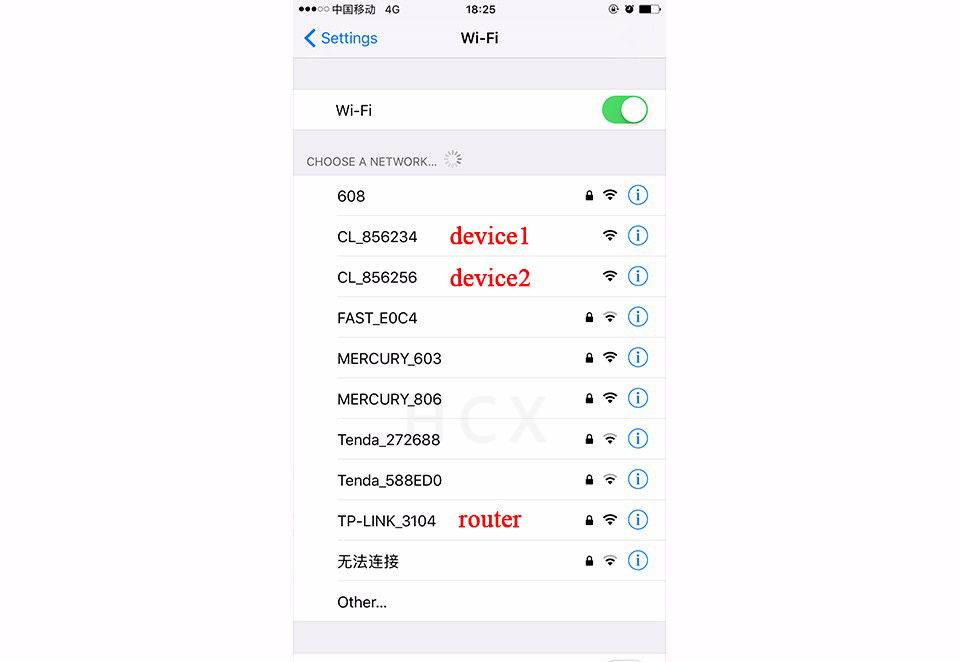

go to "Settings" -- "Wi-Fi", there are two devices for instance.

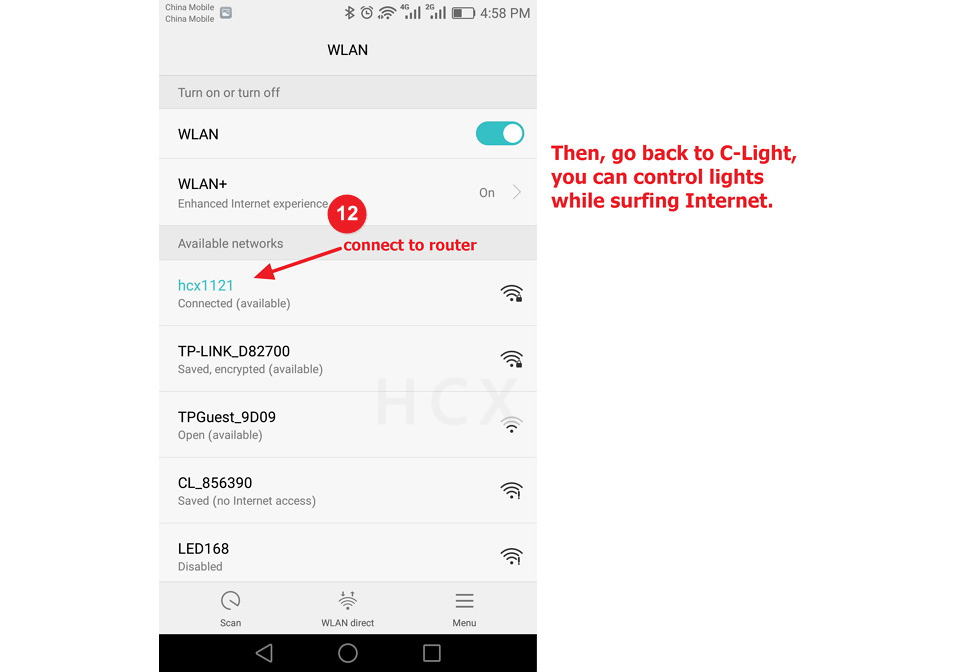

Now, you can control these two devices while surfing Internet.
Note: if it doesn't work, please repower controller and try again until router name is correct.

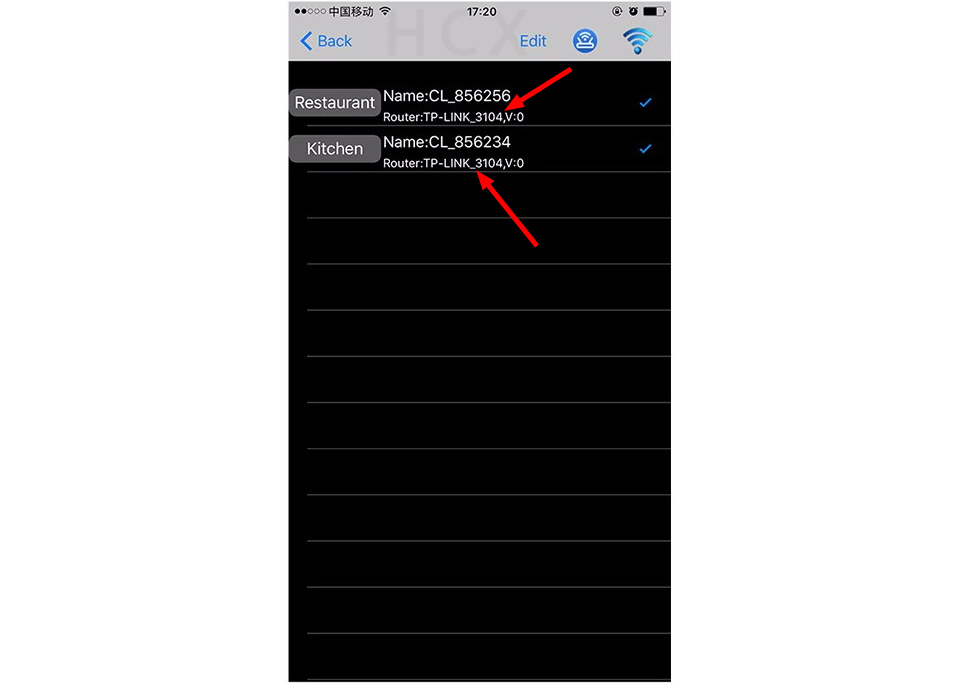

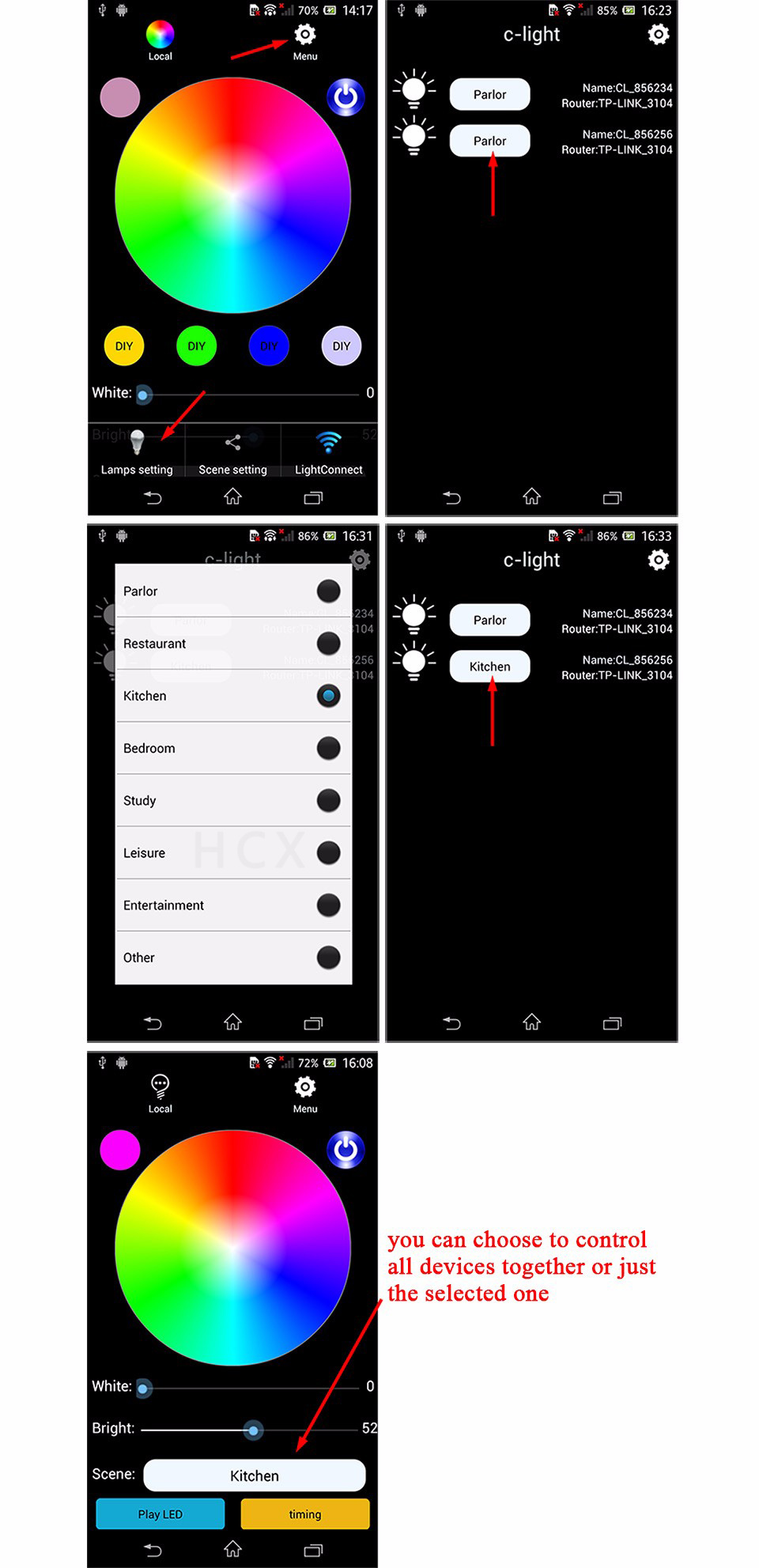

Step 2. Set scene for each device(not essential)
One phone control one device directly

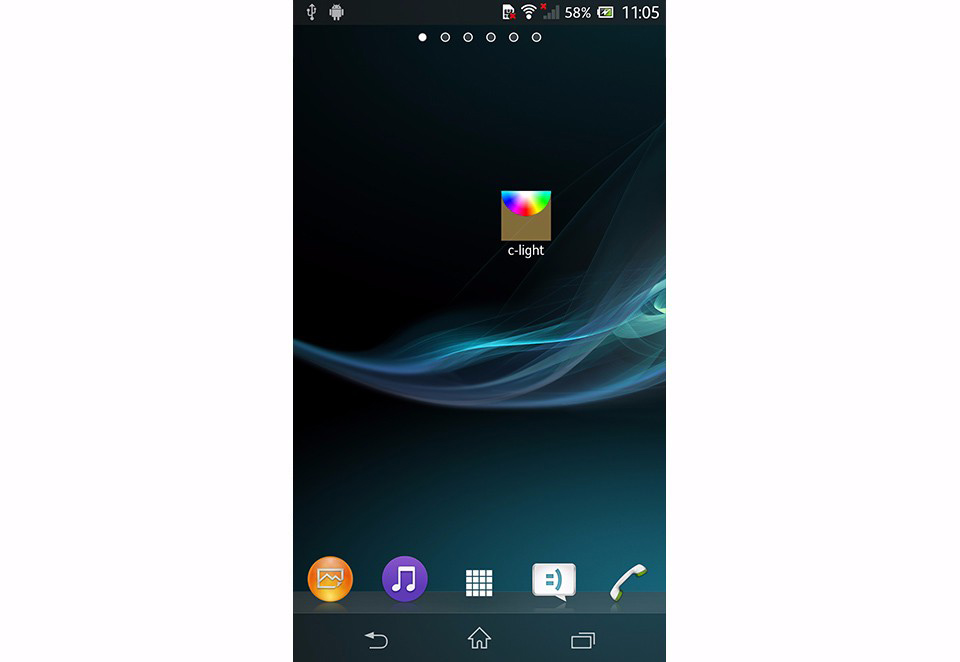

Step 1. Download and install C-Light
C-Light Download link: https://drive.google.com/open?id=0B1gzqyV6hfOgNEEtSVFGMU1jemc

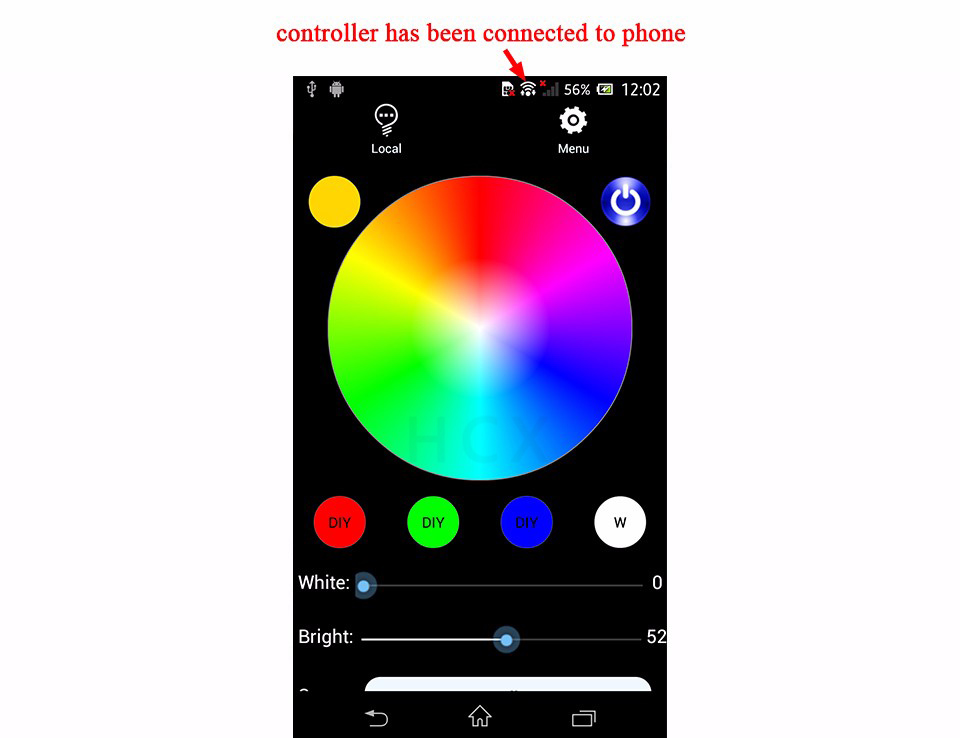

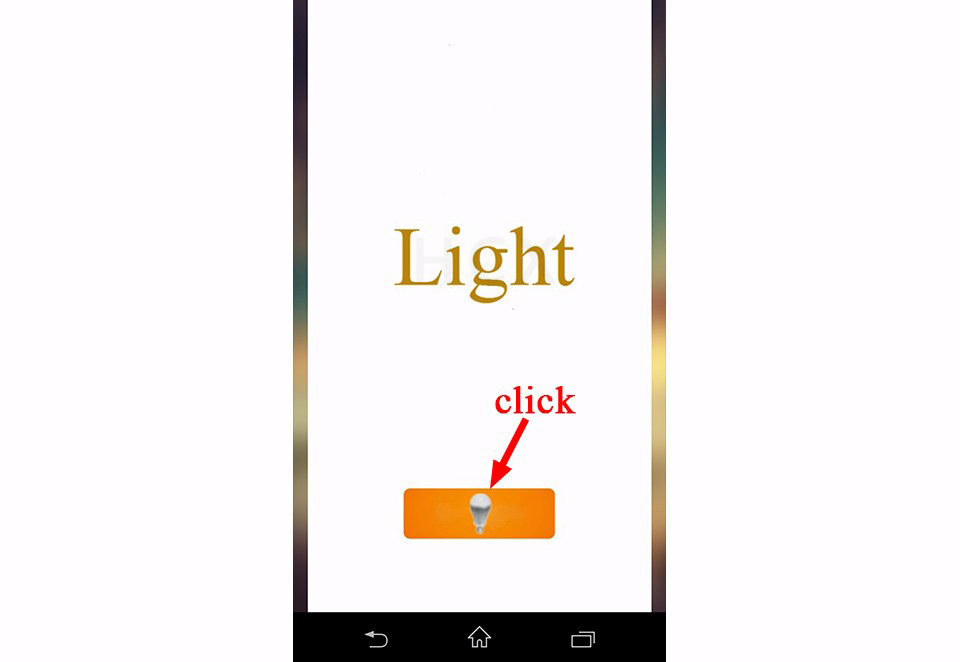

Step 2. Dim in C-Light

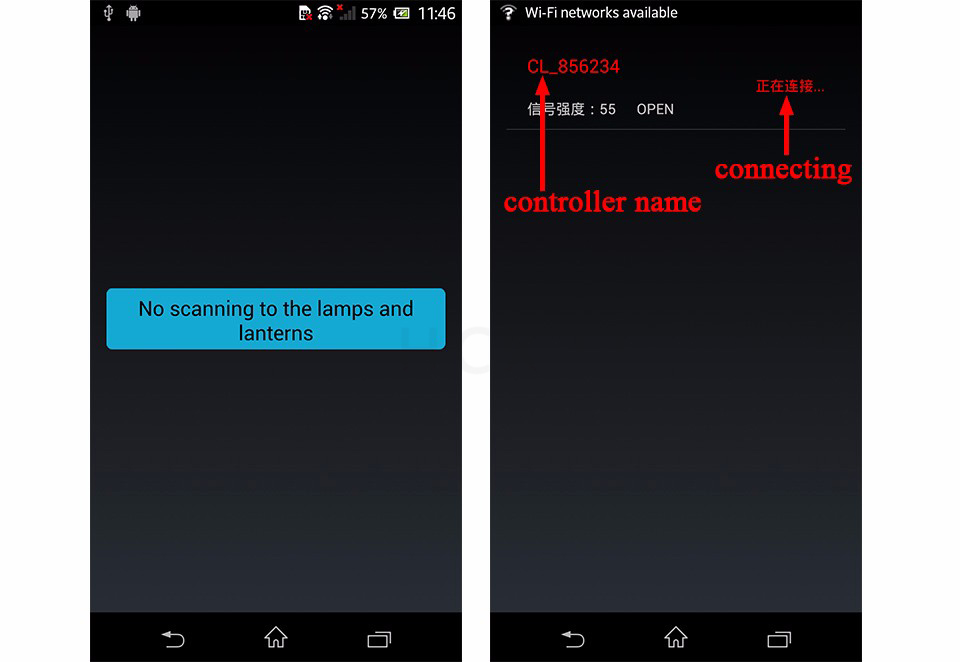

Software will scan nearby available device automatically and connect to it.

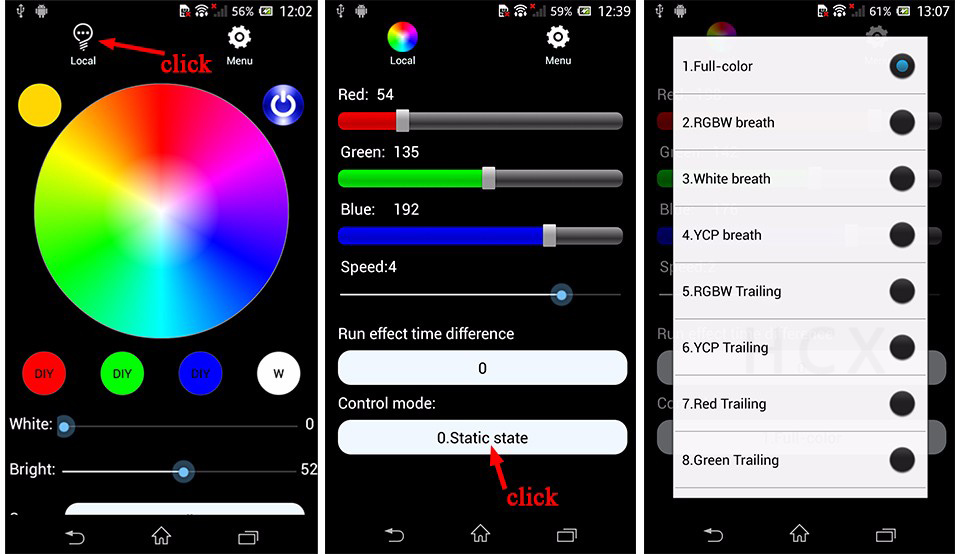

Dim and choose effects in the following three interfaces (similar with ios)

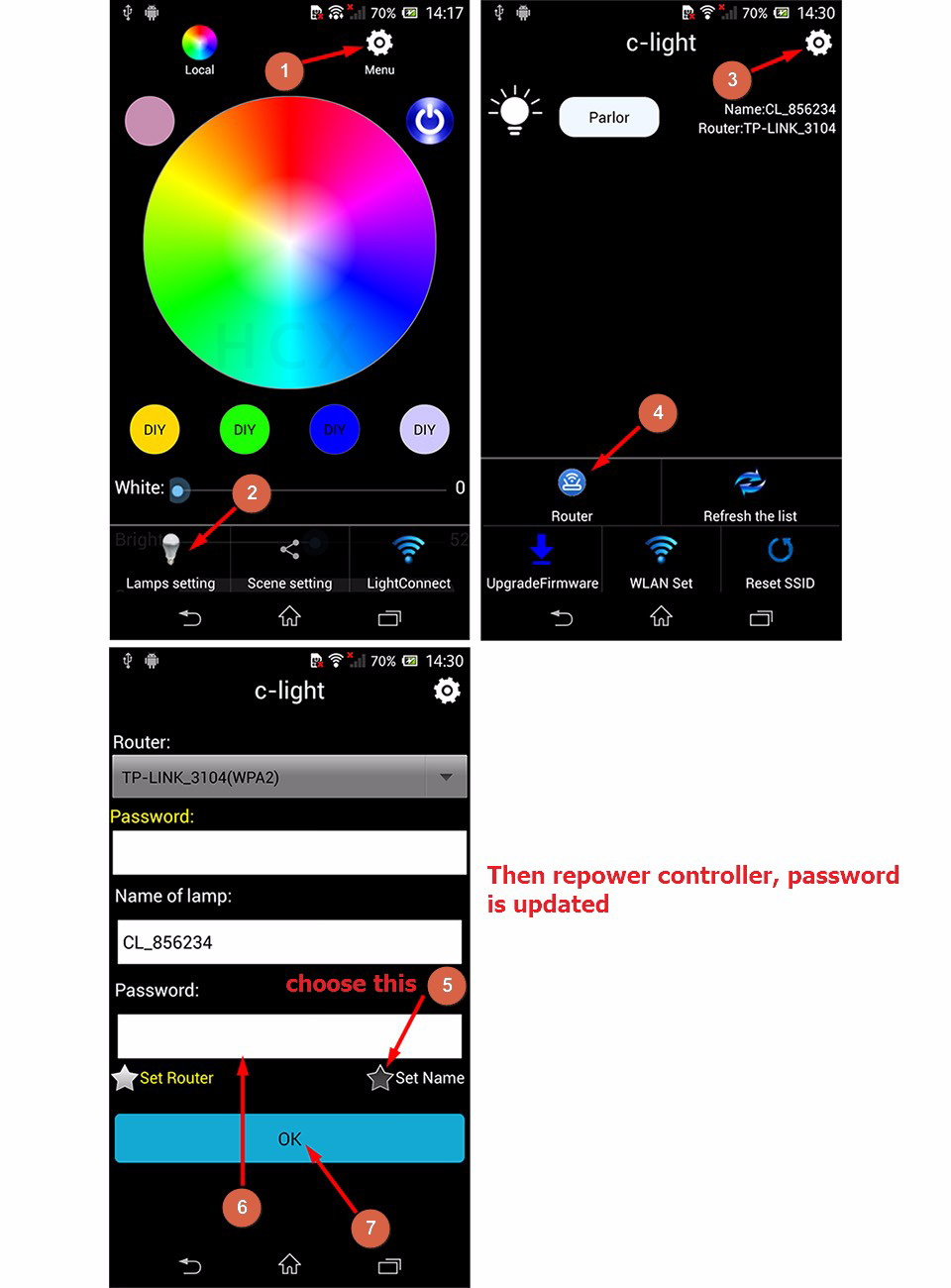

You can set password for controller

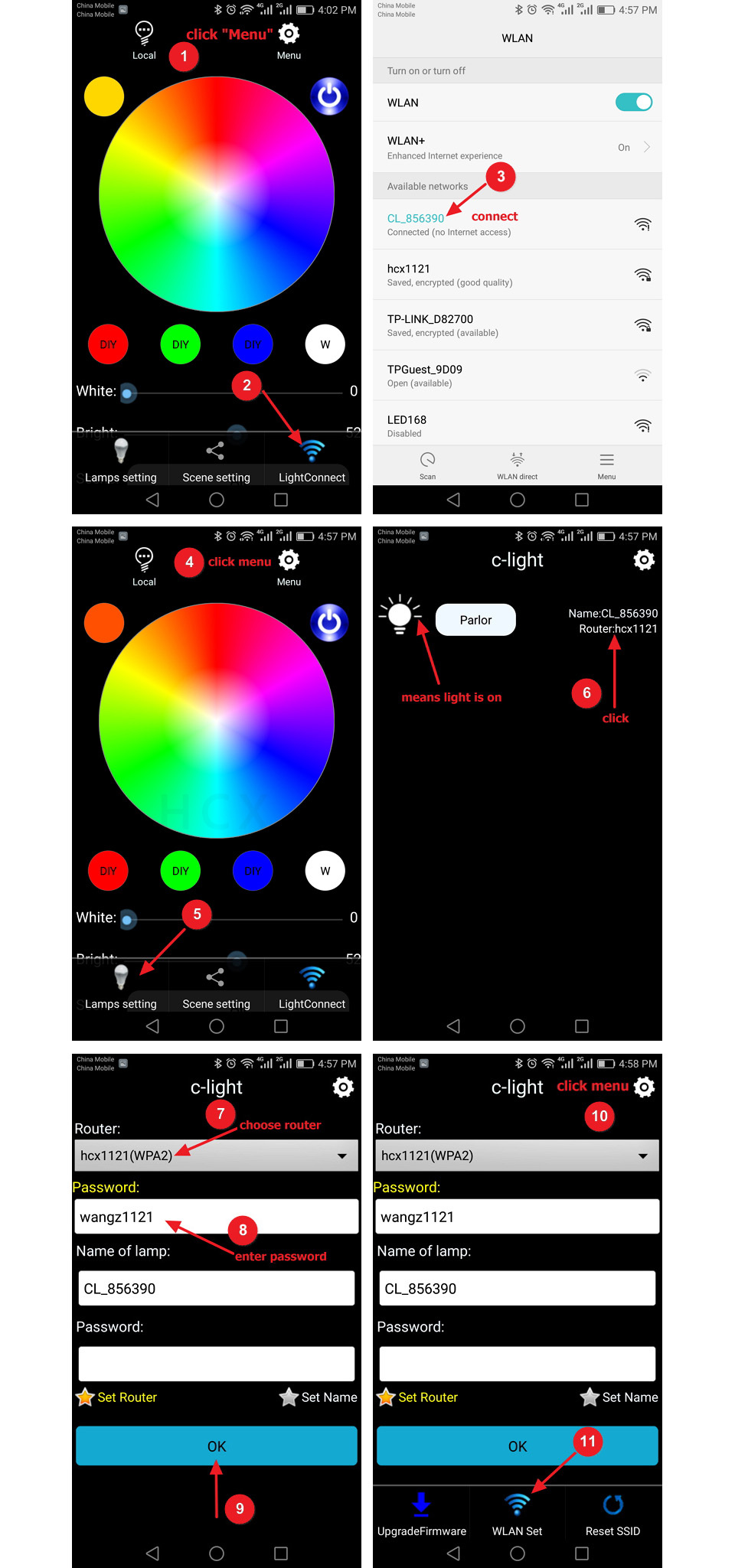

One phone control one or multiple devices via router (you can surf Internet as well)
The following manual is just for one device, for more devices, just repeat it

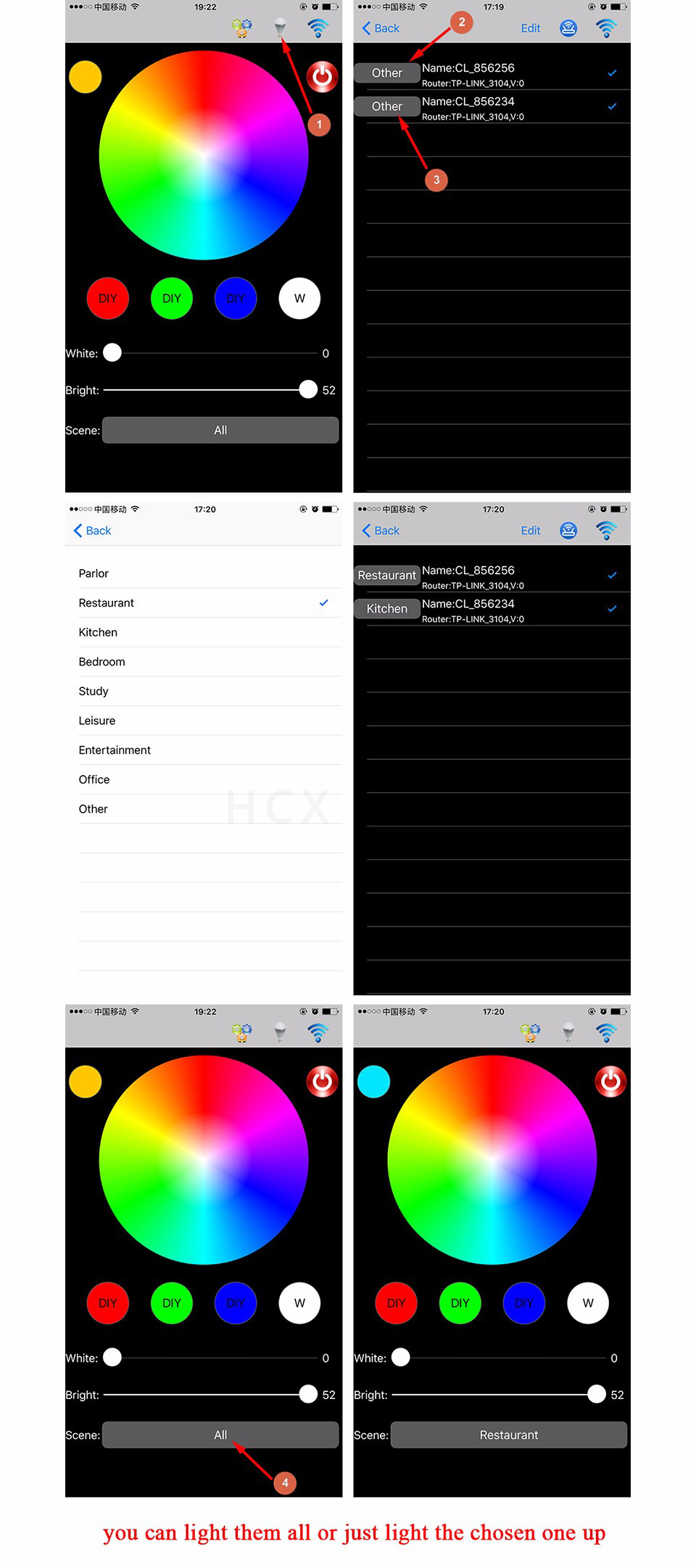

Set scene for each device(not essential)

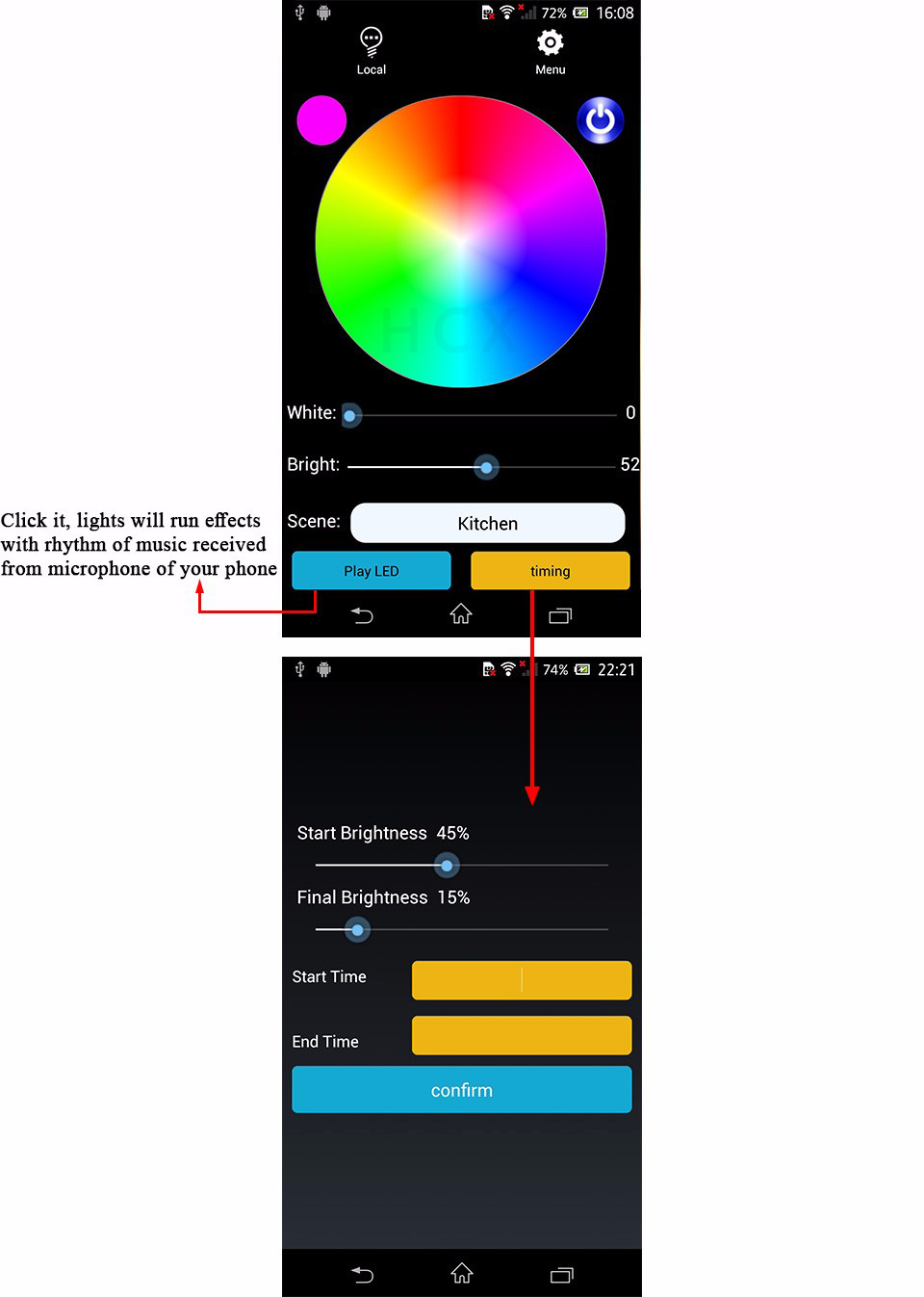

Music and Timing Control
Input Voltage: DC5~24V
Power Consumption: 0.5W
Dimension: 93mm x 46mm x 20mm
Output: 4 routes PWM, max 6A per channel
