DC5-24V led controller with DVI interface,support MADRIX,Jinx,etc.4 network ports ,screen capture controller,For programmable led strip
  • DC5-24V led controller with DVI interface,support MADRIX,Jinx,etc.4 network ports ,screen capture controller,For programmable led strip
  • DC5-24V led controller with DVI interface,support MADRIX,Jinx,etc.4 network ports ,screen capture controller,For programmable led strip
  • DC5-24V led controller with DVI interface,support MADRIX,Jinx,etc.4 network ports ,screen capture controller,For programmable led strip
  • DC5-24V led controller with DVI interface,support MADRIX,Jinx,etc.4 network ports ,screen capture controller,For programmable led strip
  • DC5-24V led controller with DVI interface,support MADRIX,Jinx,etc.4 network ports ,screen capture controller,For programmable led strip
  • DC5-24V led controller with DVI interface,support MADRIX,Jinx,etc.4 network ports ,screen capture controller,For programmable led strip

DC5-24V led controller with DVI interface,support MADRIX,Jinx,etc.4 network ports ,screen capture controller,For programmable led strip

Model: CONFULL-H803TV

$359.98

Free Shipping Worldwide On Order Over $199

Please Choose:

Applied to:



Qty Discounts Off Price
1-4
$359.98
5-9
$341.98
10-19
$323.98
20+
$287.98
* Discounts may vary based on options above
Qty: -+
ContactUs

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    Item Type:RGB Controler

    Power Source:DC

    Controled Method:DVI interface

    Connection Mode:DVI cable,Network cable,USB cable

    Certification:CE,RoHS,CCC

    Voltage:5-24V

    Remote Distance:none

    Warranty:1 year

    Max. Load Power:10W

    Applicable Lights:full color lights

    Features:screen capture

    Model Number:H803TV

    Material:metal

    Wattage:1

    output network interface number:4

    maximum control slave number:1020

    maximum drive pixels number:400000



    1. Features

    (1). H803TV is an online master controller that transmits data over DVI/HDMI interface.

    (2). Four network interfaces drive maximum 400000 pixels.

    (3). It supports dual-monitor mode, multi-monitor extension mode and duplication mode.

    (4). Support the following resolutions: 1024x768, 1280x720, 1280x960, 1280x1024, 1360x765, 1360x1020, 1600x900, 1600x1200.

    (5). Use the autorun USB to transmit and control data, which is applied to both 32-bit and 64-bit operating systems.



     2. Supported driver chips

     LPD6803, LPD8806, LPD1882, LPD1889, LPD6812, LPD1883, LPD1886, DMX512, HDMX, APA102, MY9221, DZ2809, SM16716, SM16711, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, WS2812, INK1003, TM1812, TM1809, TM1804, TM1803, TM1913, TM1914, TM1926, TM1829, TM190, TM1814, BS0901, BS0902, BS0825, BS0815, LY6620, BS0825, LD1510, LD1512, LD1530, LD1532, TLS3001, TLS3002, DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, 74HC595, 6B595, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, HEF4094, A8012, etc.

     Note: H803TV supports more than the chips listed above(some chips have the same sequence diagram, such as UCS2903 has the same sequence diagram with UCS1903, so H803TV supports them all).

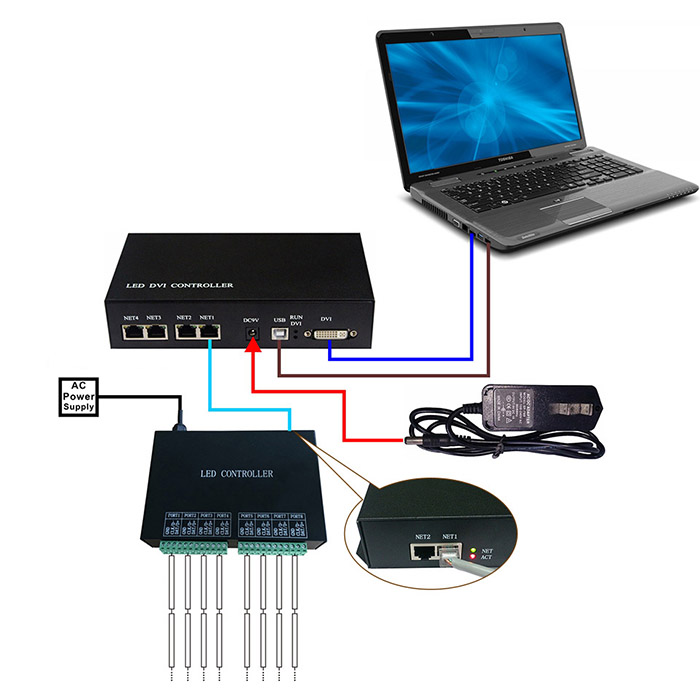

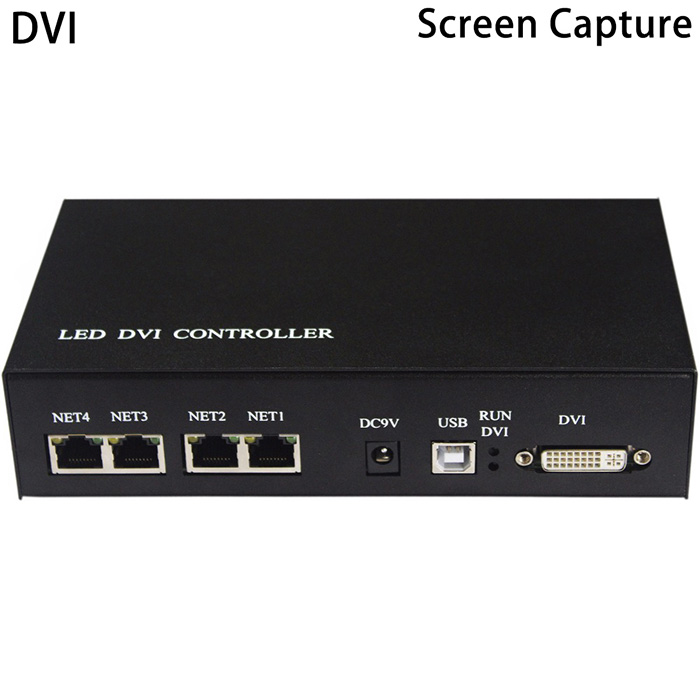

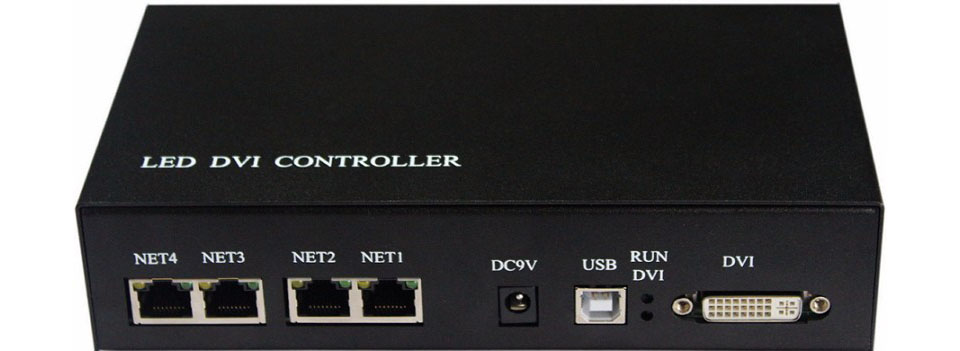

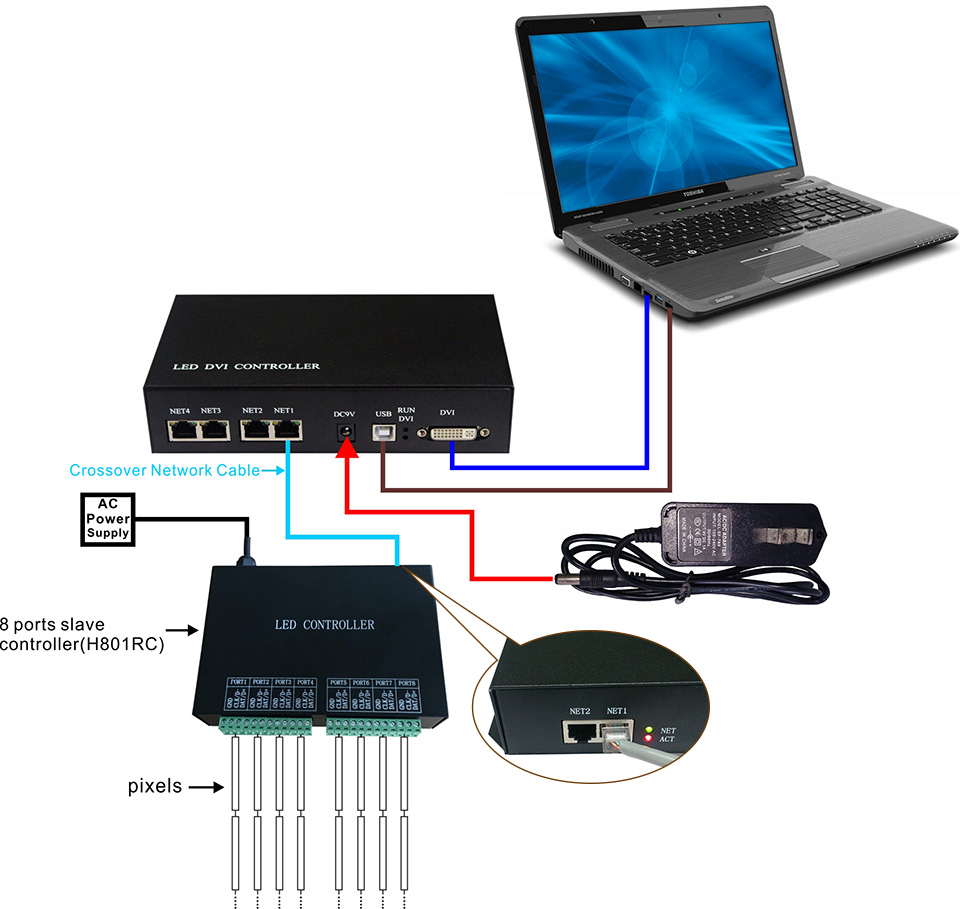

     3. Controller and Accessories display

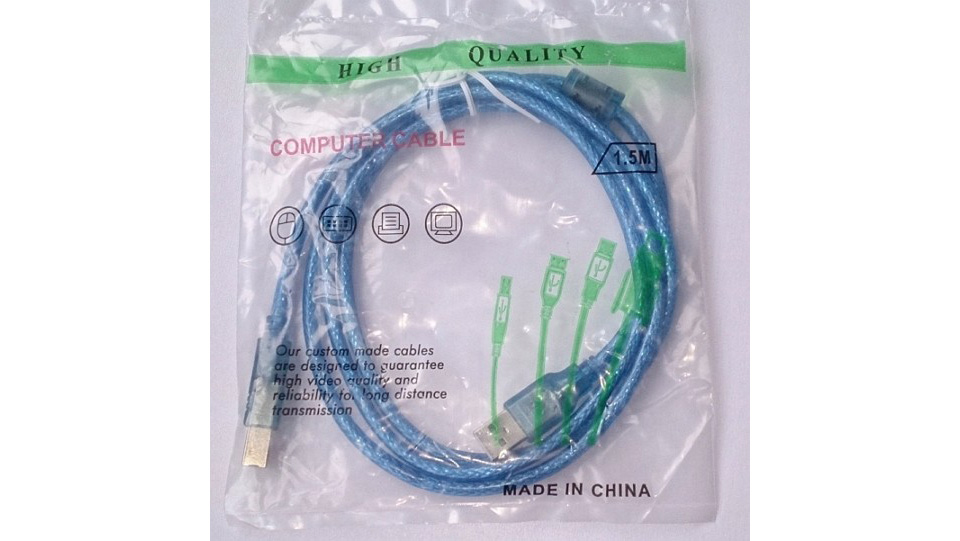

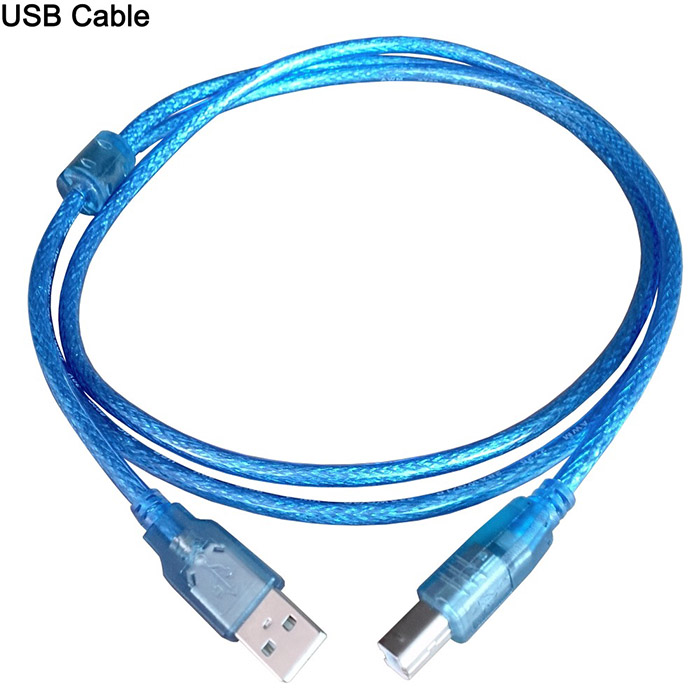

    USB cable

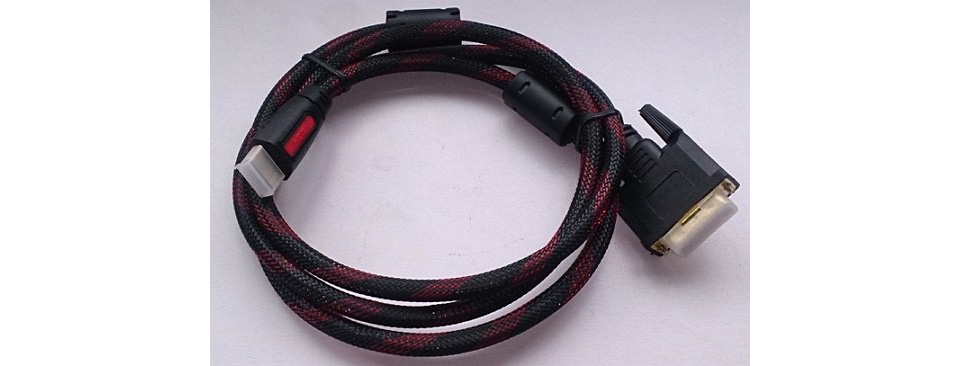

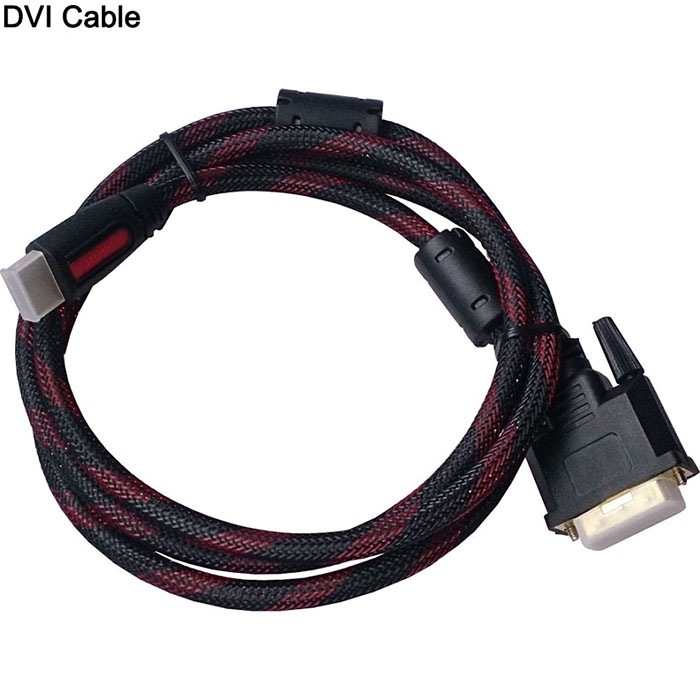

    HDMI/DVI cable

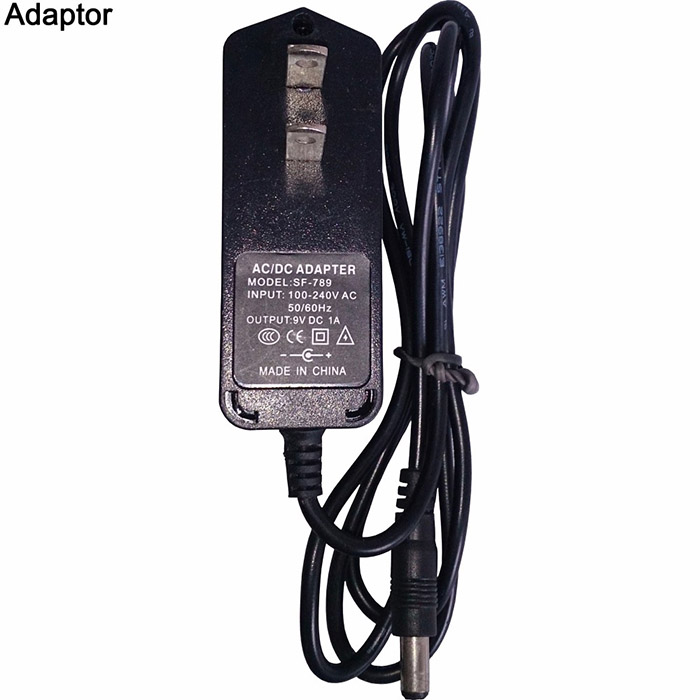

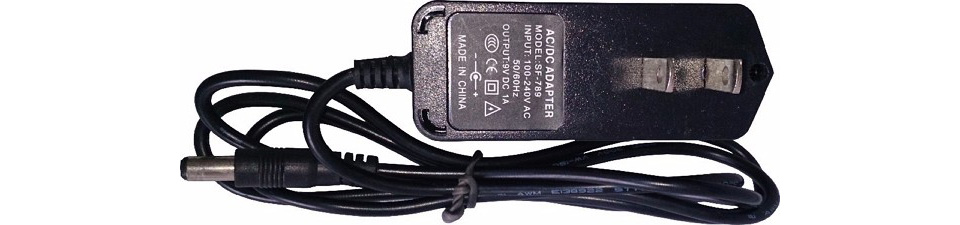

     Adaptor(9V DC 1A output)
    4. Package Include

     1 pcs controller, 1 pcs USB cable, 1 pcs DVI cable, 1 pcs adaptor

     5. Basic Workflow

     Step 1. Set them up

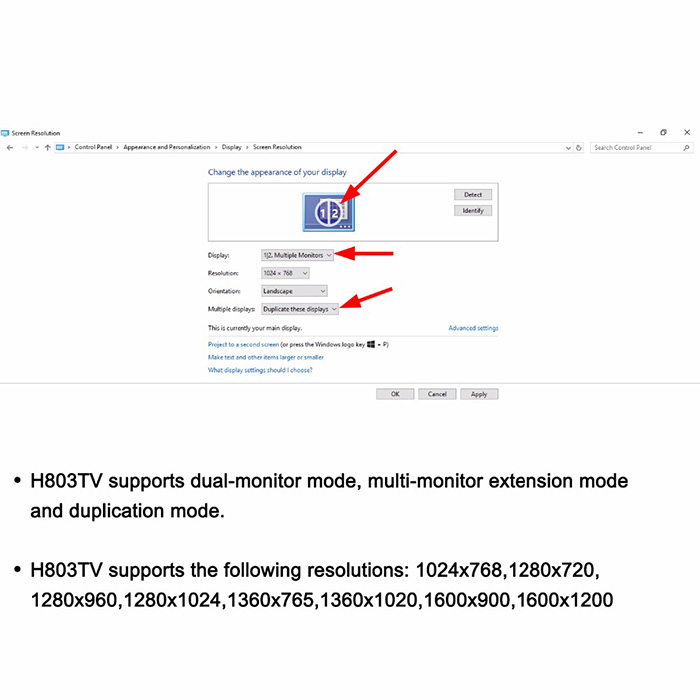

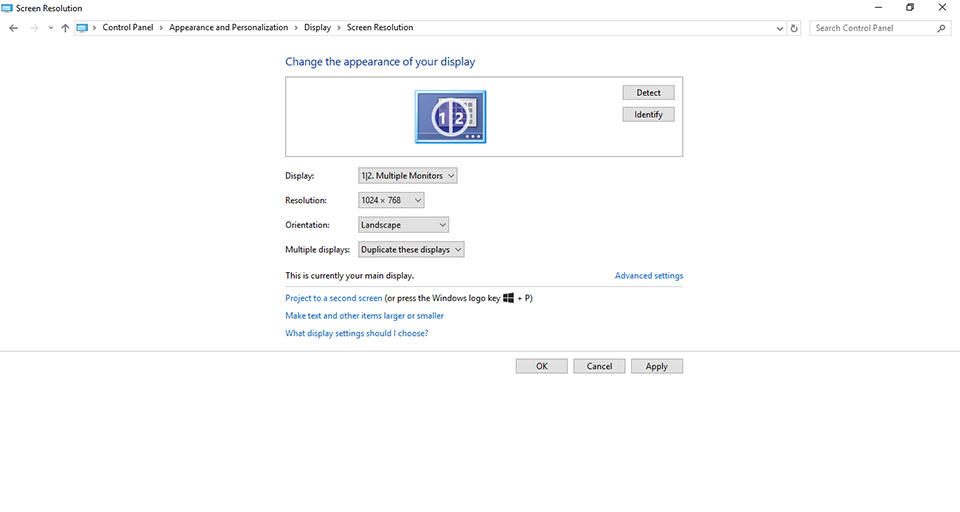

    Step 2. Change the appearance of display

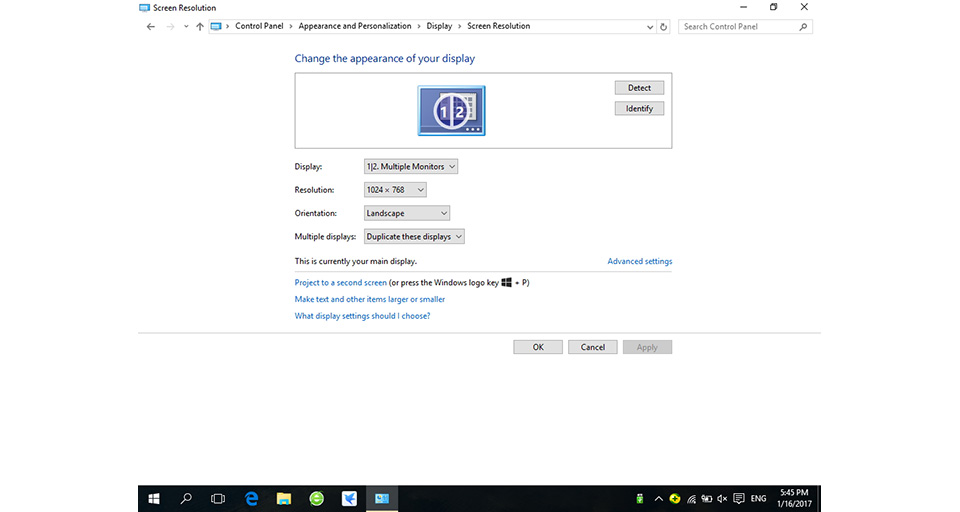

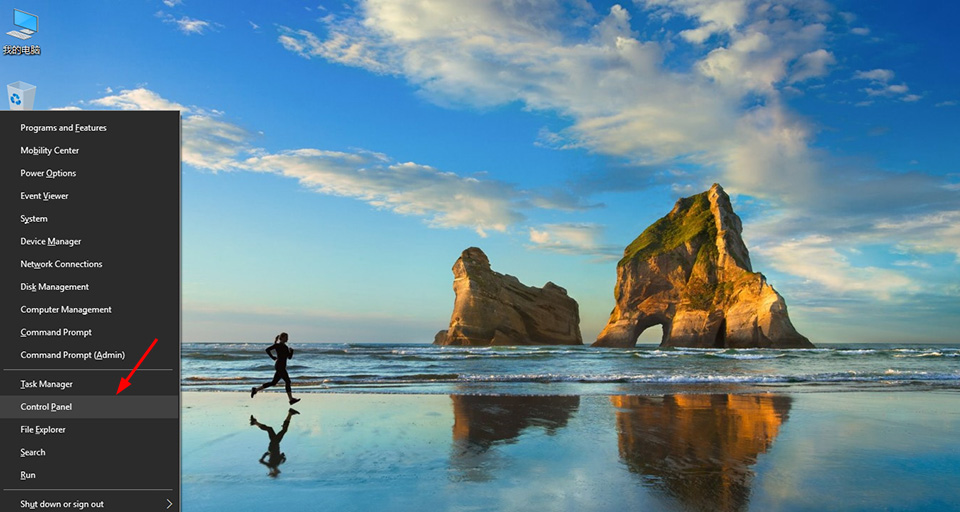

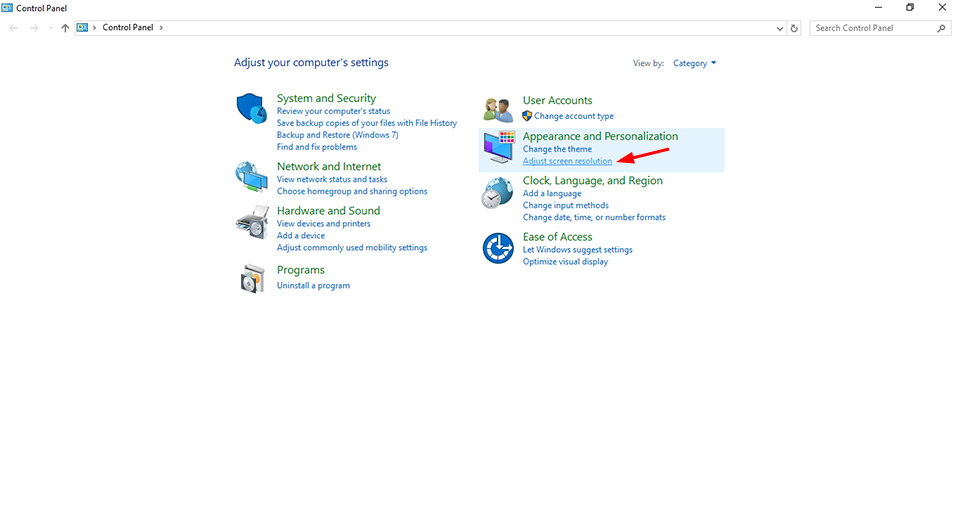

    Press WIN+X on keyboard
    Please refer to the following settings
    Note:

     1). H803TV supports the following resolutions: 1024x768, 1280x720, 1280x960, 1280x1024, 1360x765, 1360x1020, 1600x900, 1600x1200.

     2). It supports dual-monitor mode, multi-monitor extension mode and duplication mode.

     In this manual, i just choose 1024x768 and duplication mode for example.

     Then, click "Apply", "OK".
    The visible area of your screen should be 1024x768 now.

     Step 3. Configure Led Studio

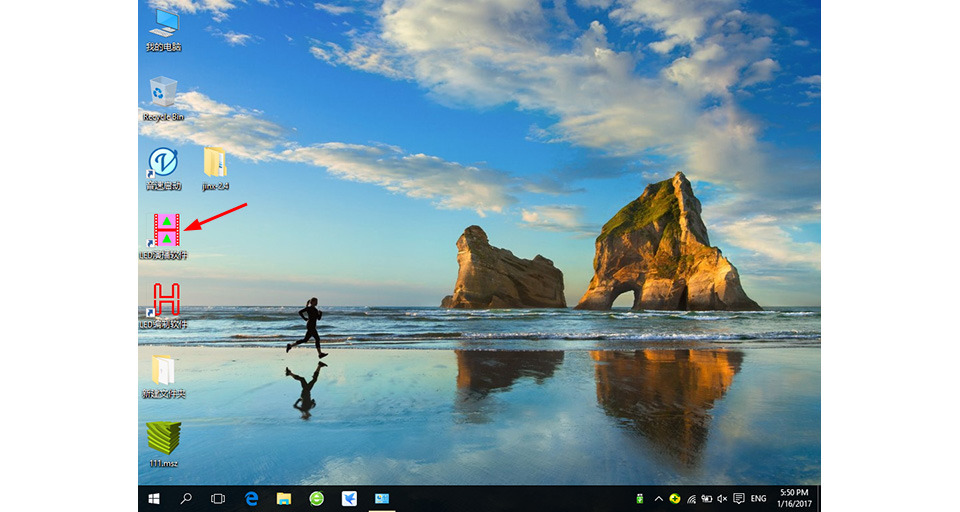

     LED Studio Dwonload: https://drive.google.com/open?id=0B1gzqyV6hfOgbFZrMHdwVzU1X0E

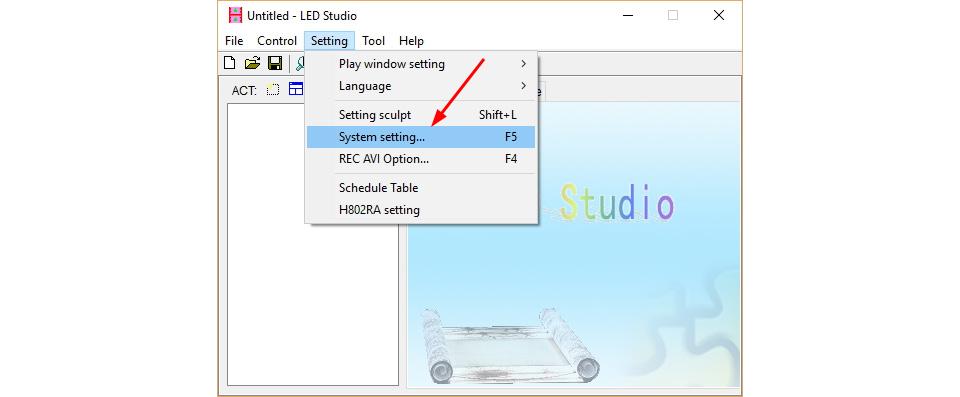

    Open it

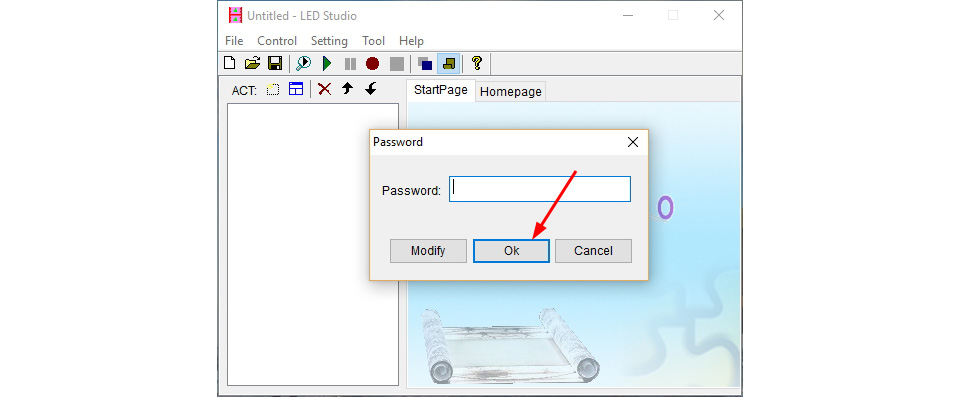

    Password is not needed

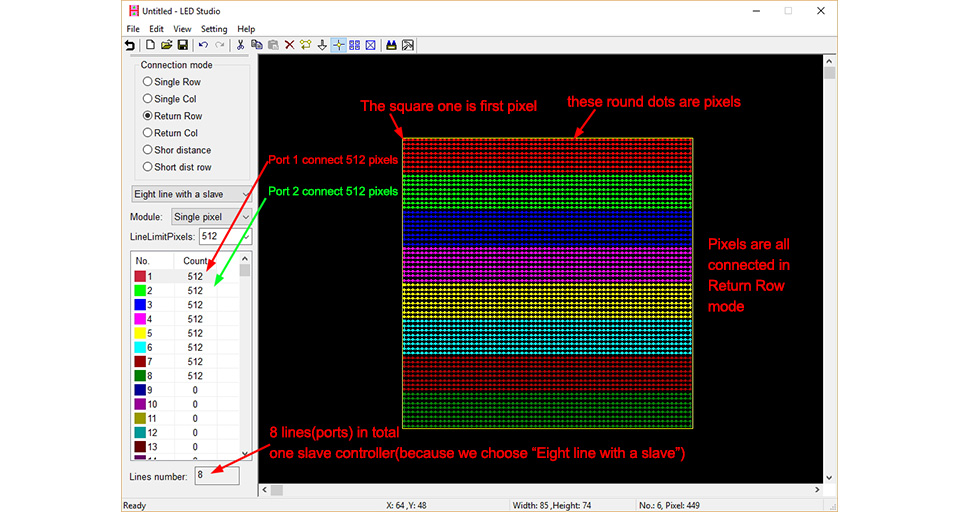

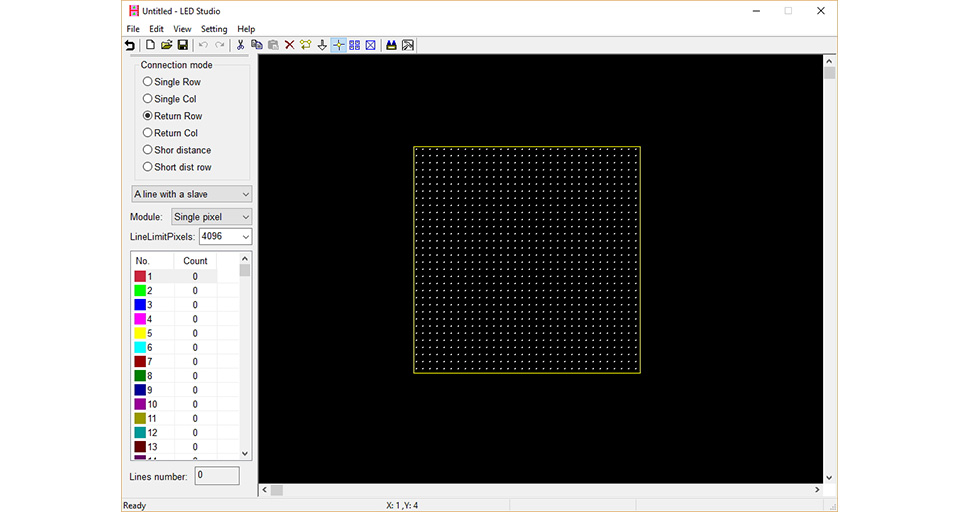

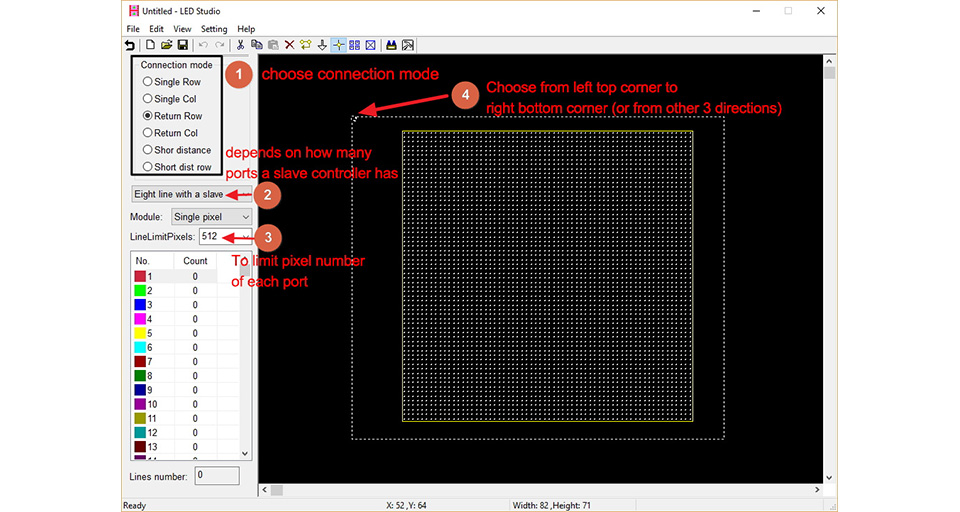

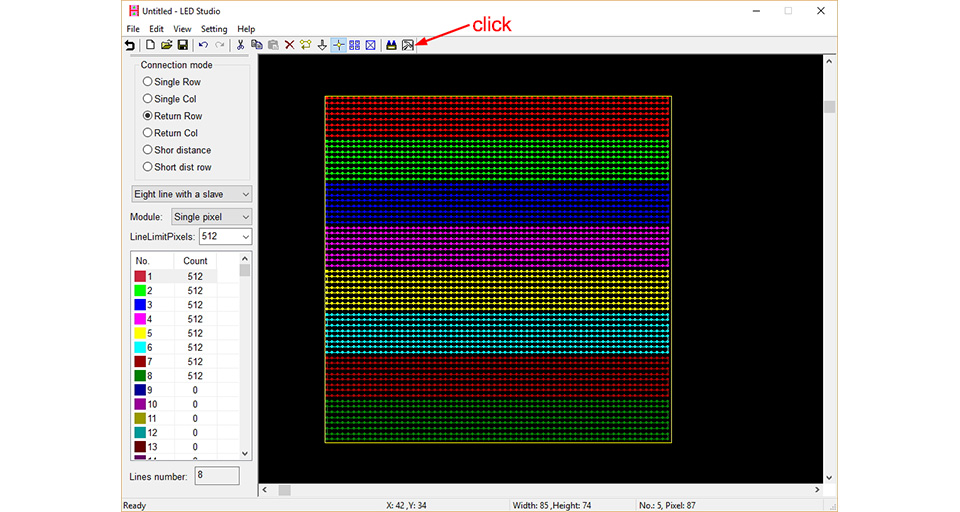

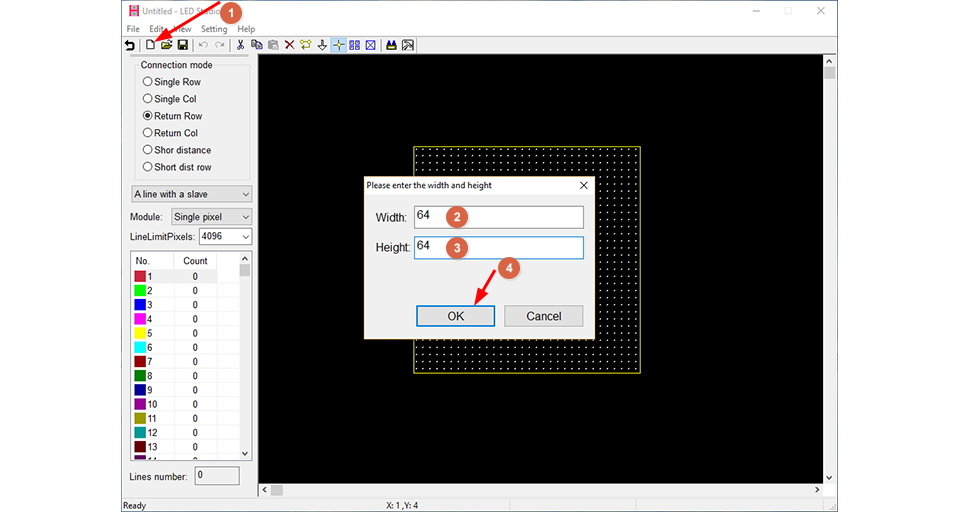

    For example if you have a 64(pixels) by 64(pixels) screen. Click the following icon or "File" -- "New".

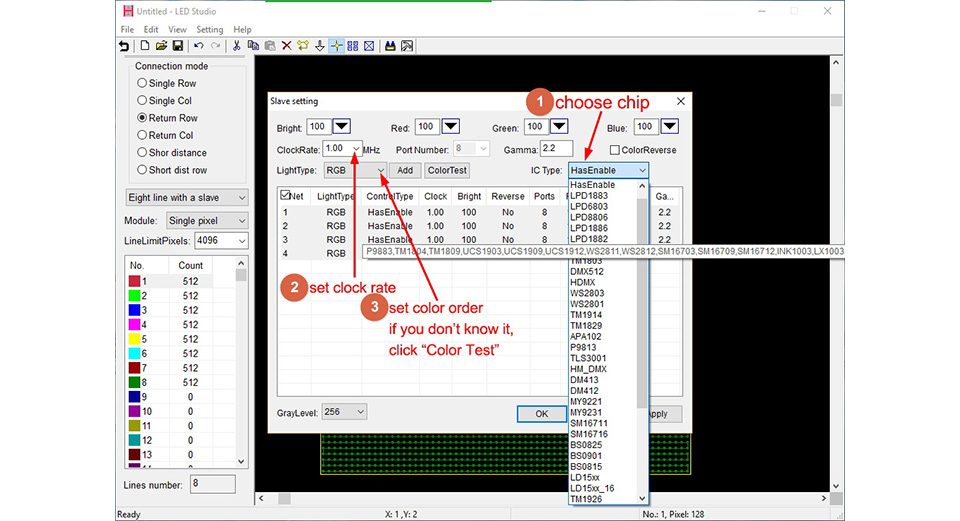

    Then, click "Apply", pops up the following window.

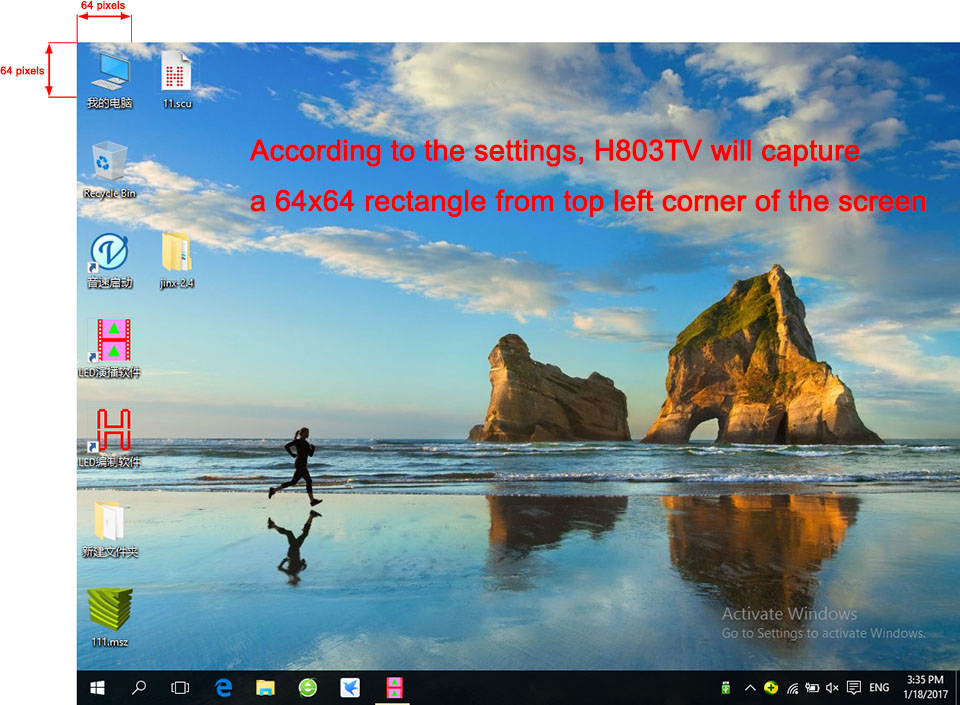

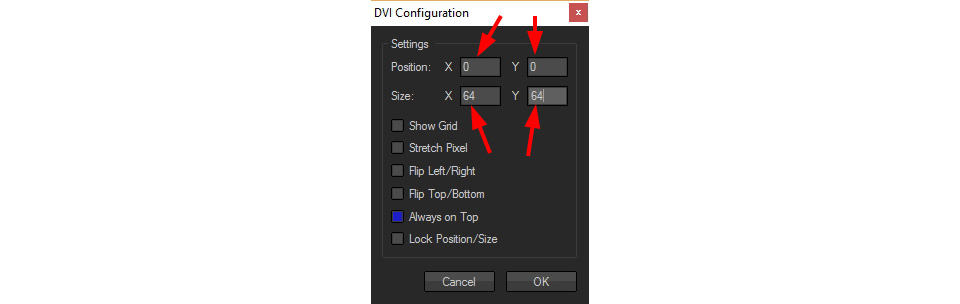

     Origin position: the top left corner of your screen, normally, i set X, Y both to 0


    Then, click "OK"
    Note:

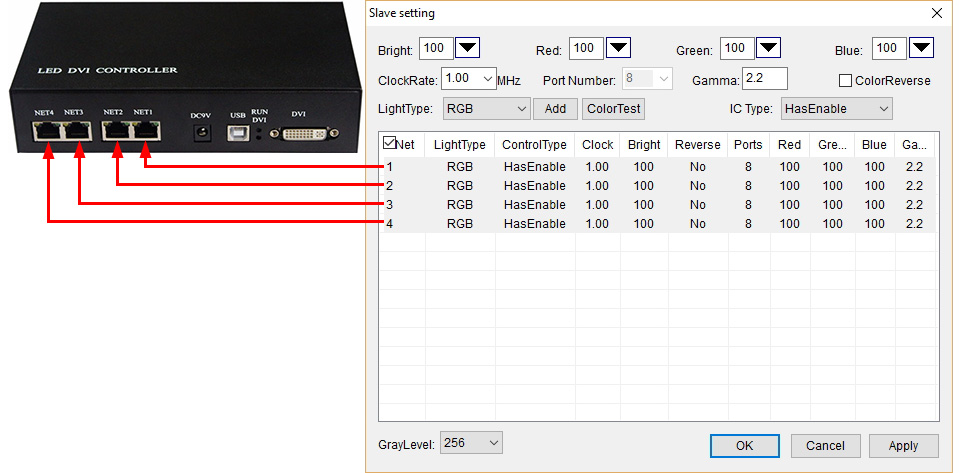

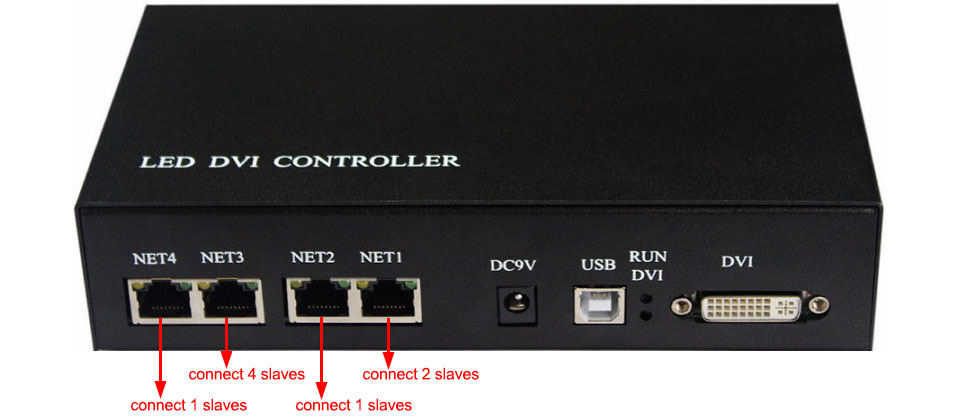

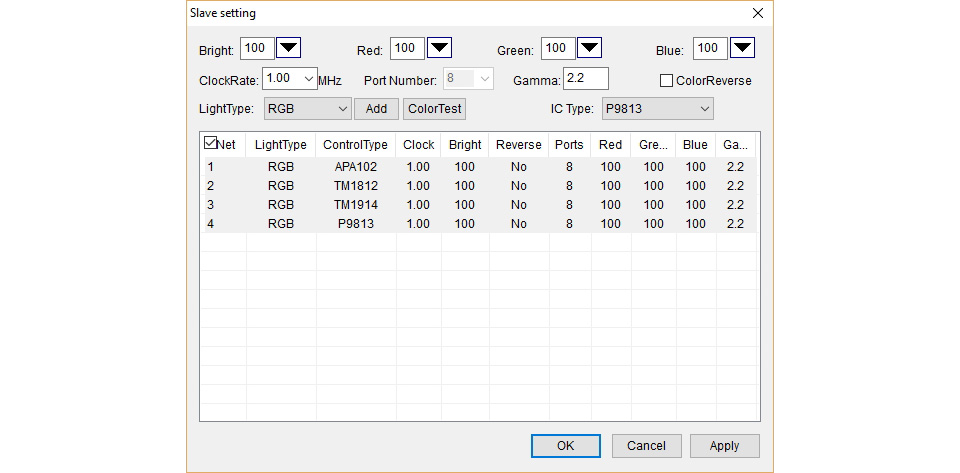

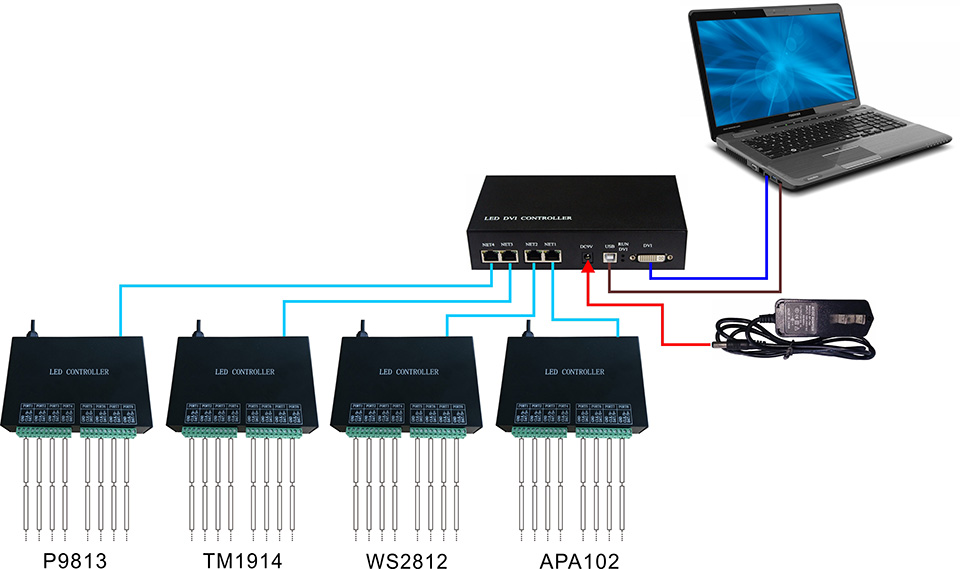

     Four ports of H803TV can drive different chips, each port can be configured individually.

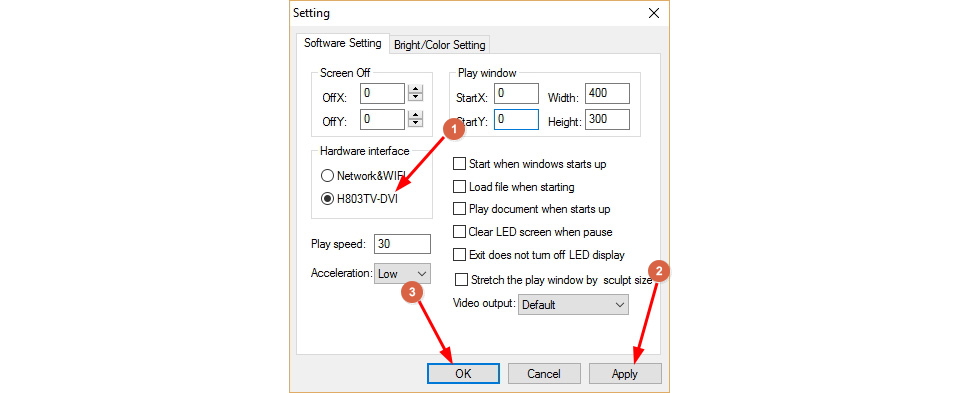

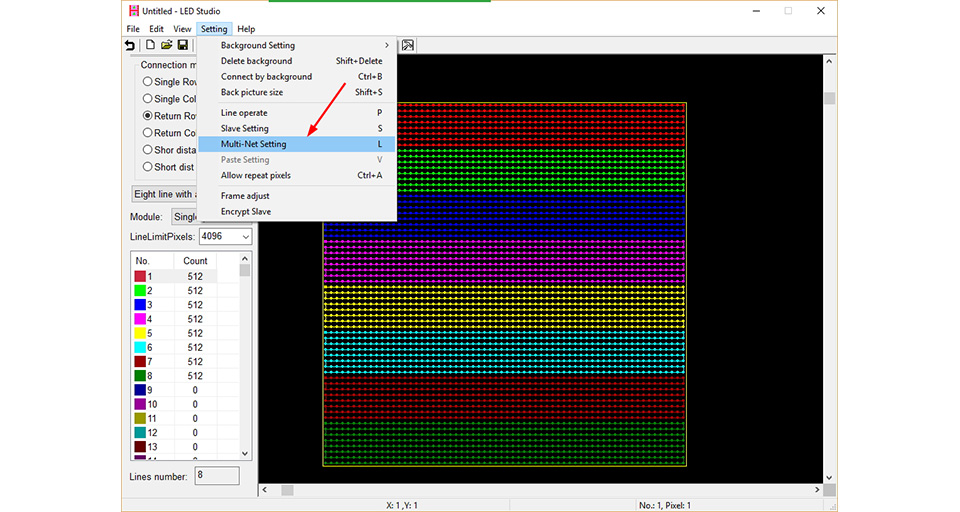

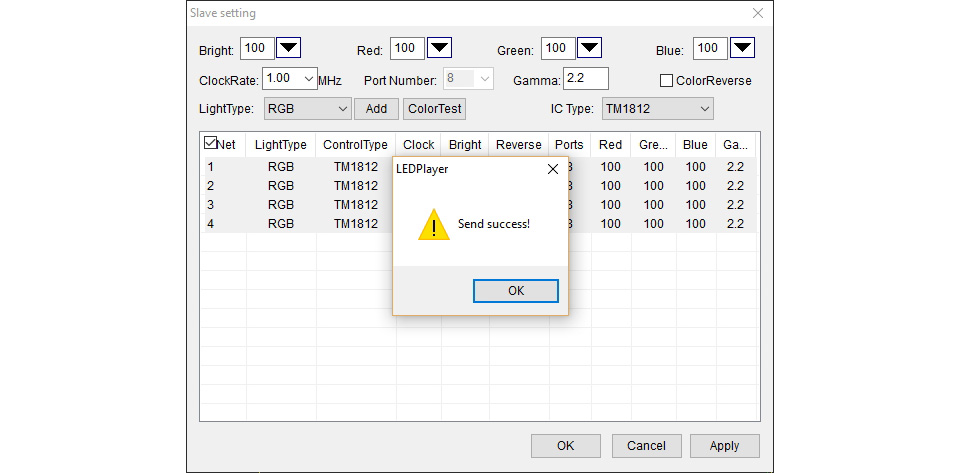

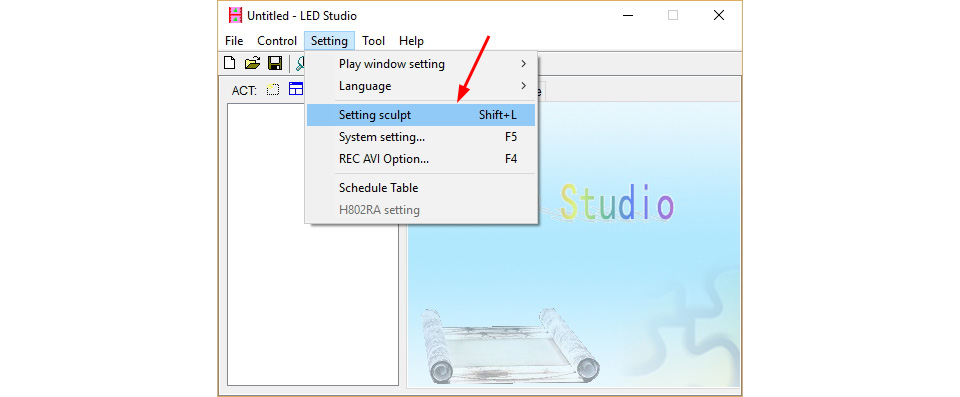

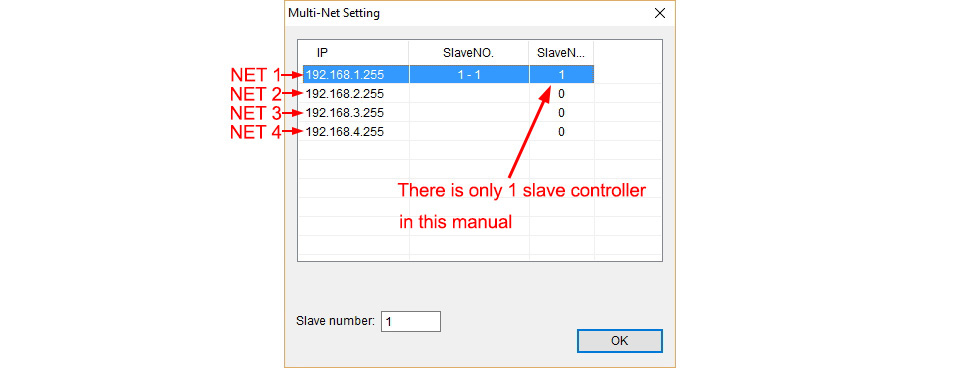

    Click menu "Setting" -- "Multi-Net Setting"

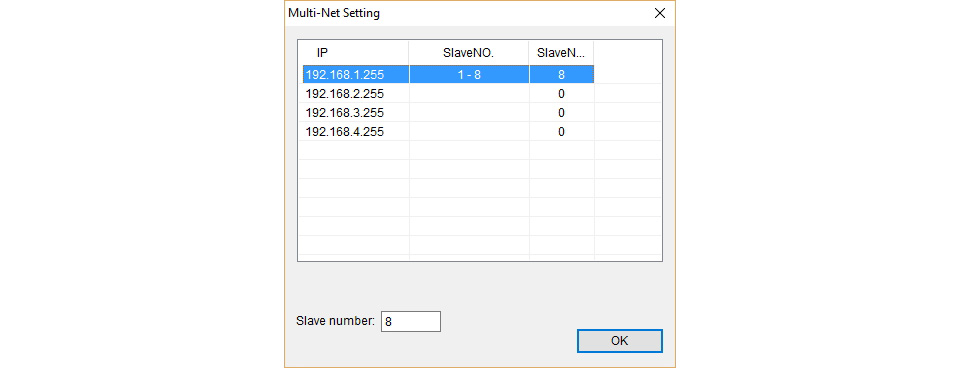

    For example, if there are 8 slave controllers.

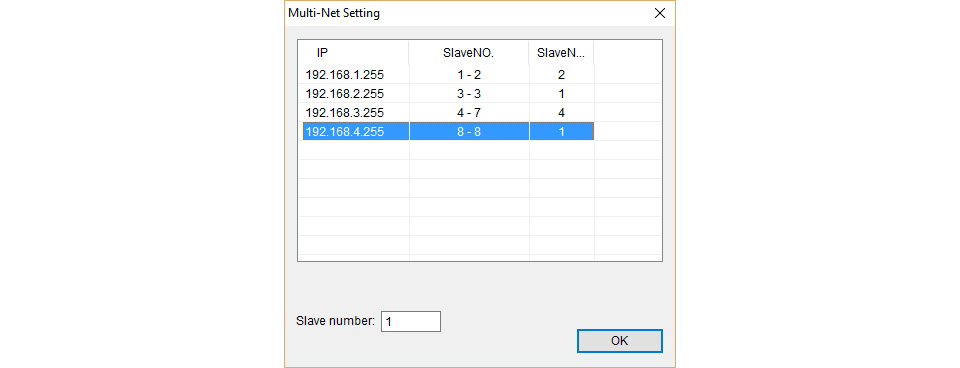

    You can distribute slave controllers to each Net of H803TV

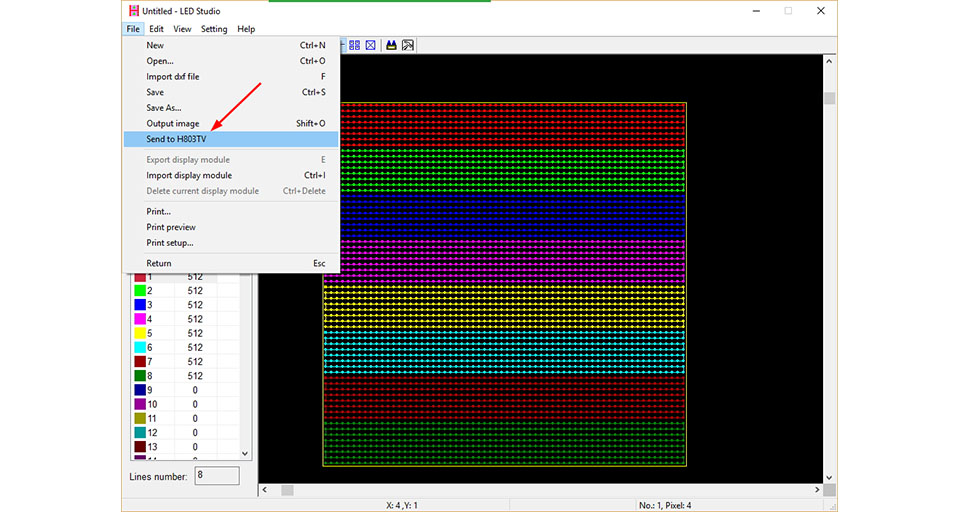

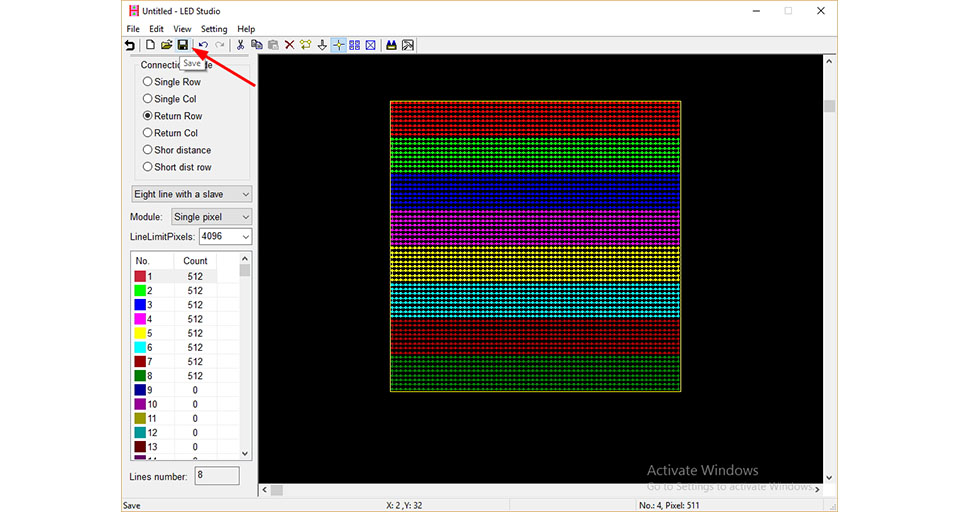

    Then, click "File" -- "Send to H803TV"

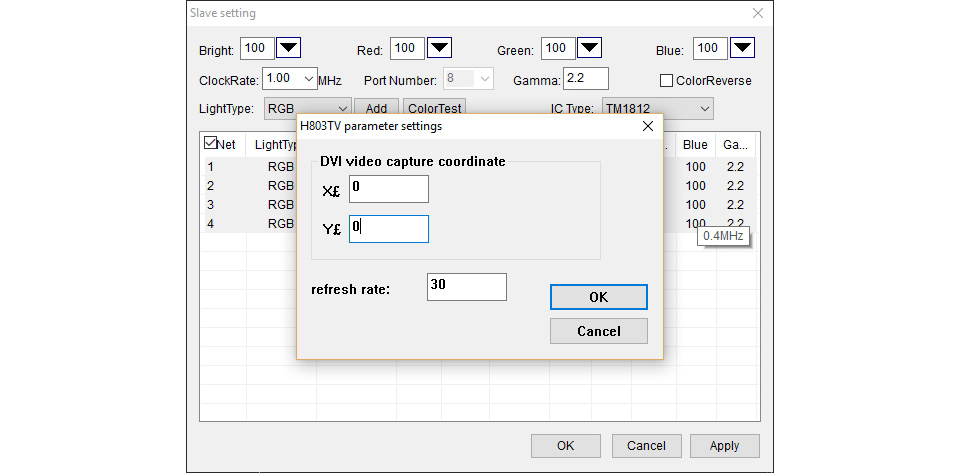

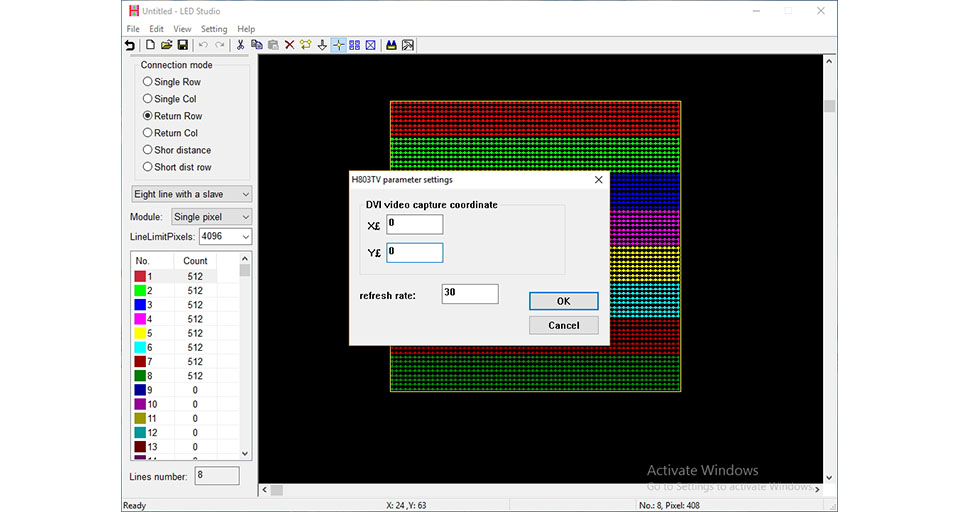

    Software will remind you again, just enter coordinate and click "OK".

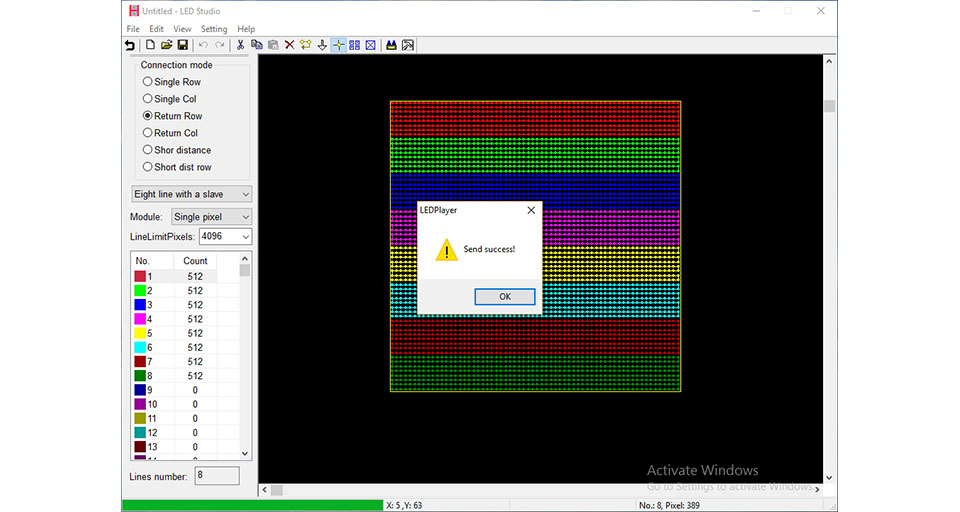

    Then, save all these settings and go back to main window.

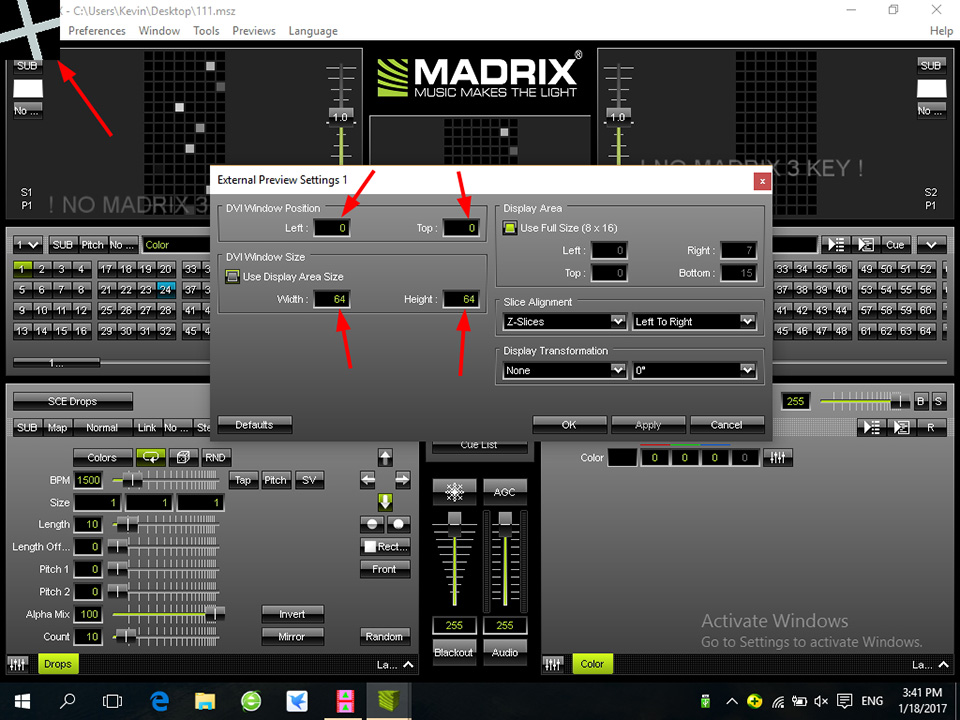

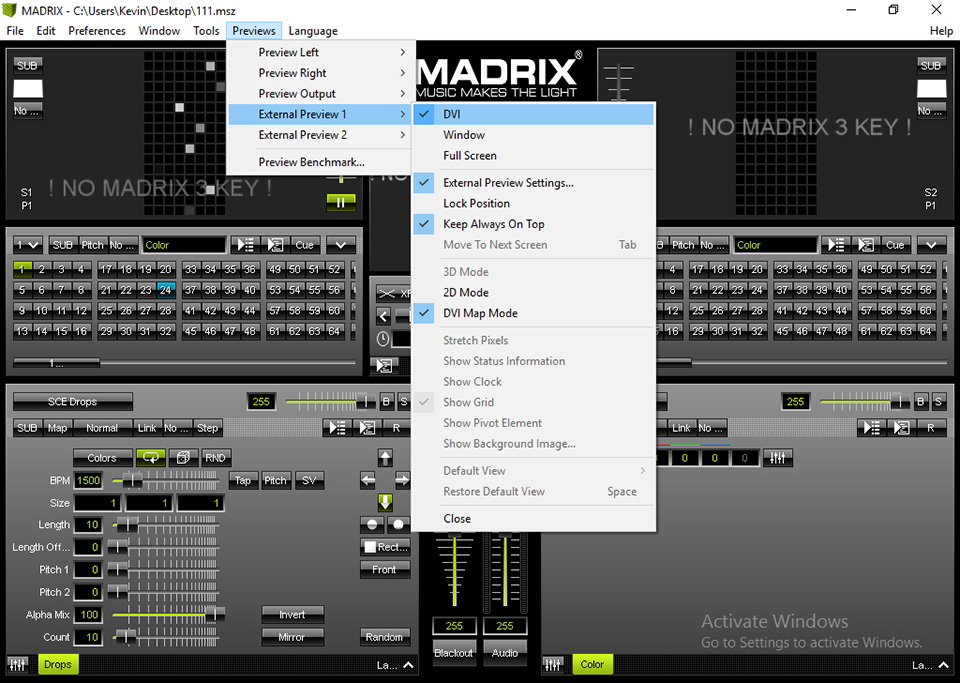

    In MADRIX

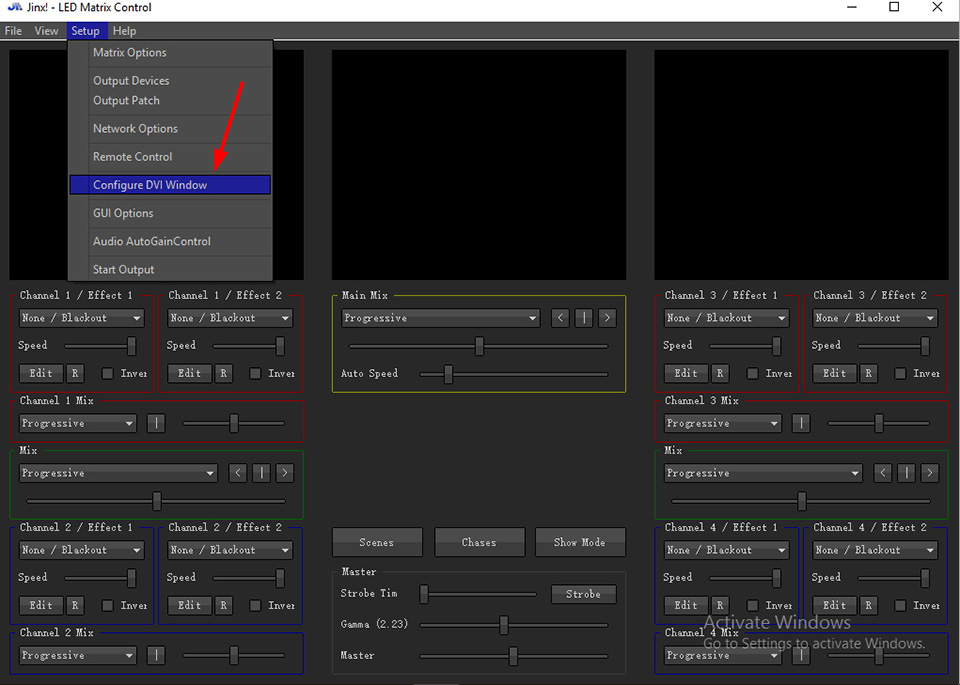

    In Jinx!

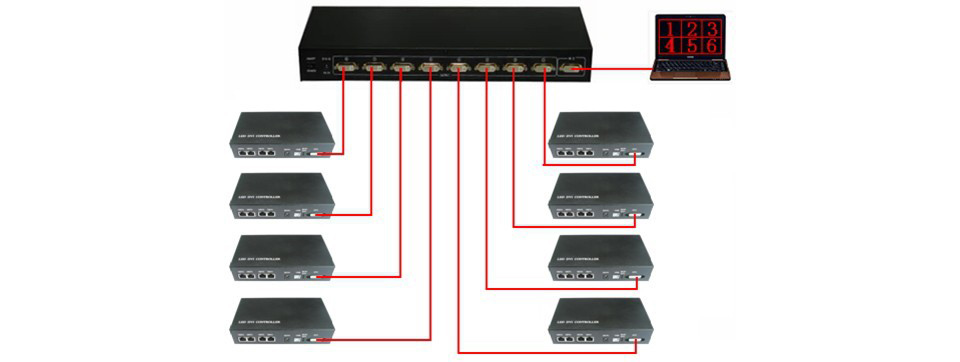

    6. You can also connect multiple H803TVs to DVI distributer,

        each H803TV just control part of the screen


    7. Specifications

     Input Voltage:   DC9V

     Power Consumption:   1W

     Drive Pixels Number:   400000

     Weight:   1KG

     Dimension:   L183 x W139 x H40

     Carton Size:   L205 x W168 x H69
