DC5-24V led wifi controller,1 port control 2048 pixels,DMX512 controller,support WS2812,DMX512,etc.Controlled by android phone via WLAN, Applicable TO led full color strip
Related Products
DC5-24V led wifi...
$49.98
APA102 RGB DC5V 60 LEDs/m...
$79.98 $37.9853% off
WS2811 DC12V Waterproof...
$10.00 $2.3976% off
APA102 RGB DC5V 144LEDs/m...
$42.99 $19.9854% off
Mean Well LRS-350-24 ...
$50.00 $45.988% off-
Special Price: $49.98

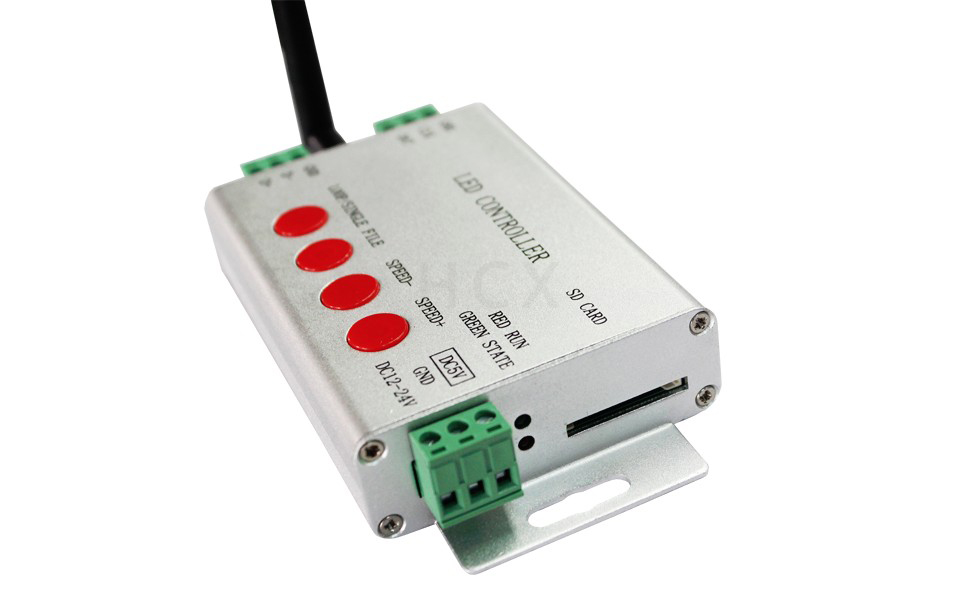

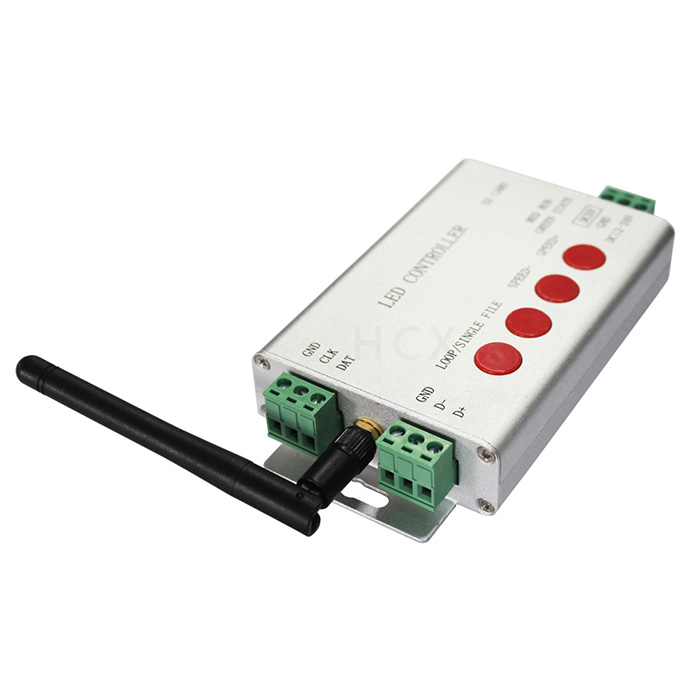

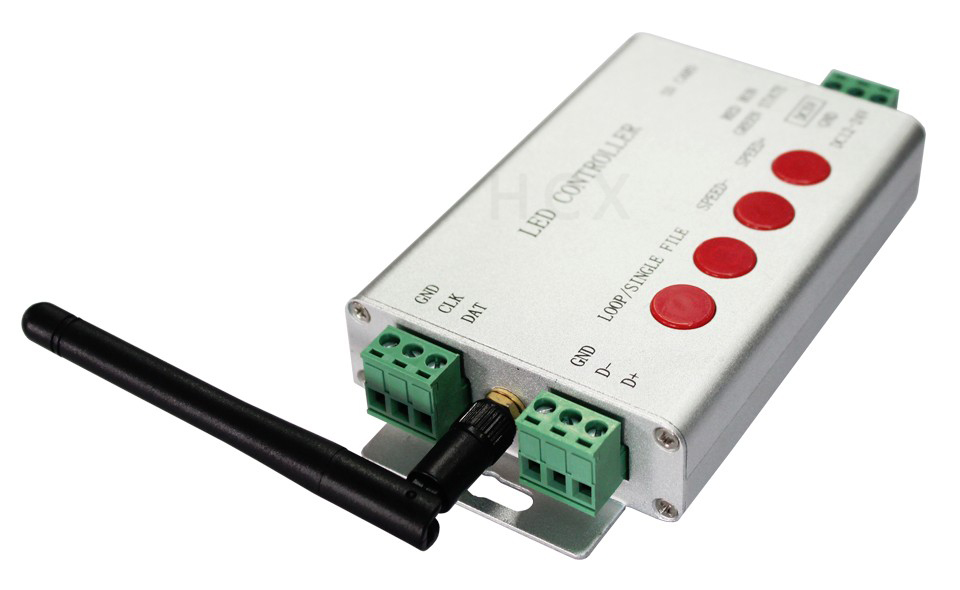

Item Type: RGB Controler
Model Number: H806SB
Max. Load Power: 3W
Remote Distance: 25m
Features: WiFi remote control
Warranty: 1 year
Voltage: 5-24V
Certification: CCC,RoHS,CE
Wattage: 0.5W
Material: aluminium alloy
Power Source: DC
Connection Mode: WLAN
Controled Method: WiFi control
Applicable Lights: led full color strip
sdrive pixels number: 2048

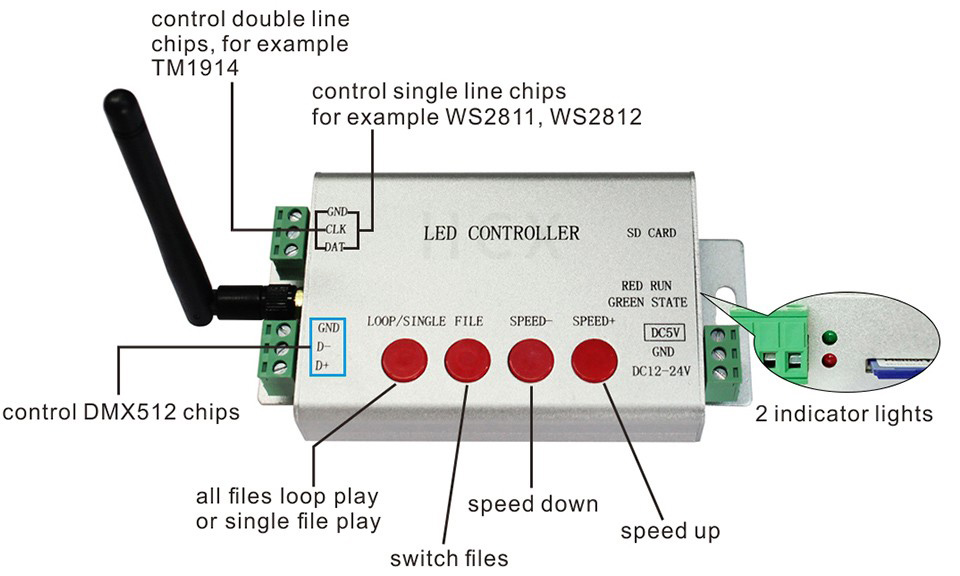

1. Features
(1). One port controls maximum 2048 pixels.

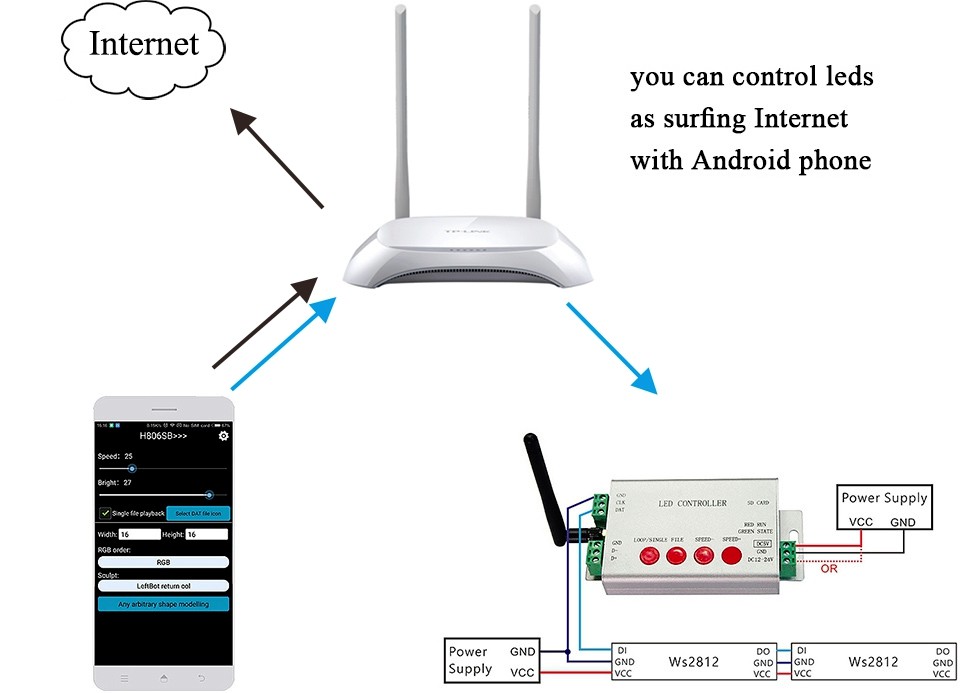

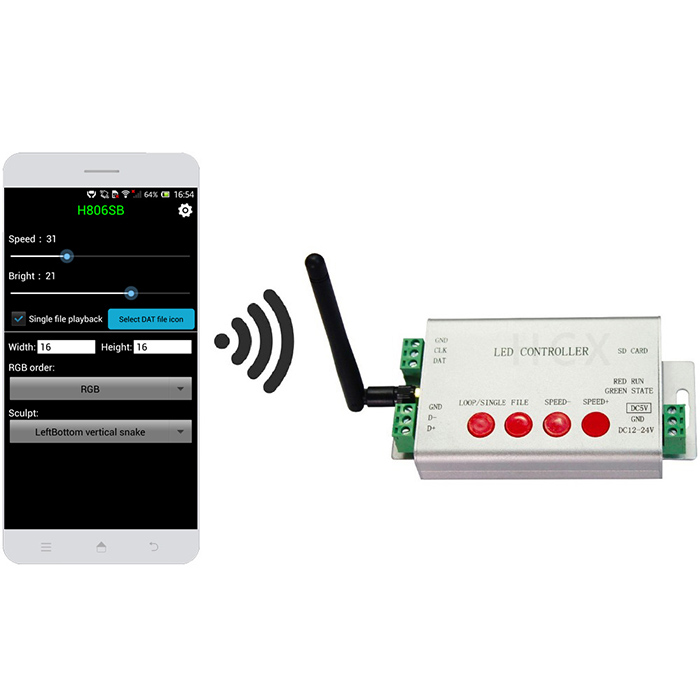

(2). You can connect your android phone to H806SB via WLAN to control leds.
(3). H806SB supports dozens of single-line and double-line chips.
(4). You can also use four buttons to set play mode, switch files, increase or decrease speed.
(5). DC5V or DC12~24V input.
(6). Maximum control radius: 25m

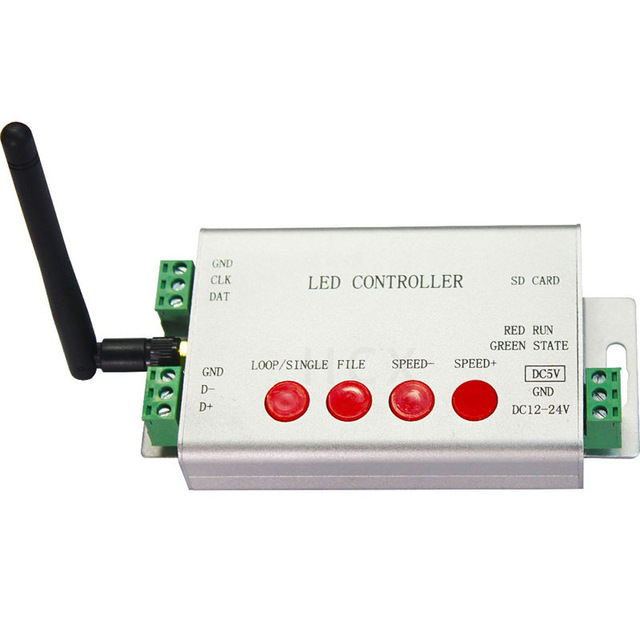

2. Product Display
Product Display

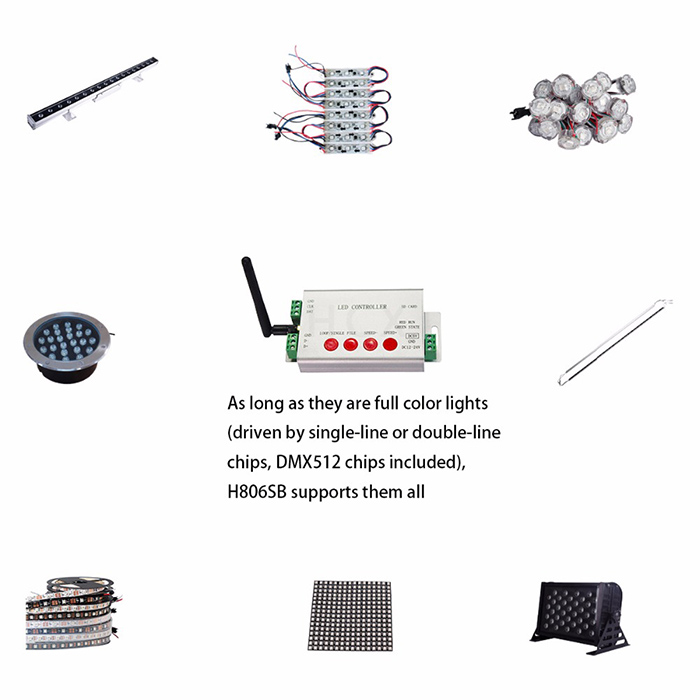

3. Supported Chips
LPD6803, LPD8806, LPD1882, LPD1889, LPD6812, LPD1883, LPD1886, DMX512, HDMX, APA102, MY9221, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, UCS8904, WS2801, WS2803, WS2811, WS2812, TM1803, TM1804, TM1809, TM1812, TM1829, TA9912, TM1913, TM1914, TM1926, TM1814, INK1003, LX1003, LX2003, LX2006, TLS3001, P9813, P9816, SM16711, SM16716, LD151x, LD153x, MBI6021, MBI6023, MBI6024, etc.
Note: H806SB supports more than the chips listed above(some chips have the same sequence diagram, for example UCS2903 has the same sequence diagram with UCS1903, H806SB supports them all).
4. Workflow
Assume you have a 32*32 (pixels) WS2812 panel
Step1. Set them up

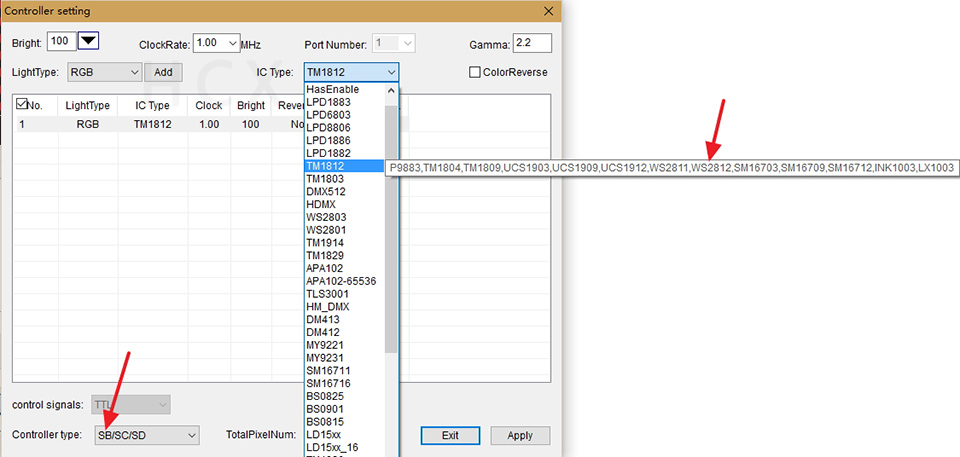

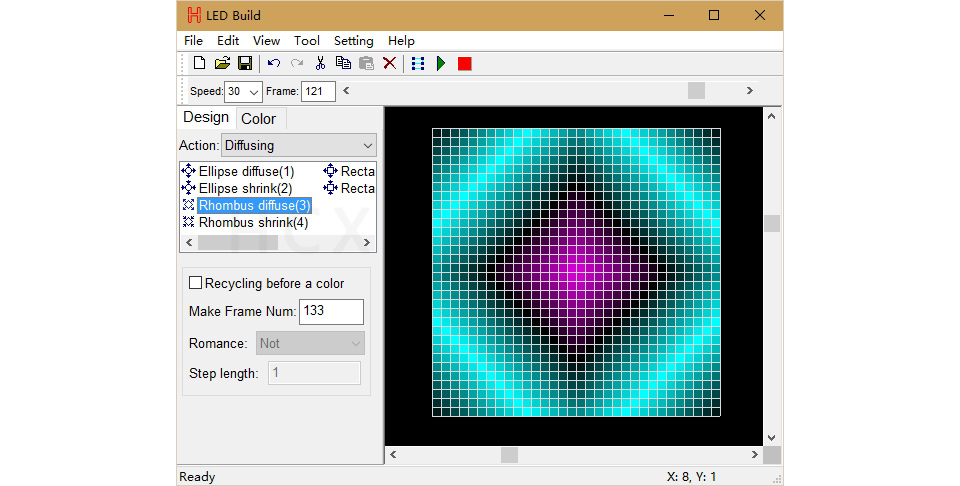

Step2. Program with LED Build Software

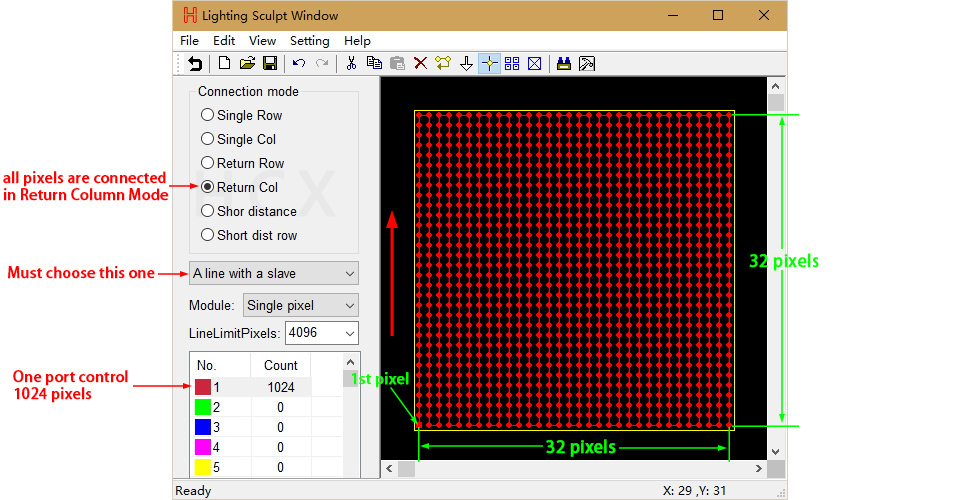

(1). Place Pixels
(2). Light Setting
(3). Make Effects

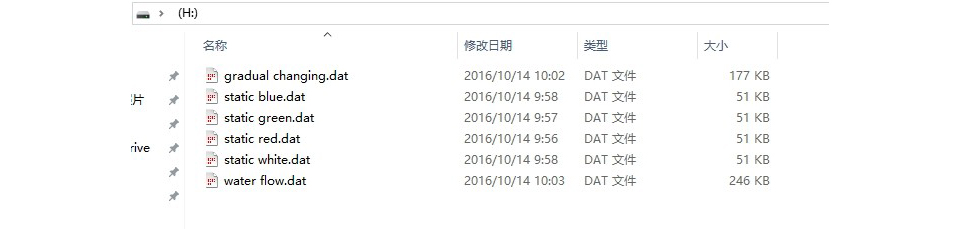

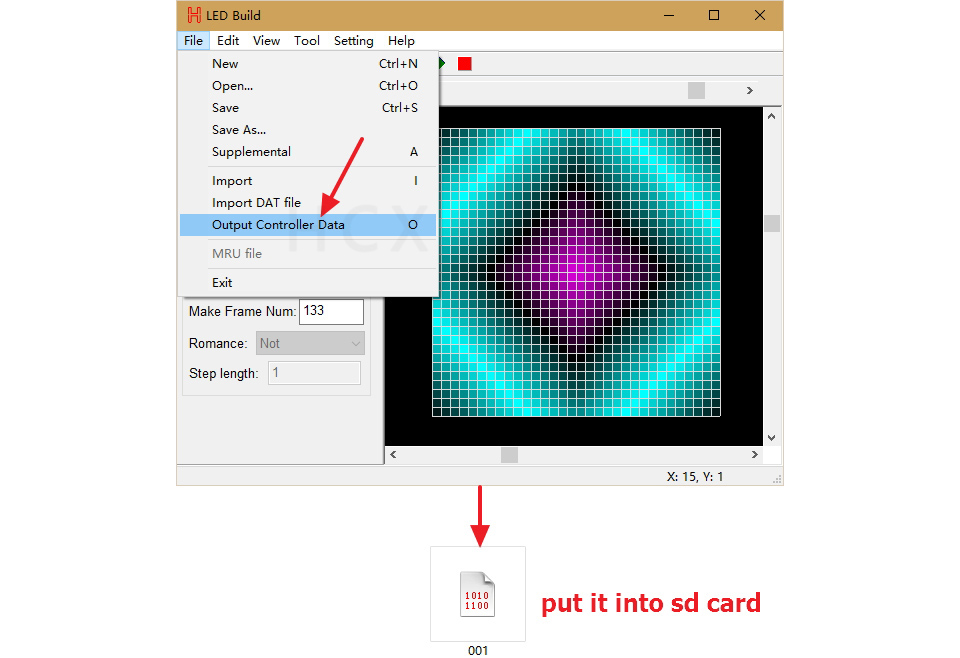

(4). Output controller data and put it into SD card
For more details, please refer to the tutorial video post above.
Test file download: https://drive.google.com/open?id=1b4xo0-NmN_XCVcbCdo6F-YNwfHE0YzrU
(one line 200 pixels, for WS2811, WS2812 strip, copy them to sd card)

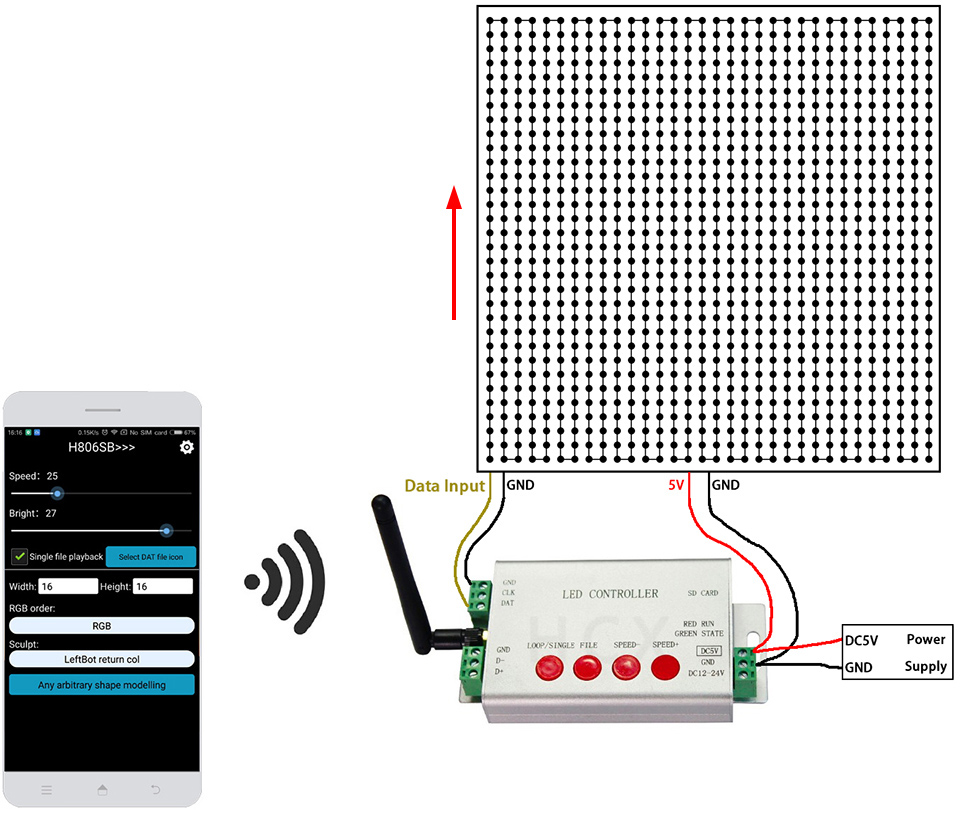

Step3. Control panel with 4 buttons
Power controller and panel up, now you should be able to control panel with four buttons.
Step4. Control panel via phone

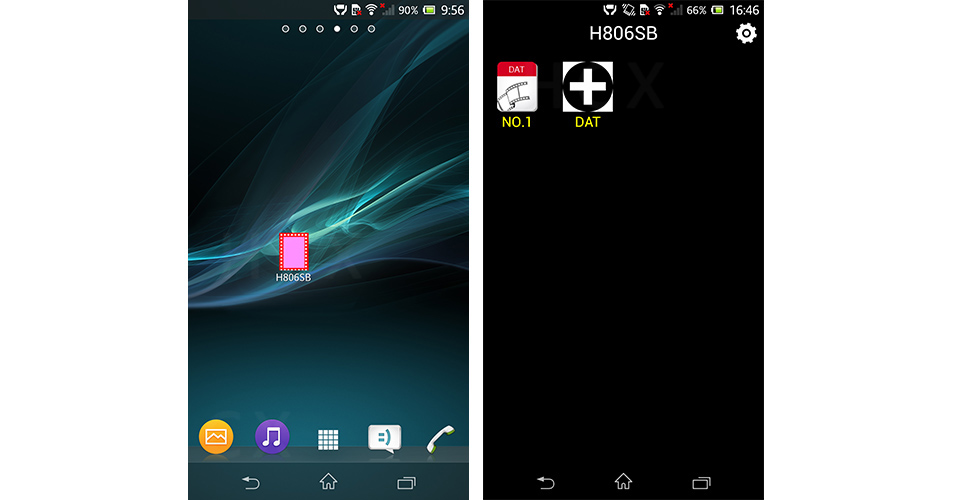

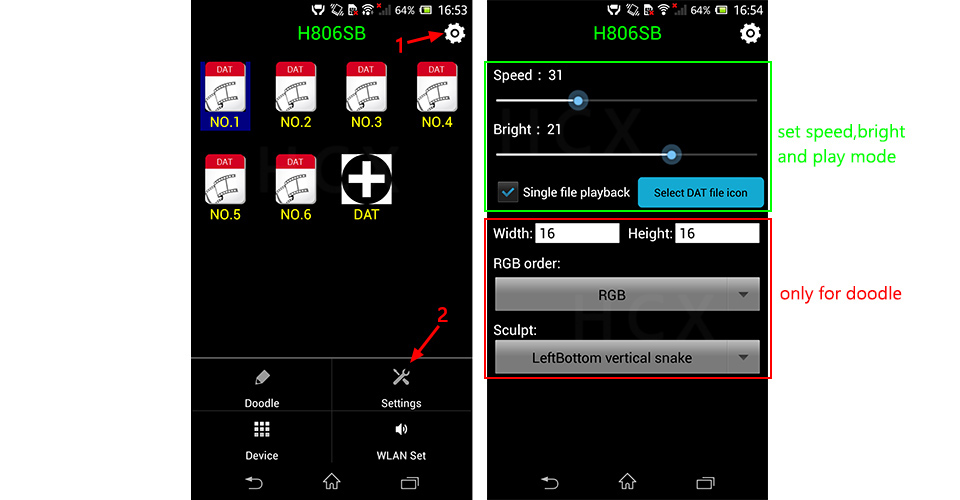

APP for android phone: LED DPF

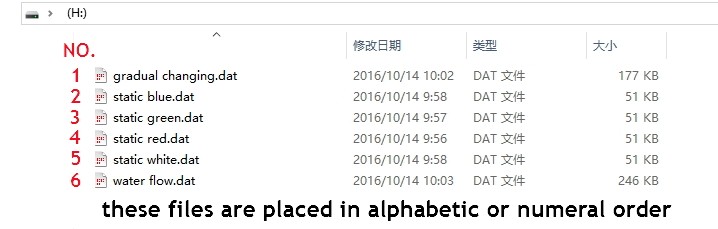

Assume we've had 6 files in SD card
Install LEDDPF. apk and open it

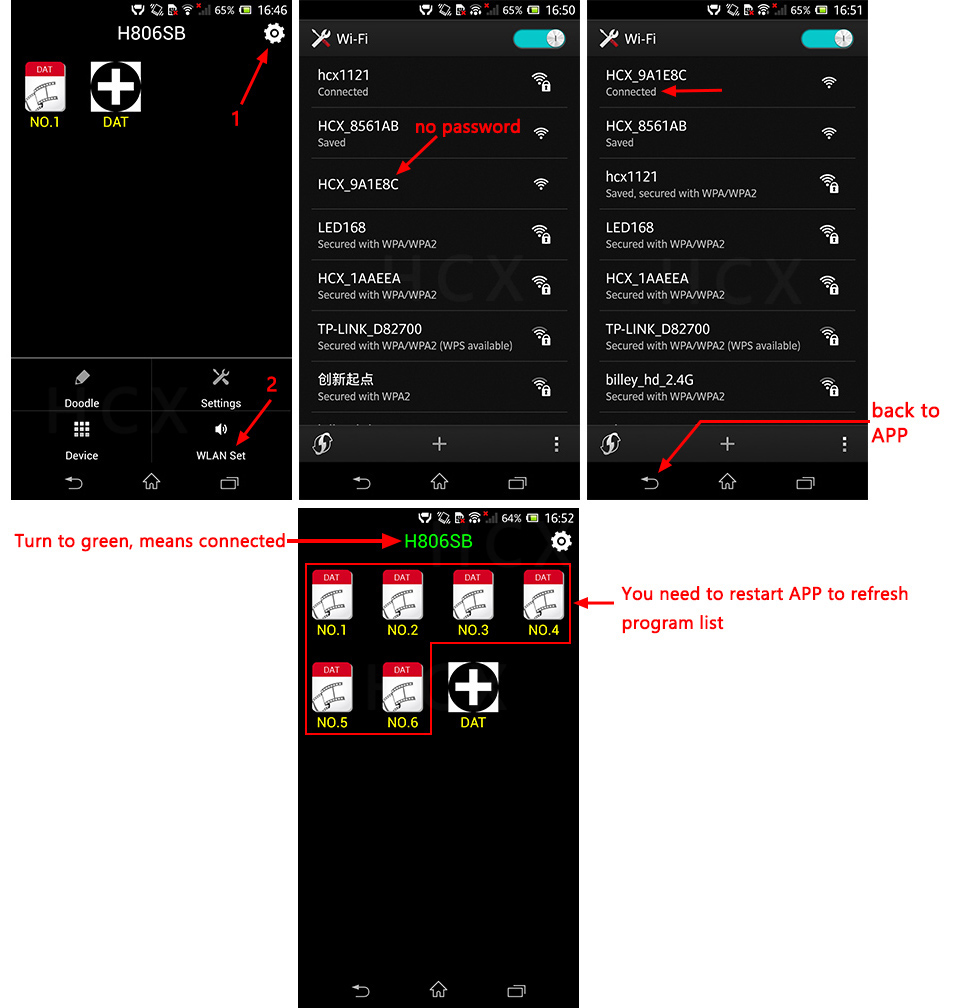

Click controller name in "WLAN Set", connect controller to phone.
Note:

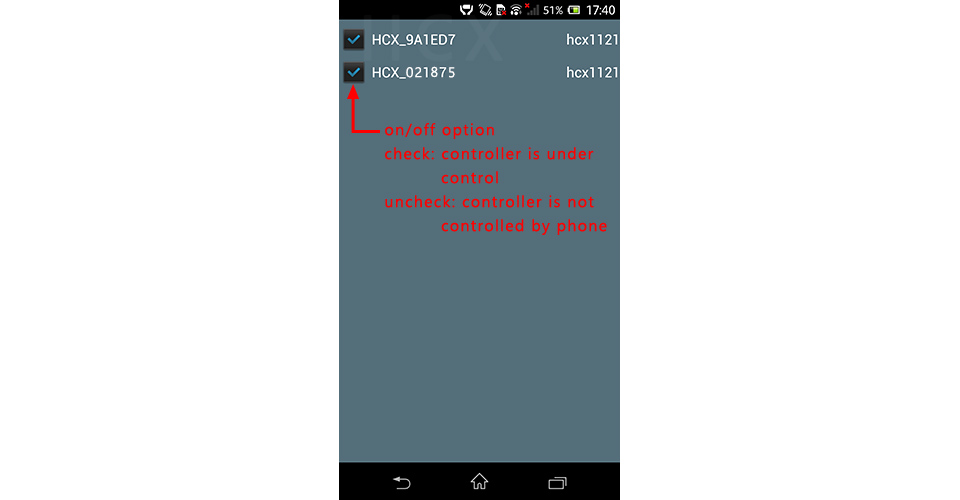

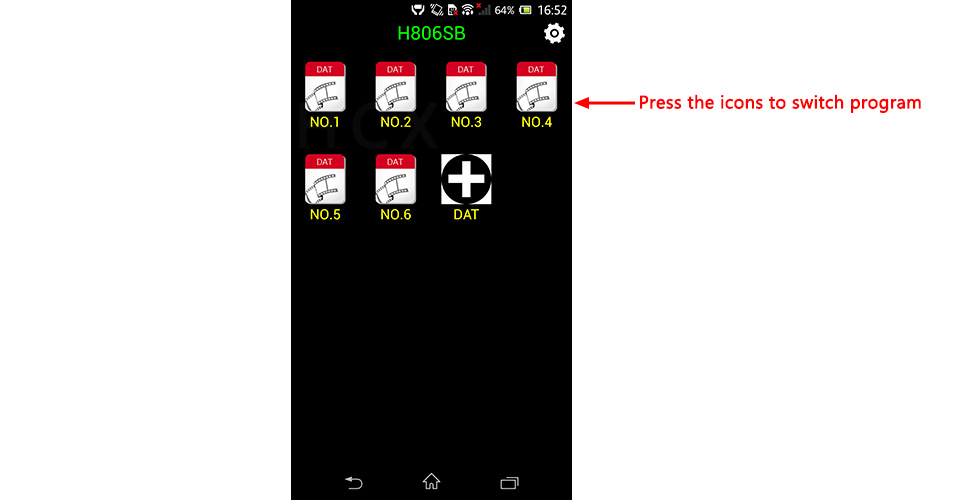

Now you can press these icons to switch program.
Press menu "settings" to adjust speed and brightness.
So far, you can switch programs, change speed and brightness with phone.

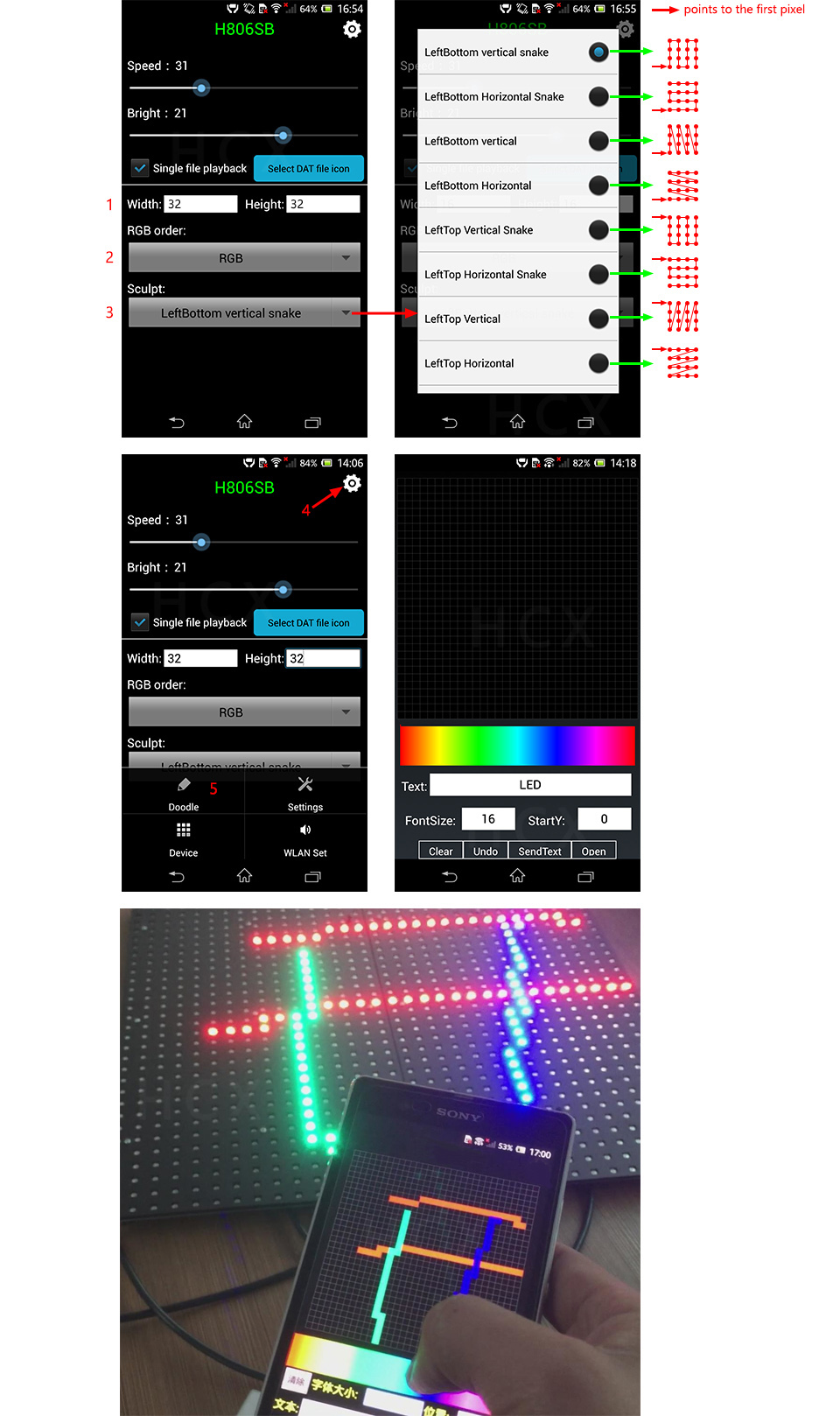

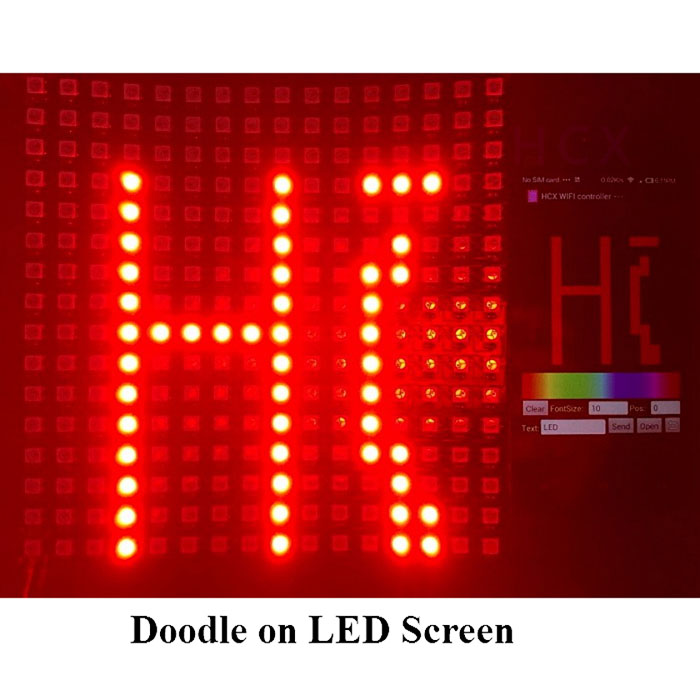

Step5. Doodle
In this example: 32 pixesl by 32 pixels WS2812 panel
Width and Height: 32
RGB order: RGB(for instance)
Sculpt: Left Bottom vertical snake(for instance)

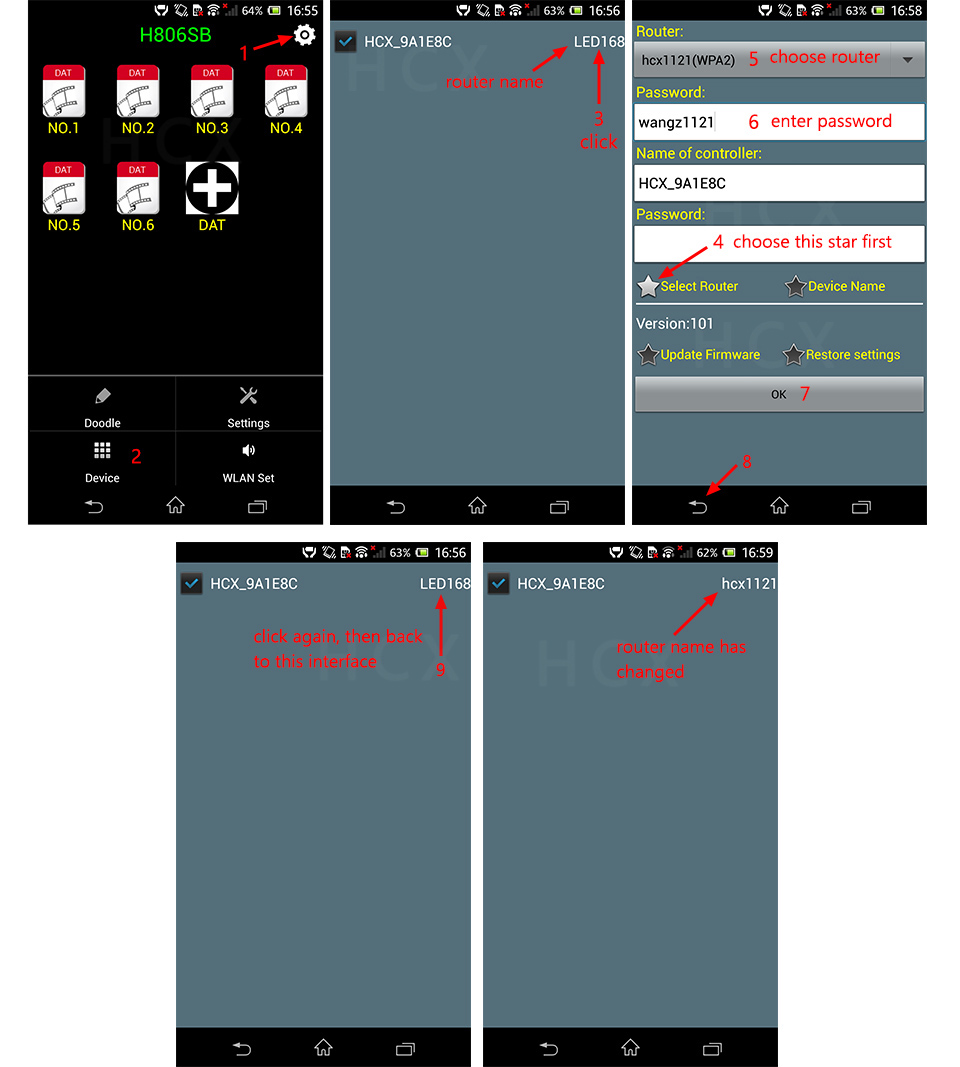

Step6. Configure Router
Note: before configuring each H806SB to router with phone, make sure your phone has been connected to each H806SB directly
Note the color of "H806SB" in the following example, it's green, which means phone has been connected to H806SB directly
If you have mutiple H806SBs and want to configure them all to router.
For the first H806SB, just connect phone to it directly first, then connect it to router.
For the others, just do the same.

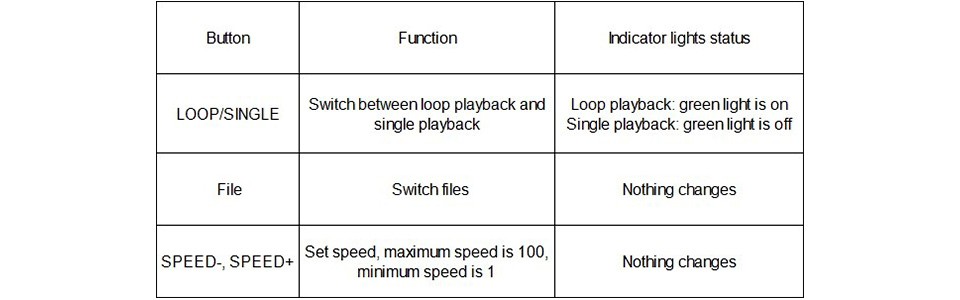

5. Button operation and indicator lights status
Power controller on.
With SD card inserted, green light is on and keeps still, red light is flashing.
Without SD card, green and red light are on and all keep still.

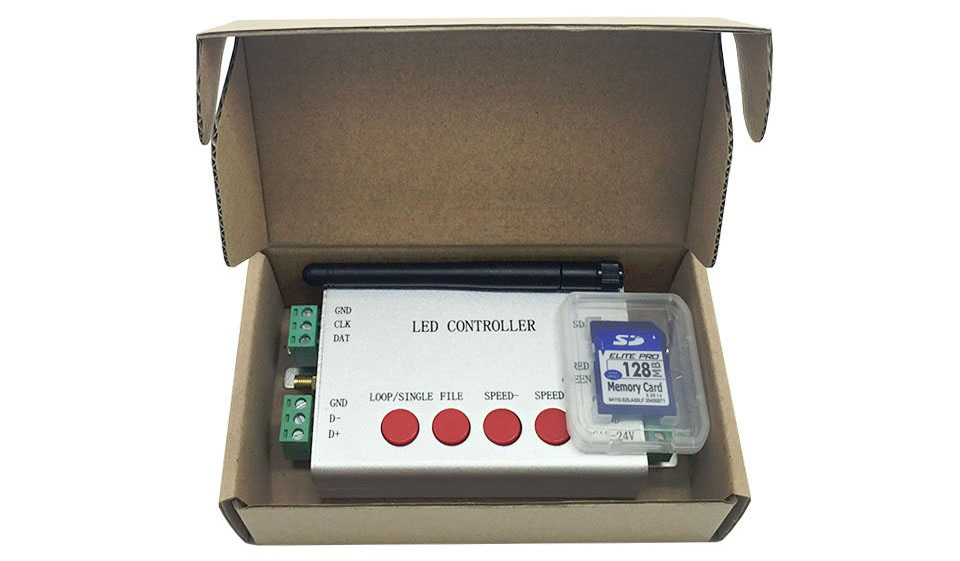

6. Package Include
7. Specifications
Input Voltage: DC 5V~24V
Power Dissipation: 0.3W
Drive Pixels Number: 2048
Control Radius: 25m
Weight: 0.34KG
Dimension: L150 x W82 x H38
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
Here you can learn anything about led strip lights, find the part you are intrested in to learn more knowledge. There are knowledge parts of led strip lights, power supply, controller, accessories, and how to connect led strip lights, etc. You can also watch our thousands of demo video .
Led strip lights
►Everything you need to know before you buying led strip lights
| Top 6 Considerations Before Buying LED Strip Lights 1. Where do I want to place the LED strip lights? Indoor or outdoor? • What are waterproof led strip lights? • How to cut and connect waterproof led strip lights? 2. How much LED brightness do I need? 3. The working voltage is available? • 5V VS 12V VS 24V led strips • AC VS DC 4. How long is the LED strip light suitable for my project? 5. Do I need an LED light controller to adjust the LED color and brightness? 6. How to power the LED strip lights? 1. How do led strip lights work? 2. How long can you run an LED strip? 3. How long do LED strip lights last? Is it worth getting led strip lights? 1. Do LED strip lights use a lot of electricity? 2. Why are LED lights energy efficient? 3. Are LED Strip Lights sustainable? 4. What are the pron and cons of led strip lights? 5. Precautions for led strip lights 1. Do LED strip lights overheat? 2. How do you stop LED strips from overheating? 3. Can LED strips catch fire? 4. Is it safe to sleep with LED strip lights on? What are the types of led strip lights? Flexible led strip lights VS rigid led strip lights - 1. What are flexible led strip lights? 2. What are rigid led strip lights? 3. What happens if you bend LED strip lights? 4. What is the difference between flexible led strips and rigid led strips? 1. Can you cut led light strips? 2. What happens if you cut an led strip? 3. How to cut led strip lights? 4. How to connect RGB color changing led strip lights with a connector? 5. How to know what your led strip light is? How to choose the correct SMD led for your strip? Which is the brightest SMD LED? What does SMD 5050 mean? How many lumens is a 5050 SMD LED? How to know what type of LED strip? What is the difference between 2835 and 5050 LED? |
►COB led strip light
| 1. What is COB? 2. What is the COB production process? 3. Different types of COB strip lights 4. What is the difference between COB and SMD led strip lights? 5. What is the difference between COB and LED? 6. Are COB led strips better? 7. How to cut and connect COB led strips? 8. How to install COB led strip lights? 9. Can COB light strips use aluminum channels? 10. Why choose superlightingled? |
►Led neon lights
| 1. What is led neon light? 2. What are neon led lights used for? 3. Are led neon lights good? 4. How to choose led neon rope lights? 5. Are led neon ropes use DC or AC? 6. Can you change the light-emitting angle or the luminous way of neon led strip? 1. How to cut led neon lights 2. Can led neon lights be connected? 3. Easy 7 steps to make led neon lights 4. How to install led neon rope? |
►Addressable led strip
| Ultimate Guide to Choosing the Right Addressable LED Strip What is an addressable LED strip? Can you cut addressable LED strips? How to judge if an LED strip is individually addressable? How to choose the best DC12V addressable led strips? How to choose the best DC5V digital led strips? How to choose the right IC for your project? Which IC is most commonly used? How do I know my IC type? How do I know if my IC is good or bad? How many types of IC are there? |
►Color, color temperature, and CRI
| The Color Difference Between Warm White 2700K, 3000K, 4000K, 6000K Pure White and 7000K Cool White 1. What is color temperature? 2. What color temperature is right for me? • 2700K VS 3000K • How obvious is the difference between 2700K and 3000K? • Warm White 3000K VS Natural White 4000K VS Daylight White 6000K • Warm White VS Cool White 3. Enjoy 2700K, 4000K, 6000K 4. Further Reading: How to install Warm White LED light strip? How to choose the right color for your led strip lights? - 1. How many colors are in LED strip lights? 2. What do LED light colors mean? 3. Why do white LED light turns to yellow? 4. Why are your led strip lights not the same color? 5. What is the most relaxing color for LED lights? 6. What color led lights is best for sleeping? 7. Are led lights bad for your eyes? 8. Is cool white or warm white better for eyes? 1. What is the best color temperature? 2. Does color temperature keep the same as time goes by? 3. What color temperature is best for night? 4. Led strip lights about color temperature,CCT VS RGBW VS RGBCCT; What is color rendering index? 1. What is CRI in led lights? 2. How to choose the right CRI when buying led strip lights? 3. What is the relationship between CRI and brightness? 4. Is higher CRI better? High CRI VS Low CRI; 5. How to find CRI value? |
Led strip light connection
| How to connect led strip lights? 1. How to connect led strip lights together? 2. How to connect LED light strips without connectors? 3. How to solder wires to LED strips? 4. How to connect LED strips without soldering? 5. Which one is better between soldering and using a connector? 6. How to connect mutiple led strip lights? 7. How many LED strip lights can you connect? How to connect led strip to the power supply? 1. Ensuring the working voltage and power first 2. How to hardwire led strip lights? 3. Can I connect multiple LED strips to the same LED power supply? How to wire led strip lights? How to wire single color led strip lights? How to wire tunable white/CCT led strip lights? How to wire RGB color changing led strip lights? |
Controller for led strip lights
| How to choose led strip light controllers? 1. WIFI controller 2. RF controller 3. IR controller 4. Bluetooth controller 5. Remote control and panel control 6. Single color controller and multi-color controller 7. DMX512 controller 8. SPI controller 9. DALI controller 10. 0/1-10V dimmer 11. Triac series 12. Sonsor series |
Led power supply
| How to calculate power for led strip lights? 4 steps to calculate the power you need Performance And Reasons Of LED Voltage Drop How to choose led strip light power supply? 1. Alternating current power supply VS Direct current power supply 2. Constant current power supply VS Constant voltage power supply 3. How to choose the best led power supply for your led strip light? |
Led strip light installlation
| How to install led strip lights? What accessories will be needed? 1. Adhesive installation for IP20 and IP65 led strip lights 2. How to choose the right led tape? 3. Can IP20 and IP65 led strip lights use aluminum profiles? 4. How to use aluminum profiles? 5. Mounted clip installation for IP67 and IP68 light strips How to install LED sensor stair lights? Lighting Up Your Stairs With LED Strip Lights Ideas How to install led strip lights on TV? How to install led strip lights outdoor? |
Accessories
| How to choose led strip light connectors? 1. Are all LED light strip connectors the same? 2. How do LED strip lights connectors work? 3. What connectors do you need for LED strip lights? 4. What are the different kinds of LED connectors? 5. How to choose the right connector for your led strip lights? Ultimate Guide on Aluminum Profile for LED Strip Lighting 1. What are aluminium profiles used for? 2. Why choose aluminum profiles? 3. Different types of LED aluminum profiles 4. LED aluminum profile VS COB LED strips 5. How to install LED aluminum channels? 6. How To Get Ideal Light Diffuser For Your LED Strip? 7. Add Black Aluminum LED Light Diffusers For Your Home Lighting 8. How To Find The Right Aluminum LED Light Strip Diffuser Channel? |
(0)
-5M-300-LEDs.jpg "12V WS2815 Individually Addressable 5050 RGB LED Lights Strip 60LEDs/m")
