DC5-24V Programmable SD Card LED controller,Output 2048 pixels,Support LEDEdit2017, For addressable RGB LED Strip Lights

Model: CONFULL-H801SB
DC5-24V Programmable SD Card LED controller,Output 2048 pixels,Support LEDEdit2017, For addressable RGB LED Strip Lights
  • DC5-24V Programmable SD Card LED controller,Output 2048 pixels,Support LEDEdit2017, For addressable RGB LED Strip Lights
  • DC5-24V Programmable SD Card LED controller,Output 2048 pixels,Support LEDEdit2017, For addressable RGB LED Strip Lights
  • DC5-24V Programmable SD Card LED controller,Output 2048 pixels,Support LEDEdit2017, For addressable RGB LED Strip Lights
  • DC5-24V Programmable SD Card LED controller,Output 2048 pixels,Support LEDEdit2017, For addressable RGB LED Strip Lights

Select Specifications:

Select Operating Voltage:

Select Applied to:

$29.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-9
$29.98
10-29
$28.48
30-99
$26.98
100+
$23.98
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

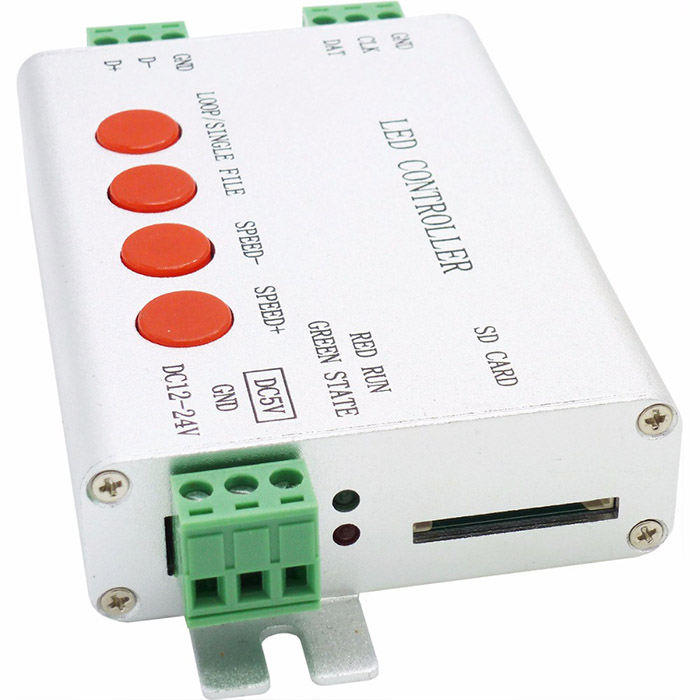

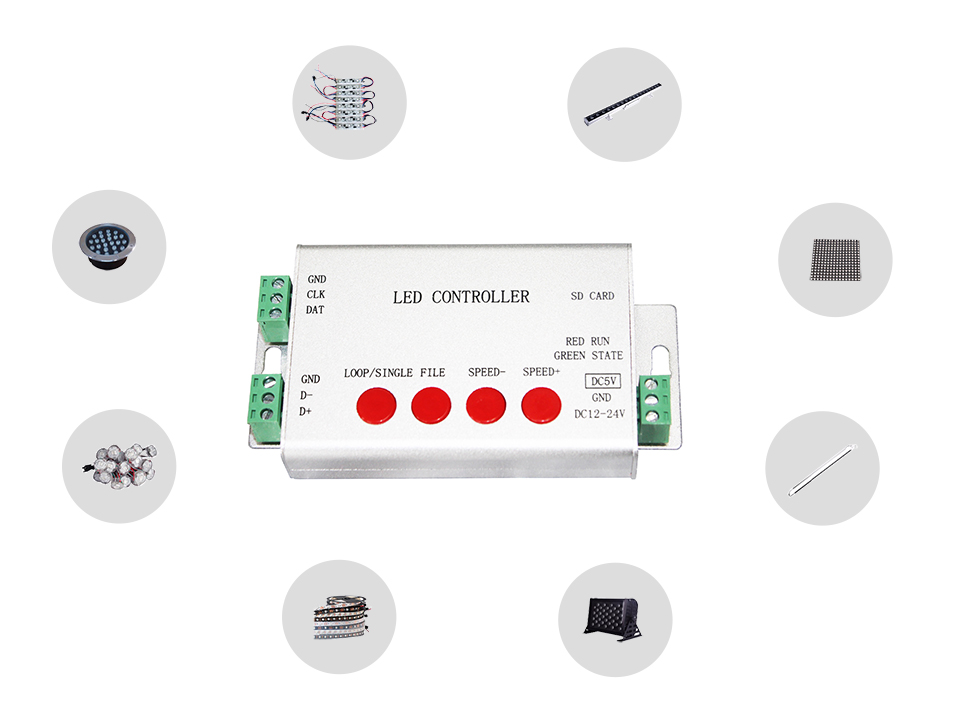

    Model Number:   CONFULL-H801SB

    Item Type:  RGB Controler

    Apply LED Strip: full color lights

    Certification:   CE,FC,RoHS

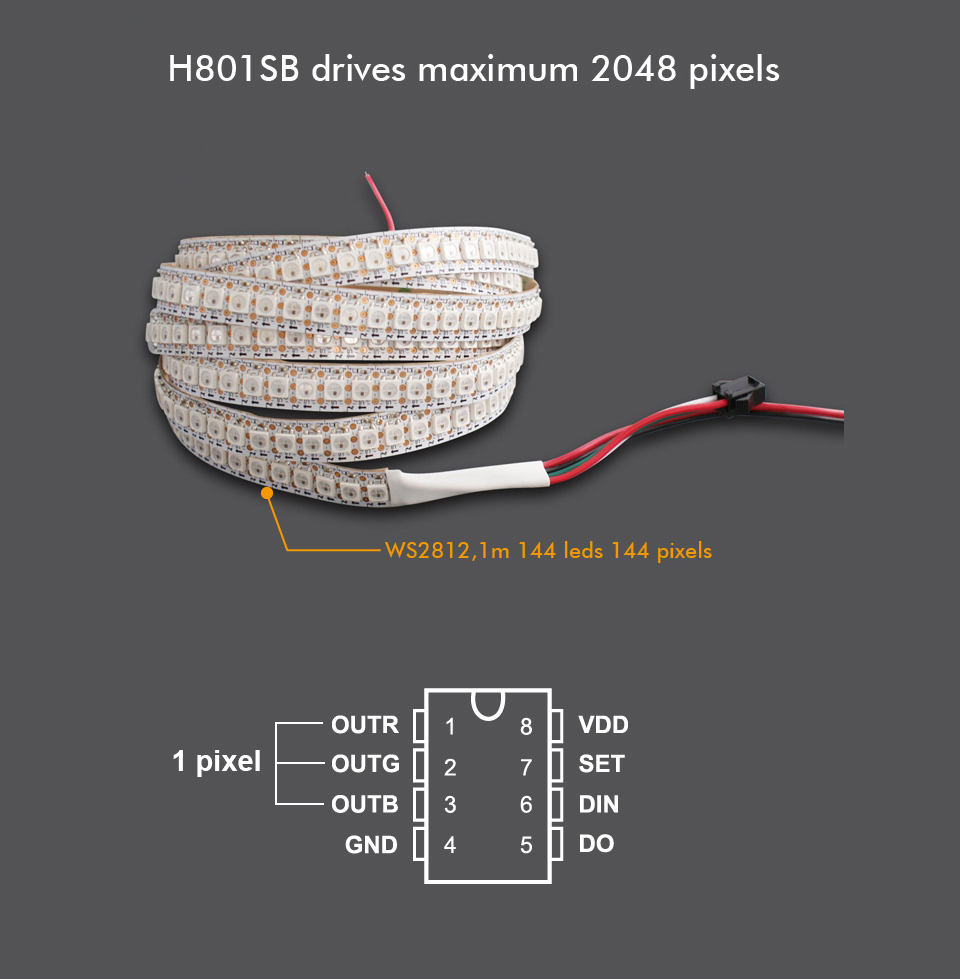

    drive pixels number:   2048

    Voltage:   5-24V

    Working temperature:   -30°C ~ +85°C

    Max. Load Power:   10W

    Connection Mode: wire

    Material: aluminium alloy

    Wattage:   0.3W

    Warranty:   1 year

    Button Number:4

    Controled Method: button control



    Specification DownloadPDF



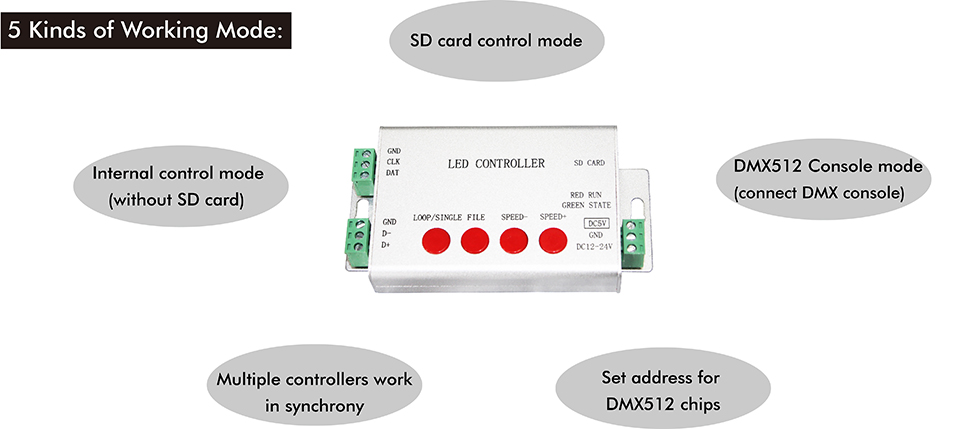

    Product Display

    SD Card Control Mode

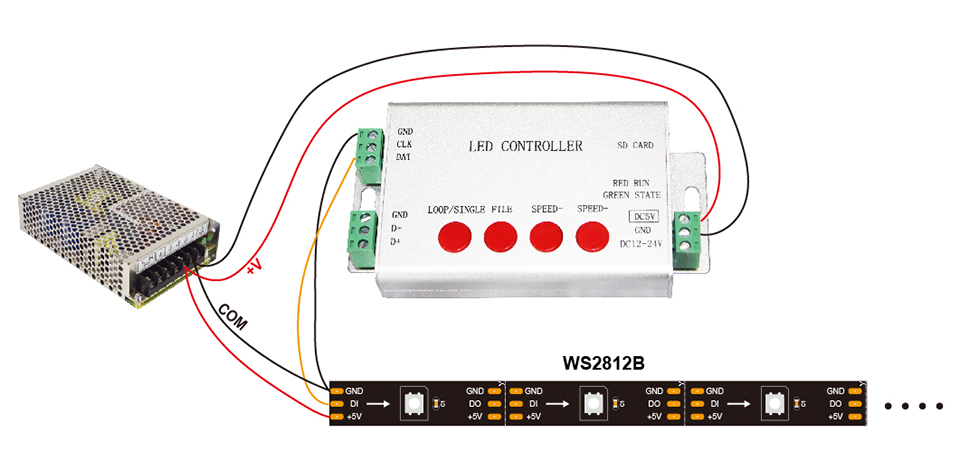

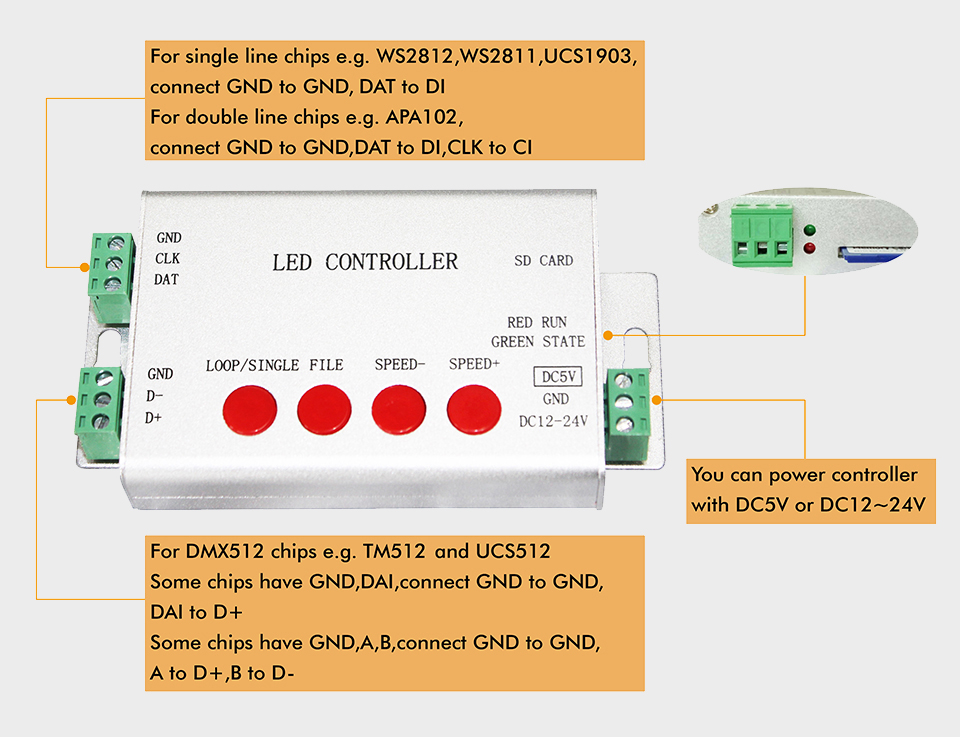

    Step 1. Connect controller to lights

     Assume you have a roll of 5m strip, 1m 30 pixels, WS2812B, RGB(color order)



    Note: lots of chips share one option

    For more details of software, please refer to the video.

    Test File Download:  https://drive.google.com/open?id=0B1gzqyV6hfOgTkRHRTR2dGswT0U

    (one port controls 200 pixels, for WS2812B, UCS1903 and other single line chips, just put them into SD card)

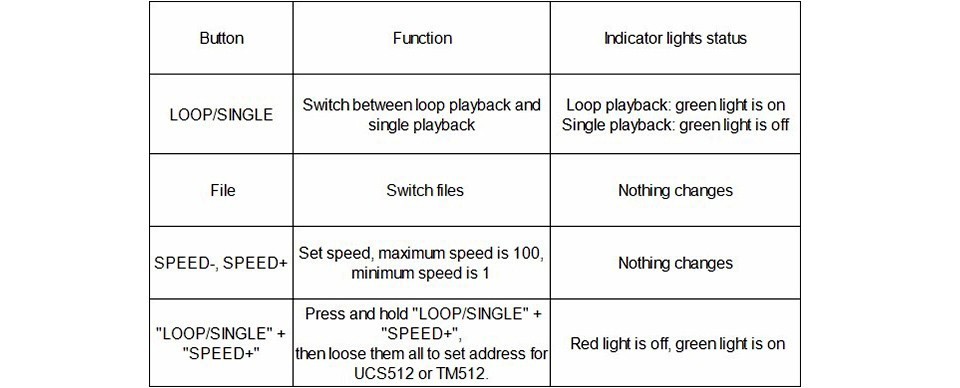

    Button operation and indicator lights status

     Power controller on.

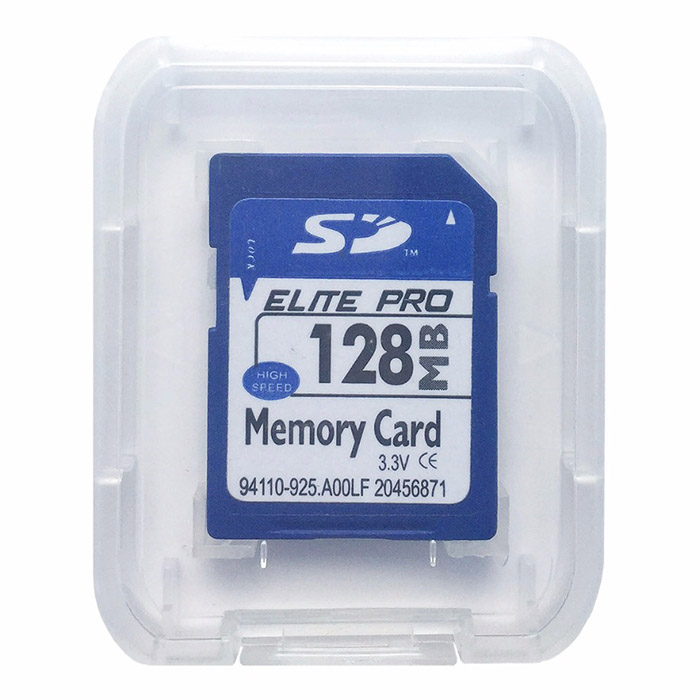

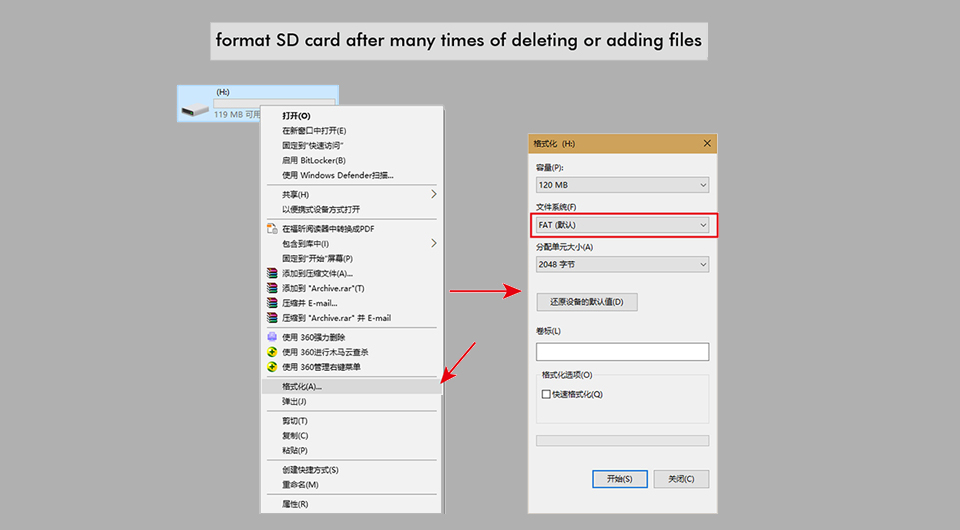

     With SD card inserted, green light is on and keeps still, red light is flashing.

     Without SD card, green and red light are on and all keep still.

    Internal Control Mode

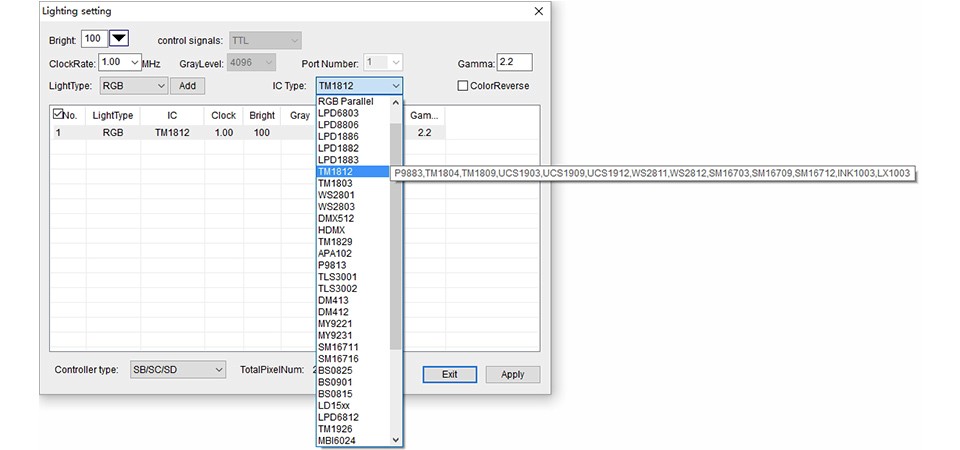

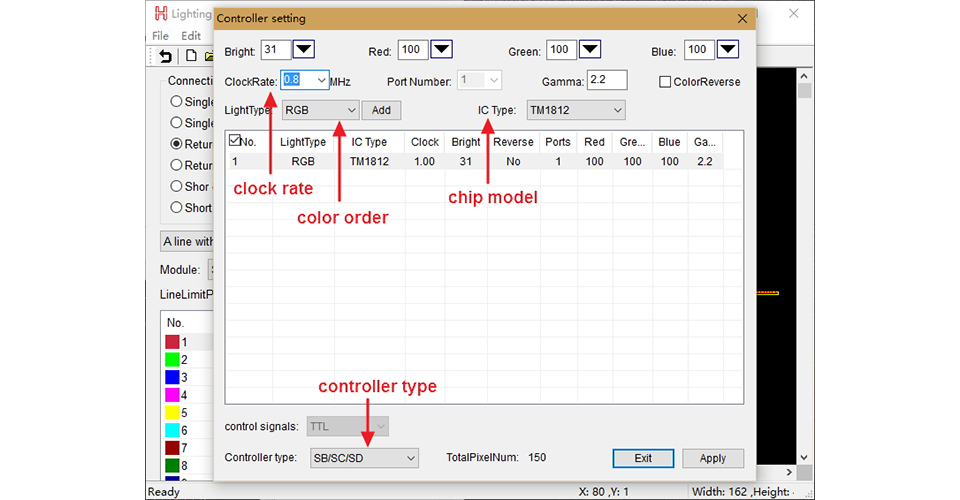

     In this mode, controller needs to know

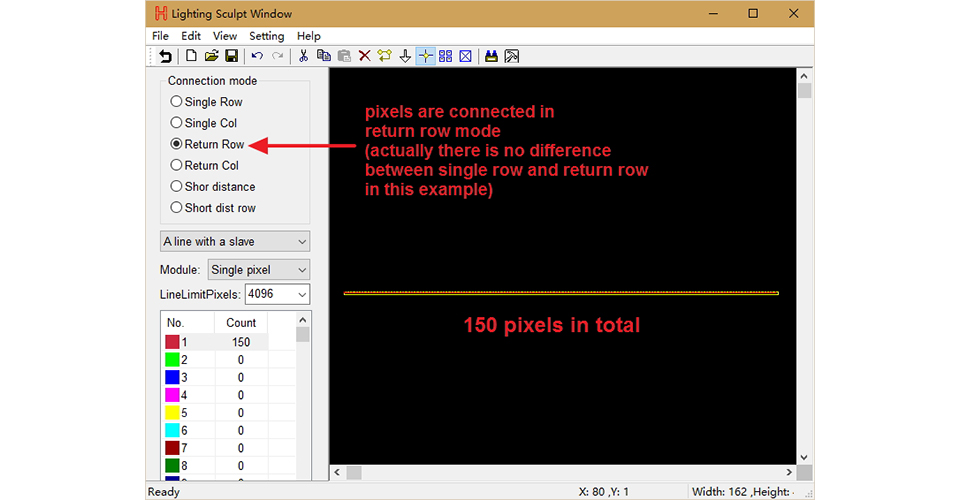

     (1). pixel number

     (2). how pixels are connected

     (3). clock rate

    (4). chip model

    (5). controller type

     (6). color order



     Still, we take one roll 5 meters WS2812B strip for example. Color order: RGB. 1m 30 pixels

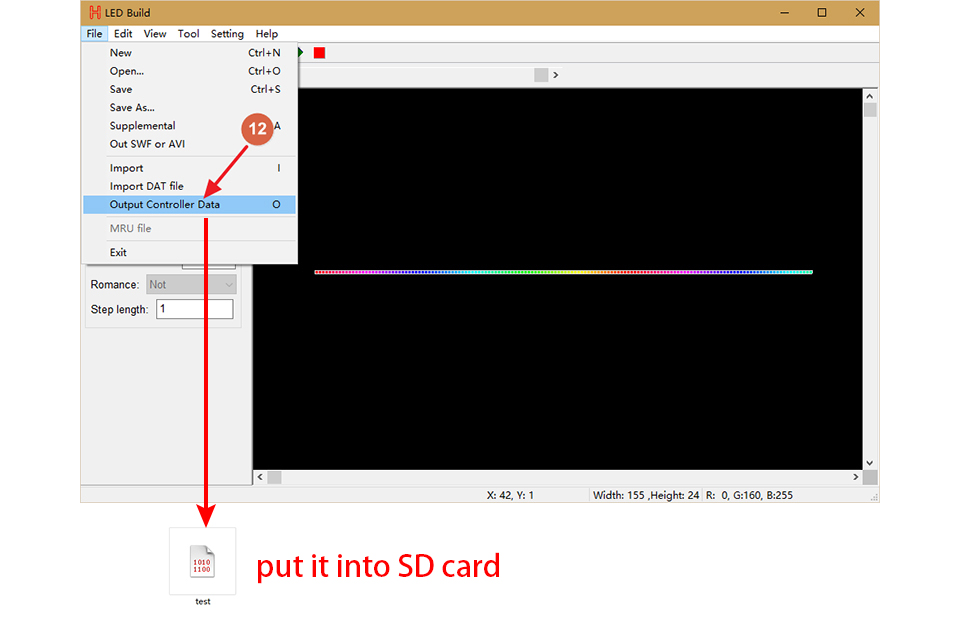

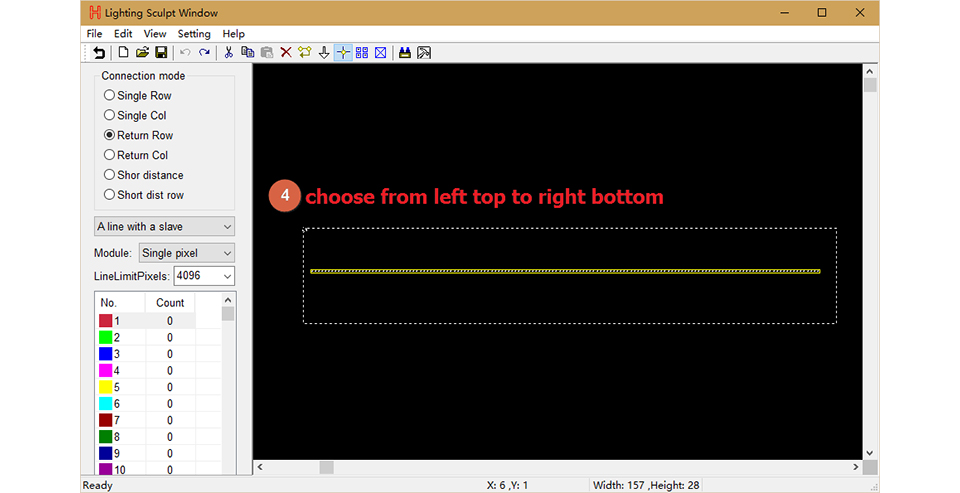

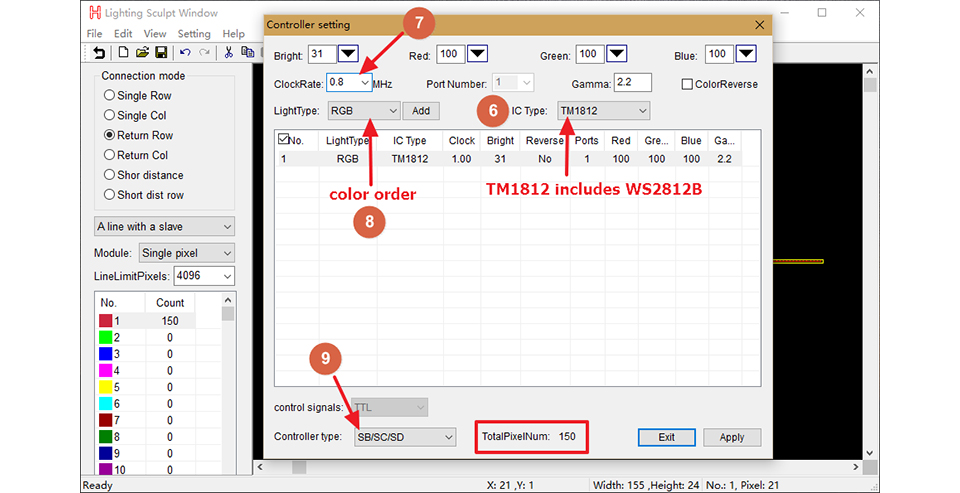

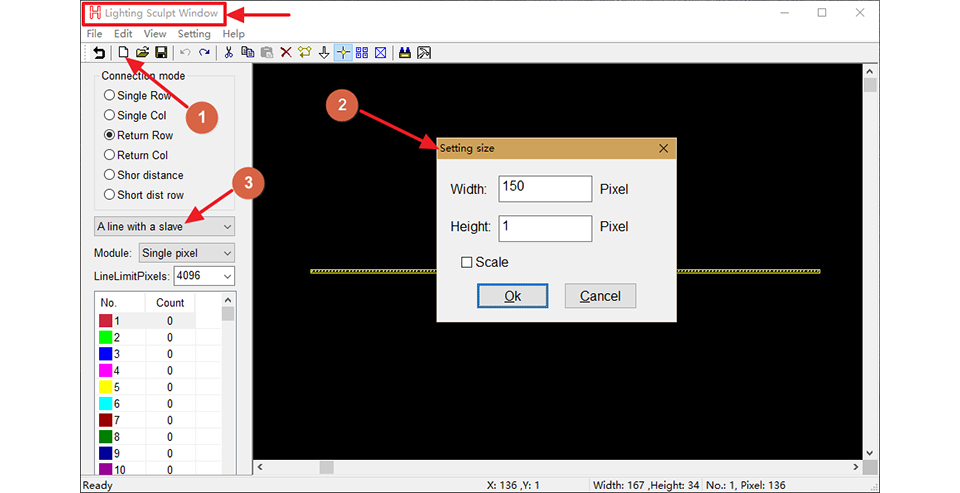

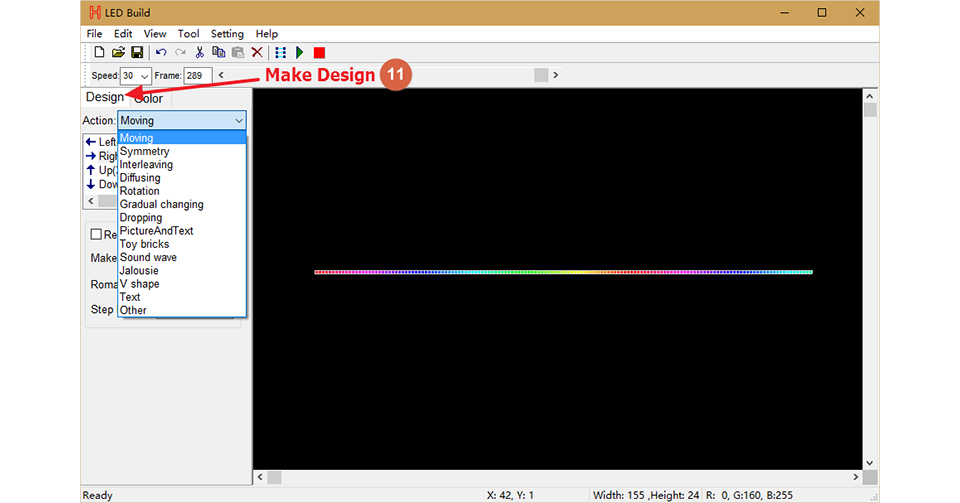

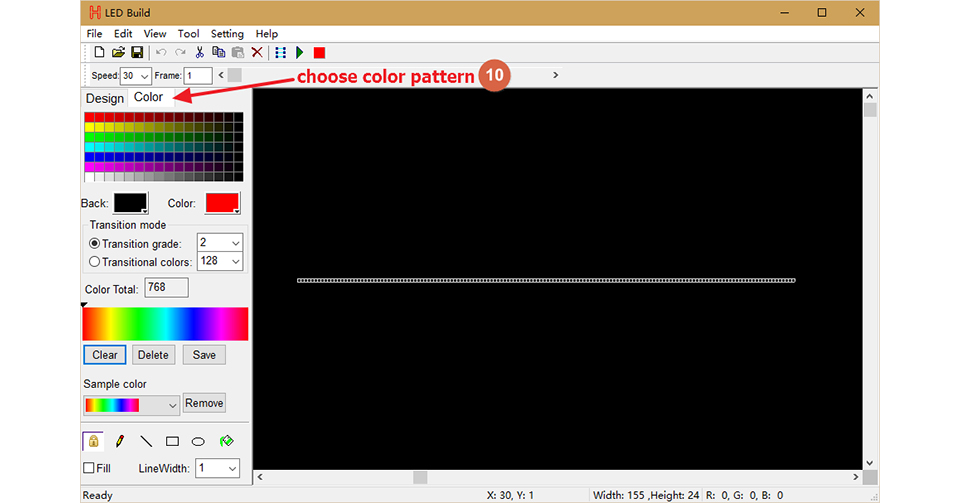

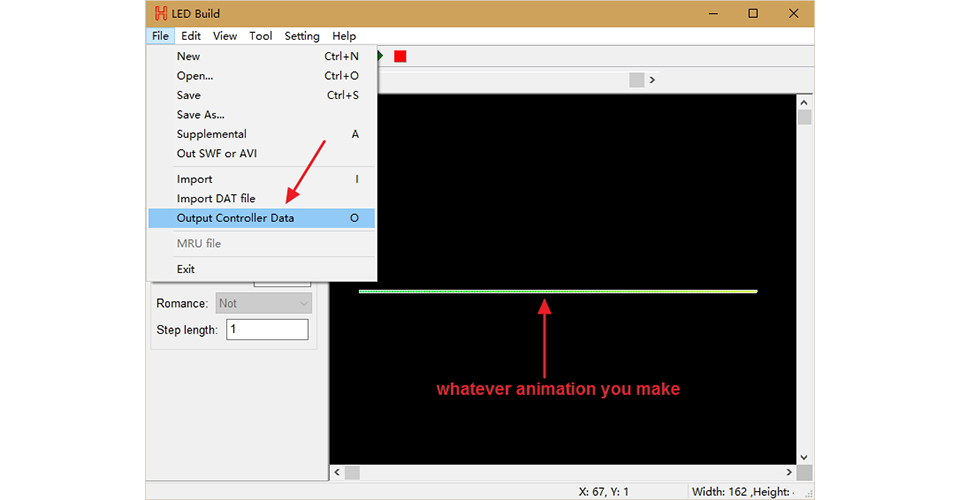

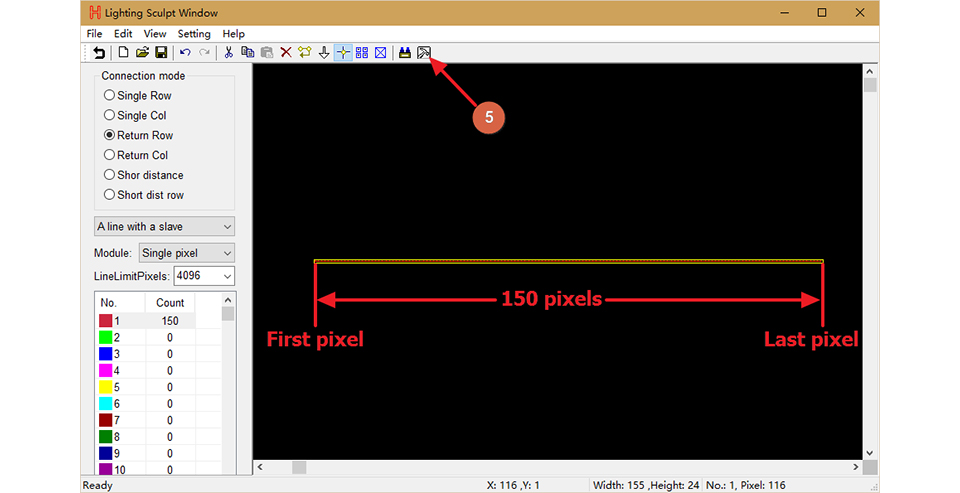

     Step 1. Make file needed for this mode in LED Build



    Step 2. Put the file into SD card, insert SD card, power controller on then off, take SD card out, power controller on



    Step 3. Connect them all together

    There are 18 kinds of animation built-in, press four buttons to control them.



     DMX512 Console Mode

    Note:

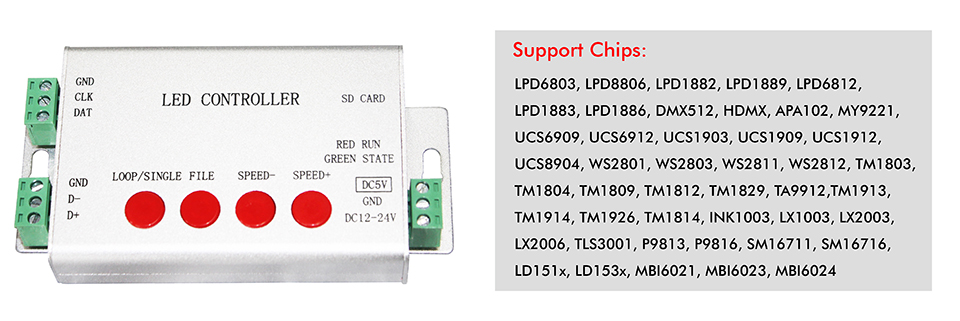

    In this mode, H801SB only supports the following chips

    LPD6803, LPD8806, LPD1882, LPD1889, LPD1883, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2811, WS2812, TM1803, TM1804, TM1809, TM1812, TM1913, TM1914, TM1926, TM1814, INK1003, LX1003, LX2003, LX2006, TLS3001, P9813, P9816, SM16711.

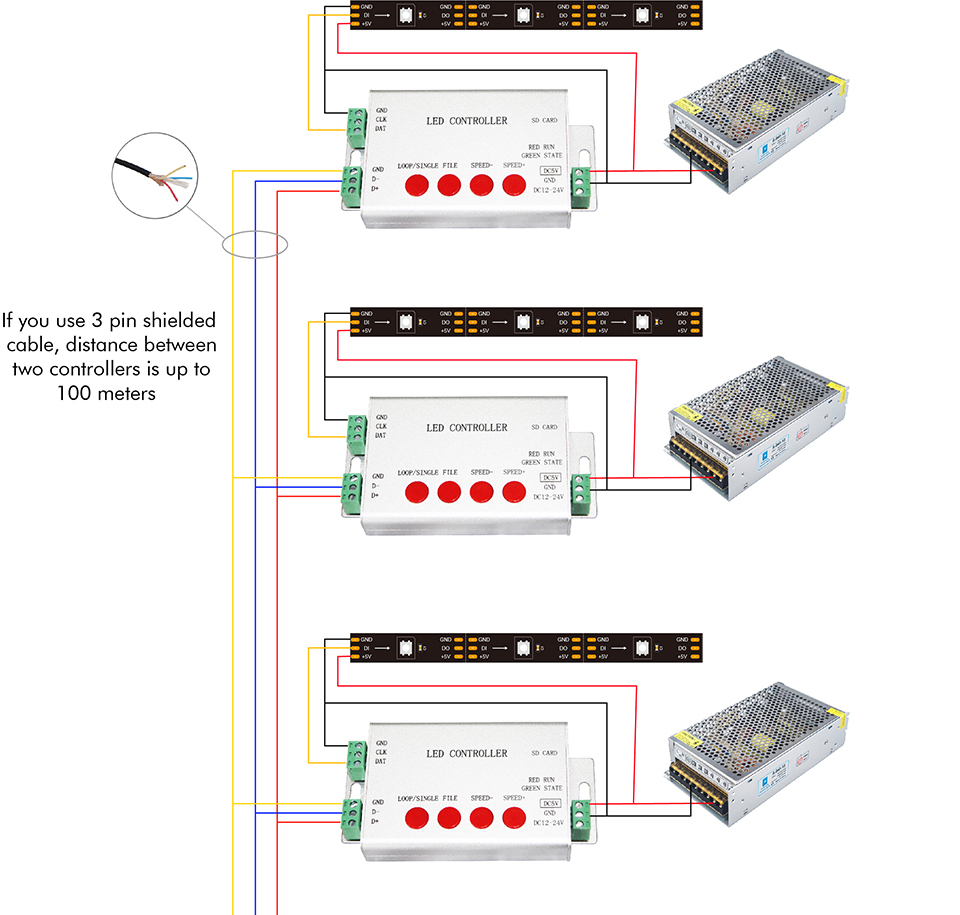

    Multiple H806SBs work in synchrony mode



     In this mode, every controller needs sd card

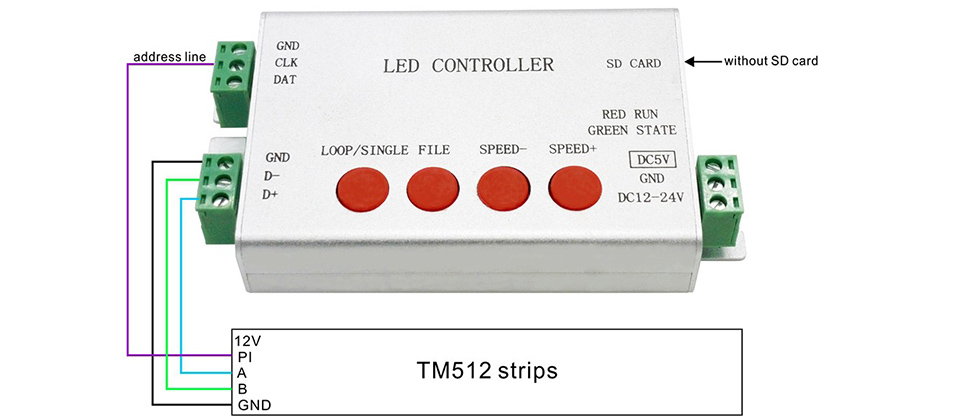

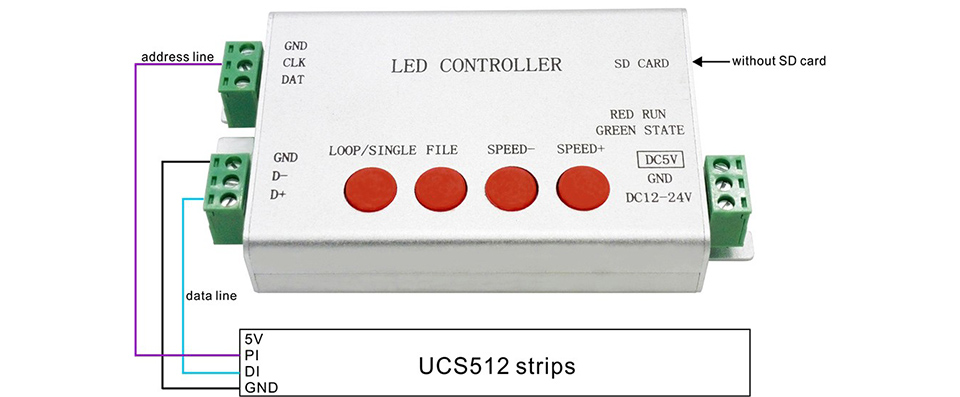

    8. Set address for DMX512 chips

    Note:

     (1). In this mode SD card is not necessary.

     (2). Press "LOOP/SINGLE" + "SPEED+", then loose them all, lights will turn white then green, which means address is successful.

     (3). Only after lights are repowered is address updated.

     (4). H801SB can address for maximum 1024 pixels.

    Unit Type: piece Package Weight: 0.2kg (0.44lb.) Package Size: 15cm x 8cm x 4cm (5.91in x 3.15in x 1.57in)

    Supply voltage of this product is 110/220 Volts AC, do not exceed.

    Shorting output wires my cause damage to controller.

    Always observe proper polarity when connecting power and load.

    For indoor use only - this product is not waterproof or weatherproof.



    Note

    QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.

    Connect according to the Wiring Schematic drawing.

    Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your led system.
