DC5-24V SP63CE Bluetooth RF WS2811 RGB+CCT Addressable LED Strip Controller

Model: CONFULL-SP63CE
DC5-24V SP63CE Bluetooth RF WS2811 RGB+CCT Addressable LED Strip Controller
  • DC5-24V SP63CE Bluetooth RF WS2811 RGB+CCT Addressable LED Strip Controller
  • DC5-24V SP63CE Bluetooth RF WS2811 RGB+CCT Addressable LED Strip Controller
  • DC5-24V SP63CE Bluetooth RF WS2811 RGB+CCT Addressable LED Strip Controller
  • DC5-24V SP63CE Bluetooth RF WS2811 RGB+CCT Addressable LED Strip Controller

Select Specifications:

Starting at: $8.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-9
$8.98
10-49
$8.53
50-99
$8.35
100+
$7.63
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Check this SP63CE RGBIC + PWM CCT Tunable White LED Controller for your special WS2811 RGB+CCT LED Strip Lights like our DCFLS-RGBCCT-5-12V. It has 6 electrical connection ports, two VCC, one DAT, one GND, one CW, and one WW. Perfect to control dream color LED strips with Addressable 3-pin RGB + 2-pin PWM CCT design.

    With this 2-in-1 LED Controller, you don't have to buy two separate controllers to control your addressable RGB+CCT lights. And it can max control 600 pixels to achieve amazing lighting effects.

    Note: SP63CE cannot control the RGBIC lights and PWM CCT lights together for the WS2811 RGB+CCT strip. If you connect two individual strips, it can control together.



    1) Mobile APP Control:

    ● Support iOS (iOS10.0 or higher) and Android (Android4.4 or higher).

    ● Search "BanlanX" in App Store or Google Play to find the APP, or scan the QR code to download and install.



    2) RF2.4G Remote Control:

    ● Support one-to-many control, one RF remote can control multiple controllers.

    ● Support many-to-one control, each controller can bind up to 5 remotes.

    ● Support unified control and 4 partition control.



    Features

    ● Built-in multiple music effects and dynamic effects, support brightness, speed, direction, and effect length adjustment.

    ● Support cell phone microphone, player streaming, and on-board microphone for music capture.

    ● Support dynamic effect collection and collection list loop.

    ● Support custom effects.

    ● Support multiple on/off animation effects.

    ● Support calibration channel sequence and timing switch.

    ● Support OTA firmware upgrade.



    SP63CE Bluetooth led controller



    RB4 & RC4 Remote Control Manual Download PDF



    Standards and Certifications

    CE FCC RoHS ISA SGS ISO

    Product Specification

    Product Name:  Addressable RGB+CCT LED Controller
    Max Control Pixels:  600pcs
    Input Voltage:  DC5-24V
    Working Current:  1mA-10mA
    PWM Output Current:  Max 6A/CH
    Total Output Current:  Max 12A
    Control Method:  Mobile Bluetooth APP "BanlanX" + RF Remote (only support RB4 and RC4)
    Mobile System:  Andriod 4.4/ IOS 10.0 or higher
    Dimensions:  78mm*56mm*20mm
    Working Temperature:  -20℃ ~ 60
    IP Rating:  IP20

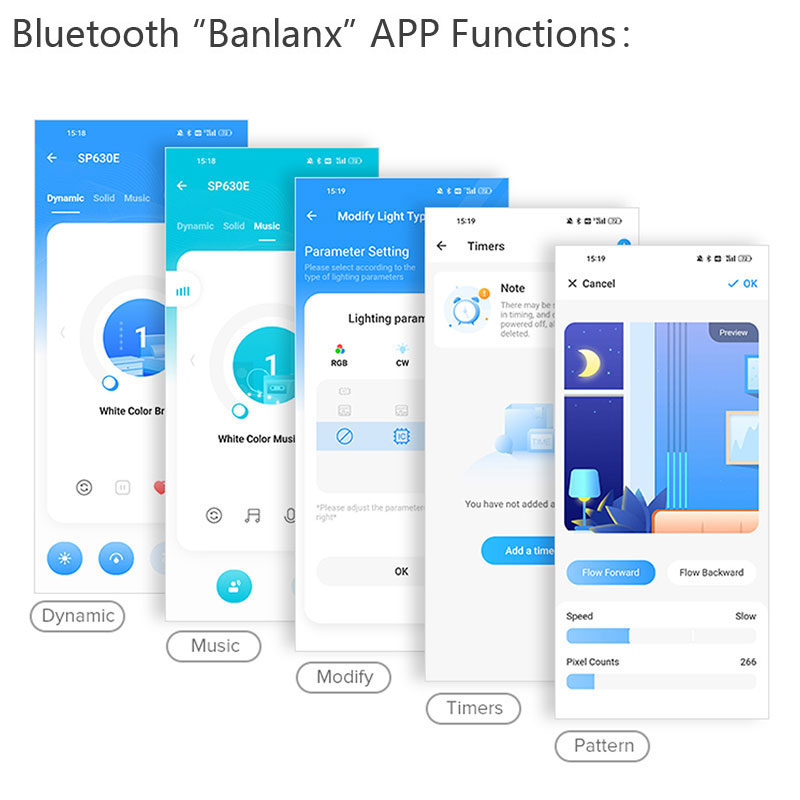

    SP63CE Bluetooth led controller banlanx app function



    SP63CE Bluetooth led controller rb4 and rc4 remote

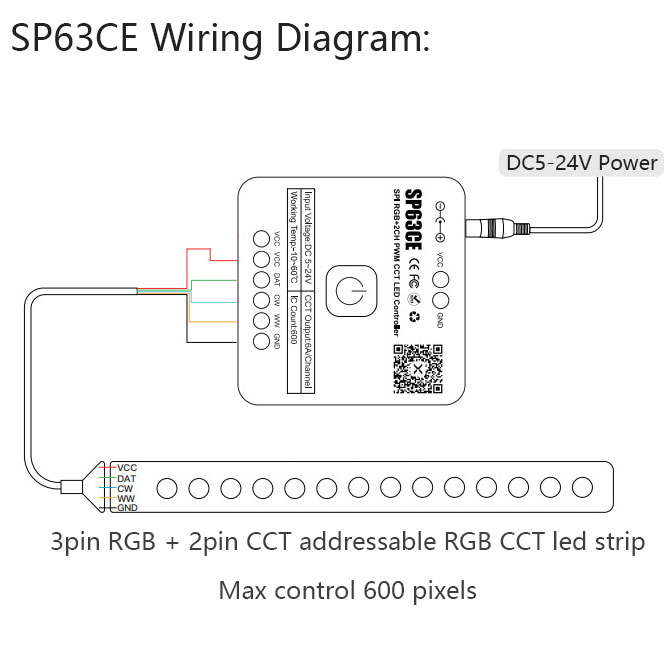

    SP63CE Bluetooth led controller wiring diagram

    DC5-24V SP63CE Bluetooth RF WS2811 RGB+CCT Addressable LED Strip Controller

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

    DC5-24V SP63CE Bluetooth RF WS2811 RGB+CCT Addressable LED Strip ControllerDC5-24V SP63CE Bluetooth RF WS2811 RGB+CCT Addressable LED Strip ControllerDC5-24V SP63CE Bluetooth RF WS2811 RGB+CCT Addressable LED Strip ControllerDC5-24V SP63CE Bluetooth RF WS2811 RGB+CCT Addressable LED Strip Controller
