DC5-24V Synchronous Programmable DMX & SPI/TTL LED Light Controller With SD Card
Related Products
DC5-24V Synchronous...
$38.98
K-1000C (T-1000S Updated)...
$54.98
SP801E 4 SPI Channel MAX...
$28.99-
Special Price: $38.98

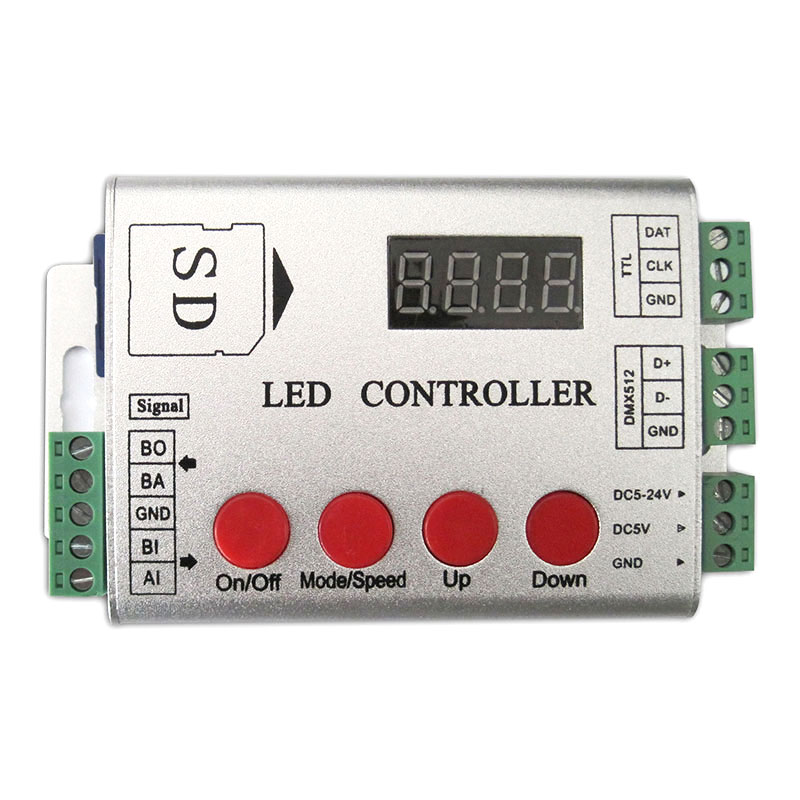

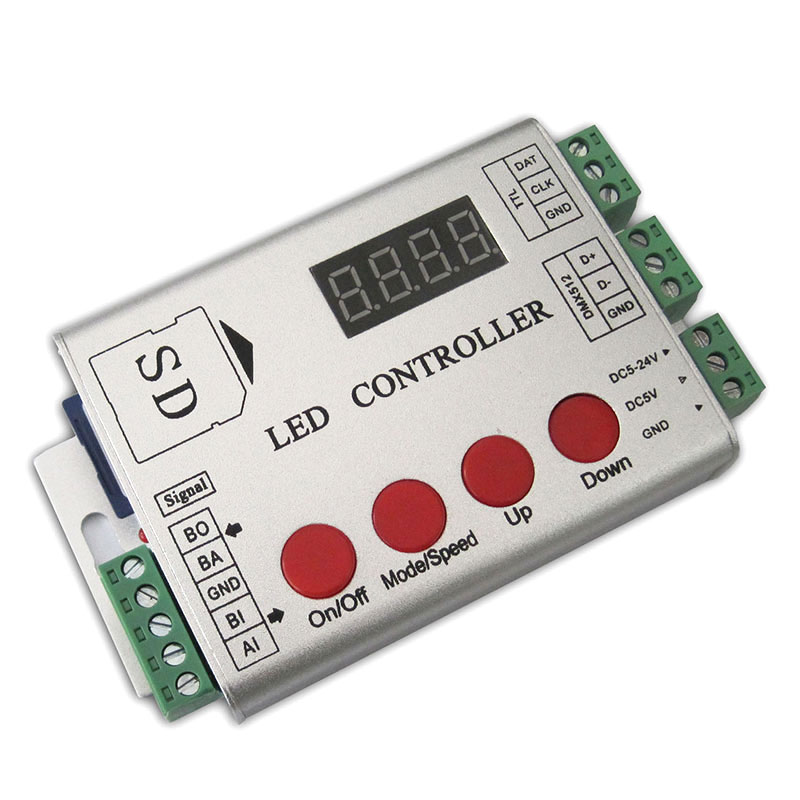

This 1000B programmable LED light controller is compatible with DMX512 signal and SPI/TTL signal, so you can use it to control digital SPI led strips and DMX led strips. It supports DC5-24V voltage input, and multiple controllers can be synchronously controlled. The synchronization signal is recommended not to exceed 50 meters (164ft), and the measured distance is 200 meters (656ft).
-
Built-in 102 kinds of patterns (no SD card inserted), can be equipped with SD card (<8G).
-
Automatic recognition of SD cards or internal patterns: When the controller is turned on, the internal pattern of the controller will be called automatically without SD, and the pattern of the SD card will be called automatically when the SD card is inserted.
-
In the state of SD card, standard DMX512 can be used to select the built-in pattern and speed.
-
Drive up to 2048 pixel points. Refresh frequency max. 30 fps (<512 pixel points)
-
The maximum distance between the controller and the light strip is <15m (49ft) for SPI/TTL signals; <30m (98ft) for 485 signals. About 10 SPI/TTL light strips can be connected simultaneously in parallel.
| Supported IC Chips | Models |
| TM | TM1803, TM1804, TM1913,TM1809, TM1812 , TM1914, TM1829 |
| UCS | UCS2903, UCS2909, UCS2912, UCS1903, UCS1909, UCS1912 |
| WS | WS2801, WS2812, WS2811 |
| INK1003 | INK1003 |
| LPD | LDP6803, LDP8806, LDP1109 |
| D705 | D705 |
| SM | SM16716, SM16726, SM16703, DMX512 |
| APA102 | APA102 |
| DMX512 | DMX512 |
| P9813, P9803 | P9813, P9803 |
| SK6812 | RGB and RGBW |
Set pattern and speed:
1. In the state of SD card, the pattern and speed can be selected by pressing the keys, and the [ON/OFF] key can be used to adjust brightness.
2. Press the [MODE/SPEED] key to display S001 and P001 in a cycle. The beginning of S represents the speed, and the beginning of P represents the pattern. At this time, it can be increased or decreased by [UP] and [DOWN].
3. Press and hold the second key [MODE/SPEED] to display A000, and A represents the DMX512 address. Note that the DMX address is only useful when DMX512 is decoded and controlled by a standard DMX512 console. Use [UP] and [DOWN] keys to increase and decrease.
Instructions:
1. Select IC model
First press the [ON/Off] key and the screen displays OFF to enter the programming state. Then press [Mode/Speed] to select the model, and then press the [On/Off] key to exit.
2. Control pixel points setting
First press the [ON/Off] key and the screen displays OFF to enter the programming state, [UP] and [DOWN] to set the number of pixel points. Press the [On/Off] key to exit.
3. DMX512 console
Use DMX512 master console to control internal patterns or SD patterns, and use the first controller for wiring when multiple sets are used synchronously.
The controller accounts for five channels of DMX. The first channel is pattern, the second channel is speed, and the third channel is brightness value of RGB.
The step number of pattern is 2, the first pattern is 0-1, the second pattern is 2-3, and the Nth pattern is (N-1)-N.
The default DMX address of the controller is A000, long press [Mode/Speed] to display, then press [UP] or [DOWN] to set the address (A), occupy the channel A-(A+5) 5 channels. For example, A000 occupies DMX512 CH1-5, A001 occupies CH2-6.
4. One key to write DMX address code
Press OFF key and MoDE key at the same time for 5 seconds to write the code automatically (512 pixels).
UCS512-3 and TM512 wiring: TTL DAT connects to the signal line, TTL CLK connects to the address line.
UCS512-4 differential write code wiring: DMX D+ to A, DMX D- to B. Address line empty.
Standards and Certifications
Product Specification
| Product Name: | Programmable LED Light Controller |
| Output Signal: | DMX512 & SPI/TTL |
| Input Voltage: | DC5-24V |
| Power: | 3W |
| Max Control Pixels: | 2048pcs |
| Dimensions: | 122mm*73mm*25mm |
| Working Temperature: | -20℃ ~ 60℃ |
| IP Rating: | IP20 |

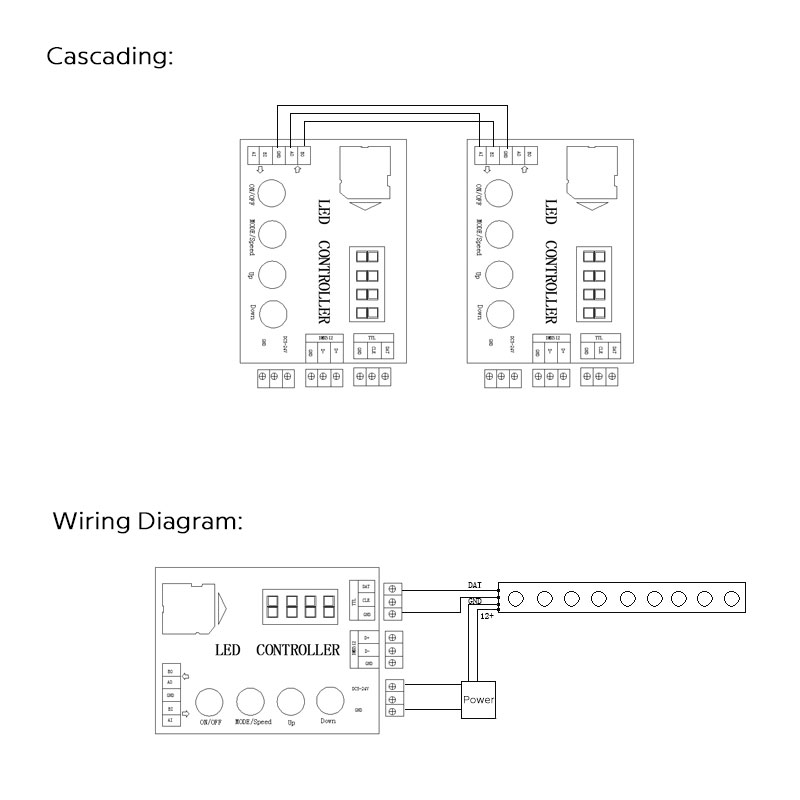

Wiring:
TTL: single-wire and two-wire signal interface
DAT: data
CLK: clock
GND: signal ground
DMX512: Send DMX512 signal when selecting model DMX512, and send differential signal when other models are selected; cooperate with 485 receiving board to make signal transmission farther
D+: DMX512 signal A
D-: DMX512 signal B
GND: No wiring is required under normal conditions
Note: The ground GND of the light strip must be connected to the led power supply, not just the controller, otherwise the high current will break through the controller.
