Special Price: $19.98

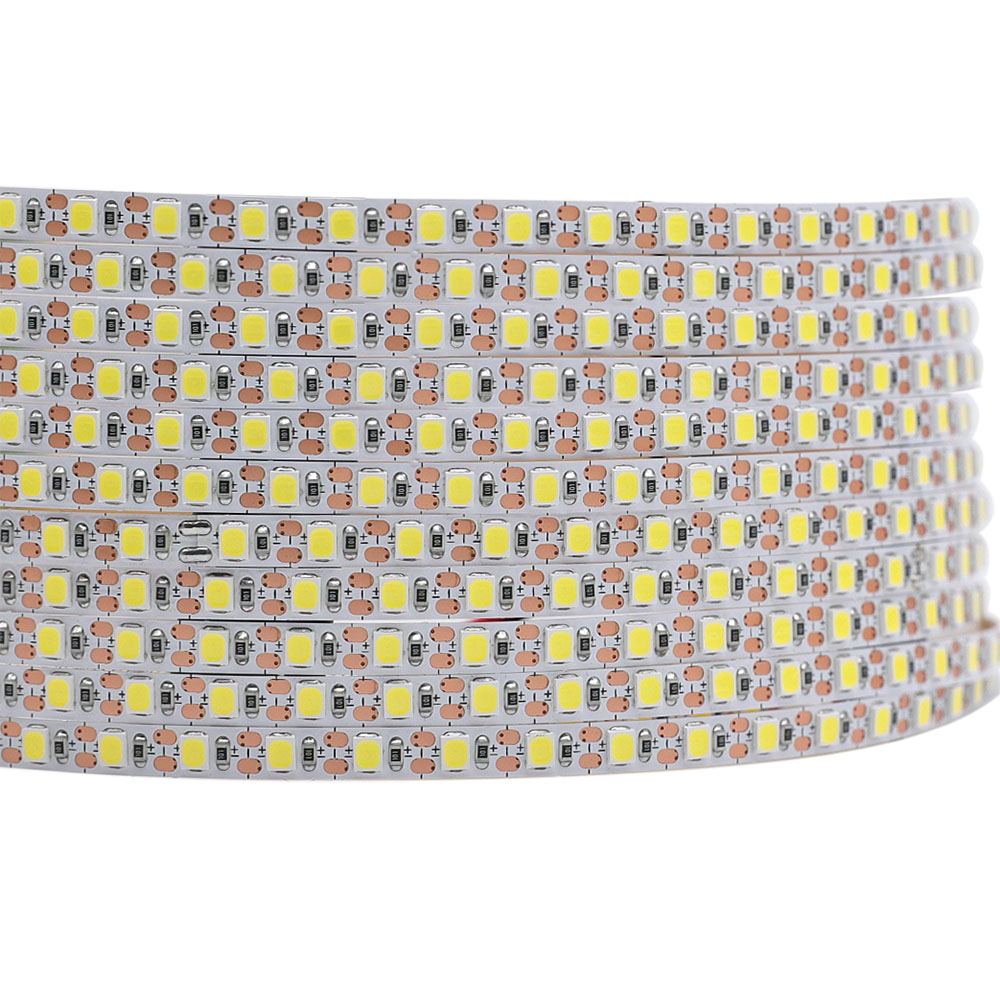

Low Voltage DC5V Single color 2835 SMD(SMD: Surface Mounted Devices) Flexible LED Tape strips, Epistar chip, 600LEDs/16.4ft, 16.4ft(5 meters) Per Reel By Sale.

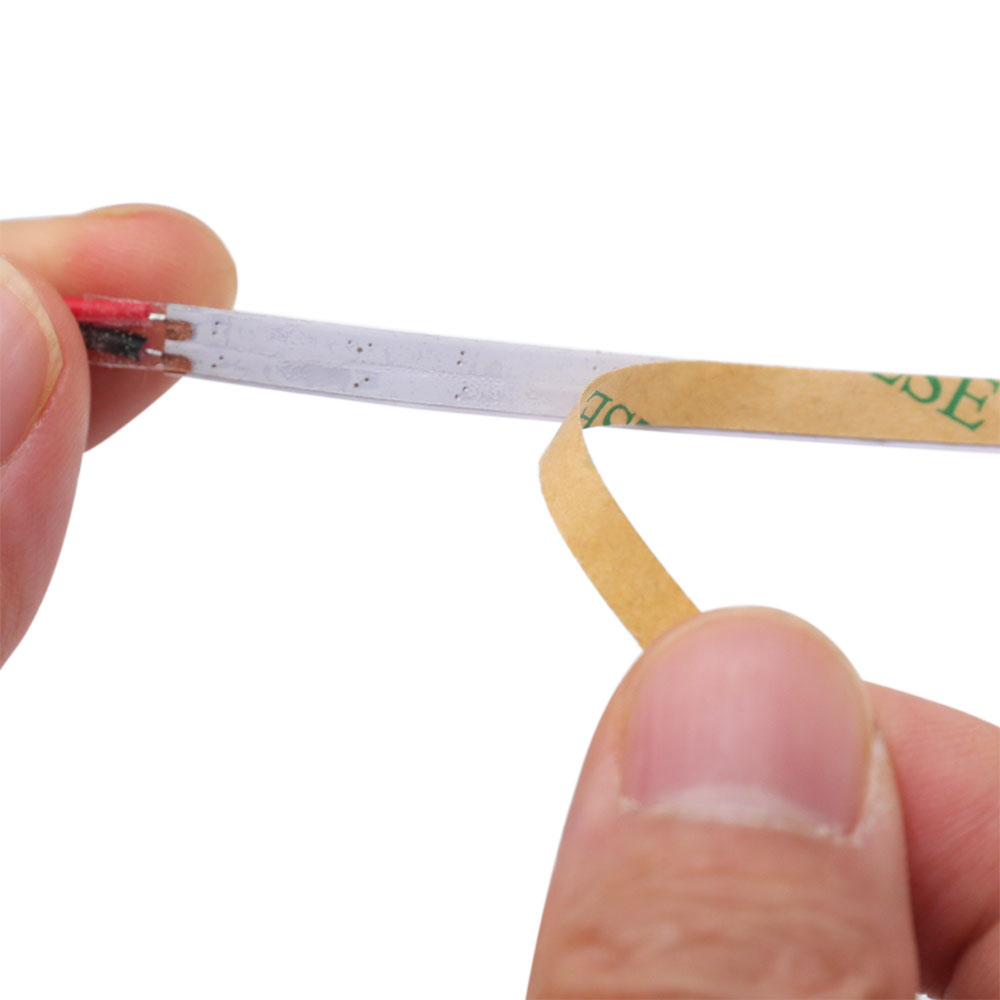

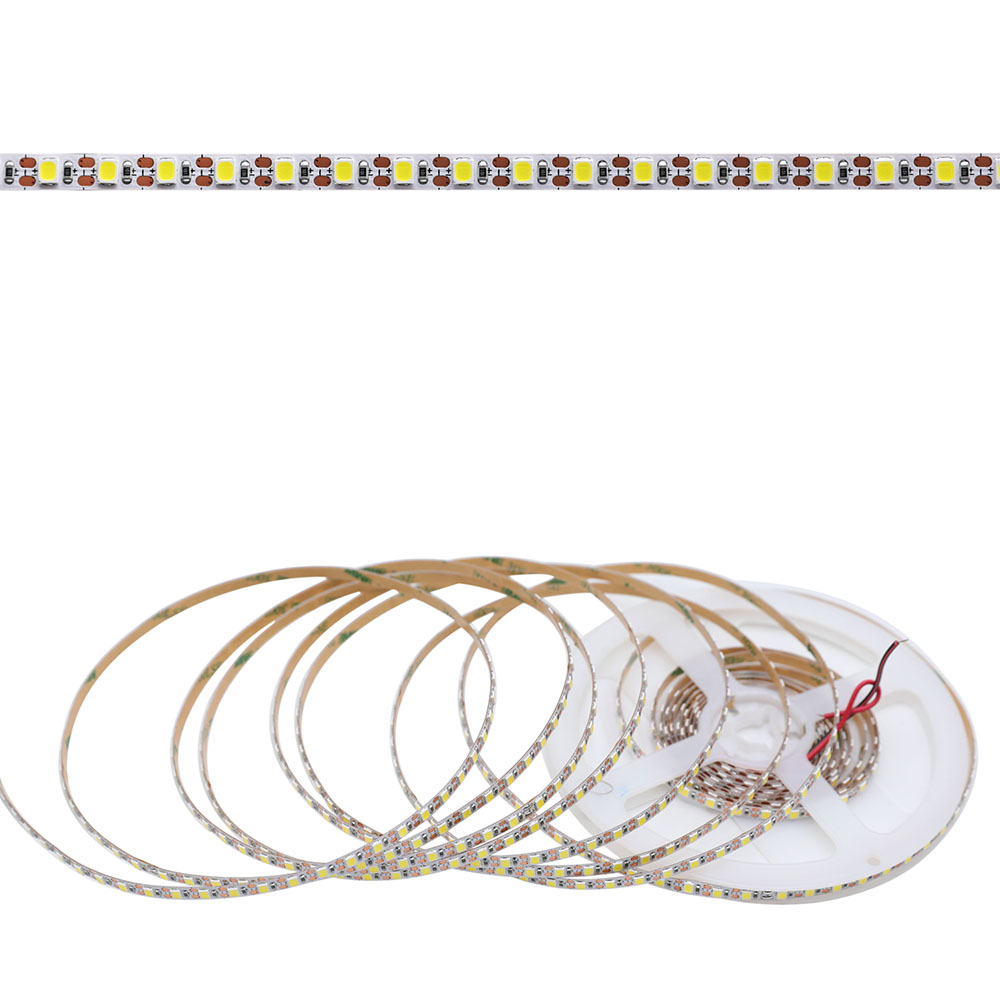

Our brightest super flexible LED Solid Color light Strips soft and easy bent for installation. Available in 5 meters (197 in) flexible light strips with adhesive backing and can be stuck just about anywhere. can be cut into 1-LED segments, so you could cut a different length for your project and request. This LED Light strip is perfect for retail shops, supermarkets, museums, galleries, photography or any indoor applications where presentation, appearance, and depth of color are critical, Suitable for the average home lighting as well as lighting professionals. High color rendering index (+95 CRI) enhances vibrant colors more than traditional LEDs nearly matching the color quality of incandescents. 5V DC operation.
Standards and Certifications
Product Specification
LED Strip Type: SMD 2835 600PCS/16.4ft
LED Chip: Epistar super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

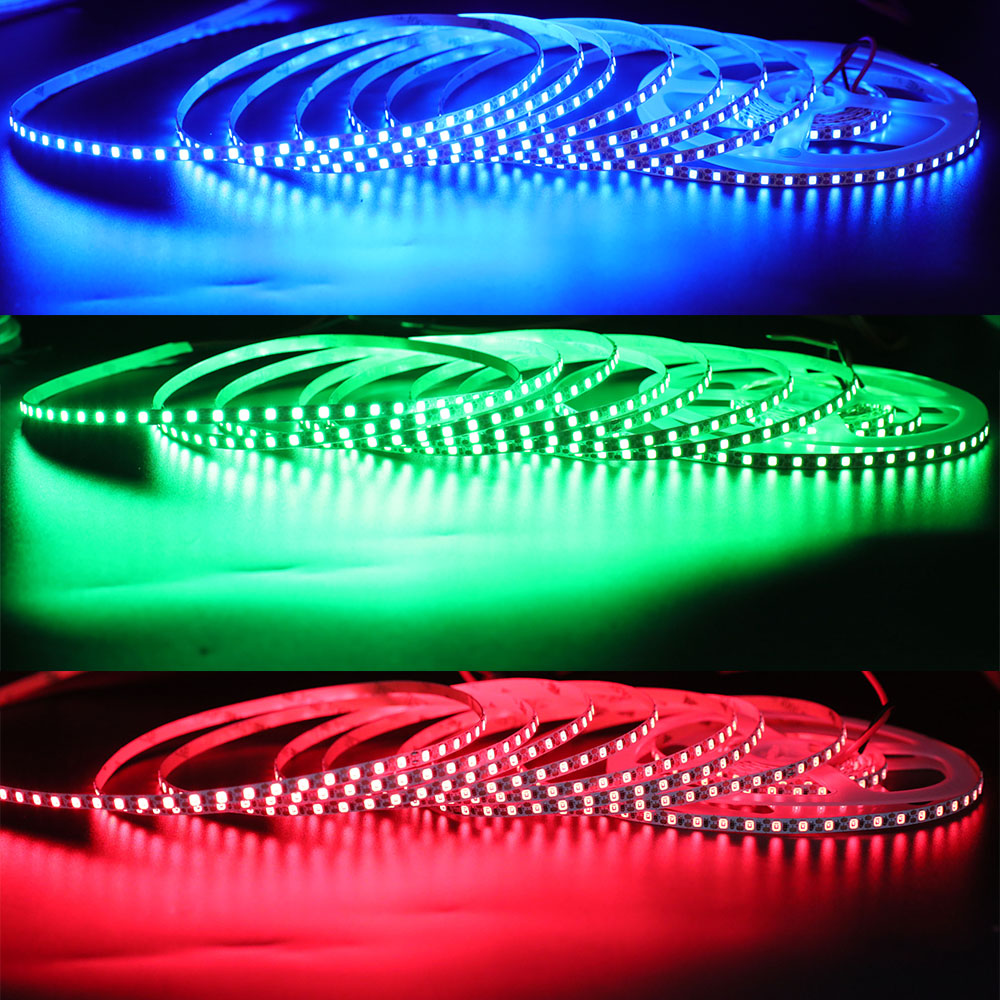

Light Color: 3000K Warm White, 4000K Nature White, 6000K Daylight White, 7000K Cool White, Red, Green, Blue, Purple, Yellow, Golden (optional)

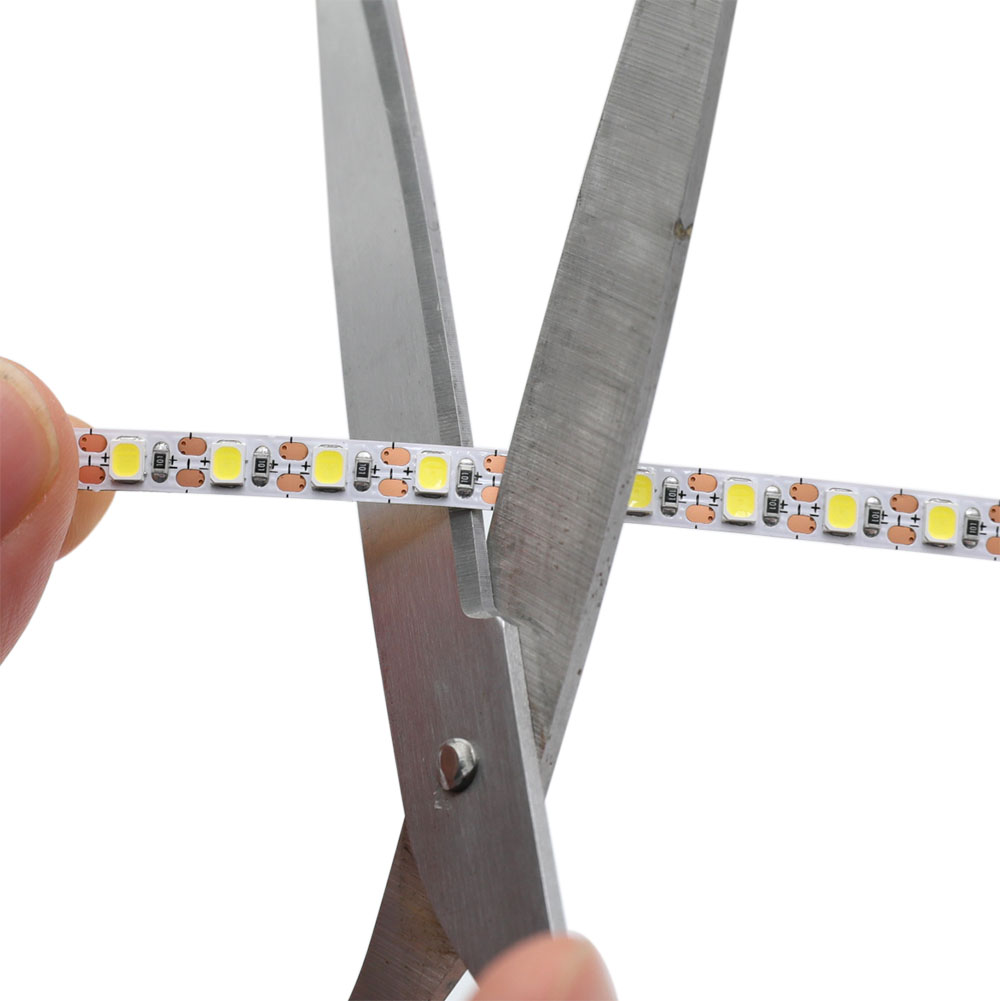

Dimension: 16.4ft/roll, every 1 LED can be cut
LED Quantity: 120 LEDs per 1meter (3.28 ft)
Lifespan: 50,000+hours
Warantty: 3 years

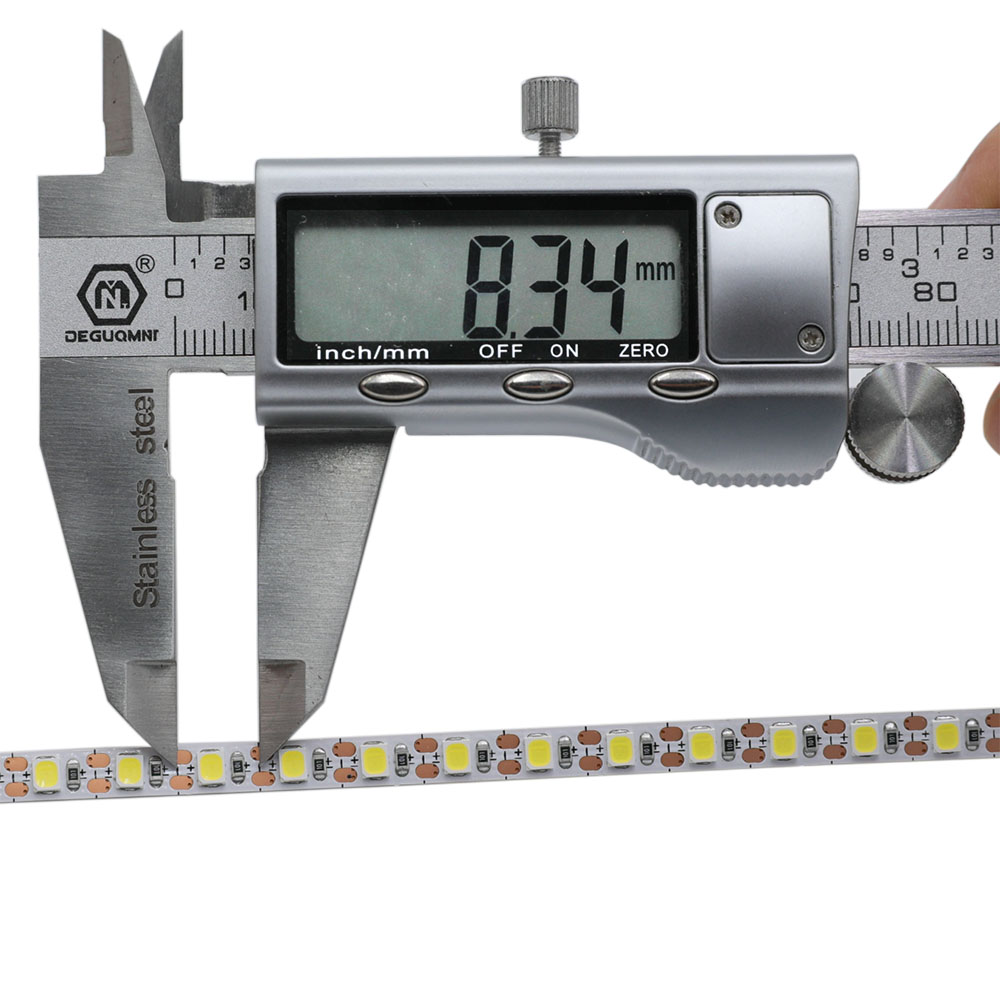

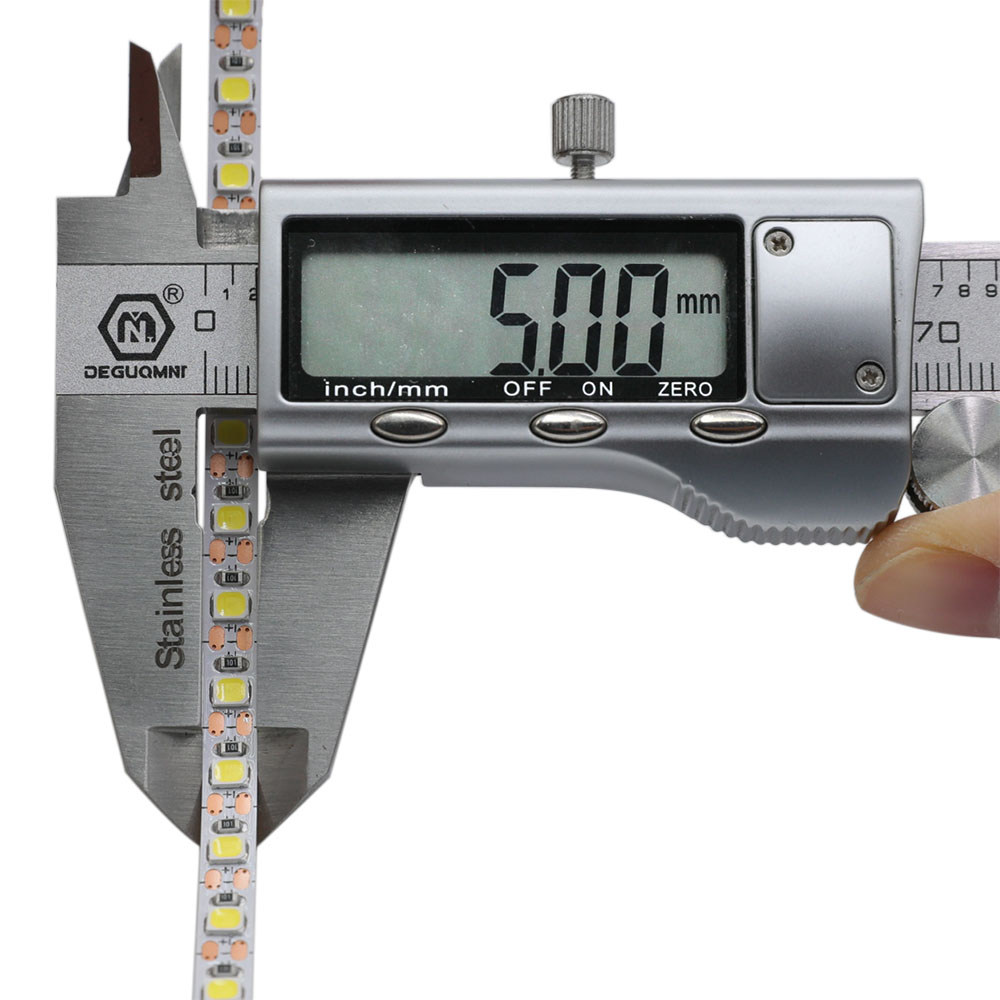

Dimensions: L500cm(196.8 in ) x W0.8cm(0.31 in ) x H0.20cm(0.08 in ) or 500cm(196.8 in ) x W0.5cm(0.19 in ) x H0.20cm(0.08 in )
Input Voltage(V): 5VDC
Working Power: 15A 75W/16.4ft Max
Lamp Luminous Flux(lm): 24lm/LED 14400lm/16.4FT
Color Temperature CCT(White): Warm White(2800-3600k), Daylight White(5200-6600k), Cool White(7600-9500k)
Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Beam Pattern: 120 degree
Water Proof: Non-Waterproof IP20, Waterproof IP65/IP67/IP68
CRI (Ra>): 95
*The blue font can be clicked to jump to related content articles.
How to Install single color LED Light Strip?
|
|
 |
 |
|
|
|
|
| • How to install led strip lights? What accessories will be needed? |
How to wire single color LED strip lights?

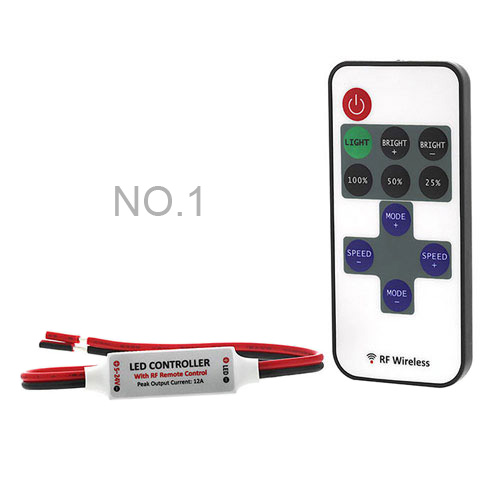

►Choose a suitable transformer and LED dimmer controller for your LED light strip:
How to calculate power for led strip lights?
How to choose led strip light power supply?
How to choose led strip light controllers?
►Single color LED light strip wiring diagram:
How to wire single color led strip lights?
How to connect led strip to the power supply?
Application
Trademark lighting Logo lighting
Channel letters lighting Lightboxes lighting Landscape layout lighting Stage decoration lighting Sign cabinets Channel lights Cove LED lighting Edge lit signs Canopy illumination Off-grid lighting
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
