DC5V 3-IN-1 RGB 5050SMD 150LEDs Color Changing Flexible LED Strip Lights
Related Products
DC5V 3-IN-1 RGB 5050SMD...
$23.98
DC5~24V Max 12A,...
$24.98 $16.9832% off
50W10A DC5V Plastic Shell...
$19.98
Mean Well LRS-50-5 DC5V...
$25.00
DC5-24V SP503E WiFi APP...
$12.99
DC5-24V Max 30A 10Ax3CH...
$16.99
DC5-24V RGB...
$10.99-
Special Price: $23.98
What is RGB?
RGB is a color model, which can produce various colors by changing the three color channels of red (R), green (G), and blue (B) and superimposing them with each other. It is one of the most widely used color systems.
Product Features
RGB LED strip lights mean that the color is RGB. RGB LED strip light can emit perfect multiple colors lighting to provide the best brightness and atmosphere, can softly light any space, suitable for under-cabinet lighting, pool lighting, home theater lighting, architectural lighting.
This flexible RGB LED strip support DC5V safety voltage input, total 150LEDs per 16.4Ft are mounted on a flexible PCB, with 16 million dynamic and static lighting effect output, controlled by a color changing RGB LED controller, you can change any colors temperature of your LED strip lights

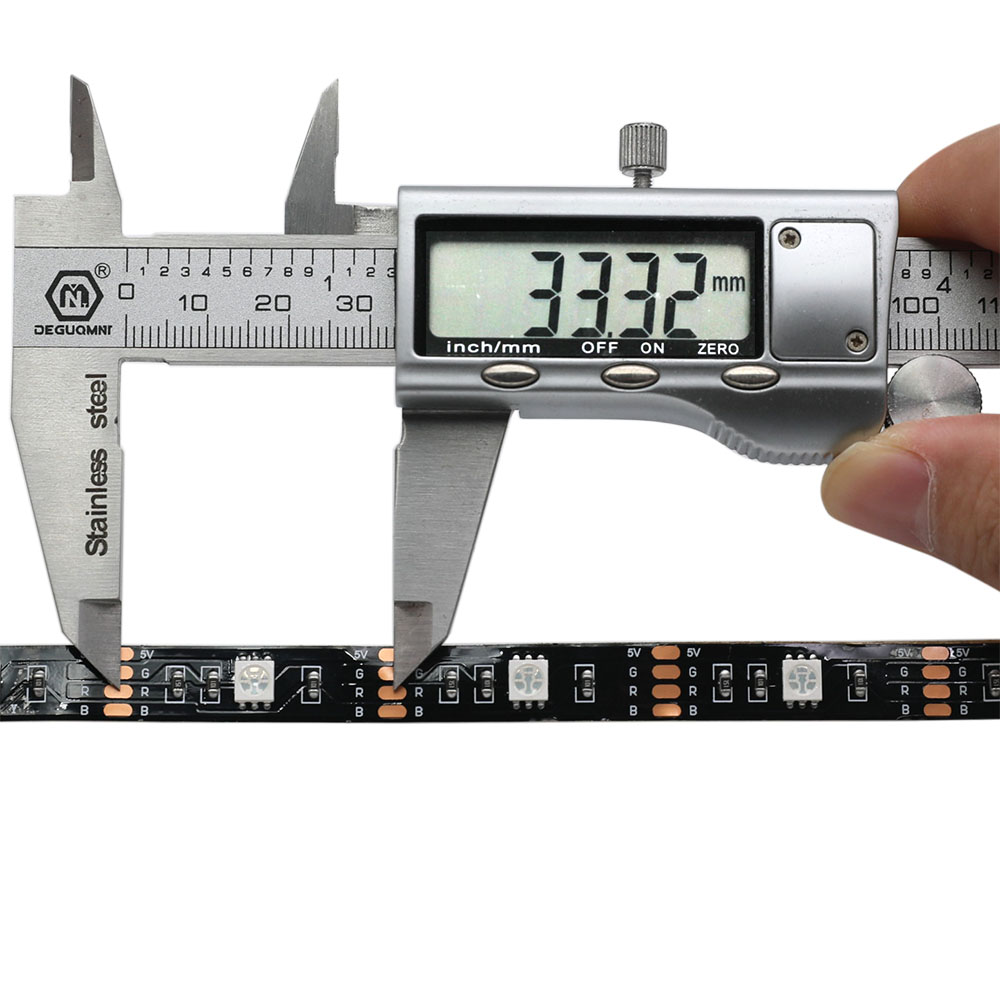

These LED strip lights are single LED cuttable, the min-cut distance is 33.32mm, it is possible that you can customize any length by yourself, if you have other length and waterproof rating demands, you can contact us to customize for you.

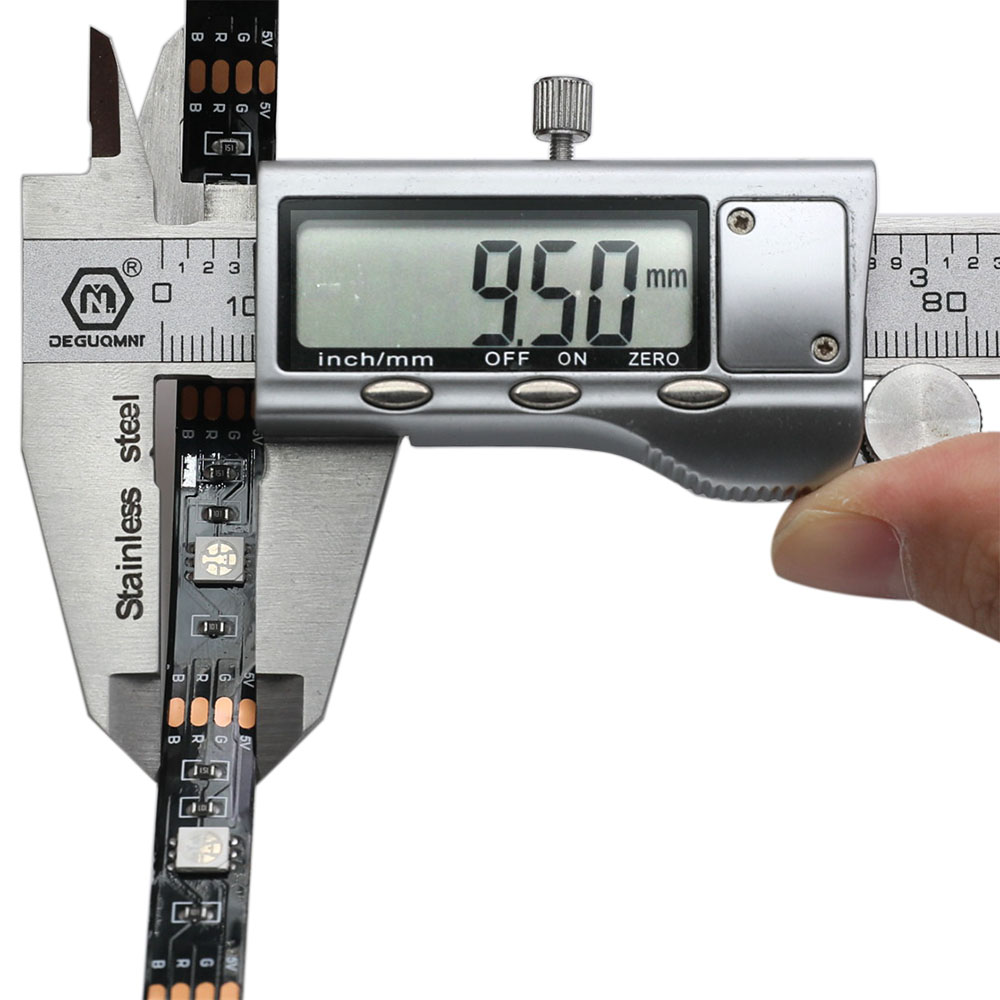

LED strip wide is 10mm/0.39in, with a high heat dissipation effect, which increases the lifespan of LED light strip, back with high quality 3M adhesive, easy to install, for the complex installation enviroment, you can choose our LED mounting bracket.
• Waterproof optional (IP20 vs IP65 vs IP67 vs IP68)
• 5m/16.4Ft the whole roll (9LEDs per foot)
• High brightness SMD5050 LED
• Strip width measures 10mm
• Single LED cuttable
• 120° Beam angle
• High quality 3M adhesive
• 4Pin wire connection
• 0-100% dimmable
• Lifetime exceeds 30000 hours
►Choose a suitable LED power supply and an RGB LED light controller:
Standards and Certifications
Product Specification
| LED Strip Type: SMD 5050 150PCS/16.4ft |
| LED Chip: Epistar Chip |
| Working Temperature: -4°F (-20°C) ~ 122°F (50°C) |
| Storage Temperature: -40°F (-40°C) ~ 176°F (80°C) |
| Light Color: RGB |
| Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm) |
| LED Quantity: 30 LEDs per 1meter (3.28 ft) |
| Cuttable: Single LED |
| Cut Length: 33.32mm/1.31in |
| Dimensions: L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in ) |
| Input Voltage: DC5V |
| PCB Width: 10mm/0.39in |
| Working Power: 36W/16.4Ft (7.2W/m) |
| Lumen Per LED: 24~26Lumen 3900lm Max /16.4ft |
| Beam Angle: 120 degree |
| Lifespan: 30,000+hours |
| Waterproof: Non-Waterproof IP20 and Waterproof IP65/IP67/IP68 |
| FPCB Color: Black / White |
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor).
How to install RGB LED light strip?
 |
 |
 |

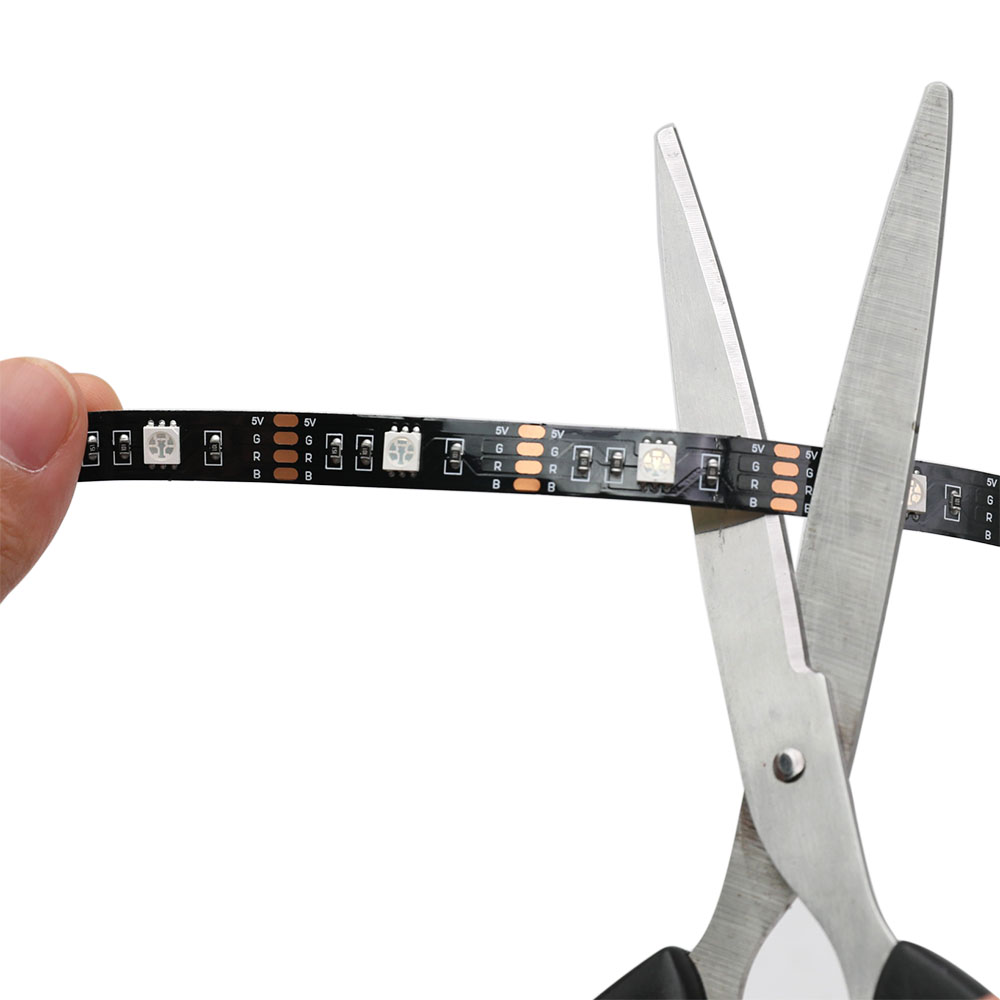

 You can cut the strip every few inches, allowing you to freely design your lighting project without worrying about space requirements to many different surfaces. |

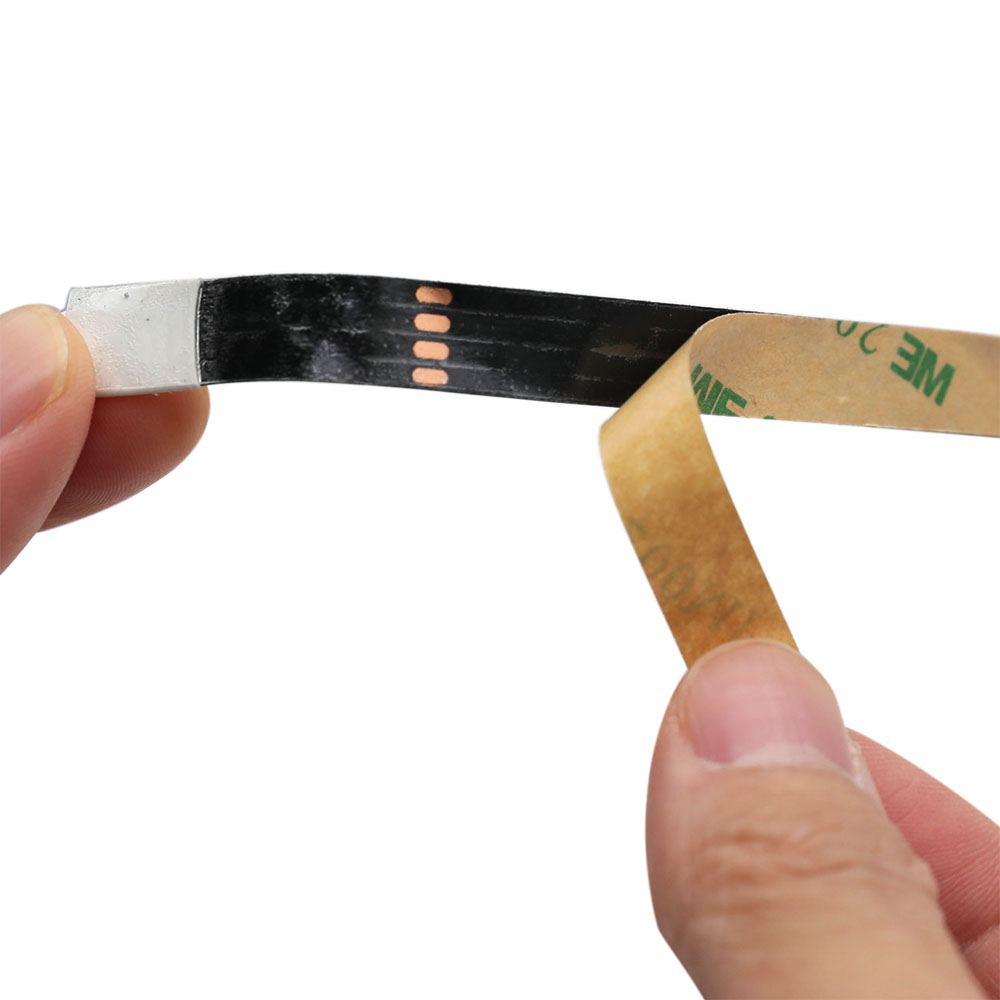

The back of the strip is fitted with a strong 3M tape, allowing you to peel and stick LED lights. |
IP67/IP68 waterproof type which will come with mounting brackets. |
Aluminum profiles and LED flex neon tubes can be used as RGB light strip accessories. RGB color changing LED lights with LED aliuminum channel and flex LED neon tube can get an uniform, soft, and no LED lighting sopt effect.
How to connect RGB LED strip?
RGB controller controls the LED color and brightness change of the RGB LED strip. And the power supply supplies power to the RGB controller and the RGB LED strip.
Related Reading: How to wire RGB color changing led strip lights?
Applications
-
Back lighting
-
LED task Lighting
-
Retail LED lighting
-
Sign illumination LEDs
-
Automotive accent lighting
-
Display case and accent lighting
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
