DC5V 5050SMD Color Changing RGB 60LEDs/M Single LED Cutable Flexible Strip Light 16.4ft Per Reel By Sale
Related Products
DC5V 5050SMD Color...
$19.98
Mean Well LRS-100-5 DC5V...
$29.00 $25.9810% off
6A*3CH RGB LED Controller...
$24.98
Mean Well LPV-100-5 DC5V...
$44.98 $34.9822% off
FUT043A RGB Smart LED...
$19.99-
Special Price: $19.98

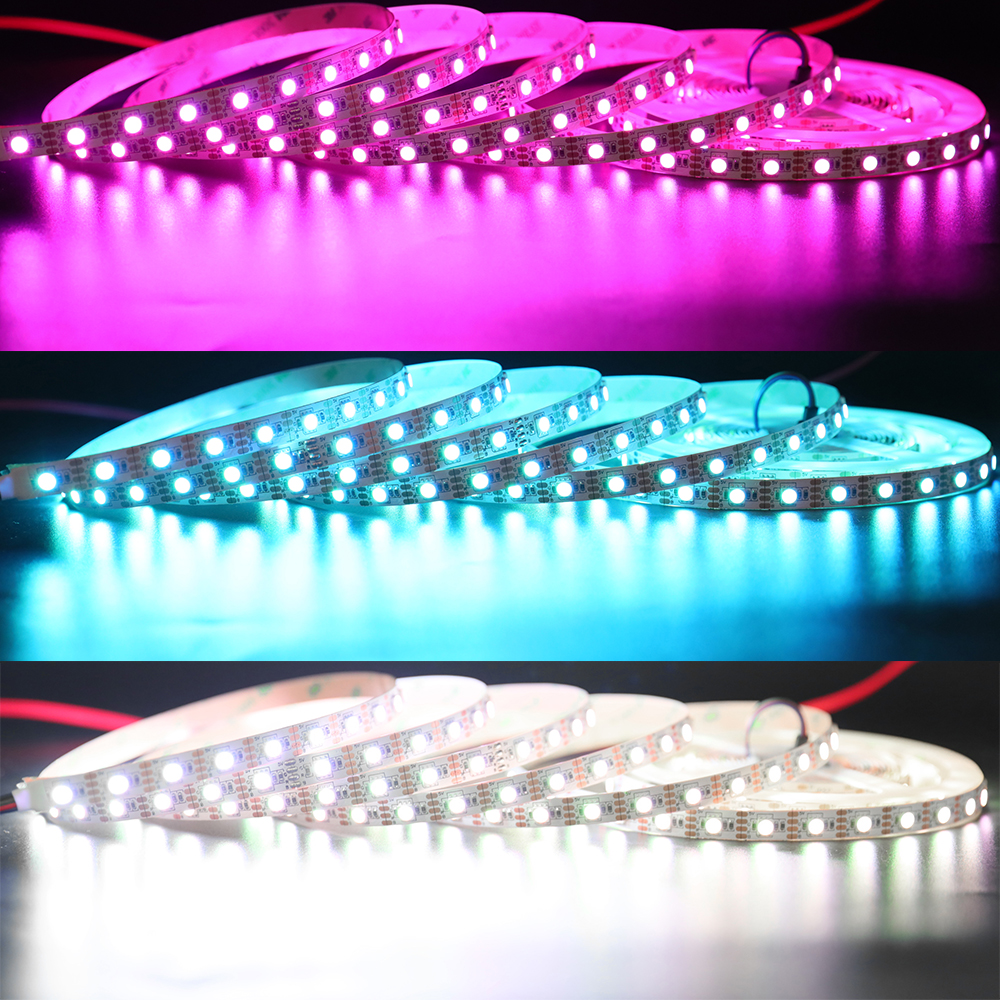

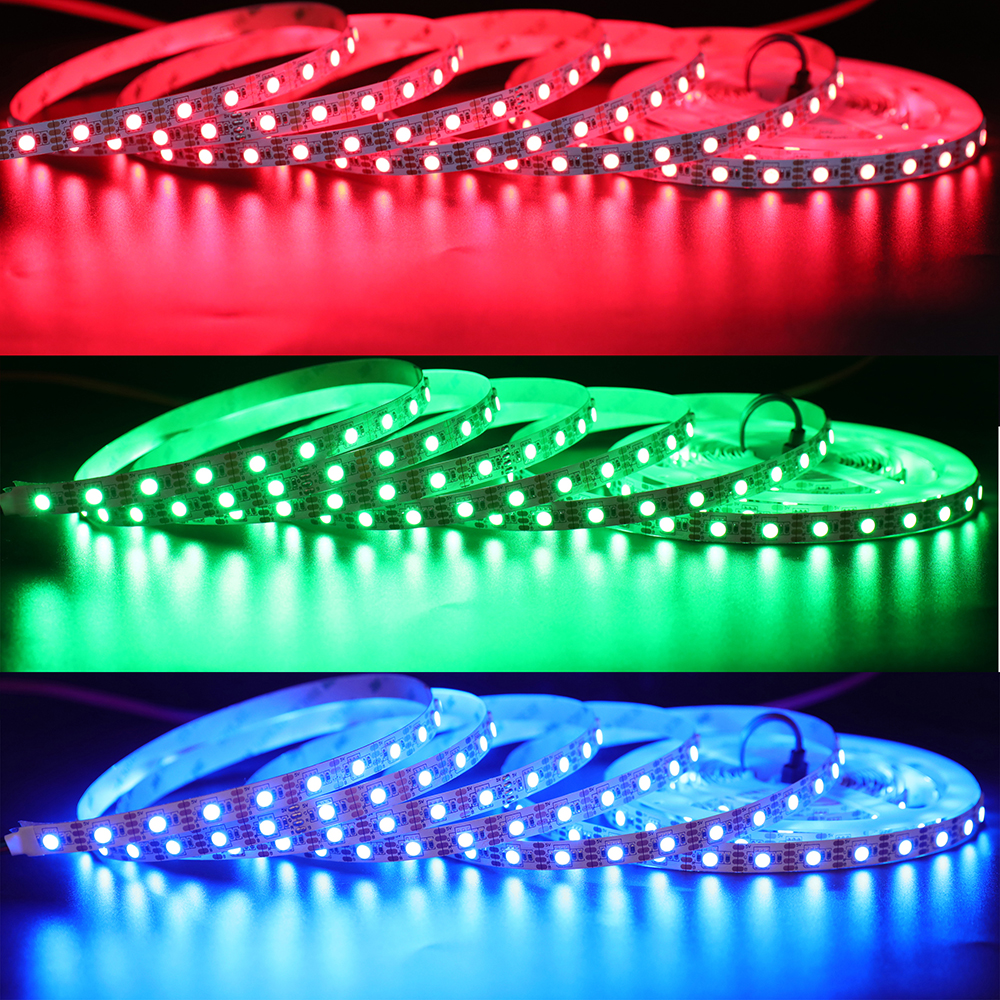

What is RGB color changing LED lights?
RGB is a color model, which can produce various colors by changing the three color channels of red (R), green (G), and blue (B) and superimposing them with each other. It is one of the most widely used color systems.
RGB color changing LED strip lights mean that the color is RGB. RGB LED strip lighting can emit perfect multiple colors lighting to provide the best brightness and atmosphere, can softly light any space, suitable for under-cabinet lighting, pool lighting, home theater lighting, architectural lighting.

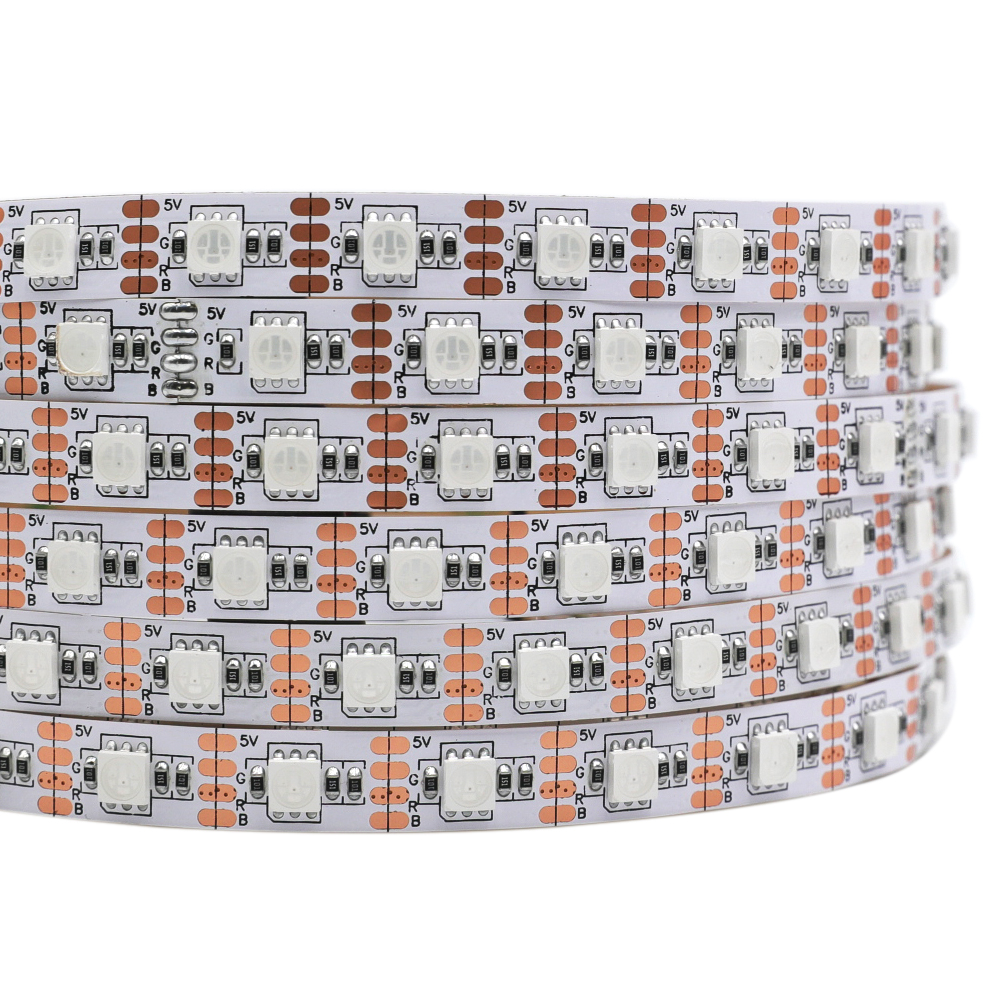

1. Using a high-quality SMD5050 RGB LED chip, you can change the LED color to achieve different effects
2. 60 LEDs per 3.28 feet, no LED voltage drop.
3. Stable performance, high brightness, unique circuit technology can ensure the replacement of LEDs
4. Flexible PCB board and tape, arbitrary bending installation
5.Customizable waterproof light strip to work in the outdoor environment(IP20 vs IP65 vs IP67 vs IP68)
►Everything you should know before buying LED strip lights:
Is it worth getting led strip lights?
Flexible led strip lights VS rigid led strip lights
►Choose a suitable LED power supply and an RGB LED light controller:
How to calculate power for led strip lights?
How to choose led strip light power supply?
How to choose led strip light controllers?
Standards and Certifications
Product Specification
Model: FSLSR-5050RGB-60X10-5V
LED Chip Type: SMD 5050
LED Quantity: 60 LEDs/M
Operating Voltage: DC5V
Length: 5m/16.4Ft

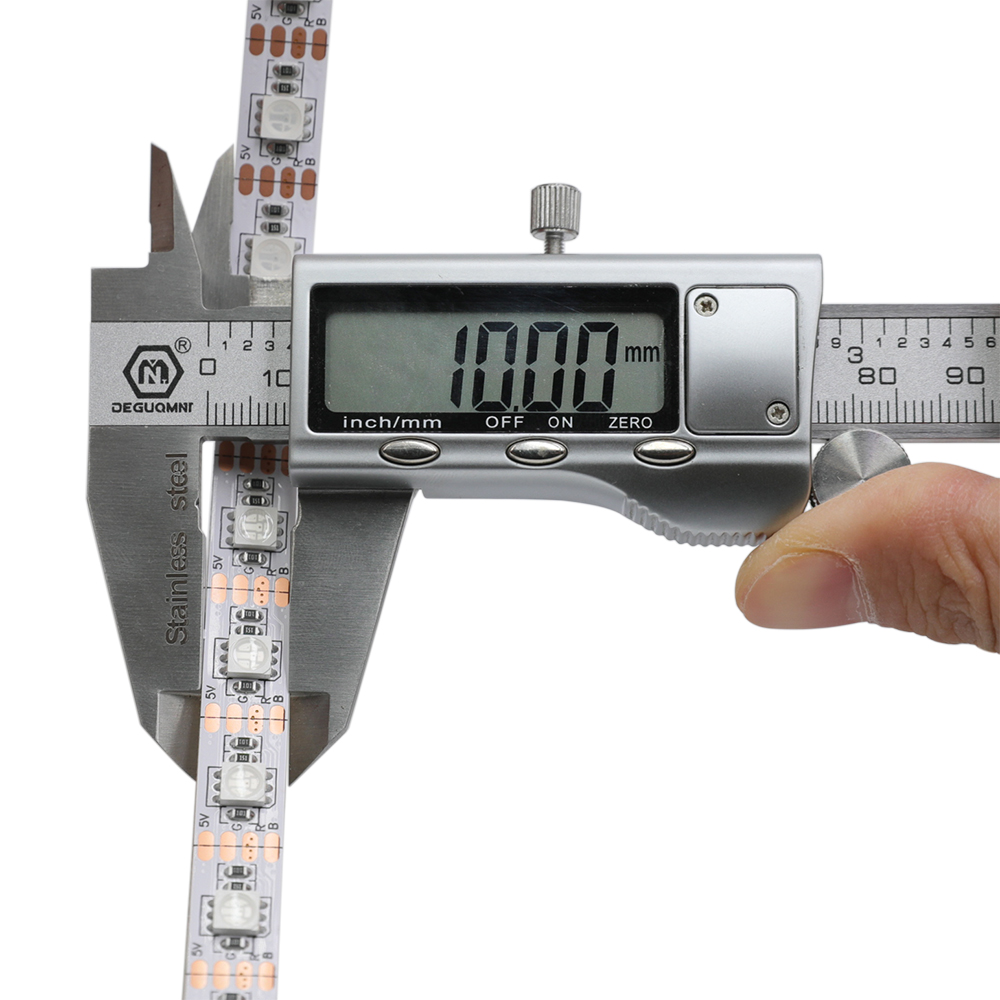

PCB Width: 10mm/0.39in
PCB Color: White/Black
Color Temperature: RGB
Waterproof Rating: Non-waterproof IP20/ Waterproof IP65/IP67/IP68
Storage Temperature: -40 to 80°C
Operating Temperature: -25 to 60°C
Lifespan: > 50,000 hours
Cutable: one LED
Board material: copper
Power: 60W/16.4Ft
Application: DIY household lights , Colorful life hotels decoration use, Architectural decorative lighting, Advertisement sign lighting, Automobile & Airplane model decoration
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare , with self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin,PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);
IP67 Waterproof (Silicon sleeve waterproof,PCB is encapsulated with silicon tube, with plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation,PCB both surface and back are encapsulated with plastic Gel, with plastic fastener, top level of waterproof, For Outdoor);
How to install RGB LED light strip?
 |
 |
 |

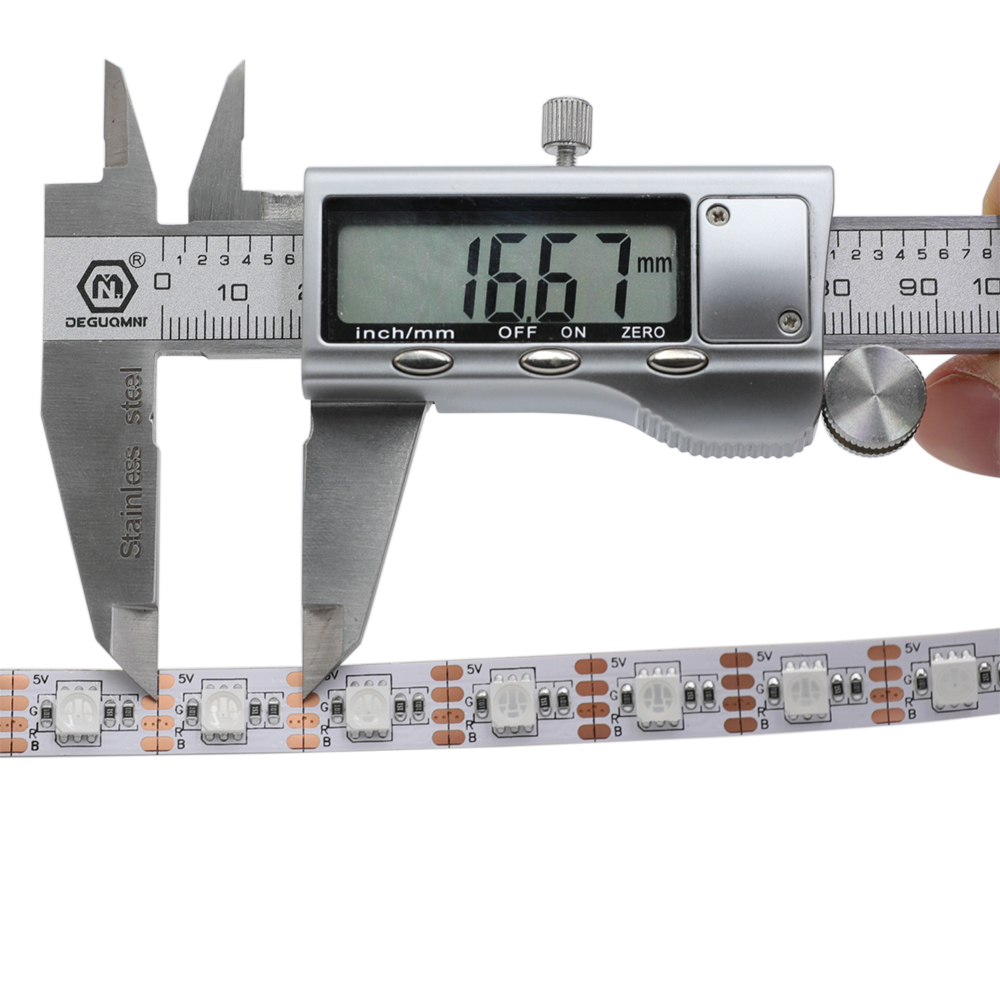

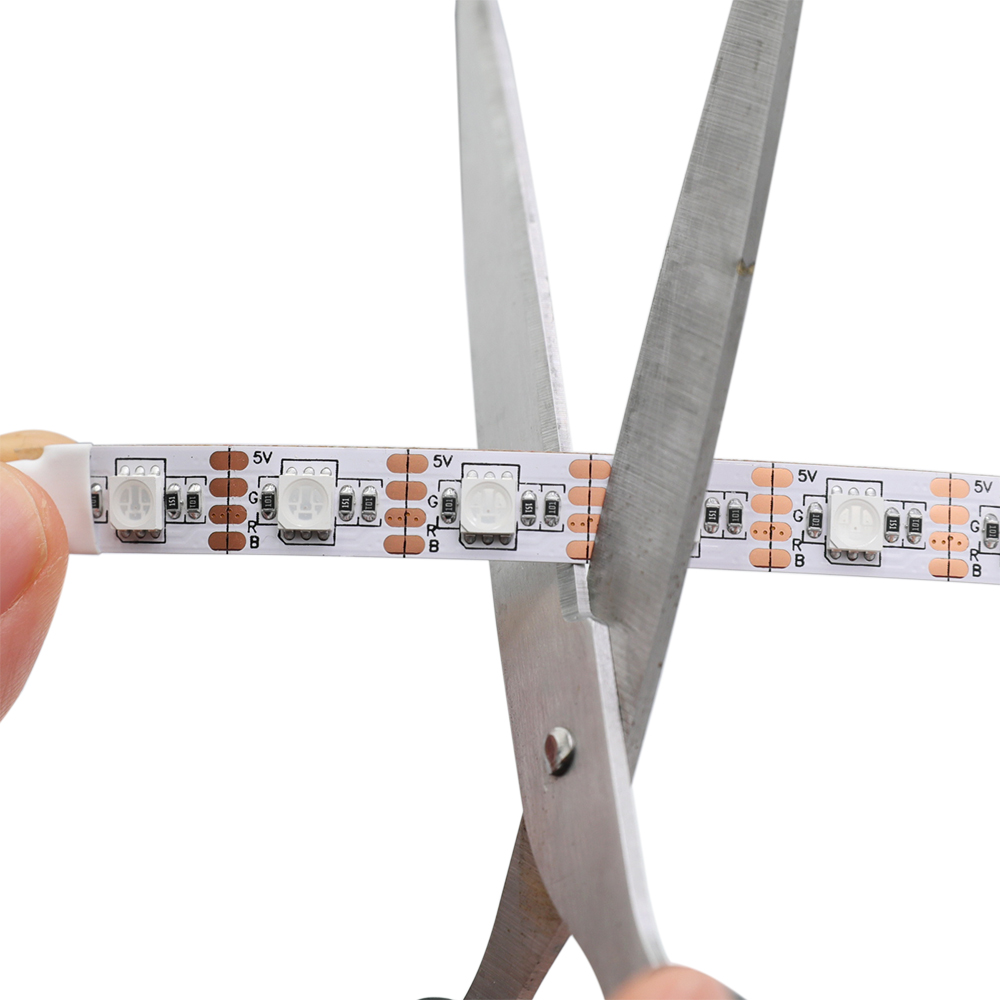

 You can cut the strip every few inches, allowing you to freely design your lighting project without worrying about space requirements to many different surfaces. |

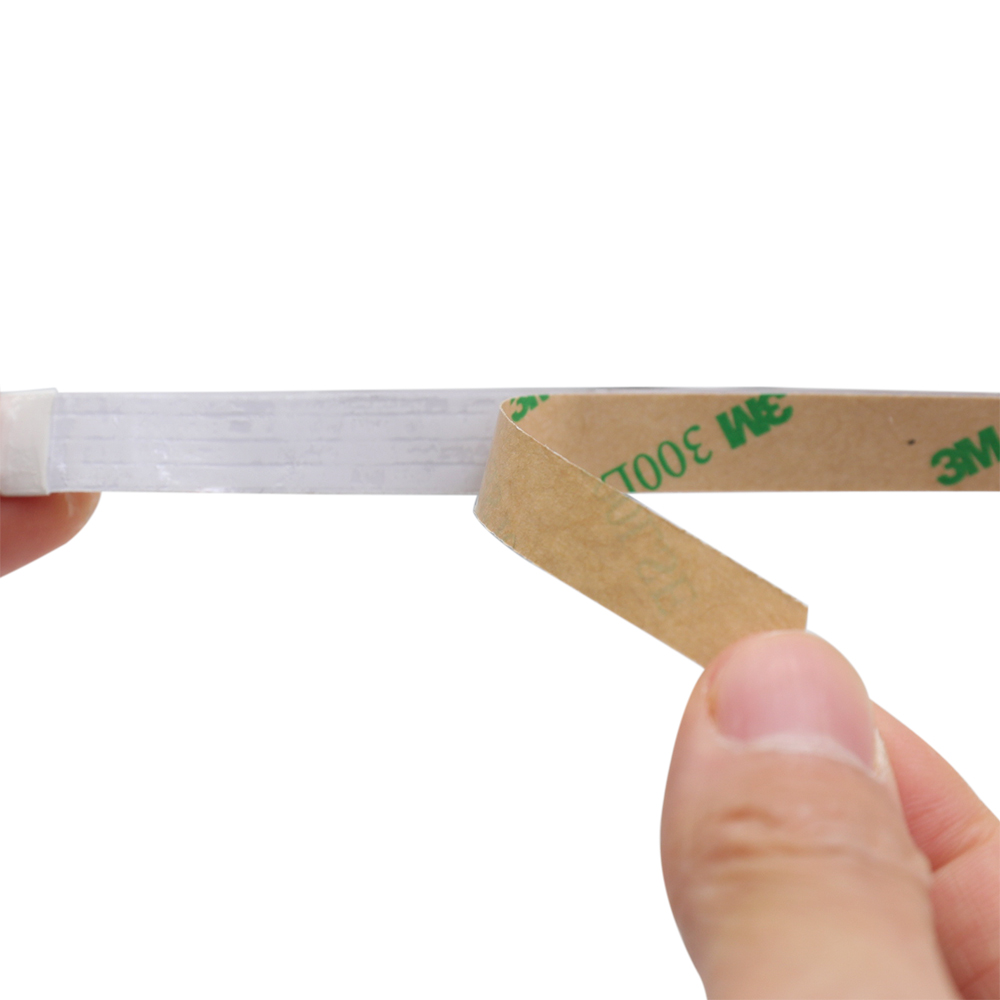

The back of the strip is fitted with a strong 3M tape, allowing you to peel and stick LED lights. |
IP67/IP68 waterproof type which will come with mounting brackets. |
Aluminum profiles and LED flex neon tubes can be used as RGB light strip accessories. RGB color changing LED lights with LED aliuminum channel and flex LED neon tube can get an uniform, soft, and no LED lighting sopt effect.
►Knowledge about LED aluminum profile and LED neon lights:
Ultimate Guide on Aluminum Profile for LED Strip Lighting
How to connect RGB LED strip?
RGB controller controls the LED color and brightness change of the RGB LED strip. And the power supply supplies power to the RGB controller and the RGB LED strip.
Related Reading: How to wire RGB color changing led strip lights?
Applications
-
Back/task lighting
-
Cove LED lighting
-
Retail LED lighting
-
Display case LED lighting
-
Accent LED lights
-
Under cabinet lighting
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
