DC5V Individually Addressable SK6812 4in1 SMD5050 LED RGBW Strip Lights 3.28ft 120LEDs/m
Related Products
DC5V Individually...
$27.98 $15.9843% off
Corner Mounted Black...
$12.00 $9.9917% off
Mean Well LRS-50-5 DC5V...
$25.00
LED Strip Light Channel...
$5.28
40W8A DC5V Plastic Shell...
$11.49
20AWG 3-pin Male/Femail...
$0.79
DC5/12/24V, SP105E New...
$12.98-
Special Price: $27.98 $15.9843% off

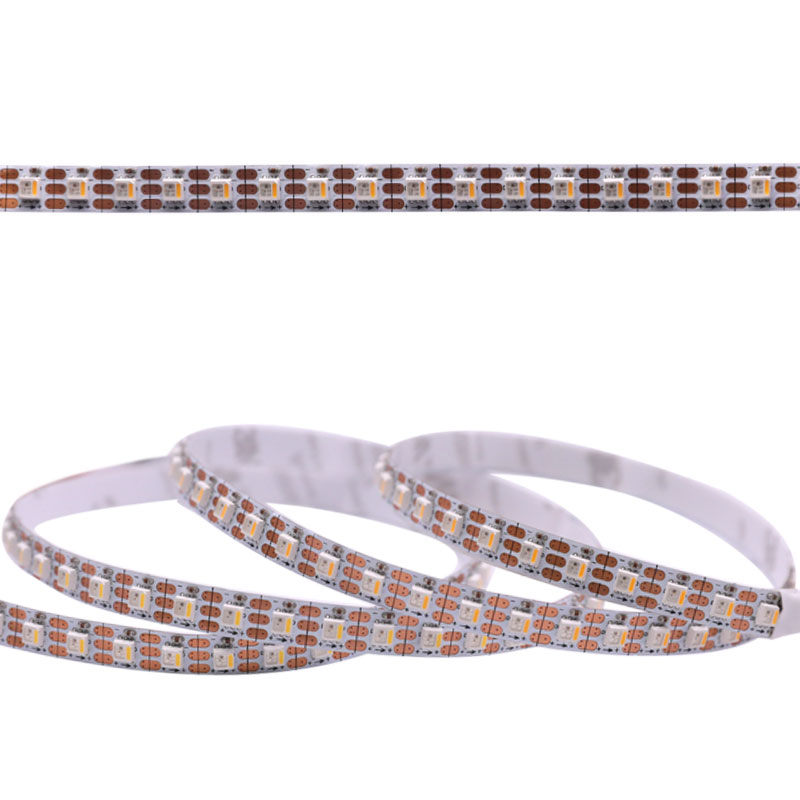

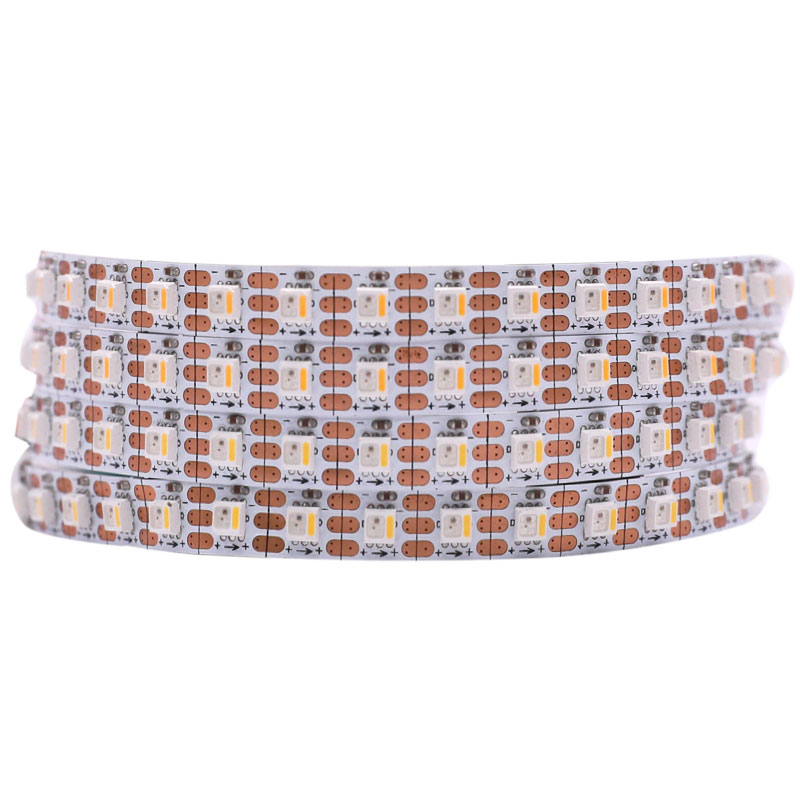

This is a 5V sk6812 RGBW led strip, with 120 lights per meter. 1m/3.28ft per roll. It adapts 4 in 1 SMD3535 mini RGBW led chip lights, each light-emitting diode is individual addressable, you can set the color of each LED.

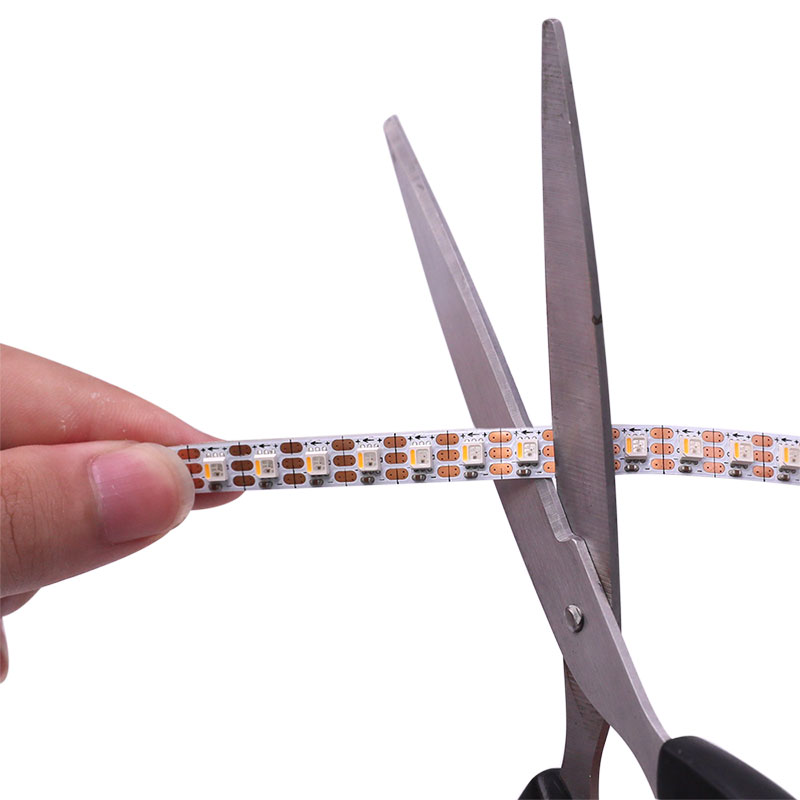

The addressable RGBW led strip allows you to cut 8.33mm a time, every LED as a segment. Comes with a 3pin JST SM connector and a 2pin power wire at both ends, easy to connect to an addressable RGBW controller.
If you want to open the white channel, it should inject power at both ends to avoid voltage drop and ensure the color consistency. There are 3000K warm white (soft and comfortable, dim light) and 6000K daylight (high brightness, bright light) for you to choose from, choose the right color temperature for your place.

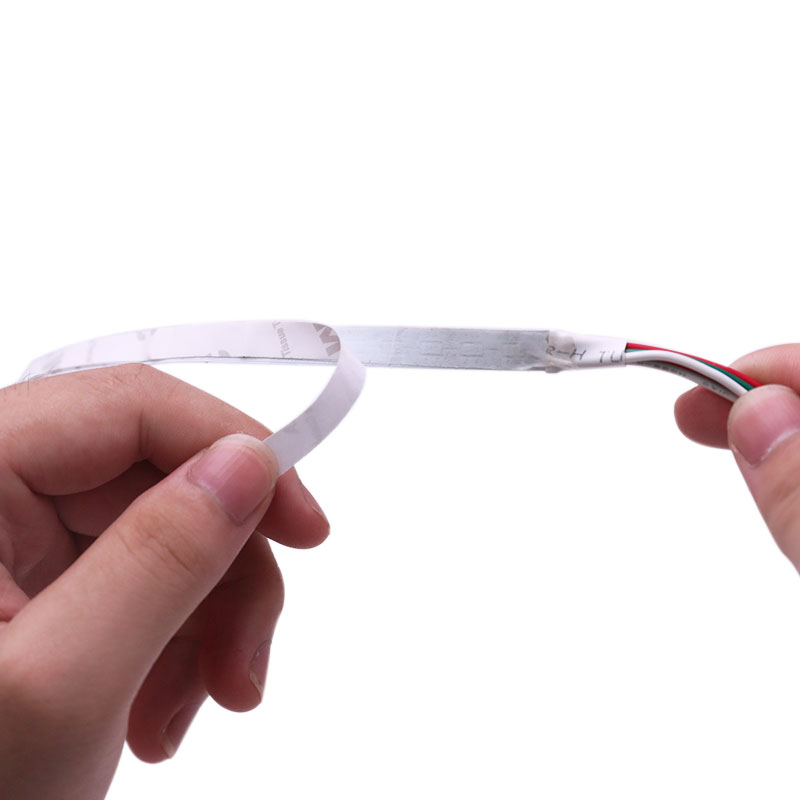

DC5V input, you need a 5V power supply to operate the light strip. With small size and double-sided tape at the backing, you can add it to light up your cabinets, shelves, and other DIY ideas. Take the led channel into consideration if you do not want to see the fixture.
If you choose the kit, you will receive: 1*1m led strip light + 1*Bluetooth controller SP105E + 1*40W 8A 5V power adapter.
Standards and Certifications
Specifications
| LED Strip Type | Individually Addressable RGBW LED Strip Light |
| LED Chip | Epistar Chip (SMD3535 ) |
| IC Type | SK6812 |
| Input Voltage | DC5V |
| Working Temperature | -4°F (-20°C) ~ 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) ~ 176°F (80°C) |
| LED Color | Addressable RGBW |

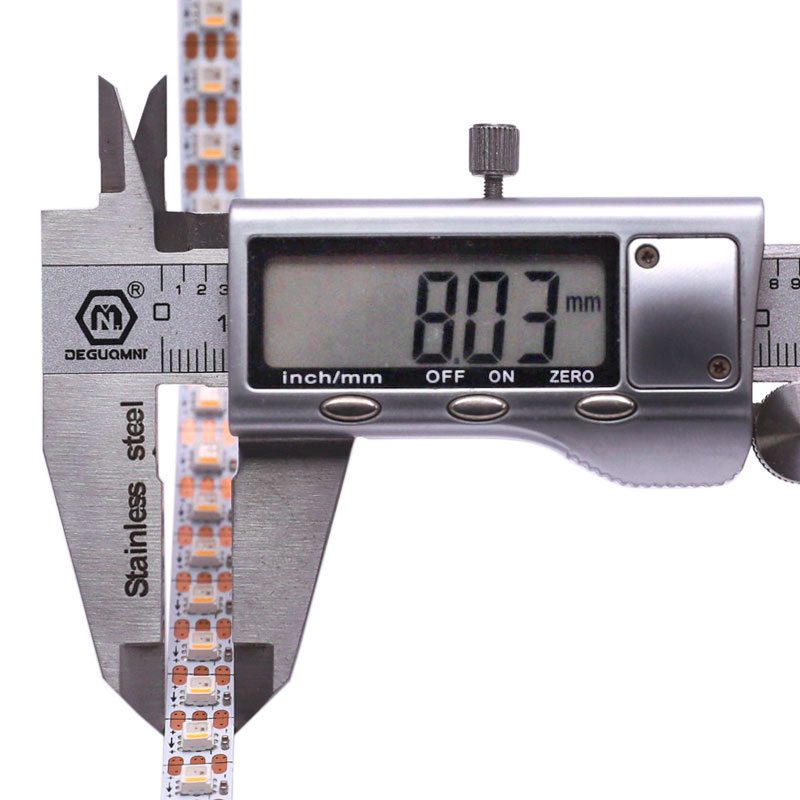

| PCB Width | 8mm |
| LED Quantity | 120 LEDs/m |
| Pixel Quantity | 120 pixels/m |
| PCB Color | White |
| Waterproof Rating | IP20 for indoor / IP67 for outdoor |

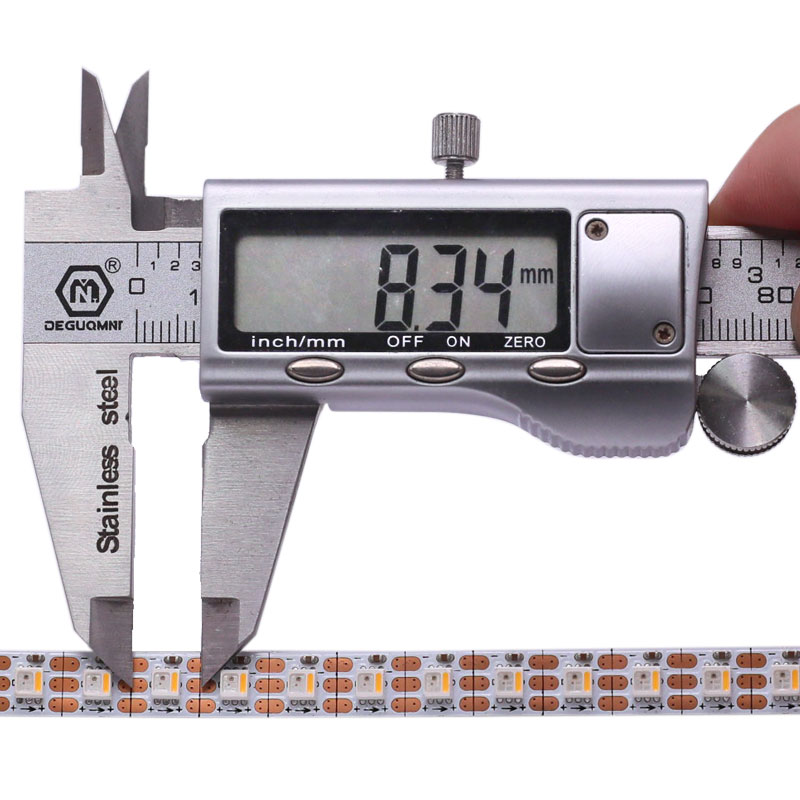

| Cuttable | 1-LED, 8.33mm |
| Power | 28.8W/m |
| Length | 1m / 3.28ft |
How to wire addressable RGBW LED strip lights?
The following is the SK6812 RGBW led strip wiring diagram. 5V transformwer powers the SPI controller and the SK6812 strip light. The LED strip changes different lighting effects through the control signal of the SPI controller.
When wiring the pixel led strip, please pay attention to the signal direction. Controller → strip.

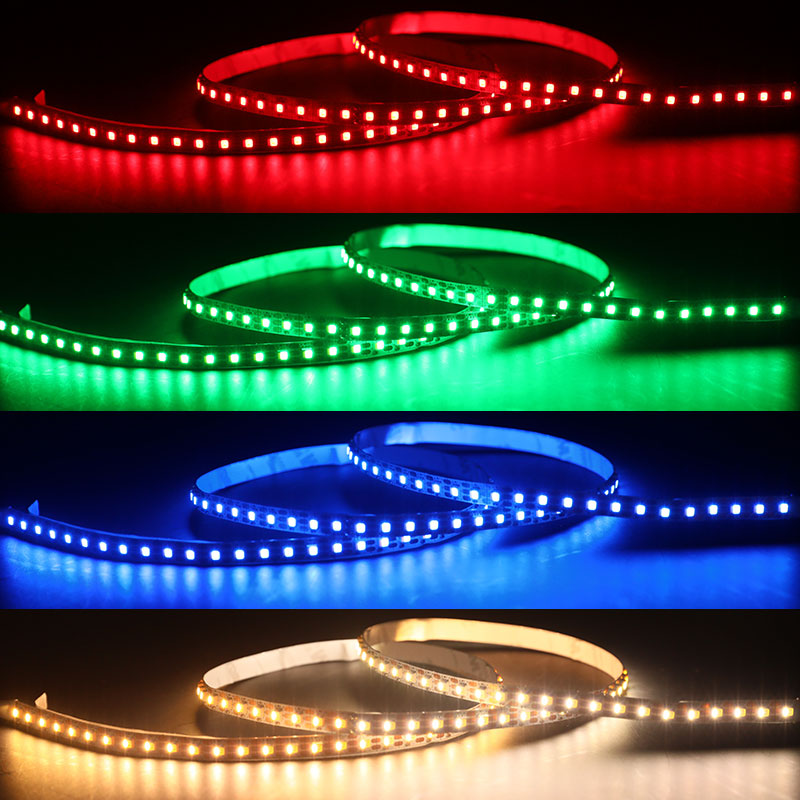

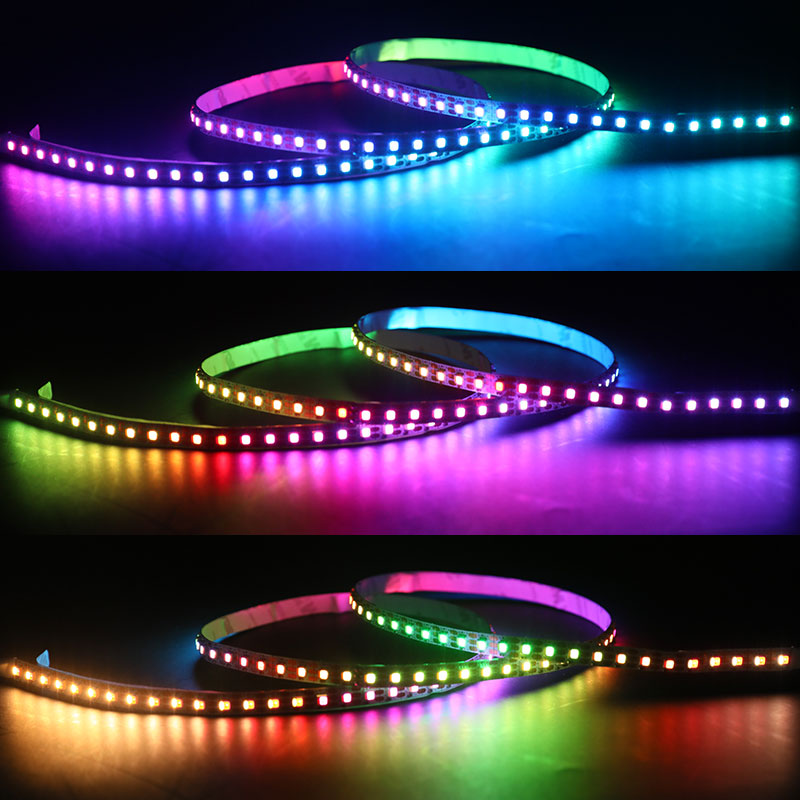

Light effects:
