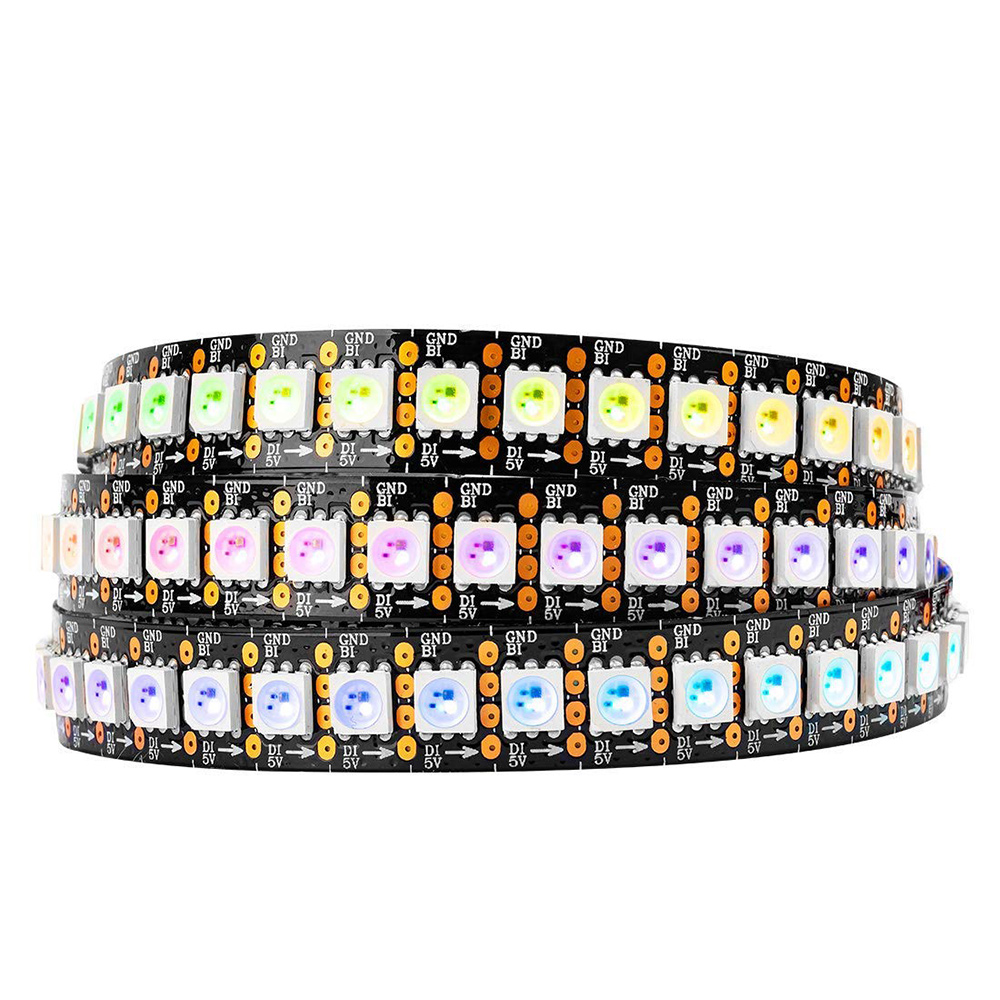

DC5V WS2813 (Upgraded WS2812B) Breakpoint-continue 144 LEDs Individually Addressable Digital LED Strip Lights (Dual Signal Wires), Waterproof Dream Color Programmable 5050 RGB Flexible LED Ribbon Light，1m/3.28ft
This WS2813 RGB DC5V 144 LEDs/m Addressable LED Strip Lights with pure color, 5050 RGB FPC board on the back of 3M glue, easy to install low energy consumption, high brightness , The performance is stable and can do waterproof processing unique line technology and high standards of anti-static, to ensure the life of the light bar and the use of quality with plastic deck, easy to install seismic, maintenance-free normal life of 50,000 hours or more Applications: Decor, pool, disco, bar, karaoke and other atmosphere lighting, fashion lighting
Light strips advantages
With plasticity, can be free to bend the shape — fixed in the uneven surface, easy to install (using the 3M self-adhesive) and other advantages;
With waterproof, in case of high temperature and low temperature does not change color, low voltage long life, and other advantages;
With bright colors and soft light (1LED lights can be composed of a loop — every 1 light can be cut to use), energy saving and environmental protection and other advantages are the ideal replacement of neon products (than the neon energy saving 70%), It is decorative contours. Making a variety of modeling the ideal lighting.
Standards and Certifications
Input voltage: DC5V
Power: 43.2 watt/meter,43.2 watt/roll
LED resource: SMD 5050 LED
Q'ty of LED: 144leds/meter,144leds/roll
IC Type: WS2813
Q'ty of IC: 144IC/meter (1 IC drives 1 led chip)
Grey scale: 256
Bits/color: 8-bits/color;24bit for RGB
Dimensions: L500cm(196.8 in ) x W1.2cm(0.47 in ) x H0.25cm(0.10 in )
Color Temp(K): RGB full color
LED Chip Model: SMD5050
FPC color: WHITE /BLACK PCB
Protection rate: NON-waterproof; IP65；IP67
Colors: Full color RGB, dream color changing;
Cuttable: every LED is cuttable;
Package: 1meters/reel in anti-static bag;with adhensive tape on the back
Average Life (hrs): 50000Hours+
How to connect and control
The WS2813 led strip has 4 wires for sending data - one V+ pin, one GND pin, and one data pin. That means you need 4 pins to control strip. Because the data is separated, you can use any processor speed or type to control these strips. an addressable RGB LED strip is a long flexible strand of LEDs each of which can be individually set to a certain color (hence: addressable). By varying the level of red, green and blue (RGB) per LED many color combinations can be made you can use any processor speed or type to control these strips, you can use any microcontroller or microprocessor, including Arduino, Raspberry Pi, BeagleBone, Propeller, SparkCore, and any 'raw' microcontrollers/microprocessors to control the strip.

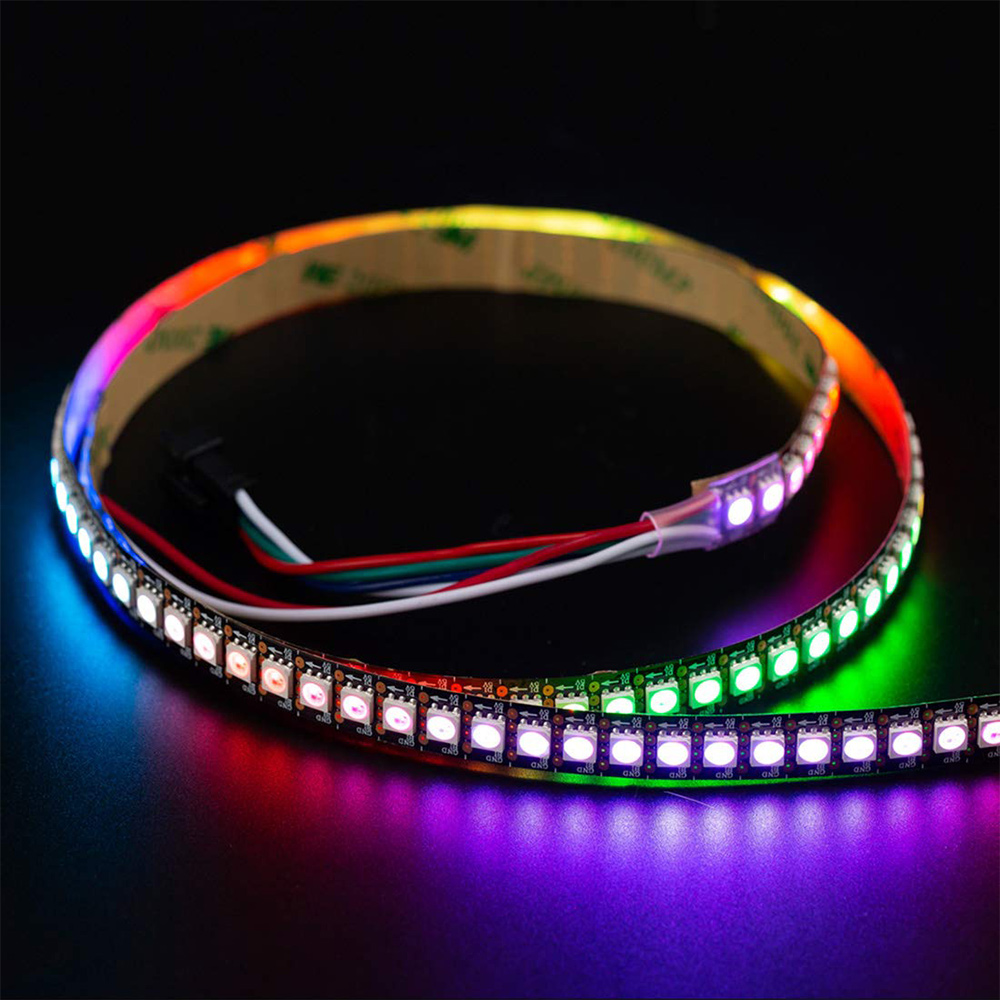

This strip comes as a single full meter with a 4-pin JST SM connector on each end. Every LEDs segment can be cut. Solder to the 0.1" copper pads and you're good to go.you can also connect strips together to make them longer. To power this strip, you need 5V power supply.
This is our recommended SPI and Programmable controller link. We are a professional lighting system company, you can tell us your lighting project requirements, we will recommend the most reasonable lighting solutions for you. If you need a customized lighting scheme, please feel free to contact me.
Waterproof Level Description
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
The BLACK ARROWS on the strip tell the transmitting direction of the signal. When running more than one roll of the strip after the Dream Color Controller, the following rolls of Dream Color Strip should be run strictly follow the Arrow point direction. If connected oppositely, the strip will not work
Electronic products to ensure that there will not be after-sales quality disputes, please use qualified manufacturers.
LED lamp bead detection technology National leading: independent patent testing equipment in 3 minutes can be measured lamp light failure, color, life, and other important electrical parameters, the machine dead light rate of fewer than one hundred thousandths, finished lamps Anti-static up to 20KV, the factory solemn commitment to light bar warranty for 2 years.
Reduce more costs for customers: managers before the technical-based electronic components traders, the use of components without intermediate links, both genuine and inexpensive.
Waterproof to achieve the highest IP68 level: independent waterproof patented technology. Outdoor products in the hottest Hainan Sanya, the coldest Shenyang, the factory’s fish tank all-weather two years to run, there is no water phenomenon.
ISO9001 / 2 management model: to ensure that each product 100% qualified factory.
Service-oriented: by the number of electrical professional technicians composed of the installation of the steering group, at any time to listen to customers dispatch. The products have been sold to the United States, Britain, Italy, India, Russia, Iran, Nigeria, Israel, and other countries and regions. The company through the CCC certification, CE certification, ROHS recognition, PCC, ISO9001, SGS, UL certification, and other domestic and international related industry certification.
