DH8 DALI DT7 / DMX RDM / Manual Three Modes 8 Channel AC Relay Switch
Related Products
DH8 DALI DT7 / DMX RDM /...
$45.98
DH (DT7) 100-240VAC...
$19.98
DH1 1 Channel 10A AC DALI...
$14.98-
Special Price: $45.98
An AC relay switch with 8 output channels and support DALI DT7 control, DMX control, manual incandescent/fluorescent/LED control modes. OLED setting display and 3 button operation.

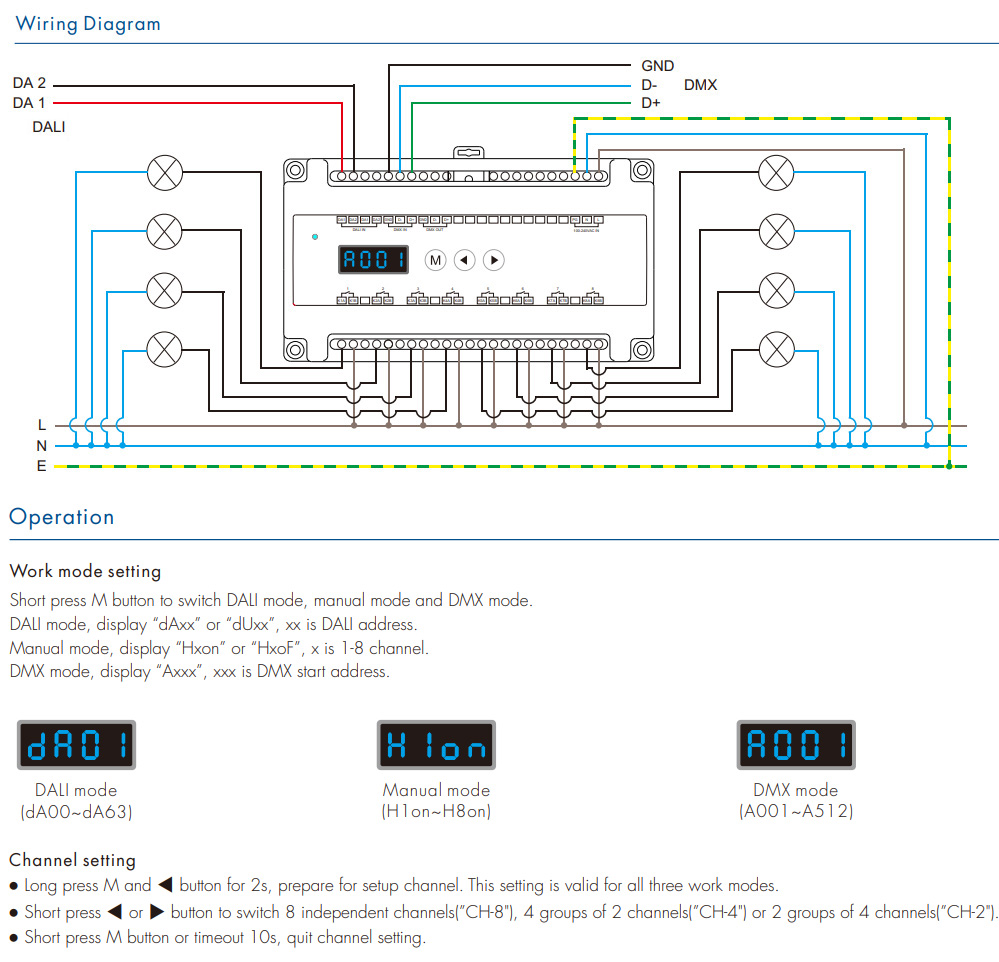

This 8CH relay is a switching device that controls alternating current (AC) power, it can operate as: 8 individual channels (8 × 1); 4 sets of 2 channels (4 × 2); and 2 sets of 4 channels (2 × 4). AC power is turned on and off in the circuit by physical push buttons.
AC relay switch combining DALI and DMX lighting technologies allows independent control of each light fixture or device, as well as management and monitoring of RDM-enabled devices by remote means. Provides a high degree of flexibility and scalability for lighting systems.
● Compliant DALI device type 7, DALI-2 certified, in accordance with DALI standard protocol IEC 62386-101,102, 208 and in compliance with DALI products from other international incorporation.
● DALI address can be manually assigned and shown in digital display or automatically assigned by DALI master.
● Comply with the DMX512 standard protocols, support RDM function.
● Support manual switch.
● High-inrush specification relays (single pole, normally open).
● Zero cross switching function, 8 independently output channels.
DH8 PDF Download

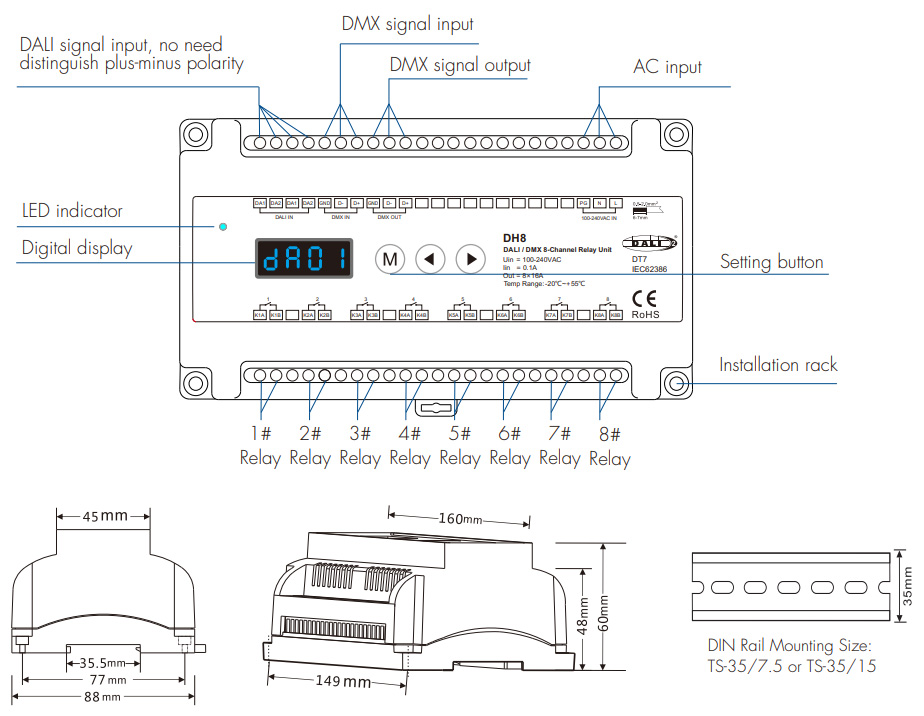

Product Specification
| Model: | DALI / DMX RDM / Manual 8 Channel AC Relay Switch |
| Input Voltage: | AC100-240V |
| Input Current: | 0.1A |
| Full Load Loss Power: | Max. 12W |
| Input Signal: | DALI and DMX512 |
| Relay Contacts: | High inrush (120 A at 20ms), single-pole, single-throw (SPST) relay |
| Max Relay Load Current: |
16A resistive load (incandescent lamp) 8A Capacitive load (LED dimming driver) 8A inductive load (uorescent lamp) |
| Operation Temperature: | -20℃~+55℃ |
| IP Raing: | IP20 |
| Warranty: | 5 years |
