DIN-711 CV 0-10V, 1-10V Dimming Driver,DIN rail , Screw dual-use hot applied for led light strip lighting controll

DIN-711 CV 0-10V, 1-10V Dimming Driver,DIN rail , Screw dual-use hot applied for led light strip lighting controll

Model: DIN-711-10A

$74.99

Free Shipping Worldwide On Order Over $199
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    Product Description :

    0-10V, 1-10V LED Dimming Driver

    Along with the rise of LED illumination, LED lamps are widely used in hotel, business center, household decoration etc. there are more and more chances to use LED and fluorescent lights at the same project, if LED lamps and fluorescent lights can be controlled together by a traditional fluorescent dimming system, it will make everything more convenient, but the dimming principles of LED and traditional fluorescent lights are different, LED lights can not be dimmed by the fluorescent dimming controller directly.
    As a fact of that, our company developed a new 0-10V, 1-10V to PWM dimming driver which has solved the compatible problem of fluorescent dimming system. and LED illumination, LED lamps can be controlled by many traditional intelligent dimming system.
    NOTE:The CV Dimming Drive and CC Dimming Drive can be connected together on the same dimming
    system, which is convenient for controlling different LED lamps with different voltage and power.



    Product parameter

    Input signal :   0-10V, 1-10V, 10V PWM, or push button

    Input voltage:   DC12V~DC24V

    Max load current:   12A ×1CH  Max 12A

    Max output power :   144W/288W(12V/24V)

    Dimming Range :   0~100%

    Working temperature :   -30℃~55℃

    Dimension :   L112×W35×H67(mm)

    Package Size:    L114×W37×H70(mm)

    Weight (G.W) :   114g

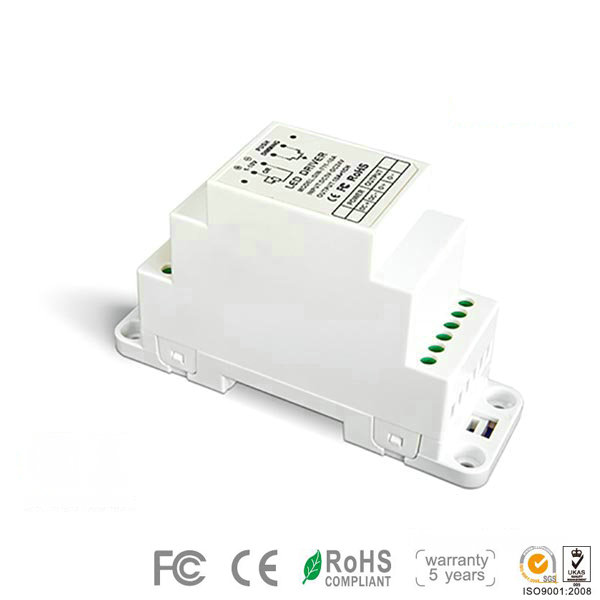

    LED Dimmer DIN-711

    DIN-711 CV 0-10V, 1-10V Dimming Driver,DIN rail , Screw dual-use hot applied for led light strip lighting controll
