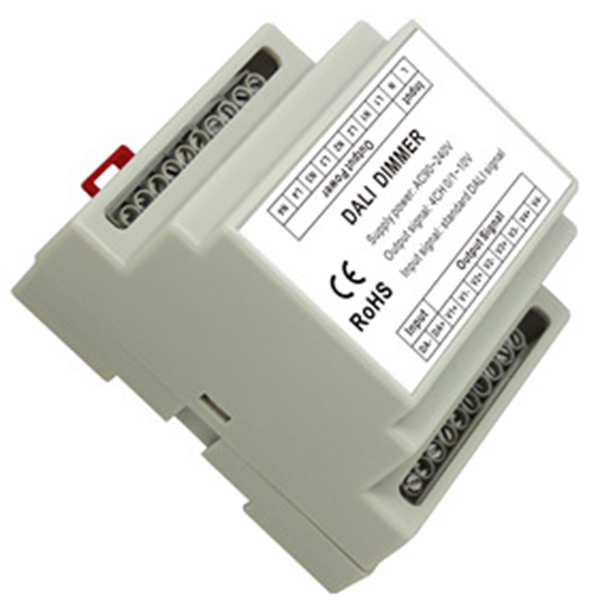

DL109 4 Channel Guide Rail DALI/0-10V Dimmer, LED/DALI Low Voltage Controller

Model: DL109
DL109 4 Channel Guide Rail DALI/0-10V Dimmer, LED/DALI Low Voltage Controller
  • DL109 4 Channel Guide Rail DALI/0-10V Dimmer, LED/DALI Low Voltage Controller
  • DL109 4 Channel Guide Rail DALI/0-10V Dimmer, LED/DALI Low Voltage Controller

Select Specifications:

Replaced By:

Starting at: $54.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-19
$54.98
20-49
$52.23
50-99
$51.13
100+
$49.48
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    This DL109 4 Channel Guide Rail DALI/0-10V Dimmer has been discontiuned now, you can check the DL108 Rail Type DALI Turn to 0/1-10V Dimmer, Rail Controller for replacement. And if you still order this item, we will send you DL108.



    DALI (Digital Addressable Lighting Interface) is an international standard, popular lighting control protocol, With digital addressing dimming, stable, various dimming ways, easy to install, compatible with many big factories such characteristic.

    This product adopts a standard DALI dimming signal to 0-10V dimming signal, dimming using standard IEC62386. LED dimming with the traditional way of comparison, with adjustable light a wide range of diverse dimming, dimming of high precision, check the current status LED (for example current brightness, power intensity , the minimum support brightness, address, etc), easy distributed control and so on.


    Standards and Certifications

    CE FCC  RoHS ISA SGS ISO  warranty



    Technical Parameters

    Supply voltage: AC90V-240V

    Load output: four channel 0/1V-10V signal output

    Dimming signal: DALI (IEC62386)

    Signal interface current: <2mA

    Dimming range: 0.1%-100%

    Working temperature: -20-60℃

    Gross weight: 260g

    Net weight: 163g

    External dimension: L87mm * W72mm * H59 mm

    Packing size: L100mm * W80mm * H75mm

    Relay output maximum current: 2A/ each channel



    Specifications Download   PDF

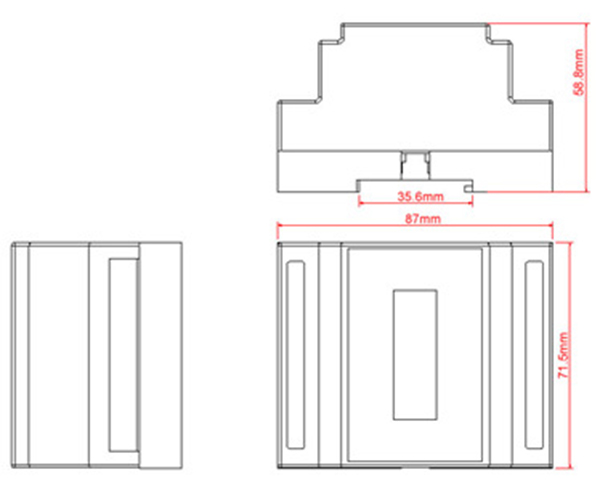

    External dimension

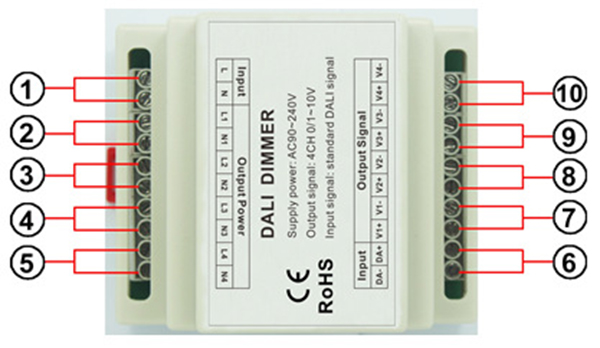

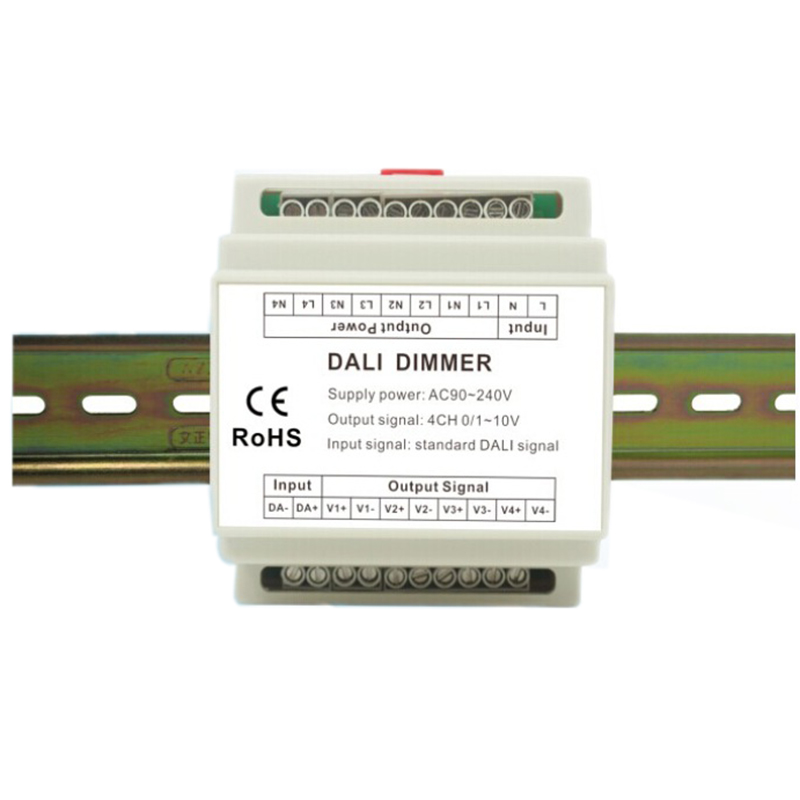

    Interface description

    ①AC power input port; ②channel 1 relay output port; ③channel 2 relay output port; ④channel 3 relay output port; ⑤channel 4 relay output port; ②③④⑤ can provide input power for 0/1-10V dimmer, come Solve the problem that cannot be turned off;

    ⑥ is the DALI signal interface; ⑦ is the channel 1 0/1-10V output interface; ⑧ is the channel 2 0/1-10V output interface; ⑨ is the channel 3 0/1-10V output interface; ⑩ Channel 4 0/1-10V output interface;



    Direction for use

    1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power

    2. This product use the protocol standard is IEC62386, through accept the orders sent by DALI host. It can realize to choose the output signal voltage range and dimming curve. The following is order choosing way:

    A. Choose 0V-10V output, dimming curved choose linear dimming.

           Controller output voltage range is 0-10V. Voltage is successive from low to high or from high to

           low curved linear.

    B. Choose 1V-10V output, dimming curved choose linear dimming.

           Controller output voltage range is 1-10V. Voltage is successive from low to high or from high to

    low curved linear.

    C. Choose 0V-10V output, dimming curved choose logarithmic dimming.

    Controller output voltage range is 0-10V, voltage successive from low to high or from high to

    low curved logarithmic.

           D. Choose 1V-10V output, dimming curved choose logarithmic dimming.

           Controller output voltage range is 1-10V, voltage successive from low to high or from high to

    low curved logarithmic.

    3. Output signal voltage range and dimming curved setting inquire order as follow:

    Command Number

    Command Code

    Command Name

    224

    YAAA  AAA1 1110 0000

    Set output range 1-10V

    225

    YAAA  AAA1 1110 0001

    Set output range 0-10V

    229

    YAAA  AAA1 1110 0101

    Choose dimming curved

    238

    YAAA  AAA1 1110 1110

    Inquire dimming curved

    241

    YAAA  AAA1 1111 0010

    Inquire output state

    Note:

    When setting the dimming curve, first set the value of DTR, and then set the value of DTR to the dimming curve. Only when 0 is used as the dimming curve value is logarithmic dimming, and other values are linear dimming. When the query dimming curve returns a value of 0, it indicates that the current state is logarithmic dimming, and 1 is linear dimming.

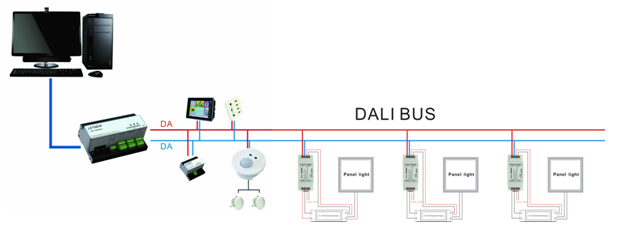

    Typical Application
