DMX301 4 Channel With LCD Display 12-24V Low Voltage DMX Controller

Model: DMX301
DMX301 4 Channel With LCD Display 12-24V Low Voltage DMX Controller
  • DMX301 4 Channel With LCD Display 12-24V Low Voltage DMX Controller
  • DMX301 4 Channel With LCD Display 12-24V Low Voltage DMX Controller

$49.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-19
$49.98
20-49
$47.48
50-99
$46.48
100+
$44.98
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Low-voltage DMX controller with LCD display is an LCD digital interface display, used to control the RGB colour and one-way brightness of four-wire three-loop (common anode) LED luminaires, with up to 34 change mode selections, while accepting DMX512 Multifunctional controller controlled by international standard protocol. The controller can be operated in a stand-alone mode, self-connecting, and receiving standard DMX512 console control signals. According to the actual needs of customers, light changes such as jumping, gradual change, and strobe can be achieved.



    Standards and Certifications

    CE FCC RoHS ISA SGS ISO warranty



    Technical Parameters

    Working Temperature: -20-60℃

    Power Supply Voltage: DC 12~24V

    Output Voltage: DC 12~24V

    Output Connect Way: common anode 4 channels

    External Dimension: L203 Χ W134 Χ H50 mm

    Packing Size: L255 Χ W155 Χ H60 mm

    Net Weight: 0.59kg

    Gross Weight: 0.92kg

    Static Power Consumption: <3.96W

    Maximum Output Current: 8A/each channel

    Working Frequence: 300Hz


    Specifications Download   PDF

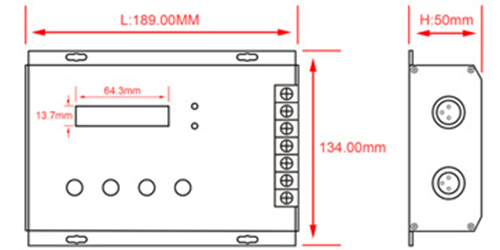

    External Dimension

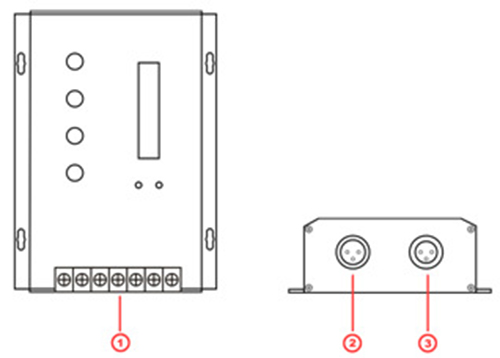

    Interface description

    ①. Fence type terminal with cover ②. XLR male seat (input) ③. XLR female seat (input)



    Barrier type terminal with cover

    ①. Power negative  . Power positive

    . Load output common positive terminal

    ④. Load red output terminal

    ⑤. Load green output  ⑥. Load blue output

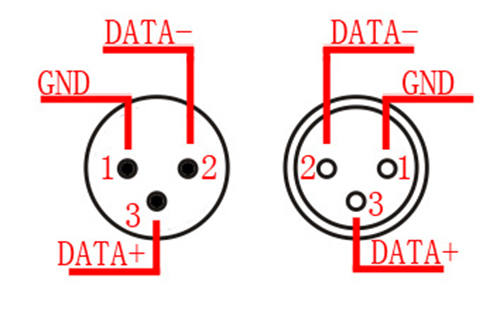

    DMX XLR interface

    Product packaging diagram



    Direction for us

    1. Connect the load wire at first, following by the power wire; Please ensure short circuit cannot occur between connecting wire before you turn on the power.Controller have 4 function setting key: MODE, PARA, UP, DOWN.

    2. MODE key choose in turn or press UP, DOWN key to choose:

    No.

    Display content

    Instruction

    0

     BLACK

    Static black

    1

     STATIC  RED

    Static red

    2

    STATIC  GREEN

    Static green

    3

    STATIC  BLUE

    Static blue

    4

    STATIC  YELLOW

    Static yellow

    5

    STATIC  PURPLE

    Static purple

    6

    STATIC  CYAN

    Static green

    7

    STATIC  WHITE

    Static white

    8

    COLOR  CHANGE

    Seven color jumpy changing

    9

    COLOR  CHANGE2

    Jumpy changing (flicker)

    10

    SIX  COLOR CHANGE

    Six color jumpy changing

    11

    SIX  COLOR CHANGE2

    Jumpy changing (flicker)

    12

    RGB  CHANGE

    Three color jumpy changing

    13

    RGB  CHANGE2

    Jumpy changing (flicker)

    14

    RG  CHANGE

    RG jumpy changing

    15

    RB  CHANGE

    RB jumpy changing

    16

    GB  CHANGE

    GB jumpy changing

    17

    WHITE  CHANGE

    White stroboflash

    18

    COLOR  SMOOTH

    Seven color gradual changing

    19

    4 COLOR  SMOOTH

    Four color gradual changing

    20

    RG  SMOOTH

    RG gradual changing

    21

    RB  SMOOTH

    RB gradual changing

    22

    GB  SMOOTH

    GB gradual changing

    23

    COLOR  GRADUAL

    Seven color fade in and out

    24

    RGB  GRADUAL

    Three color fade in and out

    25

    WHITE  GRADUAL

    White fade in and out

    26

    RG  GRADUAL

    RG fade in and out

    27

    RB  GRADUAL

    RB fade in and out

    28

    GB  GRADUAL

    GB fade in and out

    29

    R  GRADUAL

    R fade in and out

    30

    G  GRADUAL

    G fade in and out

    31

    B  GRADUAL

    B fade in and out

    32

    ADJUST  MODE

    Four channel, 0-255 level adjusted color

    33

    AUTO  PROGRAM

    Auto operation selecting result of changing

    34

    DMX512  MODE

    DMX512 control order

    35

    DMX512  DECODER

    DMX512 decoder


    3.Press PARA to adjust in turn: (1-8 is static state, do not have adjust function)

    No.

    Parameters display

    Instruction

    Maximum

    Minimum

    1

    RUN  SPEED

    100

    0

    2

    RUN  TIMES

    100

    0

    3

    LOAD DEFAULT

    Restore the factory parameter

    4. UP: increase parameter key/preset parameter.

    5. DOWN: decrease parameter/preset parameter.

    6. AUTO PROGRAM mode is repeatedly cycle running part or all of 6-31 patterns run,you can set whether participating in repeated cycle of operation or not in RUN TIMES.

    7. RUN TIMES: compiling the run times of the pattern under 33 AUTO PROGRAM, if the run times is 0, you can skip the pattern,that means not running the pattern.

    8. Preset parameter: each form has independent factory preset parameter, which is kept in controller separate. LOAD DEFAULT can recover the factory parameter of the form. If under AUTO PROGRAM mode, using LOAD DEFAULT can unified recover the parameter of all forms to factory parameter.

    9. 32 ADJUST MODE is manual dimming, it can adjust the brightness of RGB 0-256 level respectively.

    10. 34 DMX512 MODE is controlling all patterns (the first address) and speed(the second address).

    11. 35 DMX512 DECODER is DMX decoder, completely accepting outside DMX512 signal to work. Taking 4 addresses, R(the first address), G(the second address), B(the third address), reserved channel(the fourth channel), in need of setting address(by pressing PARA).



    Typical Applications

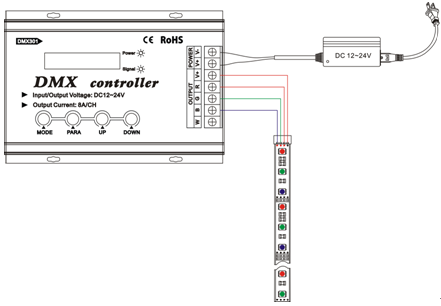

    Typical application 1---do not have DMX function:

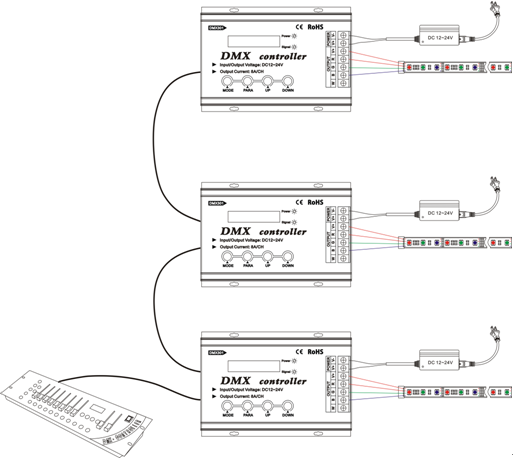

    Typical application 2---with DMX function
