DMX512 Decoder Controller
(0)Model:DMX501
DMX501 DMX Touch LCD Screen Master Control, 36 Channel Intelligent Lighting Control System
- WT:-20～70℃
- Connection Method:DMX signal line
- Max Power Consumption:12W
- Output: Primary DMX signal
- Output Channel:36 CH
DMX touch screen main control is a light controller based on an intelligent system. The touch screen adopts the current popular capacitive touch technology and uses the software to virtualize the metal texture control panel. The software is simple to operate and the user-defined settings are easy. Convenient and fast to achieve diverse lighting control effects. DMX 501 Products...
(0)Model:WF310
WF310 DC12V WiFi-DMX Waterproof Converter, DMX512 Low Voltage WiFi Dimming Control Switch
- Working Voltage:DC12V
- Power: < 2W
- Output: DMX Signal
- Name: WifiManager
- Waterproof Rating:IP65
The WF310 controller is another self-developed Wifi controller after our WF100 and WF400 controllers. The WF310 does not need to switch wireless networks when used, which is convenient for users to access the Internet. You can choose an encrypted network or an open network. With the WiFiManager network management software WF310, the network configuration is more convenient, and you can choose the...
(0)Model:DMX300D
DMX300D 4CH High Voltage LED DMX Decoder - Short Circuit Protection
- Working temperature:-20-60℃
- Output voltage:DC 100~240V
- Output connection mode:terminal 5 wires 4 loops
- Maximum output current:4*2A
- Dimming frequency:980Hz
- Maximum output power:880W/1760W
The high-voltage DMX controller with LCD display is an LCD LCD digital interface display, used to control the RGB-W color change of five-wire four-circuit (common anode) LED lamps, a variety of 34 change modes, and DMX512 is optional Multifunctional controller controlled by international standard protocol. The controller can work as stand-alone, self-online, and receive standard DMX512 console...
(0)Model:DMX124
DMX124 Signal Distributor 4 Channel For DMX512 LED Strip Lights or DMX512 Decoder
- Input voltage: AC100~240V
- Rated power:4W
- Working temperature:-20-60 ℃
- Input signal: DMX512 signal
- Output signal:4 Channel
- PF:50～60HZ
Summarization DMX124 signal distributor is one of DMX signal distributor series, is specially used for amplifying DMX512 digital lighting control signal and 4 channels allocation output. The input/output interface adopts high voltage isolation technology, applied to amplify DMX512 signal transmission in the short distance, as well as the using occasion where output/input interfaces need...
(0)Model:DMX101
DMX101 DC5-24V 3 Channel DMX Bar Decoder, LED Colourful Light Bar Module Controller
- Voltage(v): DC5-24V
- WT:-20-60℃
- Control Type: Touch / IR
- Output Channel: 3 Channel
- Remote Distance:15m
The DMX decoder adopts the advanced micro control unit, it receives standard DMX-512 digital control signal that is widely used in the and transform it into PWM signal to drive LED; the port of DMX signal has lightning protection measures, while the load output has over-current protection circuit; You could connect the DMX decoder with DMX digital console to achieve dimming or...
(0)Model:DMX200
DMX200 DC5-24V DMX-SPI Decoder, LED Intelligent Lighting Control System
- Voltage:DC5-24V
- WT: -20-60℃
- Output:SPI signal (DATA, CLK)
- Max Output Power:480W
This DMX-SPI decoder adopts an advanced computer control chip, receives DMX-512 standard digital control signals widely used in the world, and converts it into SPI controller signals to drive LED light bars. It can support 10 different types of light bars and DMX signal ports at the same time. It has lightning protection measures; it can be connected to the DMX digital console to achieve dimming...
(0)Model:DMX301
DMX301 4 Channel With LCD Display 12-24V Low Voltage DMX Controller
- Voltage:DC12-24V
- Static Power:<3.96W
- Output Current: 8A/CH
- Frequence: 300Hz
- Output:3 Channel
Low-voltage DMX controller with LCD display is an LCD digital interface display, used to control the RGB colour and one-way brightness of four-wire three-loop (common anode) LED luminaires, with up to 34 change mode selections, while accepting DMX512 Multifunctional controller controlled by international standard protocol. The controller can be operated in a stand-alone mode, self-connecting, and...
(0)Model:LN-DMXTCON-4CH-LV
LN-DMXTCON-4CH-LV DC12-24V 4CH DMX Decoder, DMX512 to PWM
- Voltage: DC12V-24V
- Output Power:12V<192W, 24V<384W
- Output Current: 4A/CH
- Static Power Consumption: <1W
- Output Frequency: 980Hz
- Dimensions: L165*W65*H40mm
LN-DMXTCON-4CH-LV is to replace DMX701 (discontinued). This DMX Decoder adopts the advanced micro control unit, it receives standard DMX-512 digital control signal and transformed it into PWM signal for driving LED lights. You could connect the DMX module with DMX digital console to achieve dimming or various changes in procedures. LN-DMXTCON-4CH-LV Manual Download Technical...
(0)Model:TC426
TC426 WIFI DMX LED Programmable Timer Controller
- Voltage:DC5-24V
- Size: 150*78.5*26mm
- Output: DMX512 Signal
- Static Power:<1W
TC426 WiFi to DMX time controller with the programmable time controller of the host computer, the load output can be changed with the change of time. Customers can customize the schedule mode they want through the PC host computer client or mobile APP client. Then download the required schedule to the controller through the USB port or wifi. In addition to the function of editing the...
(0)Model:DMX300B
DMX300B DC100V~240V High Voltage DMX Controller With LCD Display - Discontinued and replaced by DMX300D
- Output Voltage(v):DC100～240V
- Input Voltage: AC100~240V
- PF:50/60HZ
- WT: -20-60 ℃
- Dimming Frequency:800Hz
- Shell: Aluminum
Discontinued and replaced by DMX300D . If you still order this item, we will send you 4CH High Voltage LED DMX Decoder DMX300D. DMX300D SPEC Download High-voltage DMX controller with LCD display is an LCD digital interface display, used to control the RGB color change of four-wire three-loop (common anode) LED lamps, up to 34 change mode options, and can also accept DMX512...

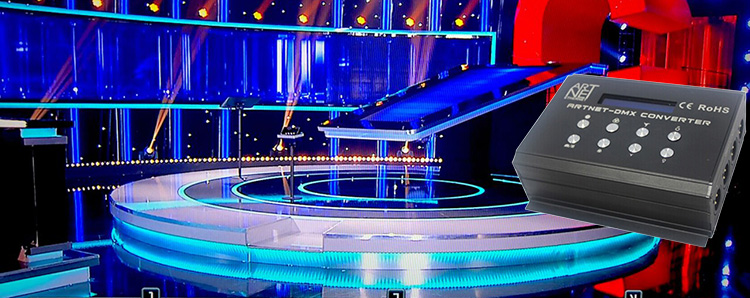

(0)Model:DMX400
DC12V DMX400 Artnet DMX Converter 4 Standard DMX512 Data Output Ports SD Card Controller, DMX512 Decoder LED Controller
- Input voltage: DC12V
- Input:ARTNET signal
- Working temperature: -20-60 ℃
- Output:4 Channels
Summarization DMX400 is a controller that can realize two options of ARTNET , SD card , multiple colors, and multi-level dimming. A total of 2048 (512 X 4) data can be output. They are widely used in LED dot matrix and stage lighting control networks that require a large amount of DMX512 data. The ArtNet mode is an Ethernet control system based on the ArtNet protocol. It can convert network...
(0)Model:DMX102
DMX102 DC5V-24V 3 Channel DMX512 Decoder
- Input Voltage: DC5-24V
- WT:-20-60℃
- Output: 3 Channels
- Connection Mode:Common
- Standby Current: <0.7W
The DMX decoder adopts the advanced micro control unit, it receives standard DMX-512 digital control signal that is widely used in the and transform it into PWM signal to drive LED; the port of DMX signal has lightning protection measures, while the load output has over-current protection circuit; You could connect the DMX decoder with DMX digital console to achieve dimming or various changes in...
(0)Model:LN-DMXCONY
LN-DMXCONY 6 Channel DMX512 Integrated Main Control Dimming Controller
- WT: -20-60℃
- Input Voltage: AC90 ~ 230V
- Output Voltage:DC5V, 12V，24V
- Output: 6 channel
- Connection Mode:common
- Output Power: <300W
- Output Current: <4A/channel
DMX512 integrated controller uses an advanced computer control chip to control various lamps with LED as light sources, such as point light source, soft light bar, wall washer, glass curtain wall lamp, etc.; has the advantages of convenient wiring and simple use; The actual needs of customers can achieve light changes such as jumps and gradients. Standards and Certifications ...
(0)Model:DMX2400
DMX2400 2.4G-DMX Signal Transceiver Converter, DMX512 Wireless Signal Repeater
- WT: -20-60 ℃
- Supply Voltage:DC12V -24V
- Support Channel:512
- Emission Power: 20dBm
- Wireless Frequency: 2.4GHz
- Max Trans. Distance: 200M
Summarization 2.4 G - DMX signal converter transmit standard DMX512 control data via wireless,also can transfer between lamps and lamps online data. The product thoroughly solved the light console and lamp, lamp and lamps wireless transmission of data,completely remove the long depend on twisted pair. In the data transmission process no delay, the data real-time and reliable. This...
(0)Model:DMX100
DMX100 DC5-24V 3 Channel DMX Bar Decoder With Eight-touch Remote Control
- Voltage(v): 5/12/24
- Operating current(a): 15
- Control Type: Touch / IR
- Applied to: RGB Lights
- Waterproof Rating: IP33
- Output Channel: 3
- Remote Distance:15m
The DMX decoder adopts the advanced micro control unit, it receives standard DMX-512 digital control signal that is widely used in the and transform it into PWM signal to drive LED; the port of DMX signal has lightning protection measures, while the load output has over-current protection circuit; You could connect the DMX decoder with DMX digital console to achieve dimming or...
(0)Model:HVDMX1807
HVDMX1807 DC220V 4 Channels High Voltage, DMX512 Controller
- Voltage:AC200～265V
- WT: -20-60℃
- Output: 4 channels
- Controller Output:980HZ
- Output Current:<1.3A (4 channels total current)
The DMX universal controller uses an advanced computer control chip to receive the DMX-512 standard digital control signal widely used in the world and convert it into a PWM control signal to drive the LED; it can be connected to the DMX digital console to achieve dimming or various program changes. Standards and Certifications ...
(0)Model:LN-DMXTCON(FS)-3CH-LV
DC12-24V DMX PWM Waterproof Controller LN-DMXTCON(FS)-3CH-LV
- Supply voltage: DC12-24V
- Output current:<4A/CH
- Output:3 Channel
- Connecting mode: Common
- Gray series:256
Summarization DMX waterproof controller adopts an advanced computer control chip, receives DMX512 standard digital control signal widely used in the world, and converts it into a PWM control signal to drive LED; it can be connected with DMX digital console to achieve dimming or various program changes. Standards and Certifications ...
(1)Model:DMX303
DMX303 3 Channel DMX High Voltage 0-10V Output Dimmer
- Input Voltage:AC90～240V
- WT:-20-60℃
- Output:3 channel
- Output Signal:0-10V
- Static Power Consumption:<3W
- output Current:<15mA/CH
DMX 0-10V dimmer adopts industrial-grade advanced computer control chip, the shell adopts rail type, suitable for the industrial environment; increase the output of three-way relay power supply, as the input of 3 0-10V power supply, the dimming effect is better! It is used to control various lamps connected with 0-10V power supply. It has the advantages of convenient wiring, simple use and...
(0)Model:CONDMX512-SiDi-01
DMX124 Signal Distributor 1 Channel For DMX512 LED Strip Lights or DMX512 Decoder
- Input Voltage(v):AC100-240V
- Output Channel: 1 Channel
- Power:2W
- Working temperature:-20-60 ℃
DMX121 signal distributor is one of the DMX signal distributor series, which is specially used for shaping and amplifying DMX512 digital lighting control signal. The input and output interface adopts high-voltage isolation technology, which is suitable for the shaping and amplifying processing of DMX512 signal after distance transmission attenuation. And in the occasions where complete electrical...
(0)Model:DMX700
DMX700 DC12V-24V DMX512 Decoder, DMX 3 Channel LED Rail Decoder
- Output:3 Channel
- Voltage:DC12V-24V
- WT:-20-60℃
- Connection Method:Common anode
DMX 3-channel guide rail decoder is a new high-end DMX decoder newly developed by our company. It adopts an aluminum alloy shell and has a beautiful and fashionable appearance. Adopt button and digital tube to configure various parameters, which greatly facilitates the user's use. It is used to analyze the DMX512 signal and control various lamps with LED as the light source, such as point...
