DMX512 RGB DC12V 150 LEDs Digital LED Strip Light with Built-in 485 Programmable Parallel Signal Breakpoint Resume, Madrix Control,16.4feet/roll

Model: DCFLS-DMX512-150X

Starting at: $80.00 $62.9821% off

Free Shipping Worldwide On Order Over $199

Please Choose:

Output Voltage:





Qty Discounts Off Price
1-4
$62.98
5-19
$61.72
20-49
$59.83
50+
$56.68
* Discounts may vary based on options above
Qty: -+
ContactUs

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

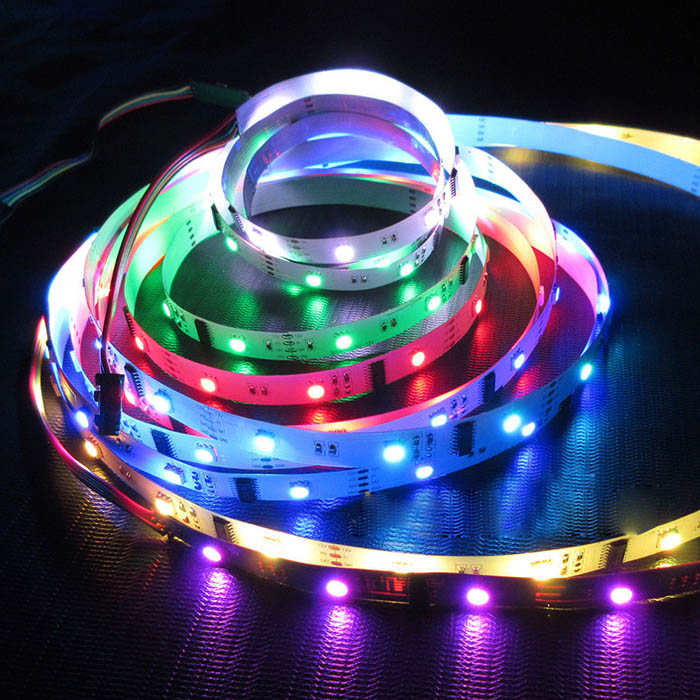

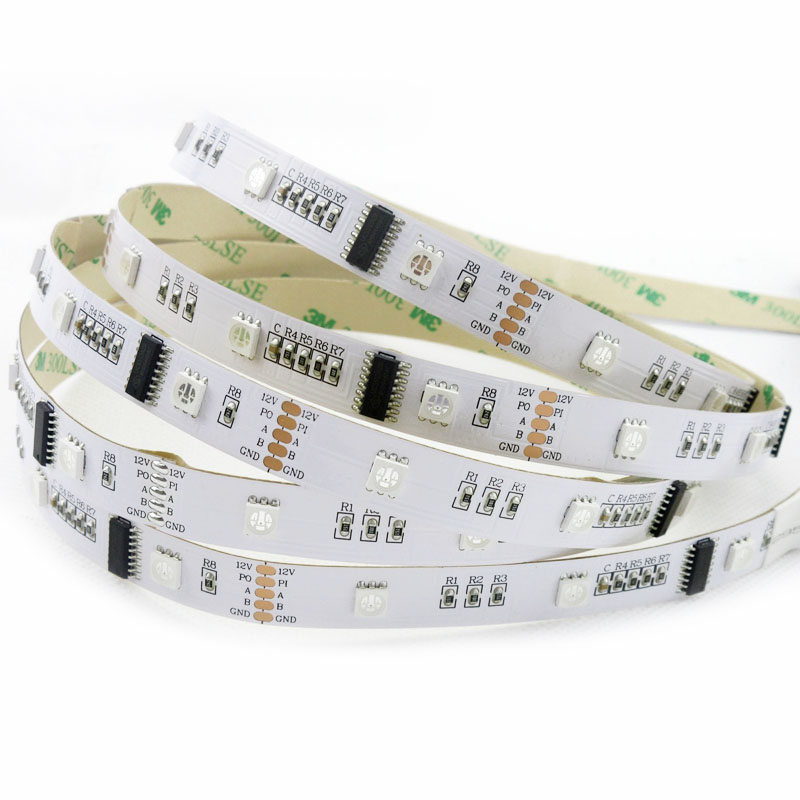

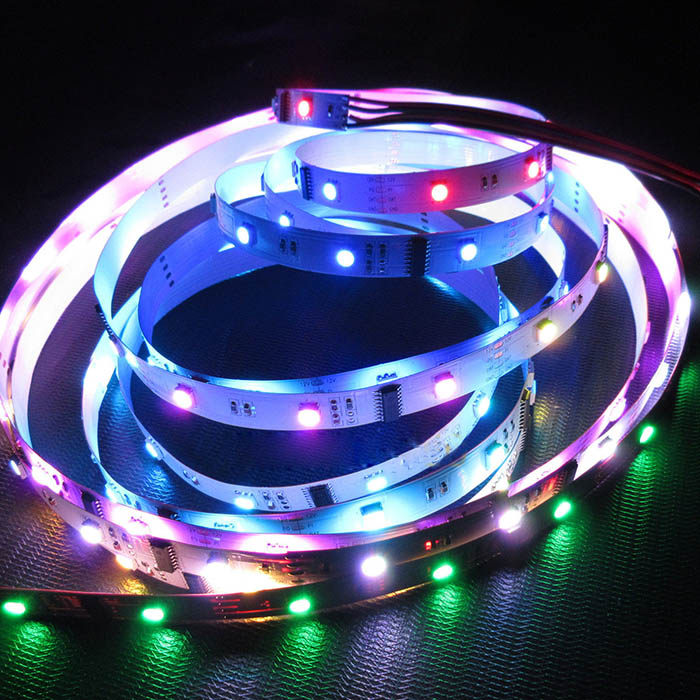

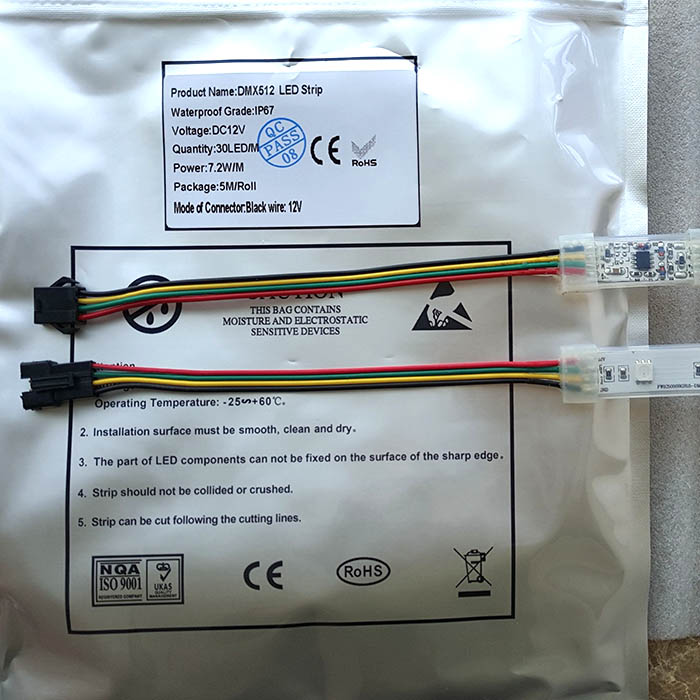

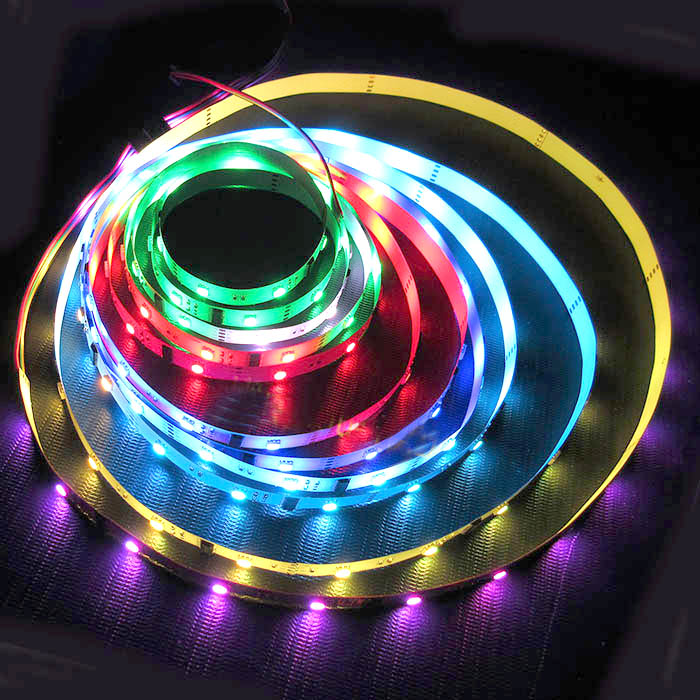

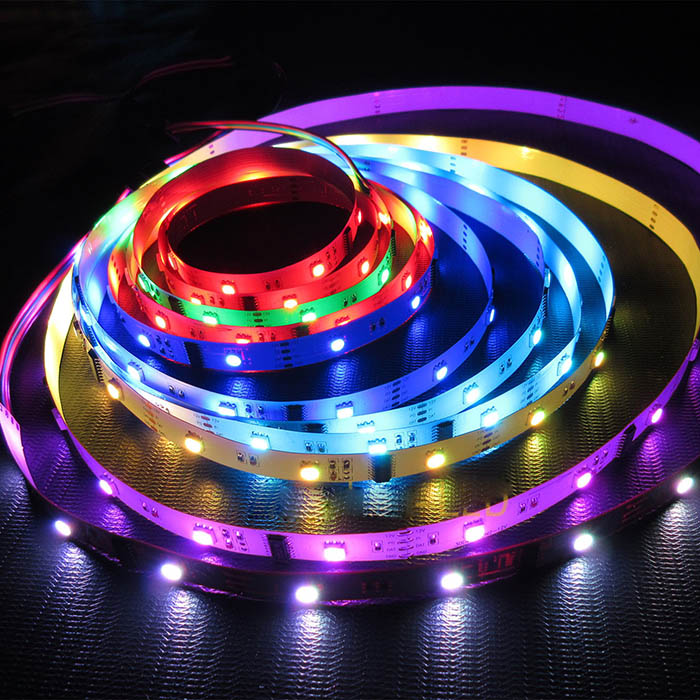

    The DMX512 Digital LED Strip can be compatible DMX512 (1990) signal protocol international agreement,the control method is differential parallel, made by 485 decoding module, realize DMX512 control. Compared with other dream strips, it has very good anti-interference ability. It can save the DMX-SPI controller, so as to enhance the reliability of the product. Each roll of this DMX512 LED strip is 16'4" long (5 meters).  The LED type used are the super bright Epistar brand 5050SMD LEDs.  There are 150 per 16' roll.  Using low-voltage DC12V power supply, users use more secure.  Can be made into a waterproof level of diversification, Epoxy waterproof (IP65), All inclusive casing waterproof (IP67), Casting injection (IP68), And the latest technology extrusion (IP68),  light strip use FPC as the base which has good flexibility ,good conductivity, good heat dissipation, bending resistance, can be bent into any shape . they are very easy to connect and work with!

    This is our recommended T-1000S Programmable controller and DMX controller link. We are professional lighting system company, you can tell us your lighting project requirements, we will recommend the most reasonable lighting solutions for you. If you need a customized lighting scheme, please feel free to contact me.



    Standards and Certifications




    Product Specification

    LED Strip Type:   SMD 5050   DreamColor 150LEDs/16.4ft

    LED Chip:   DMX512 IC super brights Chip

    Board material : FPCB

    Packing  :    5 meters (16.4ft)/roll

    Working Temperature:   -4°F (-20°C) ~ 122°F (50°C)

    Storage Temperature:   -40°F (-40°C) ~ 176°F (80°C)

    Dimension:   16.4ft/roll, every 3 PCS LED can be cut

    LED Quantity:   30 LEDs per 1meter (3.28 ft)

    IC Quantity:   5 LEDs per 1meter (3.28 ft)

    Lifespan:   50,000+hours

    Warantty:   3 years

    Grey level :   256

    Dimensions:     L500cm(127 in ) x W1.2cm(0.47 in ) x H0.25cm(0.10 in )

    Input Voltage(V):   12VDC

    Working Power:   36W/16.4ft  Max

    Lumen Per LED:   20-22Lumen   183lm/ft

    Beam Pattern:   120 degree

    Water Proof:   Waterproof IP68 ,IP67 ,IP65 and NON-waterproof



    Applications

    1. LED programmable digital screen

    2. Hotels decoration lighting

    3. Backlighting decoration

    4. Concealed lighting, Cove decoration

    5. led wall, advertising board

    6. Outdoor advertising signs,

    7. Hotel, KTV, bars,

    8. Wedding party lighting,



    Waterproof Level Description

     IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare , with self-adhesive back, For Indoor);

     IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin,PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;

     IP67 Waterproof (Silicon sleeve waterproof,PCB is encapsulated with silicon tube, with plastic fastener, better waterproof, For Outdoor);

     IP68 Waterproof (Fully waterproof plastic irrigation,PCB both surface and back are encapsulated with plastic Gel, with plastic fastener, top level of waterproof, For Outdoor);





    Installation Instruction




    Light strip size



    Connection diagram

    DMX512 Console Connection diagram:

    DMX decoder   T-8000D
