DMX512 RGBW DC24V 300LEDs Dream Color Programmable Parallel signal - HTTP Breakpoint Resume Transmission Matrix Control Flex LED Strip Lights
- $107.98 $81.9824% off
- $28.00 $29.98-7% off
- $139.98 $104.9825% off
$107.98 $81.9824% off

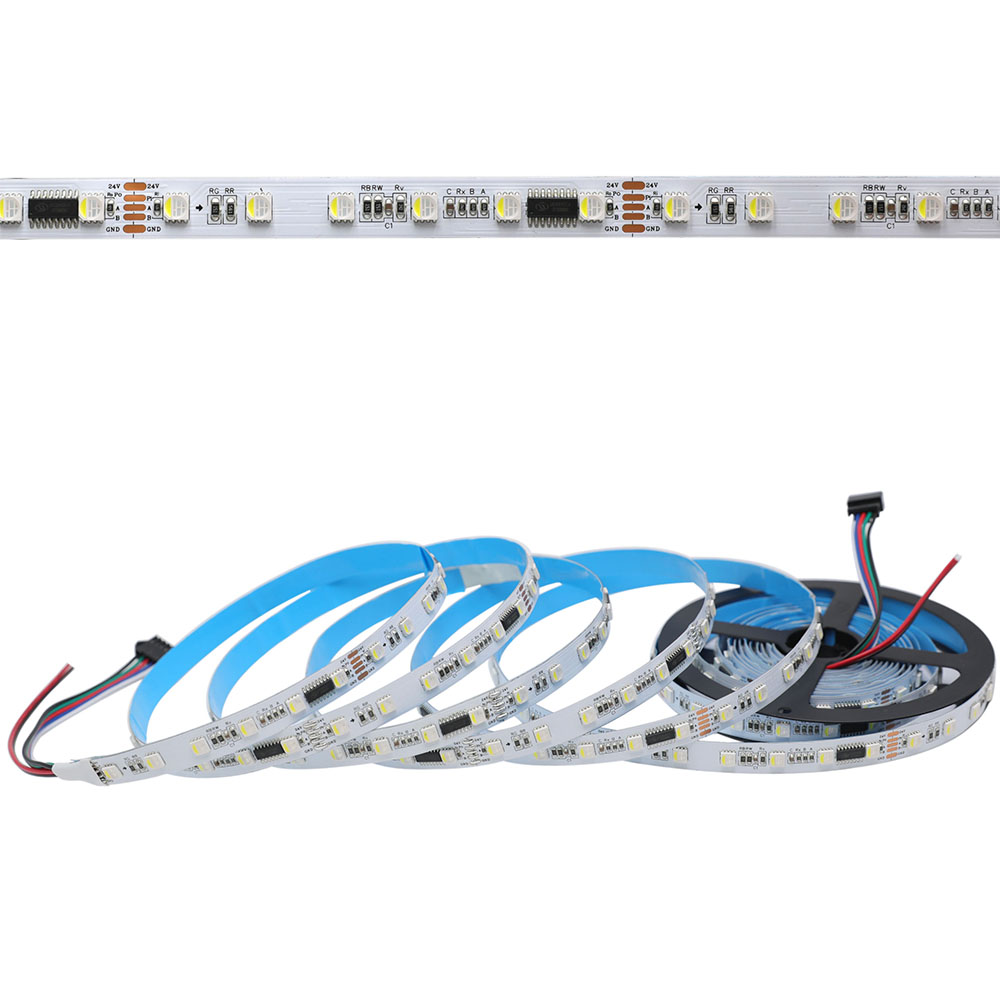

1. This strip is DMX 512 RGBW led digital strips that different from normal SPI led pixel strips. DMX512 led strips protocol is DMX512 that signal is parallel not series.

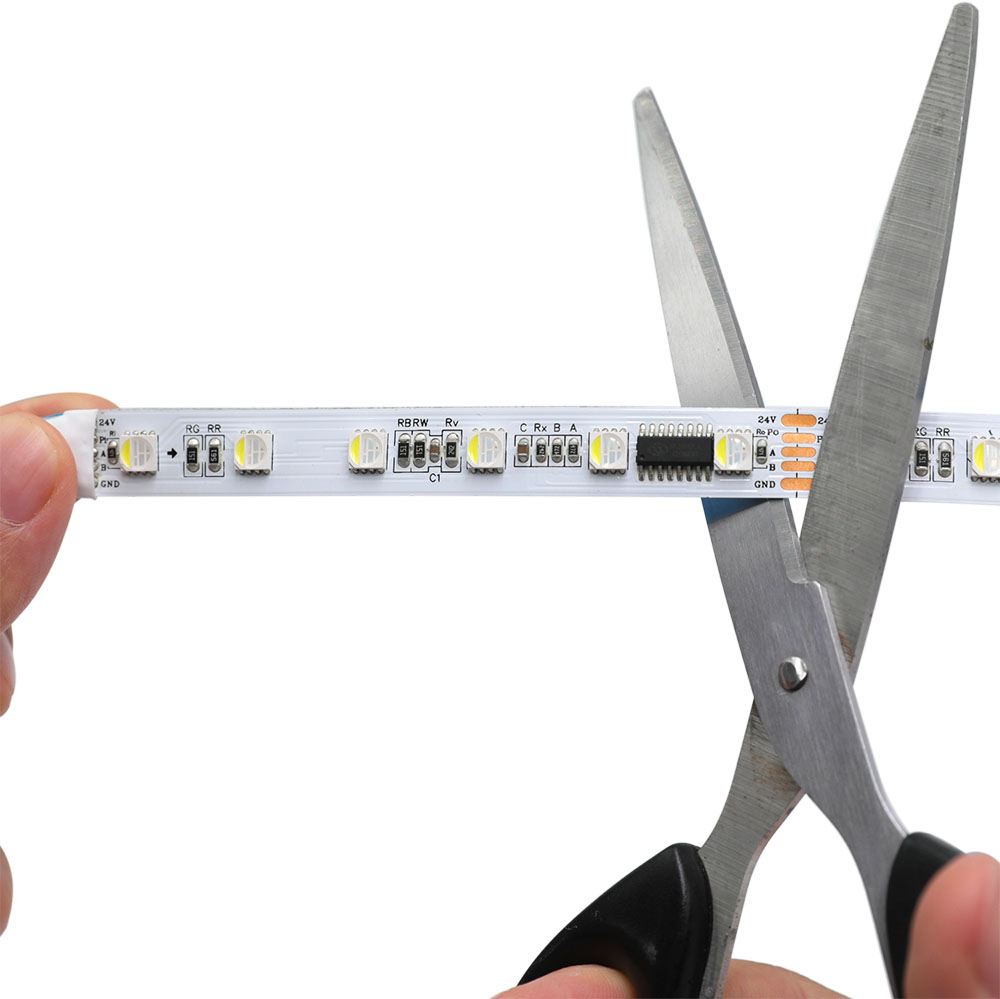

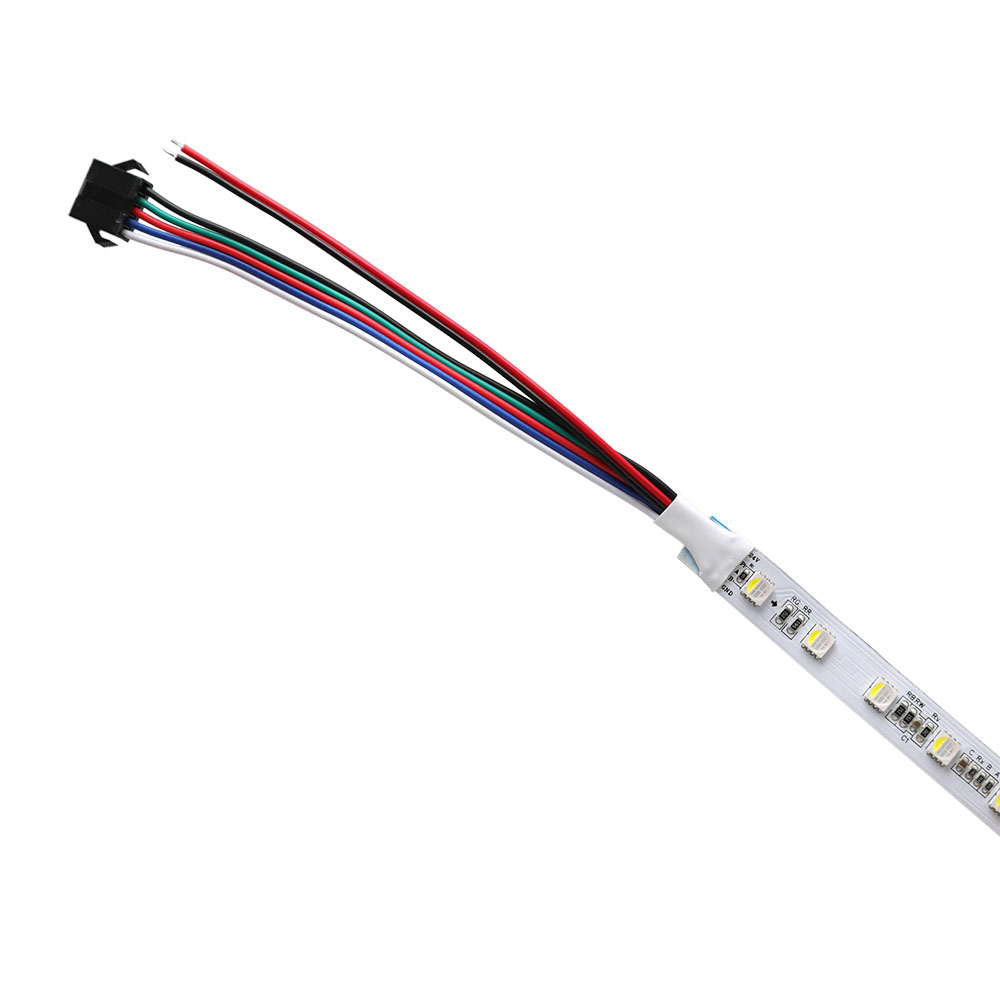

It comes with 5-PIN connectors and separated power/ground wires on both ends. Each 6LEDs can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want.
Pls Note: Please do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system. Otherwise,it will affect the brightness of the LEDs and the service life of the power supply.
This is our recommended T-1000S Programmable controller link. We are a professional lighting system company, you can tell us your lighting project requirements, we will recommend the most reasonable lighting solutions for you. If you need a customized lighting scheme, please feel free to contact me.
Standards and Certifications
LED Strip Type: SMD 5050 RGBW 300LEDs/16.4ft
LED Chip: DMX512 IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Dimension: 16.4ft/roll, every 6 PCS LED can be cut

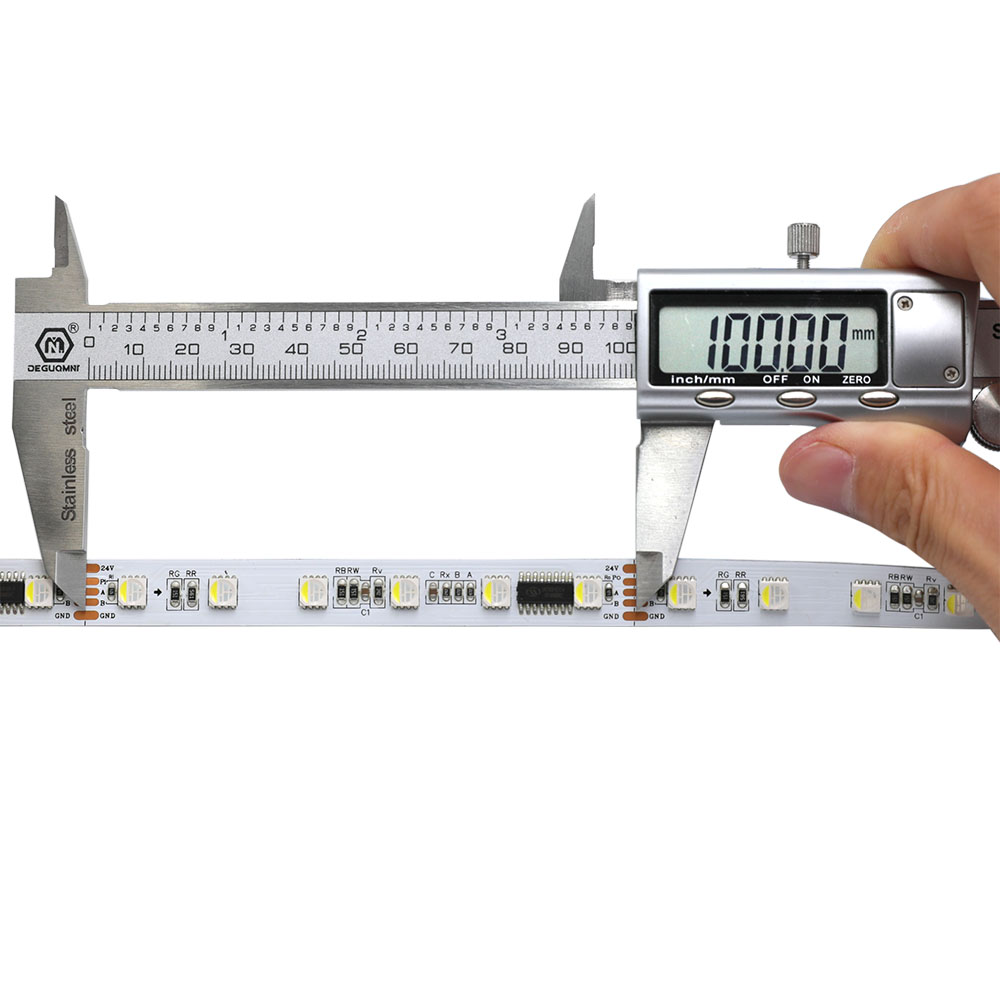

LED Quantity: 60 LEDs per 1meter (3.28 ft)
IC Quantity: 10 per 1meter (3.28 ft)
Warantty: 3 years

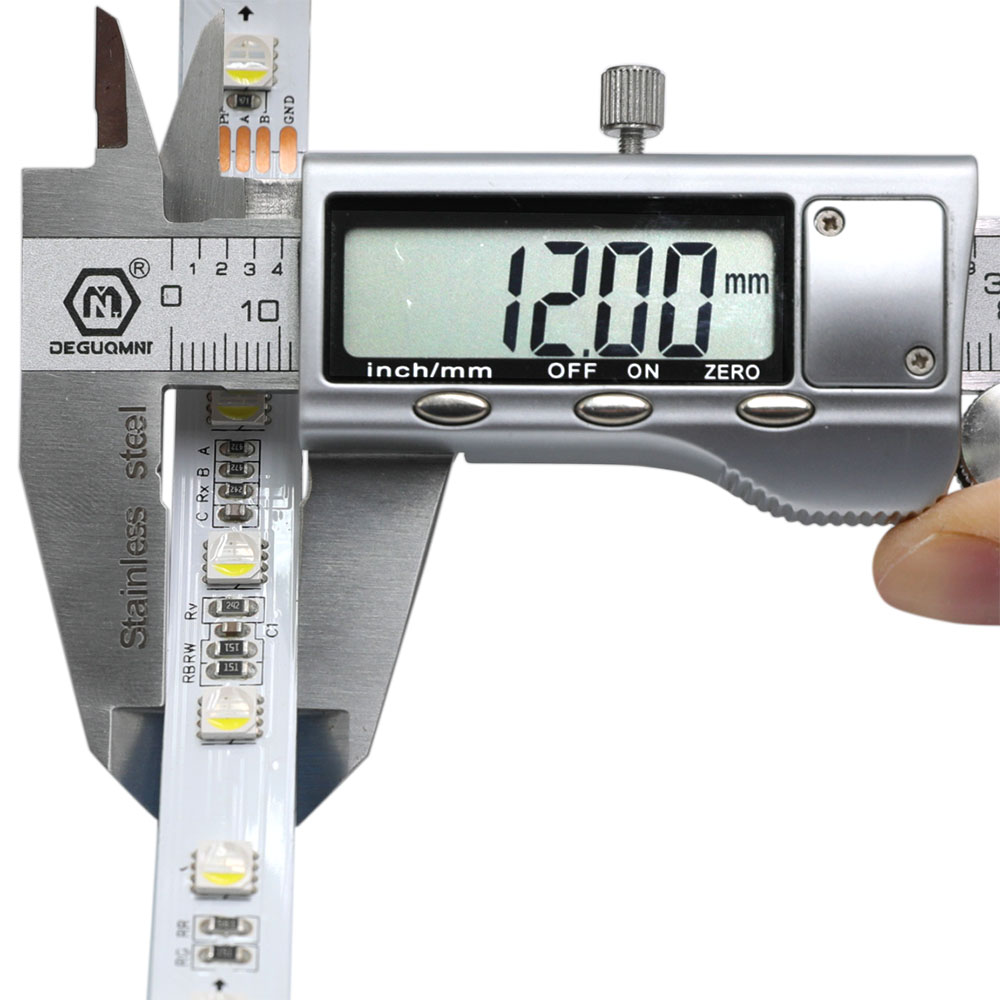

Dimensions: L500cm(127 in ) x W1.2cm(0.47 in ) x H0.25cm(0.10 in )
Input Voltage(V): 24VDC
Working Power: 96W/16.4ft Max
Lumen Per LED: 20~22Lumen 6600lm/16.4ft 402lm/ft 91.7lm/watt Max
Beam Pattern: 120 degree
Water Proof: Non-waterproof IP20 or Waterproof IP67/IP65
Waterproof Level Description

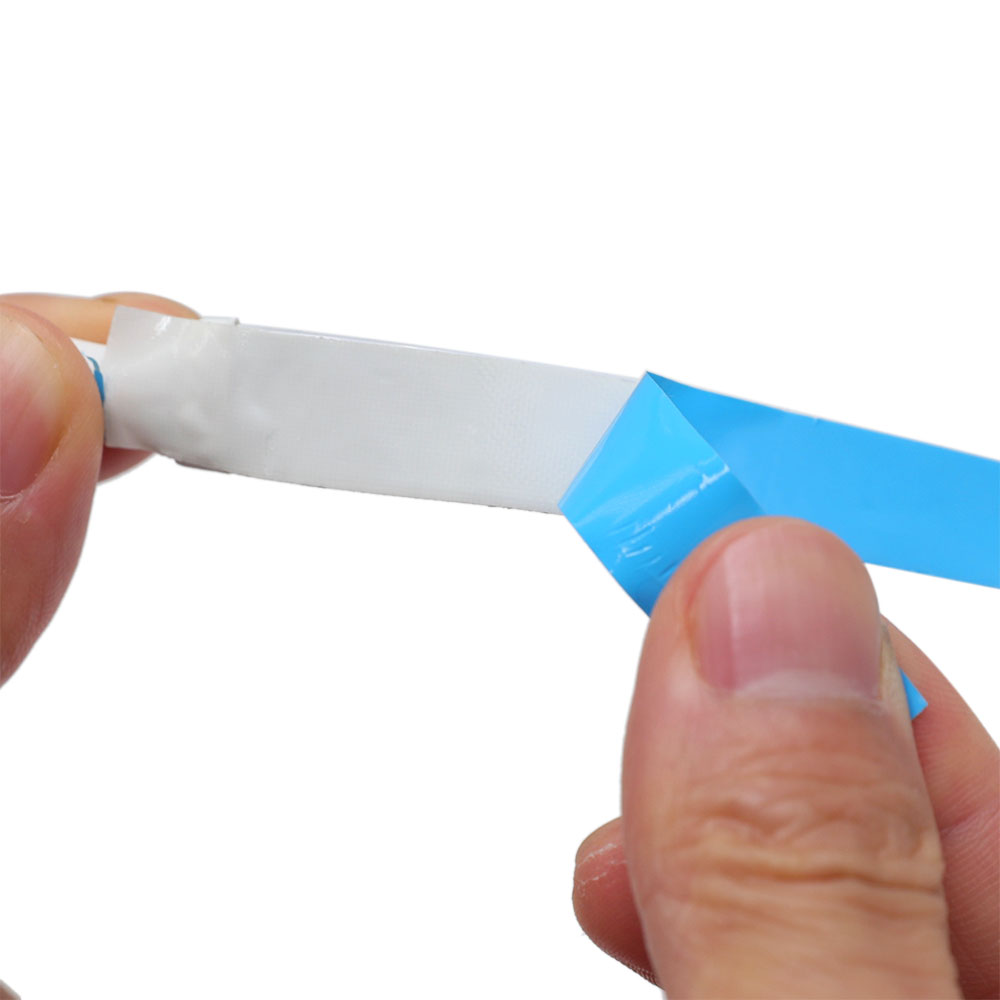

IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
Light strip size
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
DMX512 Console Connection diagram:
