Special Price: $59.98

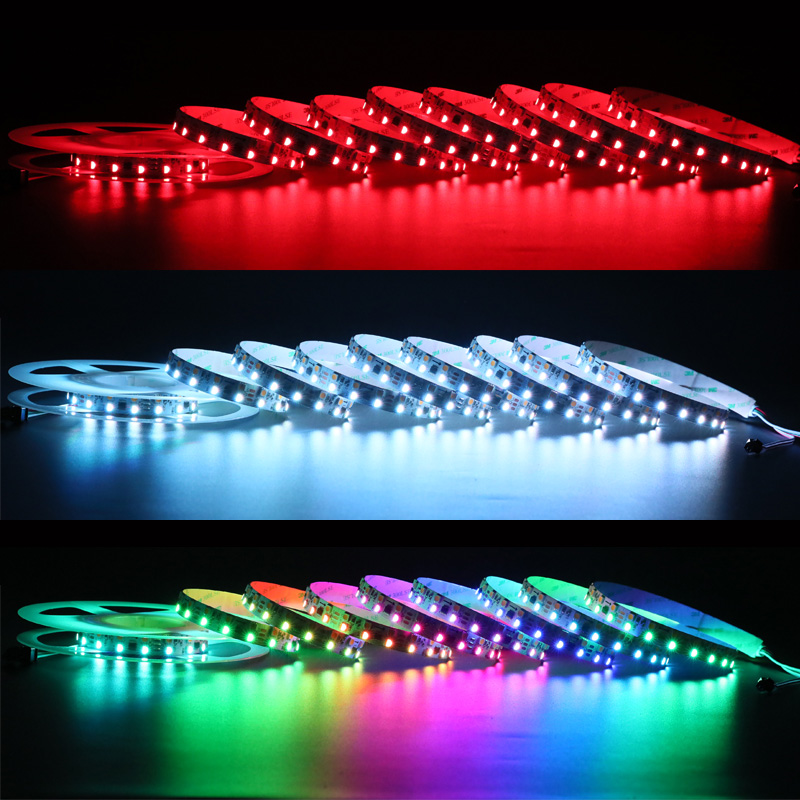

Check out this RGBCCT addressable LED strip light, consisting of 4-in-1 5050 RGBW LED and additional individual white LED, capable of presenting dynamic RGB colors and adjusting color temperature. Unlike traditional 5-in-1 RGBTW LED strip, which integrates all colors into one LED, this RGBW+W multi color LED tape adds an extra white LED on the board. This special design helps white light emit a larger area with more brightness, improves light efficiency and makes the light look more natural without affecting the luminous effect of RGB LEDs.
You can choose the color temperature of white LEDs (both RGBW LEDs and single white LEDs) to precisely adjust the color temperature range. There are amber 2000K, warm white 2700K and 3000K, natural white 4000K and daylight white 6000K available.
Addressable RGBWW double row LED strip lights feature 15mm/0.6" wide PCB boards, flexible enough to form any shapes you like. The density of this RGBCW LED strip is 120 LEDs per meter, with FW1906 IC controlling 5050 SMD. 3m adhesive backing allows for easy installation and these color changing LED strip lights can be used as outdoor addressable LED lights with IP20, IP65, IP67 and IP68 waterproof rating options.
Feature
1. RGBCCT (4-in-1 RGBW + individual white), adding extra white LEDs for brighter and more natural light while maintaining the quality of RGBW LEDs
2. The color temperature of white LED can be selected from 2000k to 6500k, creating various ambiances for your setting.
3. SMD 5050, 120 LEDs and 20 FW1906 IC per meter, each IC controls 6 LEDs

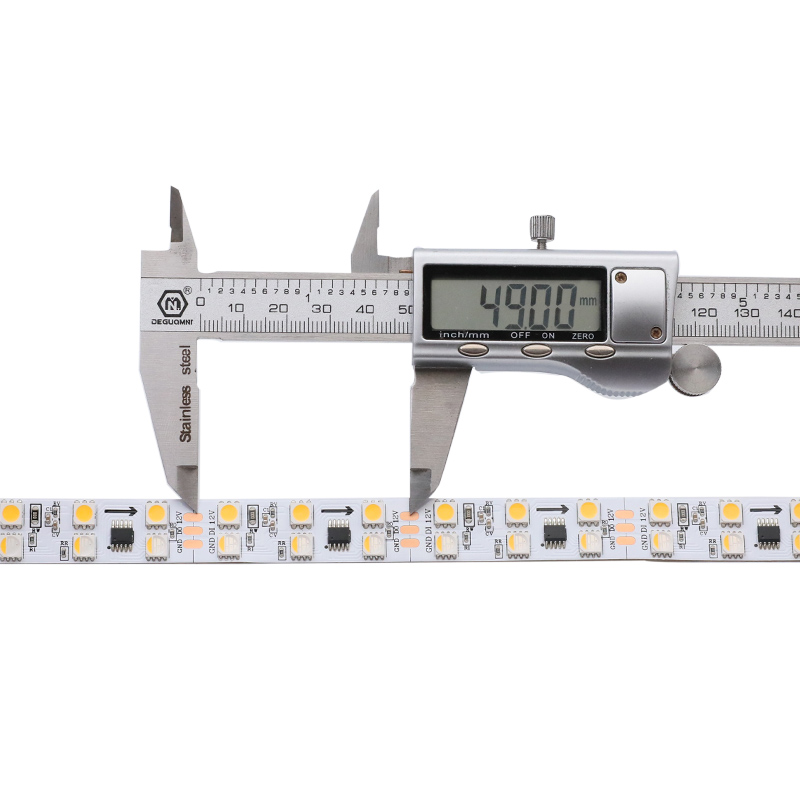

4. Double row LED strip lights featuring 15mm/0.6" wide PCB board, can be cut every 50mm/1.97”.
Note: 2000K LEDs need at least 100 meters to produce. If you have any inquiries, please do not hesitate to get in touch with us.
Addressable LED Strip Kit:
LED Strips + Controller: 16.4ft LED Strip + CONFULL-SP630E
LED Strips + Controller + Power Supply: 16.4ft LED Strip + CONFULL-SP630E + LRS-200-12.
If you need lighting accessories, please click here to buy. For waterproof power supply, click here.
Product Specification
| LED Strip Type: | Double Row 5050 FW1906 RGBCCT Addressable LED Strips |
| LED Chip: | SMD5050 + FW1906 |
| Input Voltage: | DC12V |
| PCB Width: | 15mm/0.4" |
| Power: | 26.8W/m max |
| LED Color: | Addressable RGBW+W (2000K-6500K) |
| LED Quantity: | 120LEDs/m |
| IC Quantity: |
20 pixels/m |
| Length: | 5m/16.4ft |
| Cuttable: |
6 LEDs, 50mm/1.97" |
| Beam Angle: | 120° |
| Waterproof Rating: | Non-waterproof IP20 / Indoor waterproof IP65 / Outdoor Waterproof IP67/ Underwater IP68 |
| Working Temperature: | -20℃~+40℃ |
| Lifespan: | ≥50000hrs |
How to wire addressable LED strip lights?
