Special Price: $65.98 $35.9845% off
This 204leds/m 2835 white led strip has been discontinued, we recommend that you use the 240/m type to replace.

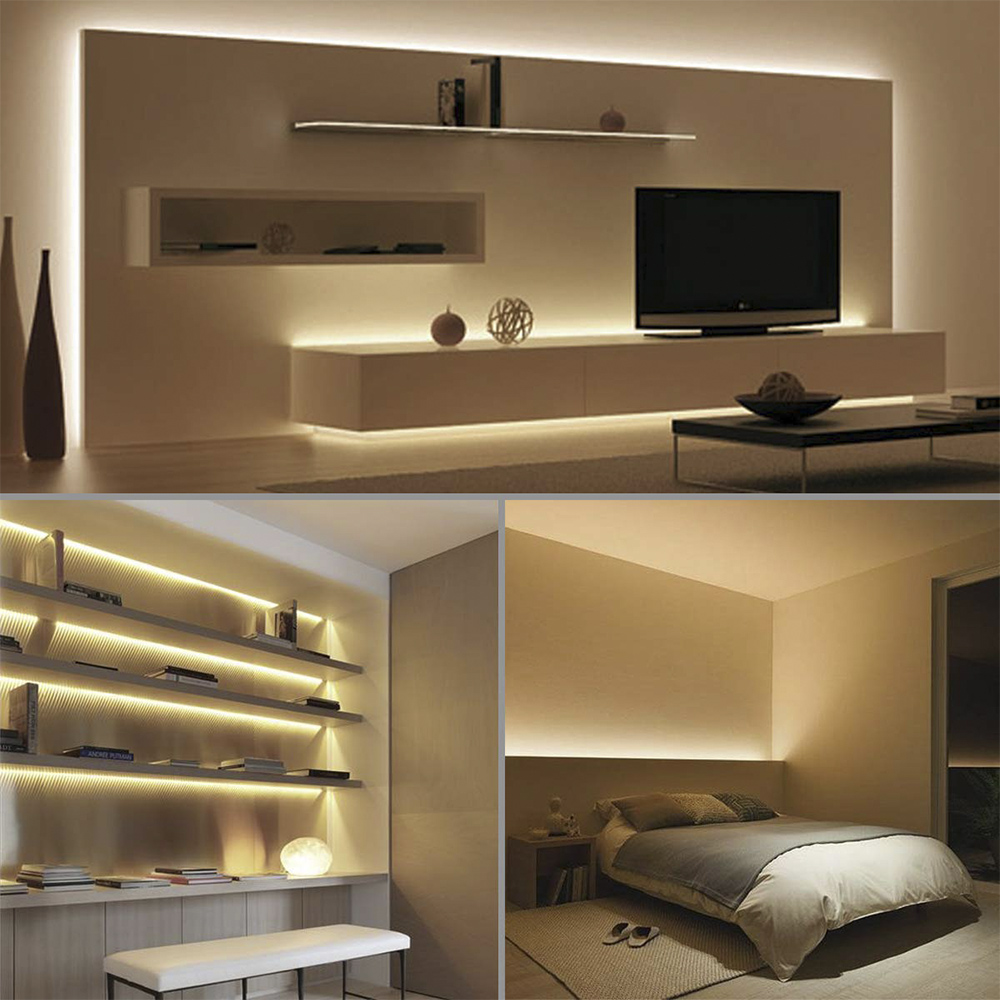

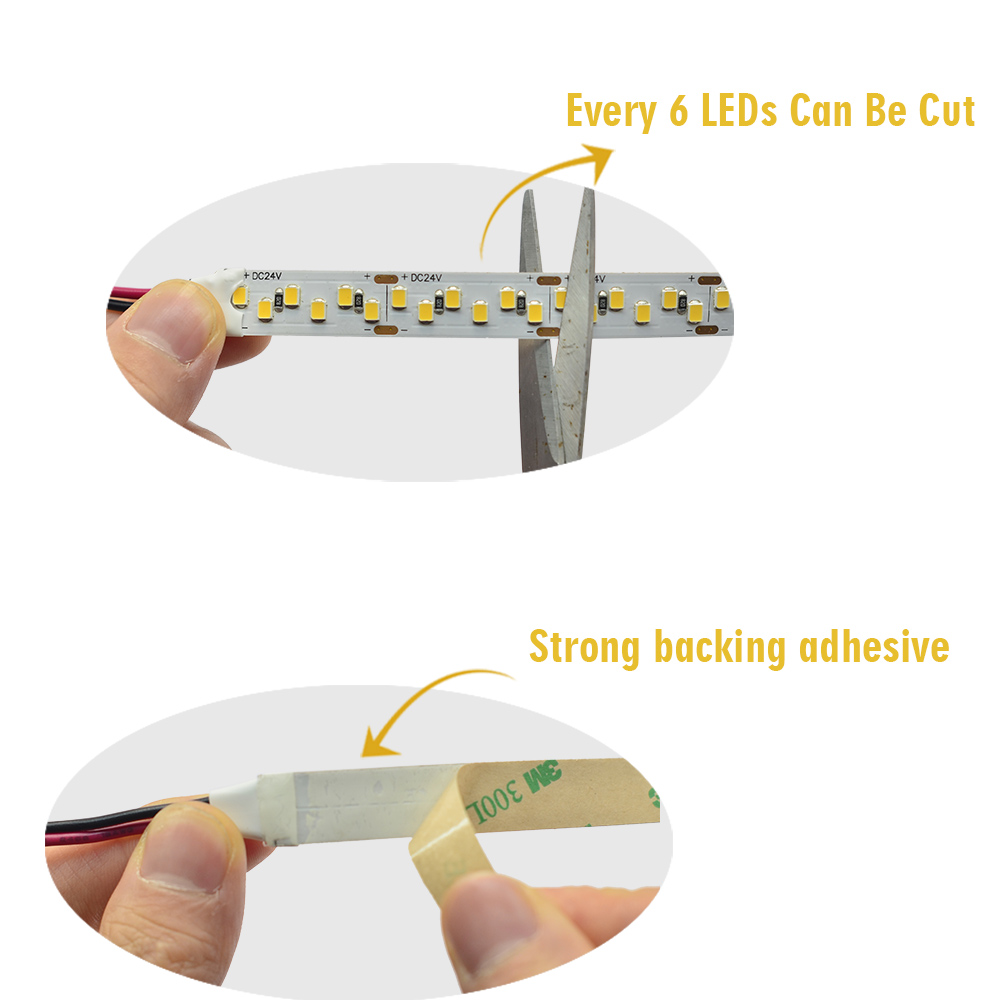

Our flexible LED light strip operates on 24VDC. It emits 598lumens of daylight, natural, or warm white illumination per foot. And with a high CRI (color rendering index) of 95, light from the LEDs will show the true colors of any object or surrounding. The 16.4' high-density LED tape light can be easily cut into separate 6-LED segments and installed with its peel-and-stick 3M™ adhesive backing. This strip is covered by a 50000hrs+ warranty. It's great for retail shops, jewelry cases, supermarkets, food and meat cases, museums, galleries, videography, under-cabinet lighting, or any indoor application where presentation, appearance, and depth of color are critical. See the standard-density version. See compatible LED dimmers.
Standards and Certifications
Product Specification

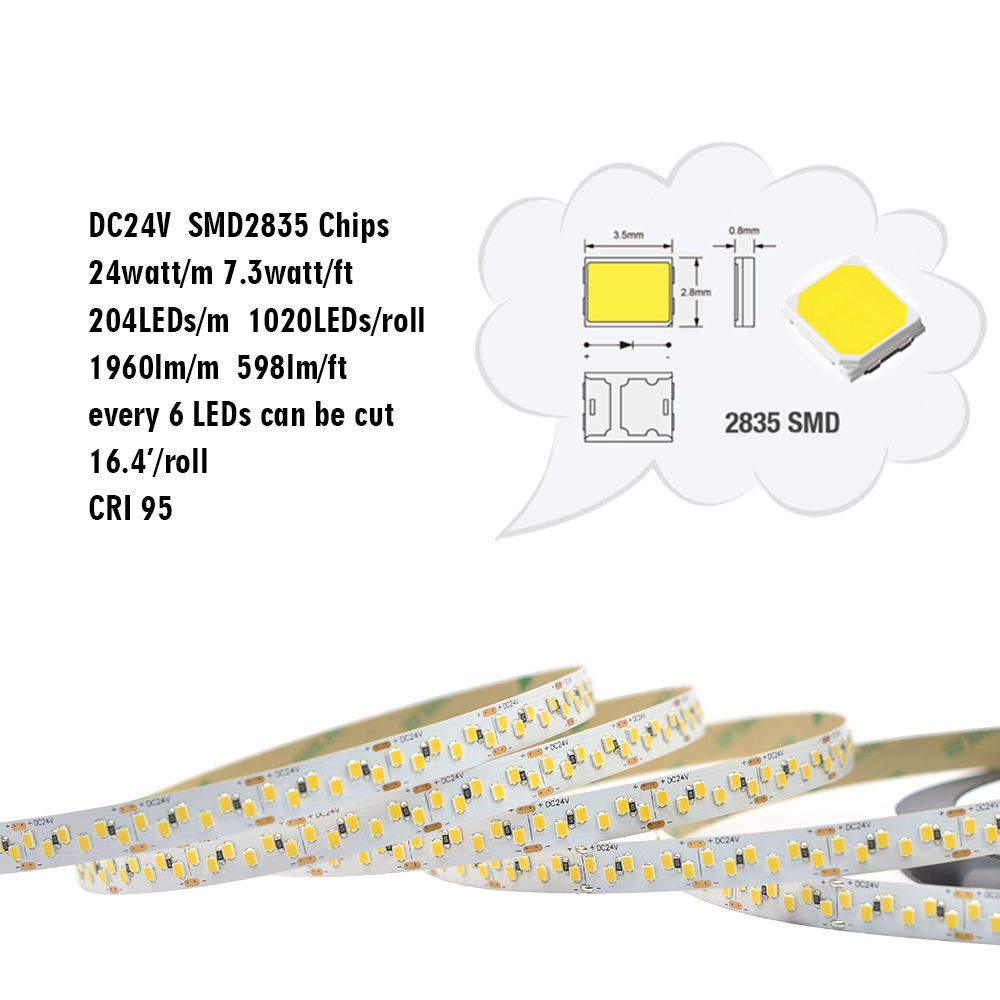

LED Strip Type: 2835SMD 204PCS/16.4Ft
LED Chip: Epistar super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White, Daylight White, Nature White
Dimension: 16.4ft/roll, every 6 PCS LED can be cut
LED Quantity: 204LEDs per 1meter (3.28 ft)
Lifespan: 50,000+hours
Warranty: 3 years

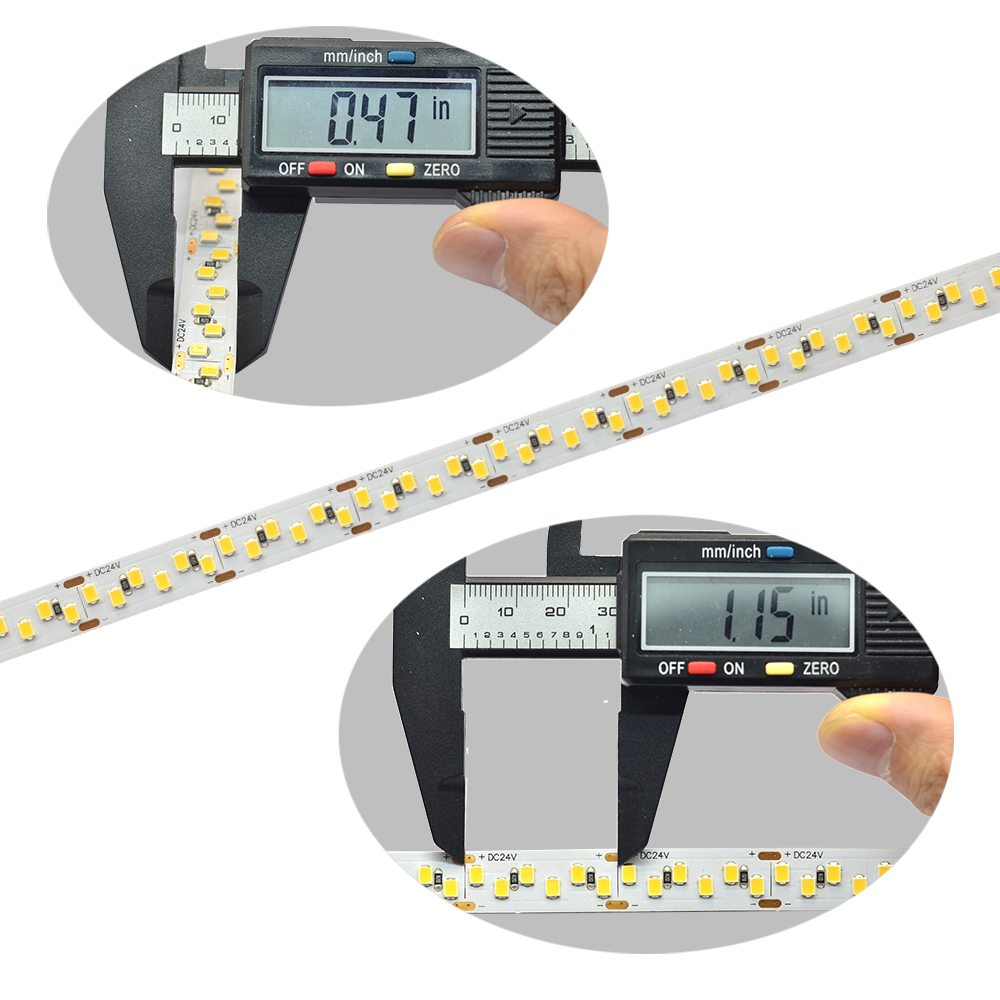

Dimensions: L5000mm(196.8 in ) x W12mm(0.47 in ) x H2mm(0.08 in )
Input Voltage(V): 24VDC
Working Power: 24V 5A 120W/16.4ft Max
Lamp Luminous Flux(lm): 1960lm/m 598lm/Ft
Color Temperature CCT(White): Warm White(2800-3200k), Daylight White(4000-4500k), Cool White(6000-6500k)
Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Beam Pattern: 120 degree
CRI (Ra>): 95
Water Proof: IP20 / IP65 / IP67 / IP68
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.
Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
