Special Price: $69.98
|

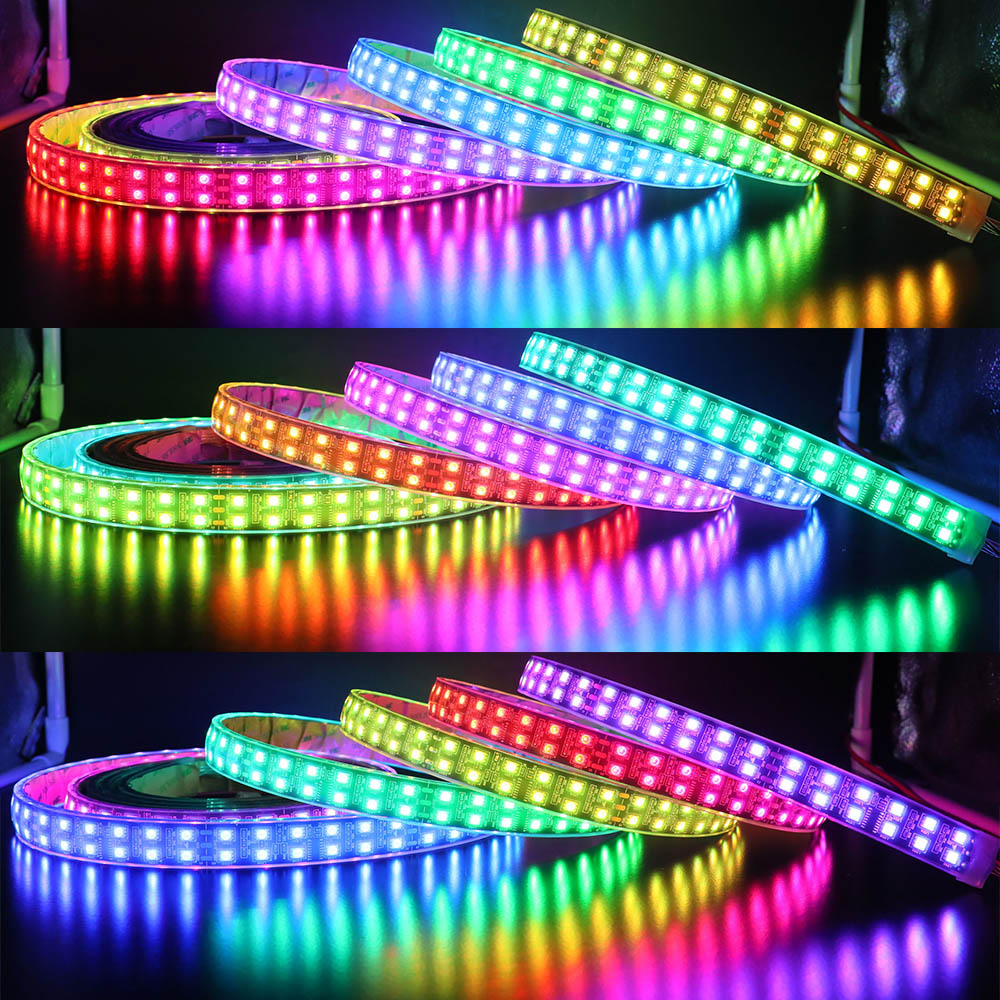

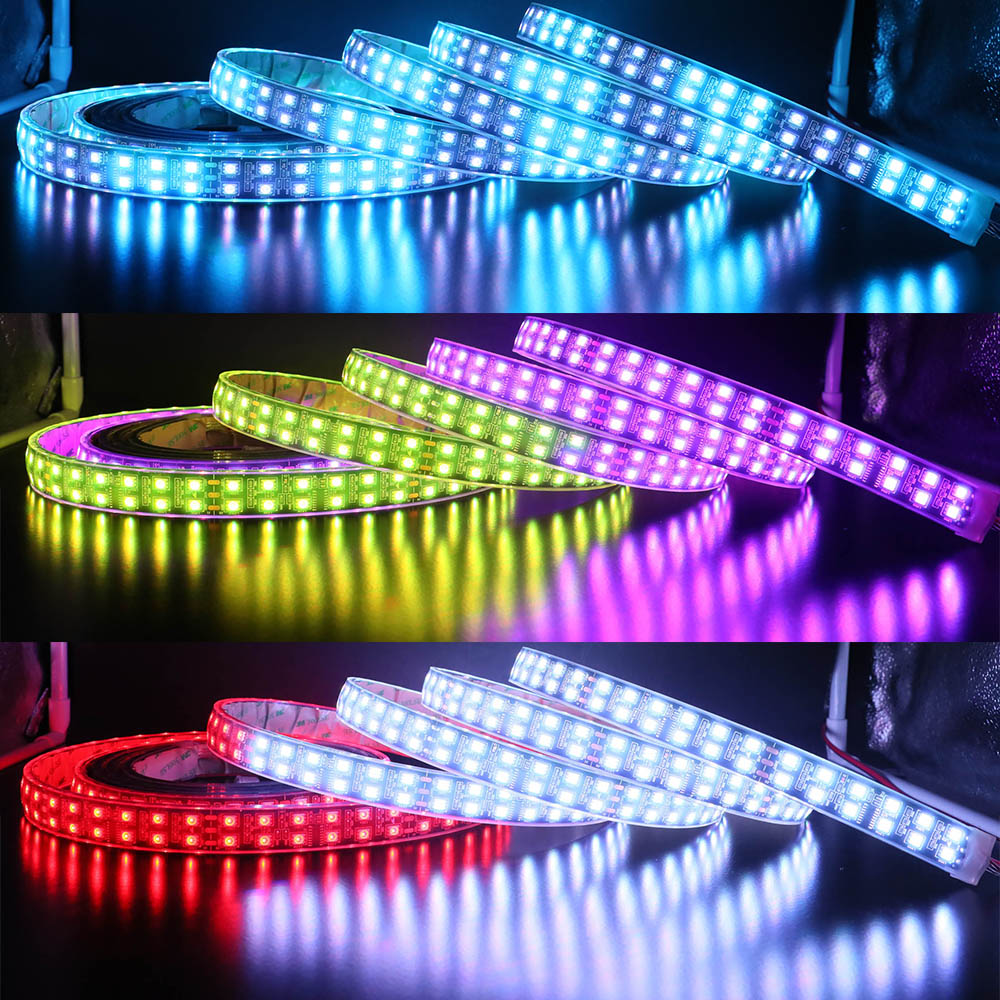

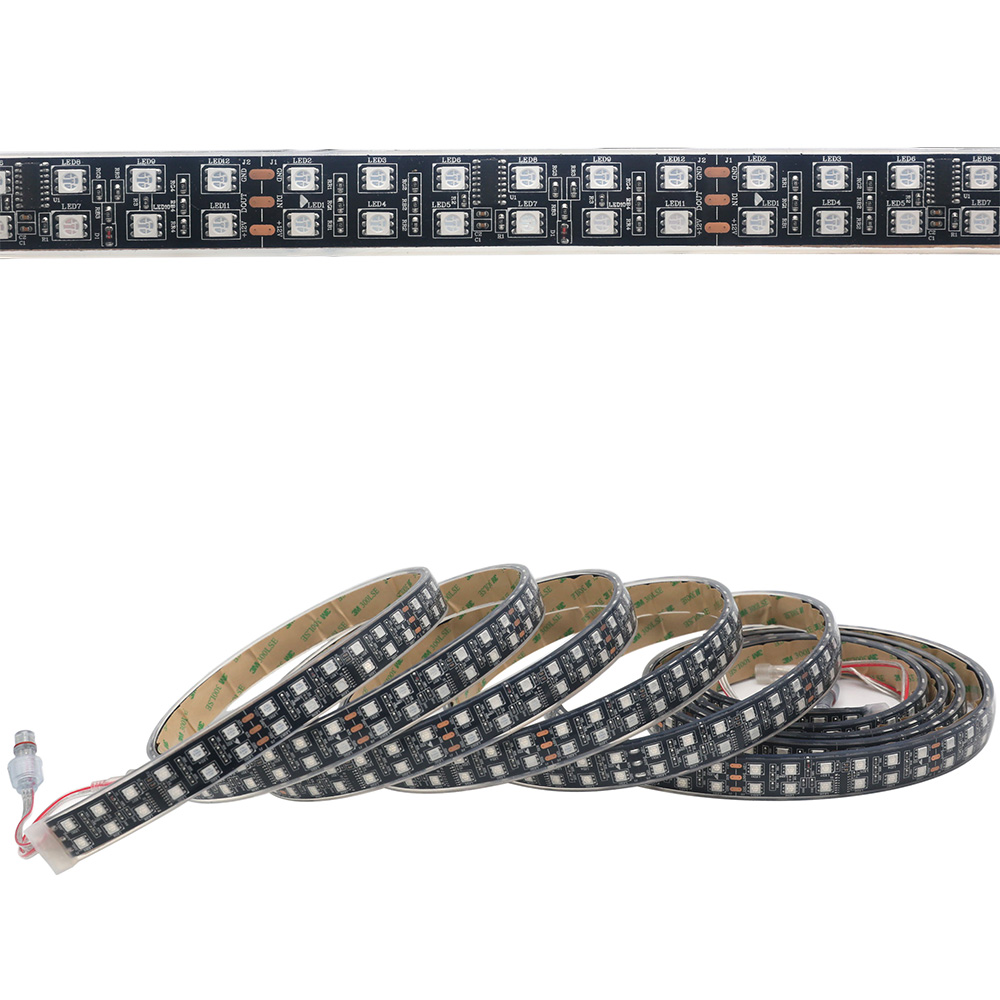

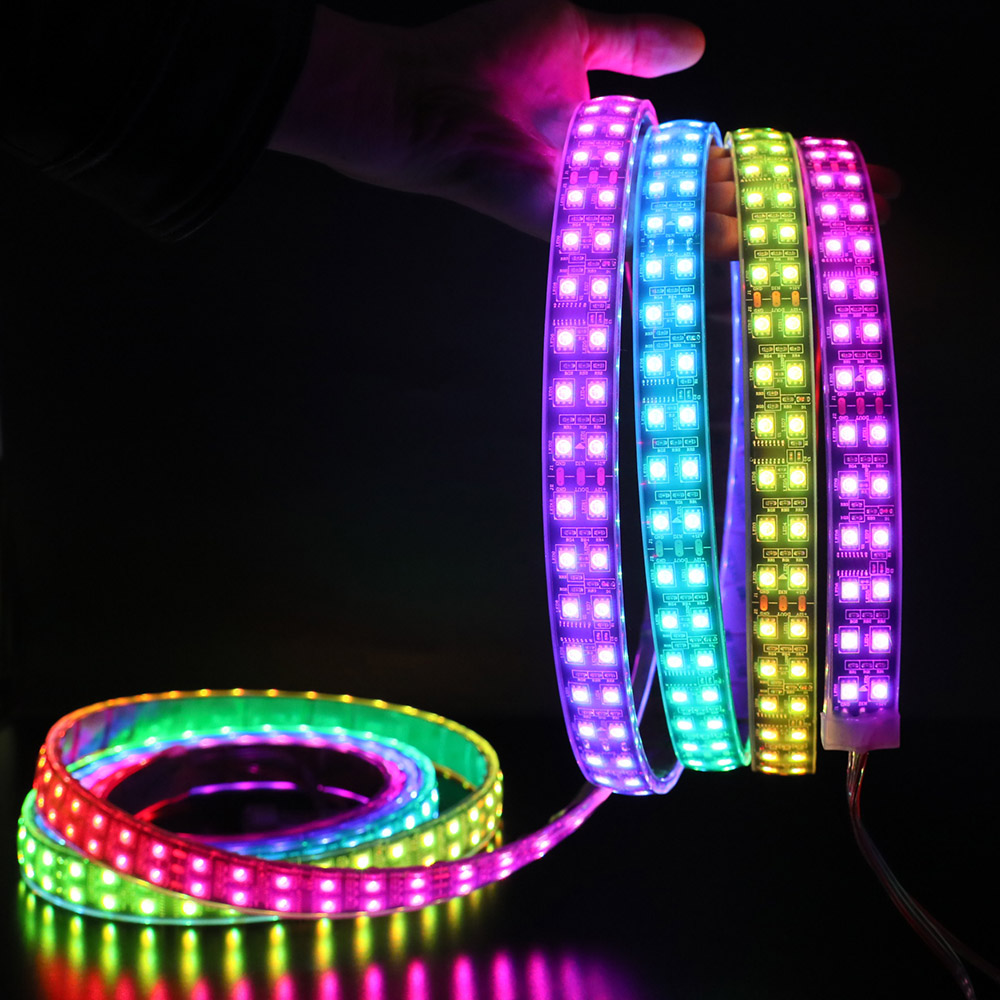

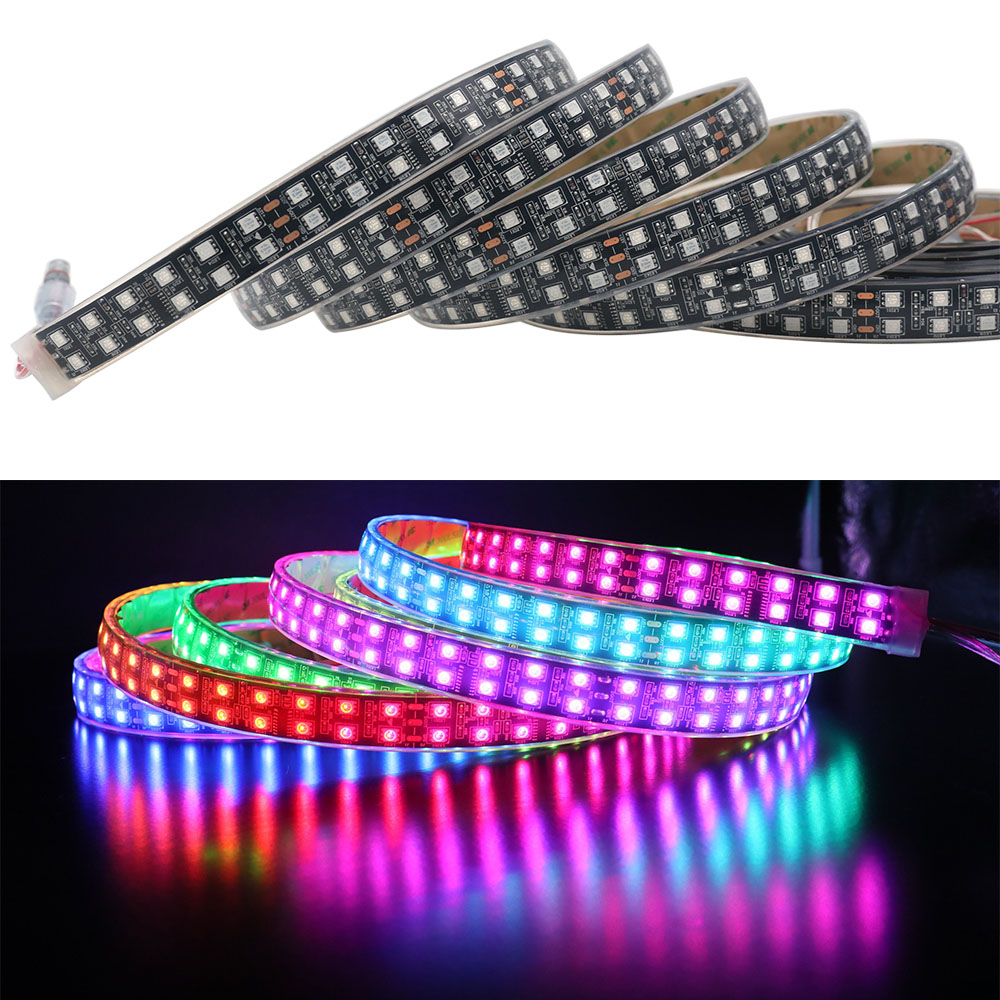

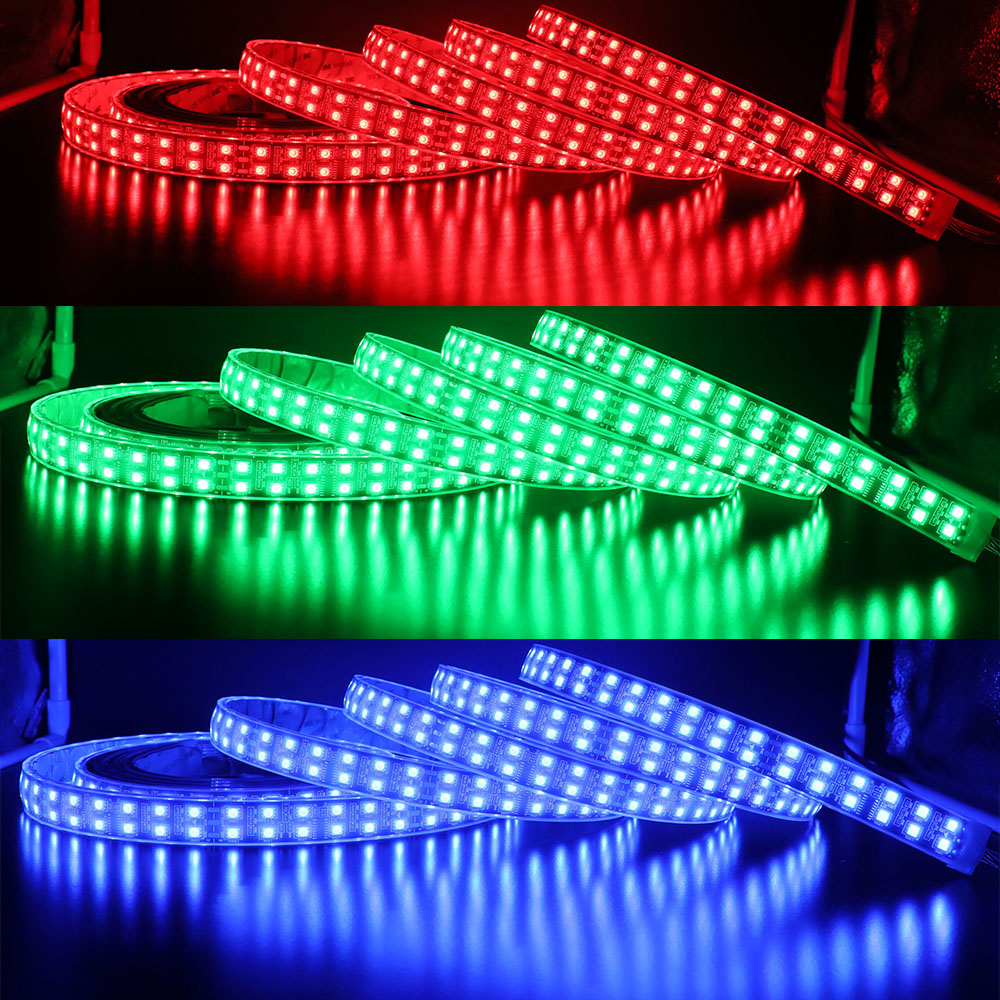

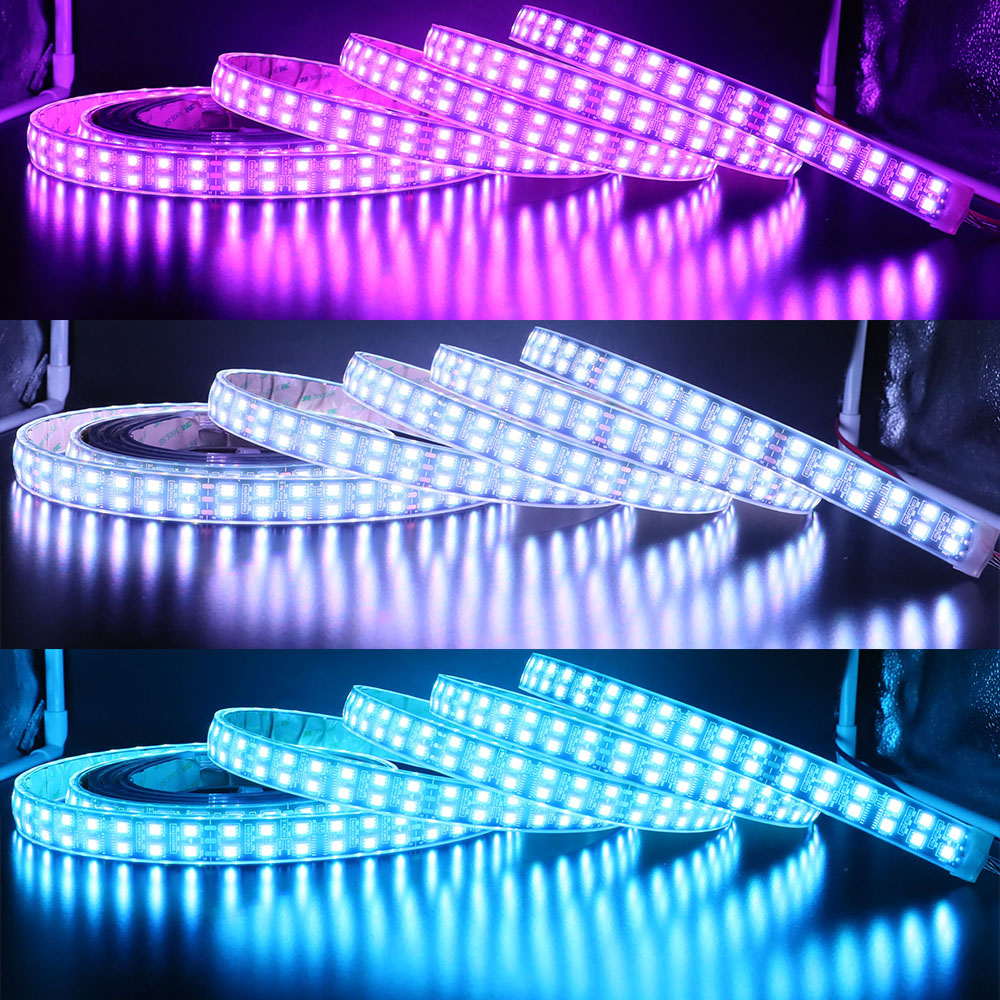

Dual-Row TM1812 series 120LEDs/m addressable led strip lights(Product Dimension: 5000mm*20mm*4mm) default to a black PCB board, and a white PCB board option is provided. One TM1812 IC controls 12 LEDs, and every 12 LEDs can be addressable individually which can be of different colors and different brightness. The LED pixel light can perform jumping, running water, chasing, scanning, letter-writing effects regularly. It's suitable for RGB lighting letters, spurts draw, channel letters, various kinds of indoor and outdoor illumination facility and screen display. Combine the advantages of safety, energy-saving, long life, low loss, and maintenance easy. 1. Using the most flexible FPC as the base material, FPC has good electrical conductivity, fast heat dissipation, and bending resistance. 2. Using SMD5050 RGB high-brightness lamp beads, external TM1812 IC chip, to achieve programmable digital led strip. 3. Any animation effect of the programmable LED lights can be realized through an SPI controller. 4. Using a low voltage DC12V power supply(Remenber the rule 80%) is safer for users to use. 5. Can be made into a variety of waterproof levels(IP20/IP67/IP68), meeting different waterproof needs. (Note: The width and height of the waterproof led strip light will increase by 2-3mm on the basis of the PCB width.) 6. 3M adhesive is attached to the back of the programmable LED light strip for easy installation. |
Know more: Ultimate Guide to Choosing the Right Addressable LED Strip
How to wire addressable led strips?
Top 6 Considerations Before Buying LED Strip Lights
About LED Power Supply: How to connect led strip to the power supply?
How to calculate power for led strip lights?
TM1812 Chips Specifications Download
Standards and Certifications
Product Specification
|
Model: DCFLS-12V-TM1812X120 |
Beam Angle: 120° |
|
IC Type: TM1812 |
LED Density: 120 LEDs/m |
|
LED Type: SMD5050 RGB 3-IN-1 |
Load capacity: 10 pixels/meter |
|
Grayscale: 256 degree (R,G,B each channel) |
LED Color: RGB full color |
|
Operating Voltage: DC12V |

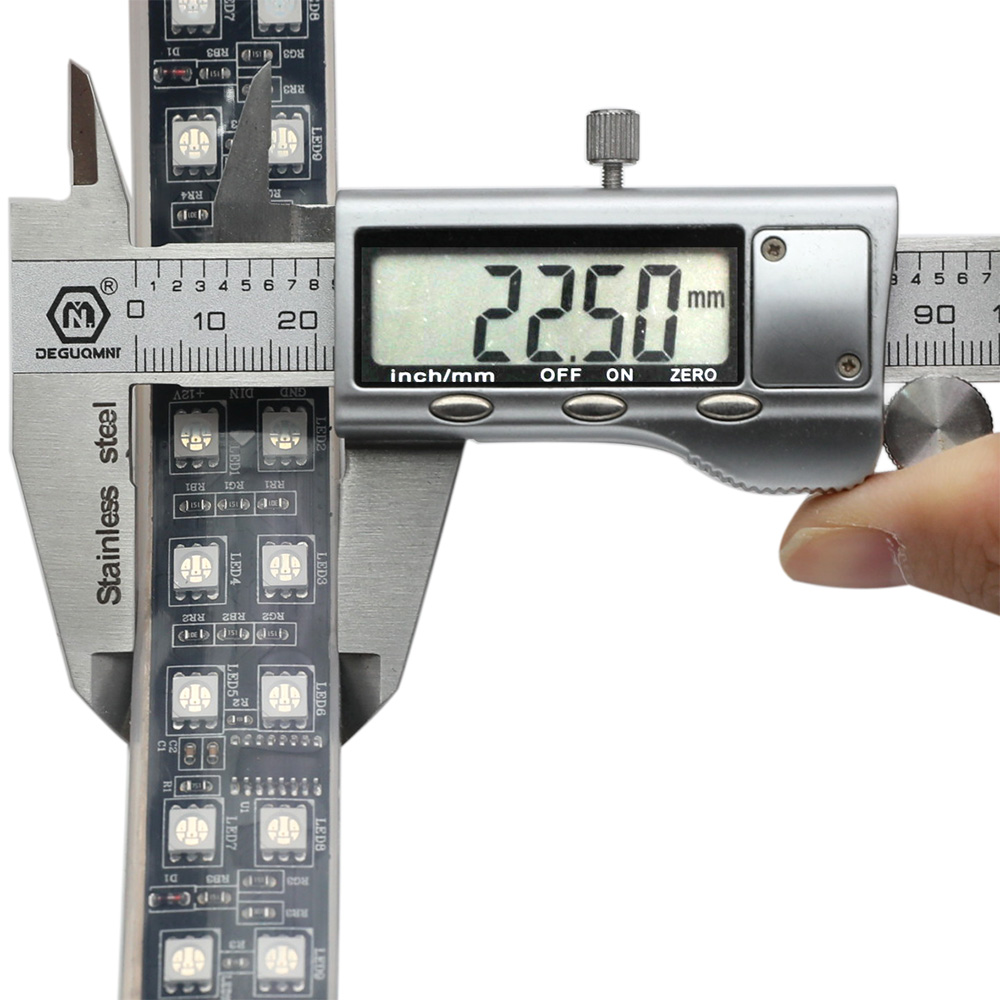

PCB Width: 20mm |
|
Power: 28.8W/M (144W/Roll) |
PCB Color: Black / White |
|
Current: 2.5 A |
Length: 5m/16.4ft |
|
Lumen/Meter: 1680 lm/m (14 lm/LED) |
Working Temperature: -40°C~60°C |
|
LEDs per Segment: 12 LEDs |
Lifespan: ≥50000Hrs |
|

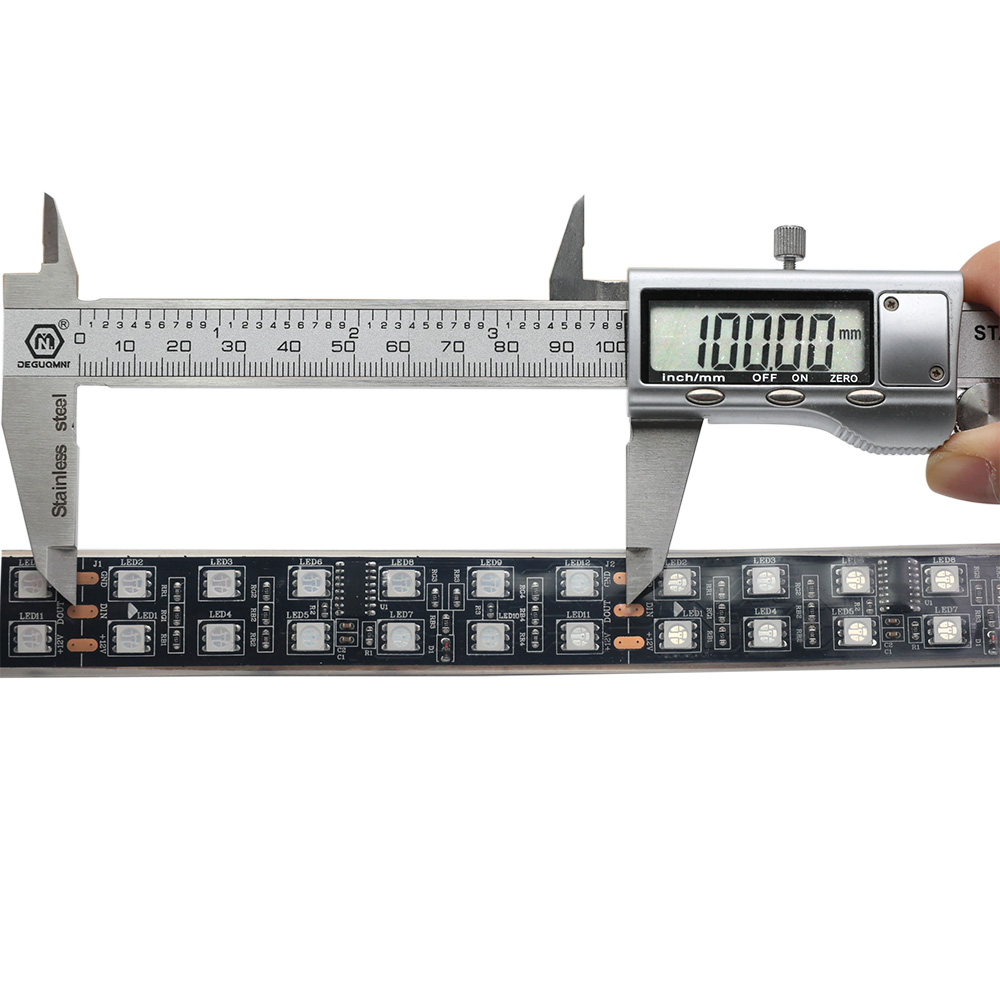

Cut Length: 100mm |
Material: FPC / PVC / Silicone |
|
IP Rate: IP65 / IP67 / IP68(Indoor or outdoor use) |
Installation: With 3M adhesive back, easy for installation |
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
Installation Instruction
 |
 |
 |

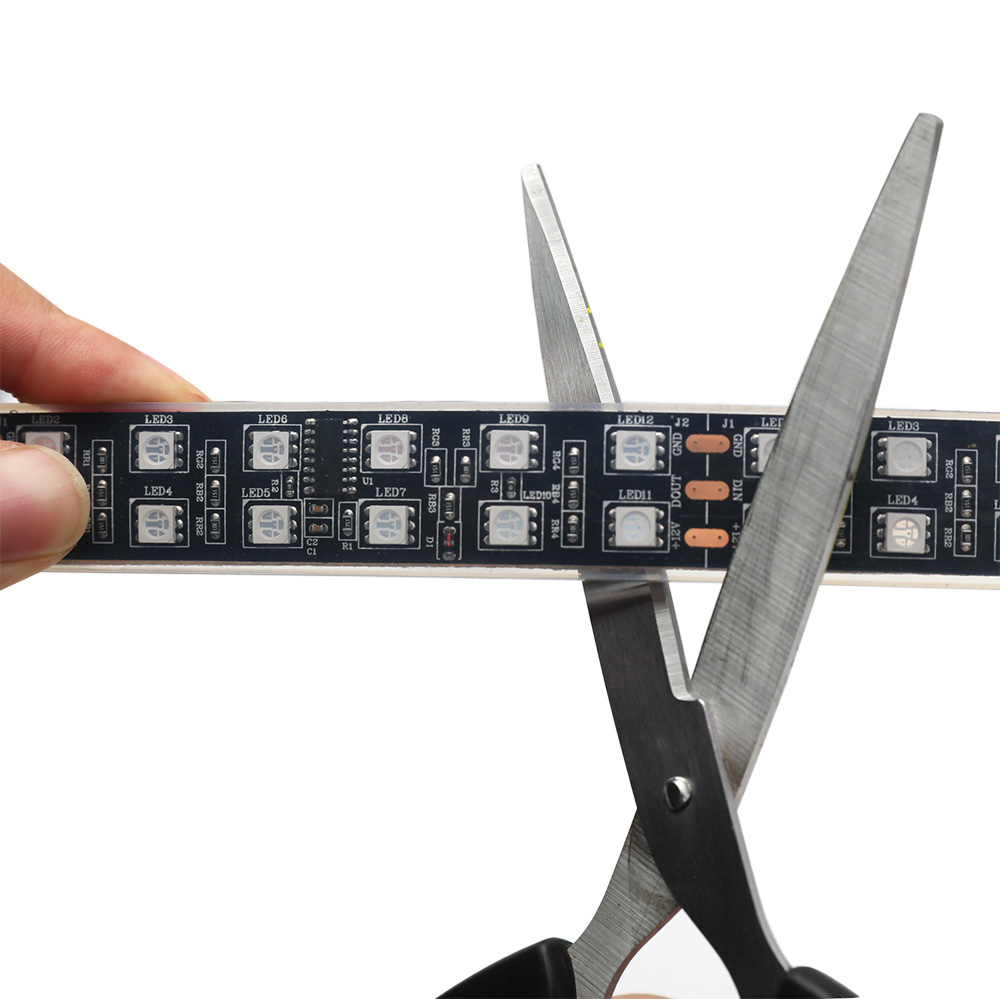

 You can cut the strip every few inches, allowing you to freely design your project without worrying about space requirements to many different surfaces. |

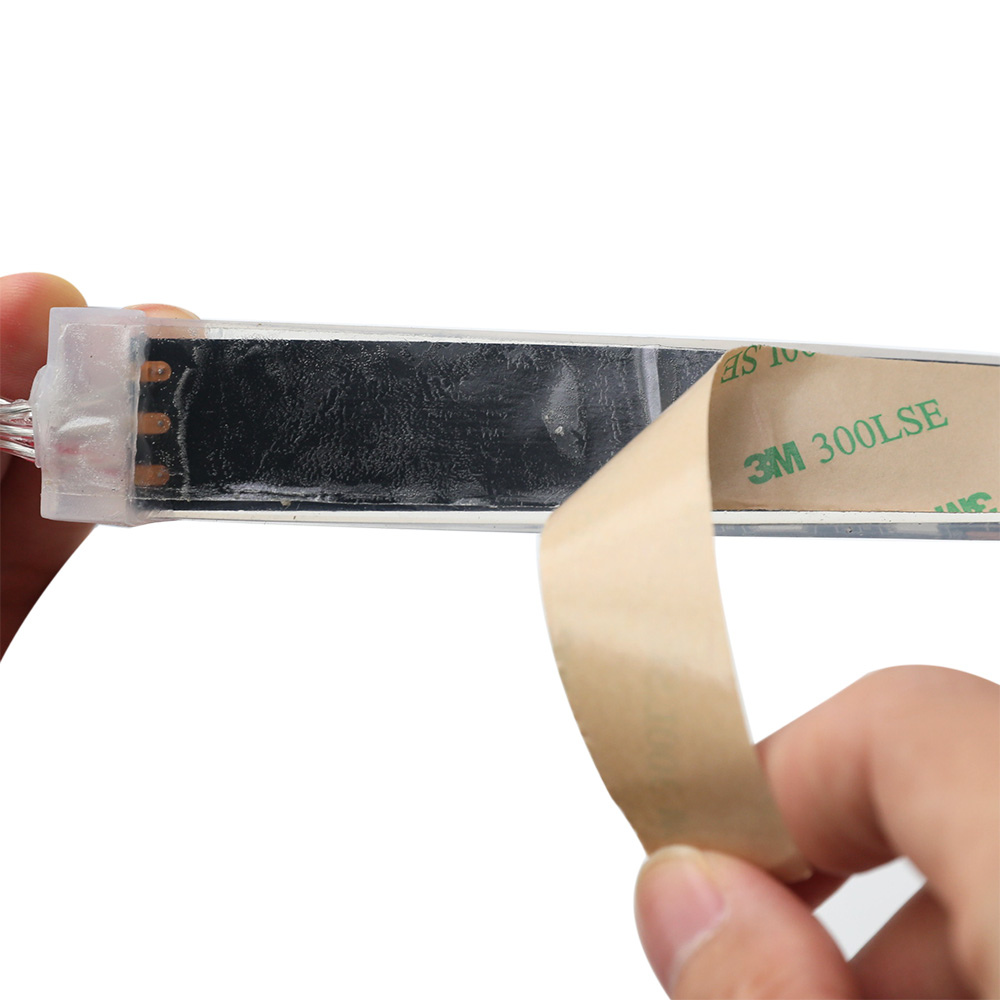

The back of the strip is fitted with a strong 3M tape, allowing you to peel and stick lights. |
IP67/IP68 type which will come with mounting brackets. |
Wiring Diagram
Note: When connecting addressable led strips, pay attention to the direction of the signal arrow.
►Low power led strip lights connection diagram
►High power led strip lights connection diagram
