Zigbee 3.0 Dual White LED Controller FUT035Z has now been upgraded to (Zigbee 3.0 + 2.4G) 2in1 LED Controller FUT035Z+.

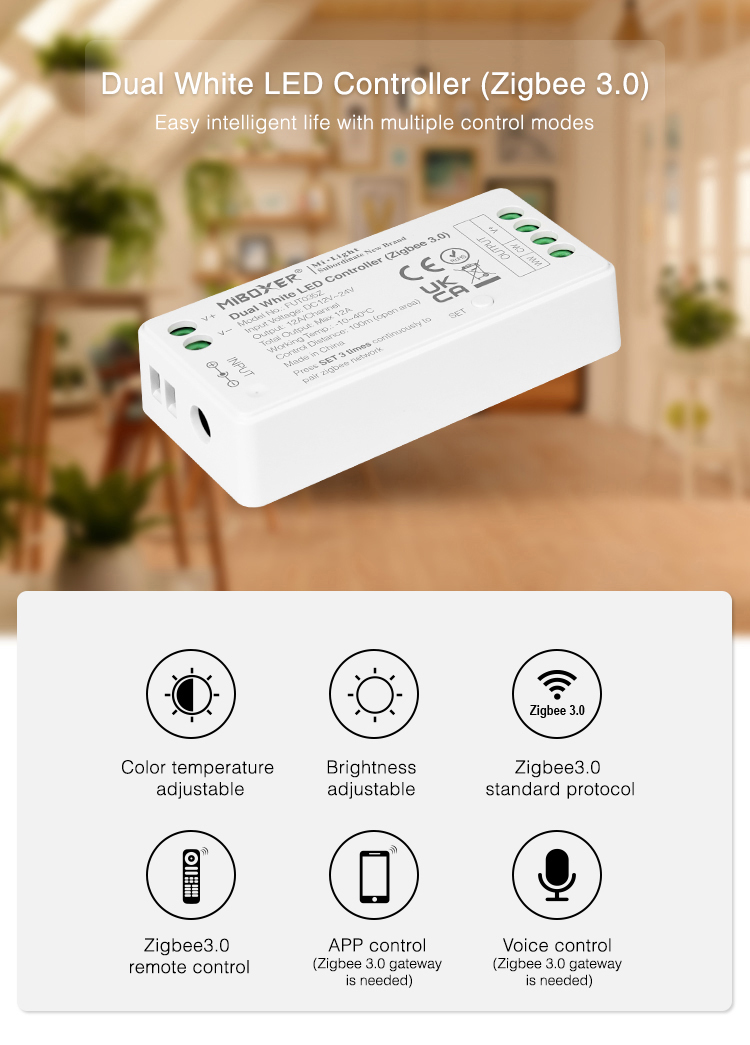

Features
This item supports Zigbee 3.0 standard protocol with low consumption, strong ability to pair with the network automatically and resist interference. Users can use Zigbee wireless remote to dim light. It supports to pair with Zigbee gateway and enjoy the function (wireless dimmable, remote control, timmer, group control, and music rhythm).
Product Name: Dual White LED Controller (Zigbee 3.0)
Model No.: FUT035Z

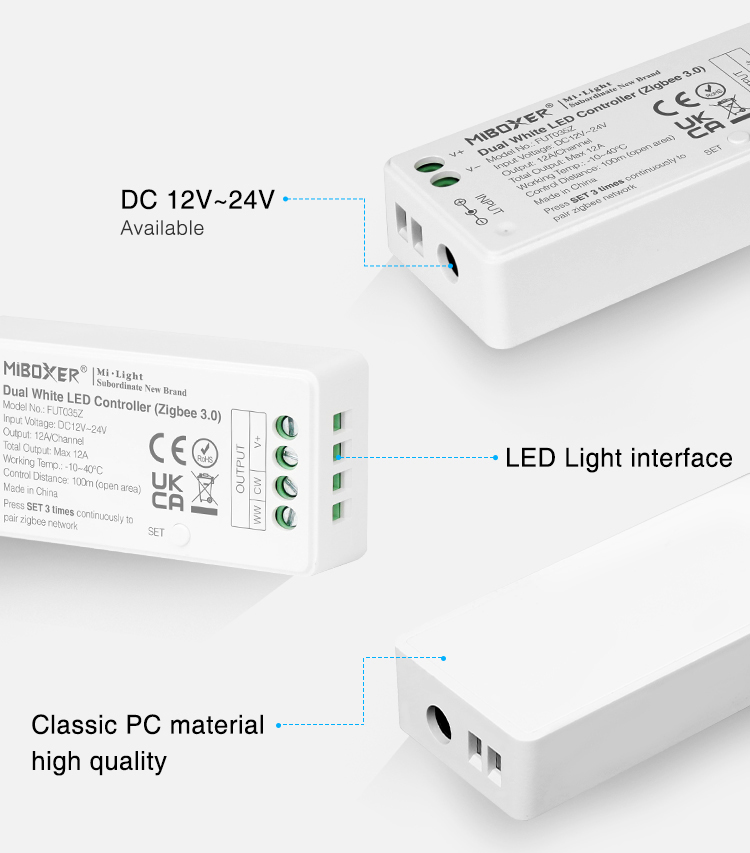

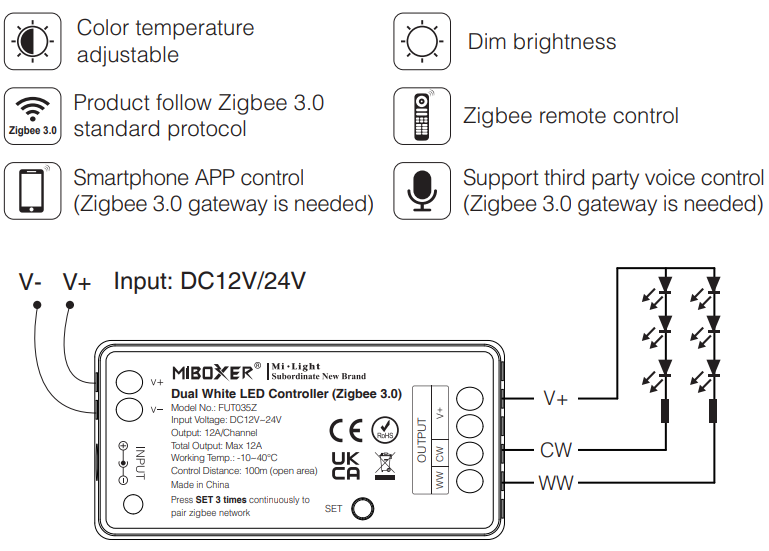

Working Voltage: DC12~24V
Output: 12A/Channel
Total Output: Max 12A
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400-2.480GHz
Control Distance: 100m (open area)
Working Temperature: -10~40℃
How to control the light via phone APP?
Please add Zigbee 3.0 gateway to [ MiBoxer Smart ] APP firstly
1. Connect with power supply.
2. Turn on/off light continuously over 3 times or press " SET " 3 times continuously, confirm the light with red color in-breath ambiance.
3. Open [ MiBoxer Smart ] an APP and add a sub-device ( see the following screenshot).
4. You can dim light, group control, and ambiance control after adding device completely.
Instruction of Matching
1. Connect with power supply.
2. Ensure the light is always on ( please wait 5 seconds and turn off, turn on again 1 time if the light is in breathe ambiance).
3. Long press group control " " button with 3 seconds until the indicator of remote flash quickly ( check details in remote instruction).
4. Please keep closer for remote and the light which you want to connect ( within 1 meter).
5. Matching is done if the light breathe 3 times
Instruction of Dispatching
1. Connect with power supply.
2. Ensure the light is always on.
3. Long press group control " " button with 3 seconds until the indicator of remote flash slowly ( check details in remote instruction).
4. Please keep closer for remote and the light which you want to connect ( within 1 meter).
5. Dispatching is done if the light breathes 3 times.
Attention
1. Remote only match or mismatch with one light at one time, it will match or mismatch with the nearest light since the light identity light by nearest signal.
2. Remote doesn't pair with gateway: one lamp is only controlled by one remote.
3. Lamp doesn't pair with gateway: it can not be controlled by remote which already paired with the gateway.
4. One light can be controlled by many remotes if remote and light both connected with the gateway. （the max quantity for remote and light is based on the max gateway which is connected)
Warning
1. Please check whether the voltage of the power supply is in accordance with the controller, and please check the connection of both the cathode and anode, otherwise the controller will be broken.
2. Please don’t connect wires with power on. Please turn it on again only when it is in the right connection and no short circuit.
3. Please do not use the controller in a place with a wide range of metal areas or strong electromagnetic waves nearby, otherwise, the remote distance will be seriously affected.
