Easy Wiring 16CH 20CH Motion Sensor LED Step Lights Controller With Remote + Light Sensor
Related Products
Easy Wiring 16CH 20CH...
$78.98
LED Stair Profile...
$22.98
DC24V Ultra Long White...
$16.99 $14.9912% off
13mm Wide Tiny Corner...
$5.69
20CH Versatile LED...
$54.98
Mean Well LRS-350-24 ...
$50.00 $45.988% off
18AWG 2pin +- Power Wire...
$1.20 $0.9918% off-
Special Price: $78.98
This RL-STEP-09 led step lights controller with a RF remote for easy operation and a light sensor for working at daylight or night. And it's motion sensing, when you walk close to the stair, the step lights will turn on auto.

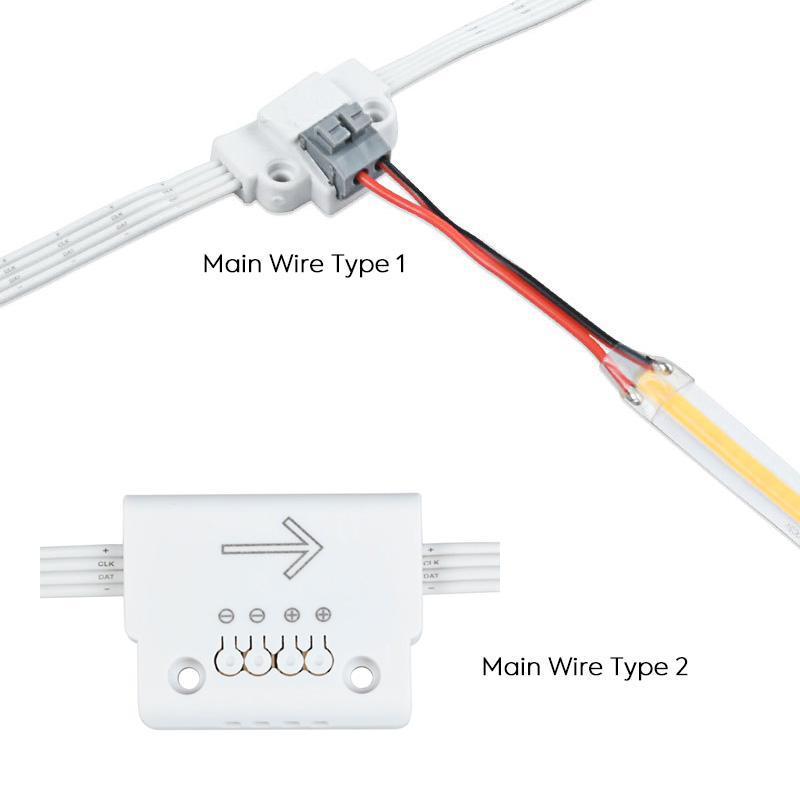

Unlike traditional stairway lights controllers that require additional step light extension cables, the 16CH/20CH motion sensor led step light controller comes with one main cable to connect all the step lights, greatly facilitating use and installation.
For Remote Control:

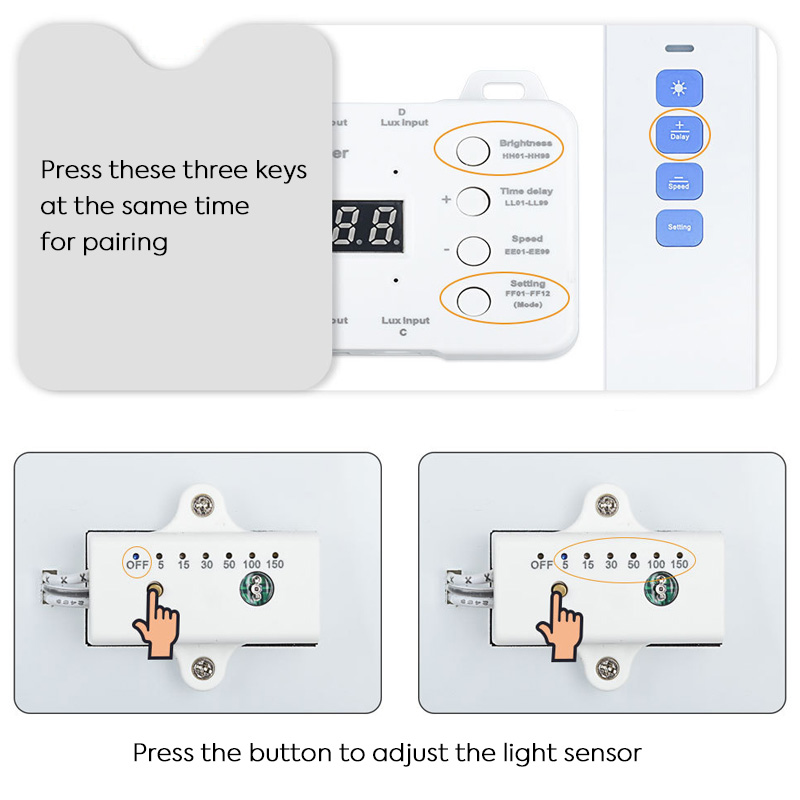

Press the "Brightness" "Setting/Controller" "Setting/Remote" at the same time, light flashes three times, and the pairing is successful.
And then press the "Brightness" "Setting/Controller" "Setting/Remote" at the same time, light flashes five times, it means delete pairing.
For Light Sensor:
Turn off - PIR sensor works at daylight and night;
Turn on - 6 levels adjustable;
There is a botton on the light sensor, 1*press for off, 2*press for 5lux (lower light), 3*press for 15lux, 4*press for 30lux, 5*press for 50lux, 6*press for 100lux, 7*press for 150lux (sufficient light).
How to Set:
Long press the "Setting" on the controller to enter the setting state (set step numbers, brightness, time delay, speed, and mode). And short press the "Setting" to set the next setting. After all setting has done, long press the "Setting" to save.
| Modes | Brightness | Time Delay | Speed |
| FF01 - All step lights on | HH01 - 2% | LL01 - 4s | EE0 - 150ms |
| FF02 - One by one step lights on | HH02 - 3% | LL02 - 6s | EE0 - 175ms |
| FF03 - Two by two step lights on | HH03-4% | LL03 - 8s | EE0 - 200ms |
| FF04 - Three by three step lights on | HH04 - 5% | LL04 - 10s | EE0 - 225ms |
| FF05 - One by one follow | HH05 - 6% | LL05 - 12s | EE0 - 250ms |
| FF06 - Two by two follow | HH06 - 7% | LL06 - 14s | EE0 - 275ms |
| FF07 - Three by three follow | HH07 - 8% | LL07 - 16s | EE0 - 300ms |
| FF08 - One by one chase | HH08 - 9% | LL08 - 18s | EE0 - 325ms |
| FF09 - Two by two chase | HH09 - 10% | LL09 - 20s | EE0 - 350ms |
| FF10 - Three by three chase | HH10 - 11% | LL10 - 22s | EE0 - 375ms |
| FF11 - Seperated chase | ... | ... | ... |
| FF12 - Auto change all modes 01-11 | HH99 - 100% | LL99 - 200s | EE99 - 2600ms |
Product Specification
Type: Motion Sensor LED Step Lights Controller
Model: RL-STEP-09
Shell Material: ABS
Working Voltage: DC12-24V
Max Current: 10A
Steps: 16/20
Controller Size: 150mm*64mm
PIR Sensor Size: 30mm*14mm*16mm for surface mount; 14mm*17mm for recessed mount
Power: Each step < 15W; max load 120W/12V, 240W/24V
Function: Mode, brightness, delay time, speed adjustable
Package List: 1*controller, 2*PIR sensor, 1*light sensor, 2*1m PIR sensor cable, 1*light sensor cable, 1*5m extension cable
