Flexible Silicone LED Profile With Flange For 10/12mm LED Strip Lights - 20*20mm 120° Top Emitting
Related Products
Flexible Silicone LED...
$8.99
DC 5V HD107S SMD5050...
$80.00 $62.9821% off
DC24V RGBW LED Strip -...
$80.00 $64.9819% off
High CRI 90 White Color...
$29.98 $12.9857% off
High CRI 95 SMD2216...
$36.98 $27.9824% off
APA102 DC5V 30LEDs/m Warm...
$49.98
TM1814 4IN1 5050 RGBW LED...
$60.00 $29.9850% off-
Special Price: $8.99
Silicone led profile for 10mm or 12mm led strip lights to be installed inside, the white flange can cover the recessed gap and decorate your places with white lines.
Made of high quality food grade silicone material, this led silicone profile is flexible and bendable, has good light transmittance and a large light-emitting angle, it does not change yellow or crack, waterproof grade is IP67 and above, so you can use this silicone led channel for outdoor lighting with sealing the end caps to prevent moisture and water from entering.
The light refracted from the led light source through the conduction of silicone diffuser to produce the ultimate lighting effect which is more artistic and practical. The combination of high-density or medium-density bright LED light strips and the LED flexible silicone profile can achieve the effect without light spots. Silicone led channel system is mainly matched with LED strips to achieve good lighting effect, widely used in decorative lighting and sign lighting, which is deeply loved by customers.

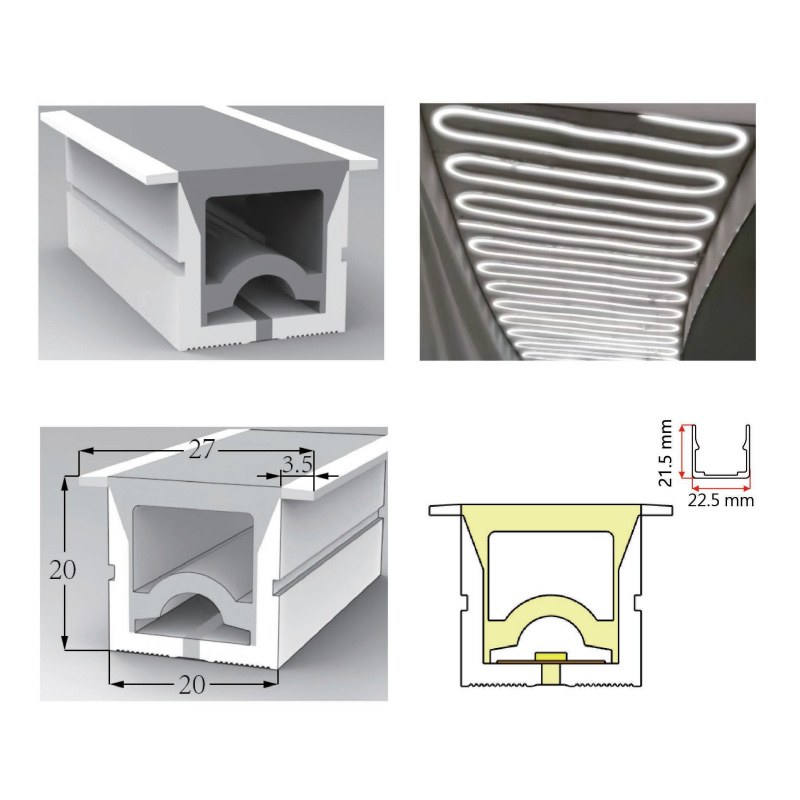

| Model: | FLNLT-T2020-WF |
| Tube Material: | Food-grade Silicone |
| Lighting Direction: | Top-emitting |
| External Width: | 27mm/1.06in |
| External Height: | 20mm/0.79in |
| Channel Color: | White |
| Suitable LED Strip Width: | 0.39" (10mm), 0.47" (12mm) |
| Available LED Strip Type: | Single color led strip, COB led strip, CCT led strip, RGB led strip, RGBW led strip, RGBCCT led strip, Addressable led strip |
| Length: | 1m/3.28ft, 2m/6.56ft, 5m/16.4ft |
| Beam Angle: | 120° |
| Accessories: | End Caps (come with), Mounting clips (Please choose in the "Kit" option) |
| Waterproof Rating: | IP67 |
| UV Resistant: | Yes |
| Working Temperature: | -50°C to 200°C |
| Knowledge Source: |
Note:
The product does not include led light strips.
If you buy our LED strips at the same time, we can make LED neon lights for you for free. You only need to make a note when ordering.
If you insist on completing the production by yourself, you can read: How To Put A Flexible LED Strip Light Into A Silicoen Tube?
We are not responsible for any damage caused by your own operation!
Flex LED Silicone Channel Installation:
There are three installation methods for neon silicone tubes, one is to install with mounting clips (this link include 10 pcs, if you need extra led mounting brackets, please purchase them by yourself), easy operation. 1m silicone tube for led strip lights has two mounting clips, 2m has four, and 5m has ten.
The second is to put the flex led neon tube into the aluminum channel, this installation method is suitable for linear lighting projects.
And the third is to use flexible profiles for curved path lighting, which has great bending freedom.
Using Application:
LED silicoen channel with Single color/CCT/RGB/RGBW/RGBCCT/Addressable LED strip has wide applicability. It can be applied to the following scenes.
1.Building outline lighting
2.Hotel lighting project
3.Bridge lighting project
4.Cultural tourism town lighting project
5.City park lighting project
6.Festival atmosphere decoration project
7.Airport lighting project, etc.
