GS8206 5050 RGB LED Dream Color Addressable Strip Lights 30LEDs/m
Related Products
GS8206 5050 RGB LED Dream...
$31.98
SP110E Bluetooth Pixel...
$8.98 $5.9833% off
DC5-24V SP108E WiFi LED...
$21.99
DC5-24V SP107E Wireless...
$16.98
96W4A DC24V Plastic Shell...
$21.99-
Special Price: $31.98
DC12/24V GS8206 5050SMD RGB Breakpoint-continue 150LEDs Waterproof Dream Color LED Addressable Digital Strip Lights.
1. The GS8206 LED strip is addressable light, breakpoint- continue, and can be programmed and controlled with the help of a controller.
2. Dual signal line version and signal breakpoint continuous transmission. If a LED damage, the work of other LEDs will not be affected.

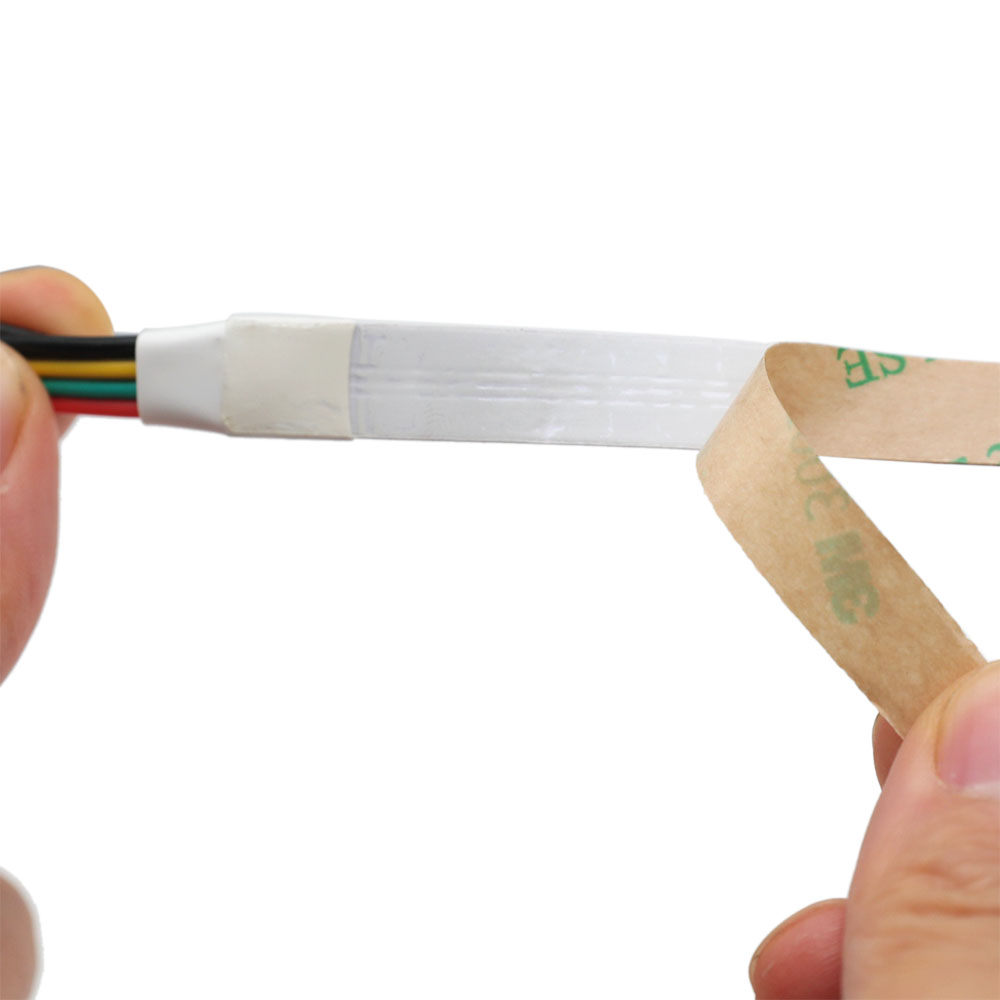

3. There is a strong 3M tape backing on the strips, which can be ripped off and stuck to most surfaces.

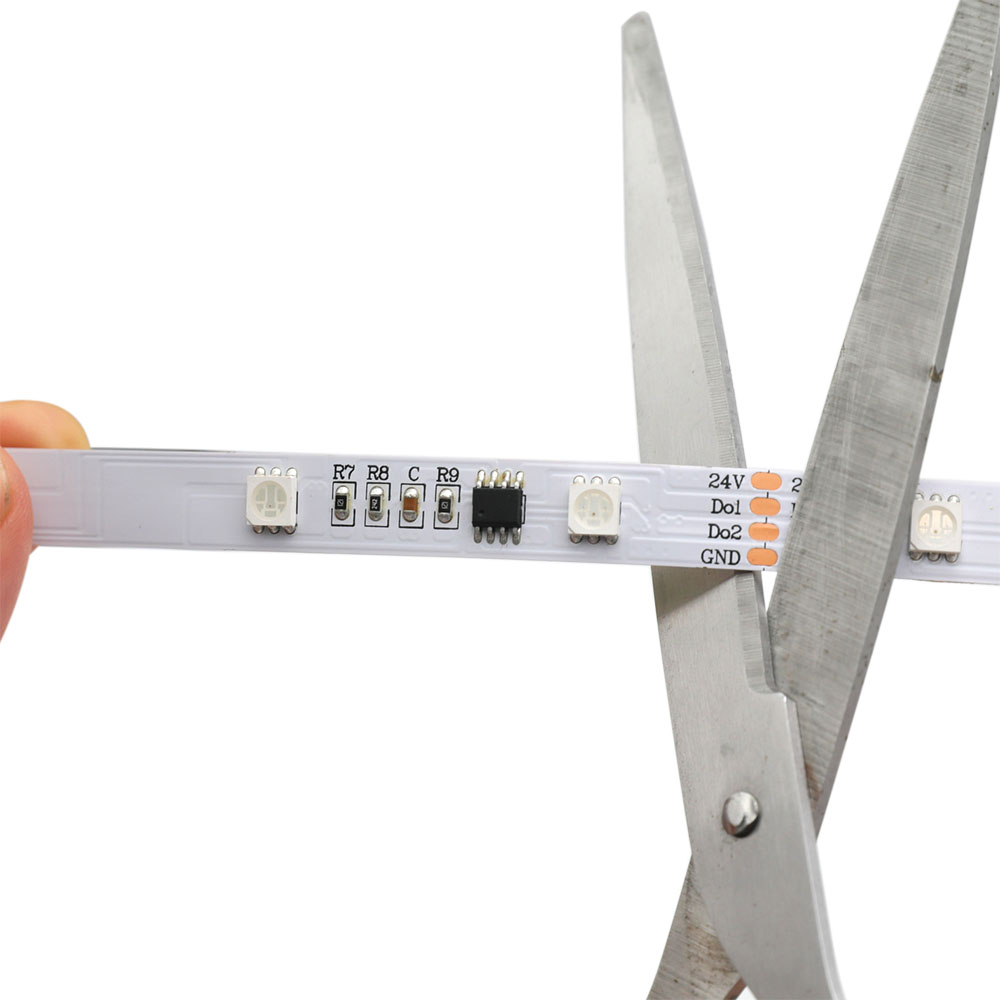

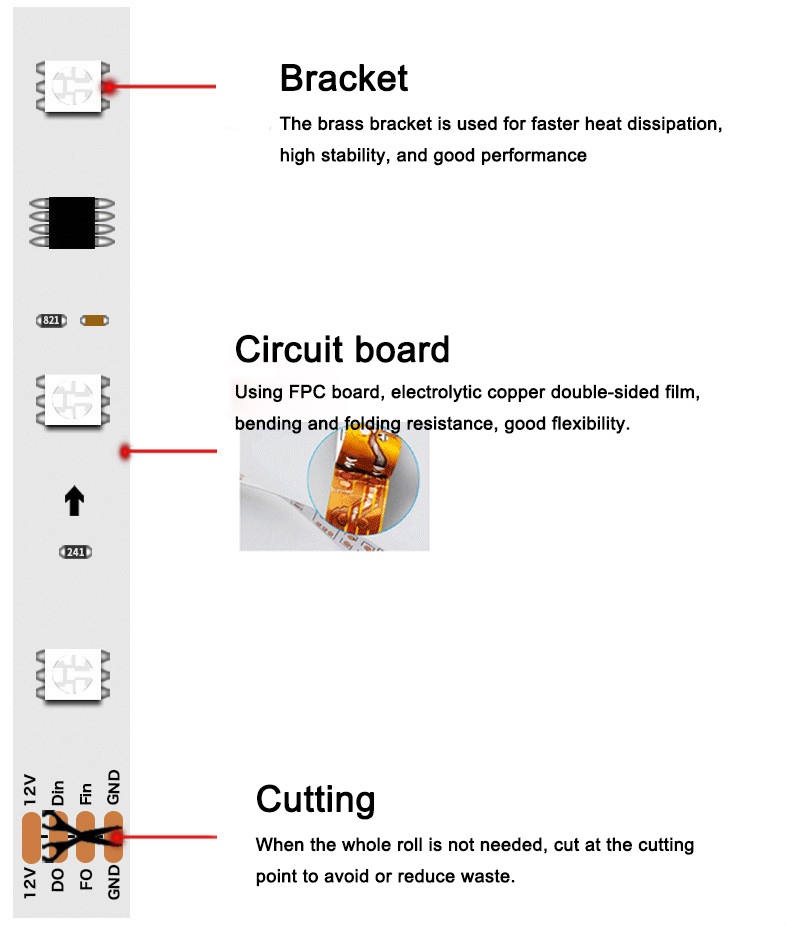

4. Each 3/6LEDs forms a ring, which can be arbitrarily cut according to the length of the ring without damaging other convenient fixed and stall parts. The flexible cutting operation makes the structure simple, ultra-thin design, low-temperature light source, and the selection of the auxiliary material more flexible, installation energy-saving installation, lower heat, higher brightness, cleaner, lower energy consumption, and more beautiful.
5. GS8206 is a four-channel LED driver control circuit, which includes intelligent digital port data latching and signals to shape the amplification drive circuit. It also includes a precision internal oscillator and a constant-current control section for highly consistent color effects and stable performance.
6. At present, the common number of LEDs on the market is DC12/24V 30/60LEDs. The biggest difference between them is the number of single-circuit cuttable LEDs, DC12V three lights can be cut, DC24V six lights can be cut. You can customize the waterproof level according to the use environment of the light strip. We currently provide two waterproof grades of IP65/67/68. IP65 is suitable for indoor damp environment, IP67 is suitable for outdoor rainy environment. IP68 can be directly placed in the swimming pool, and the light strips can be emitted with a dream color RGB effect at night.
7.the product is not including a LED controller and a LED power supply. If you want to purchase the LED controller and the LED power supply, you can visit our addressable led controller series and plastic shell power supply adapter.

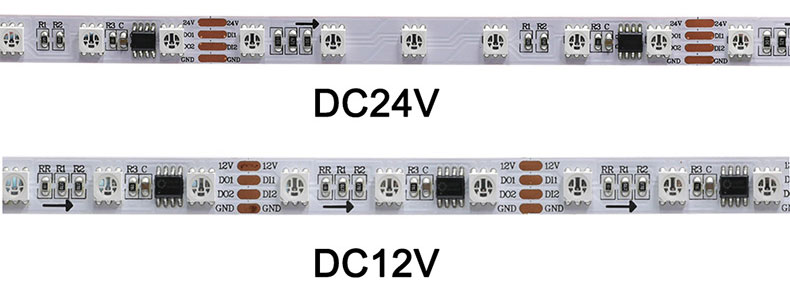

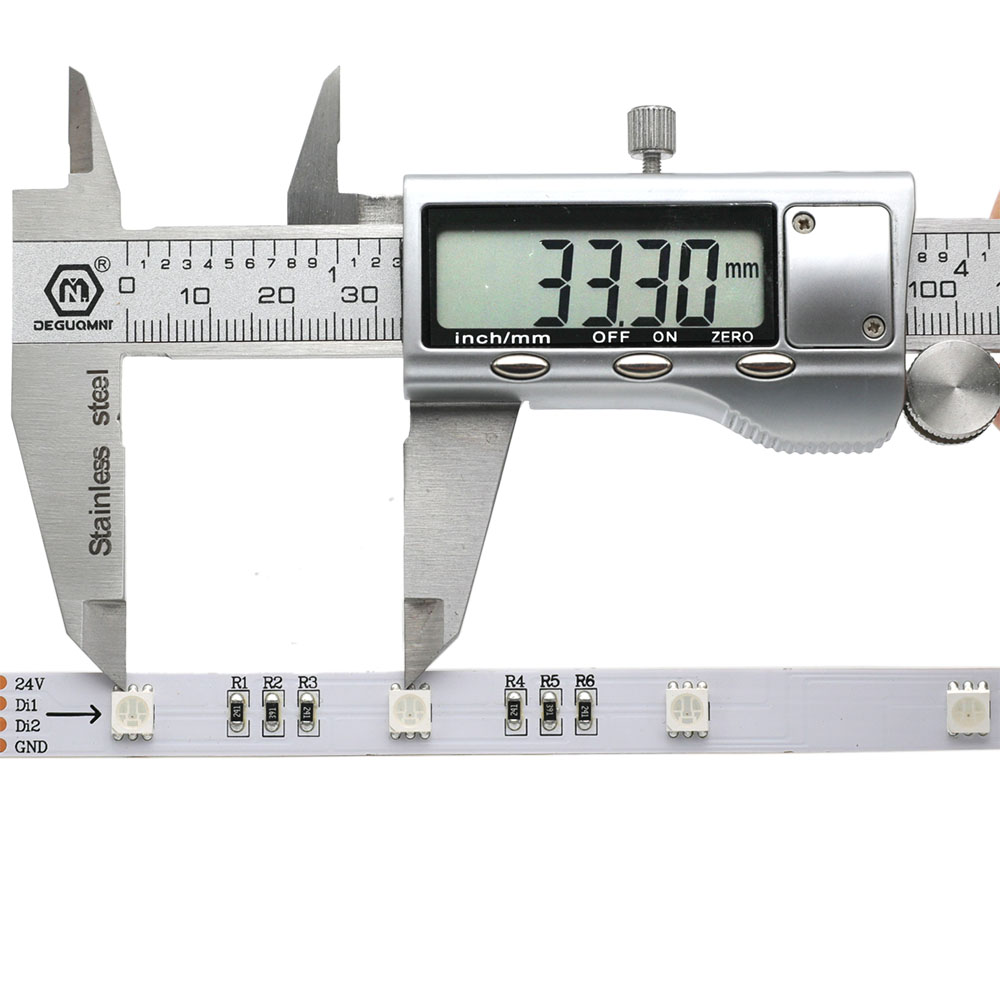

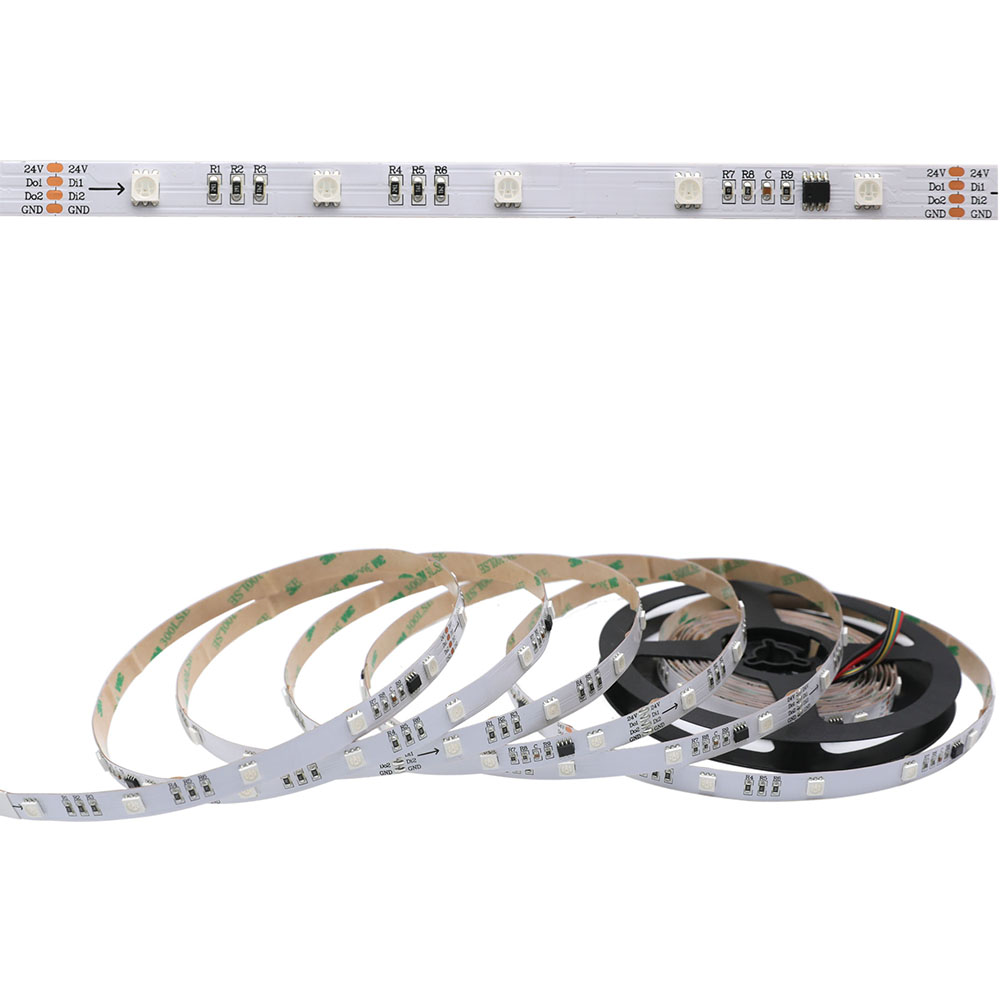

The DC12V LED strip light is 3LEDs cuttable and the DC24V led strip light is 6LEDs cuttable. The above picture is for reference only. The number of LEDs in the picture is 60LEDs/m.
Standards and Certifications
Specifications:
Product Name: 5050 GS8206 External IC addressable RGB LED strip light

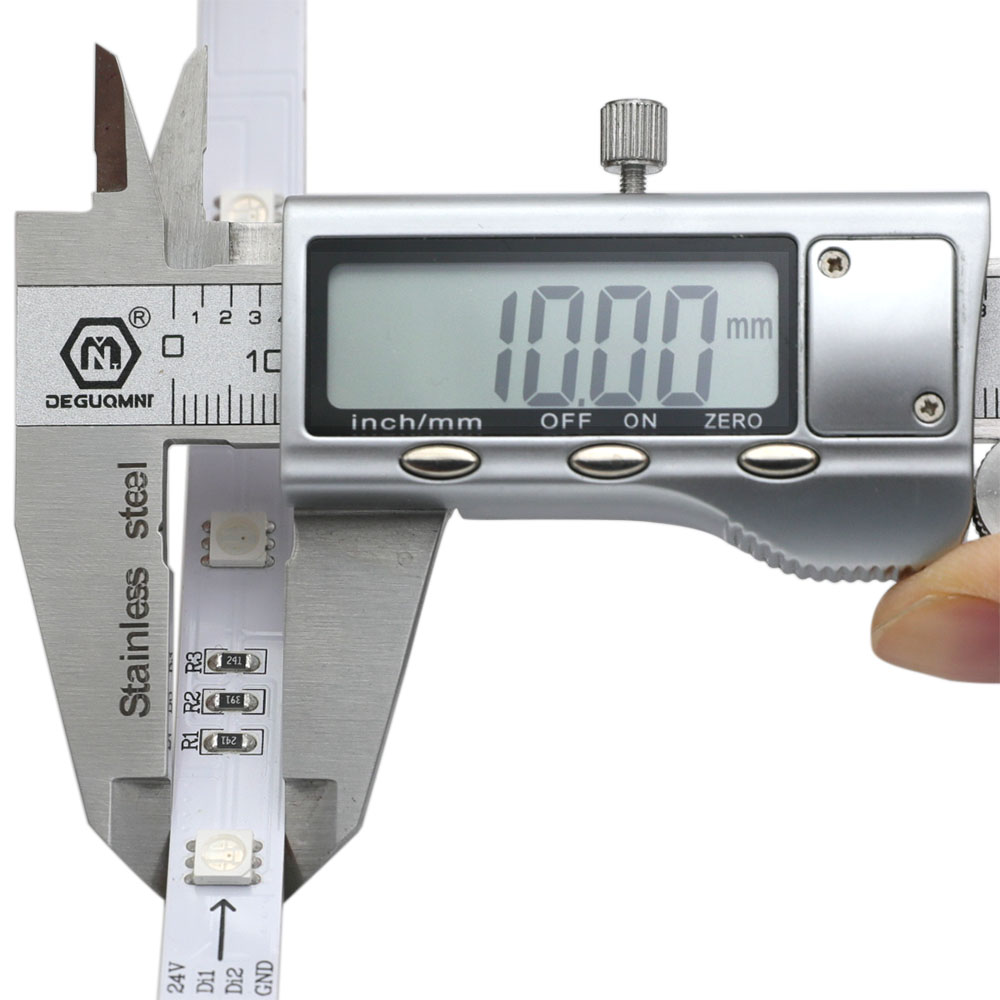

PCB Width: 10mm
Input Voltage: DC12/24V
LED Chip Model: SMD 5050 RGB
LED Resource: GS8206 LED
PCB Color: White

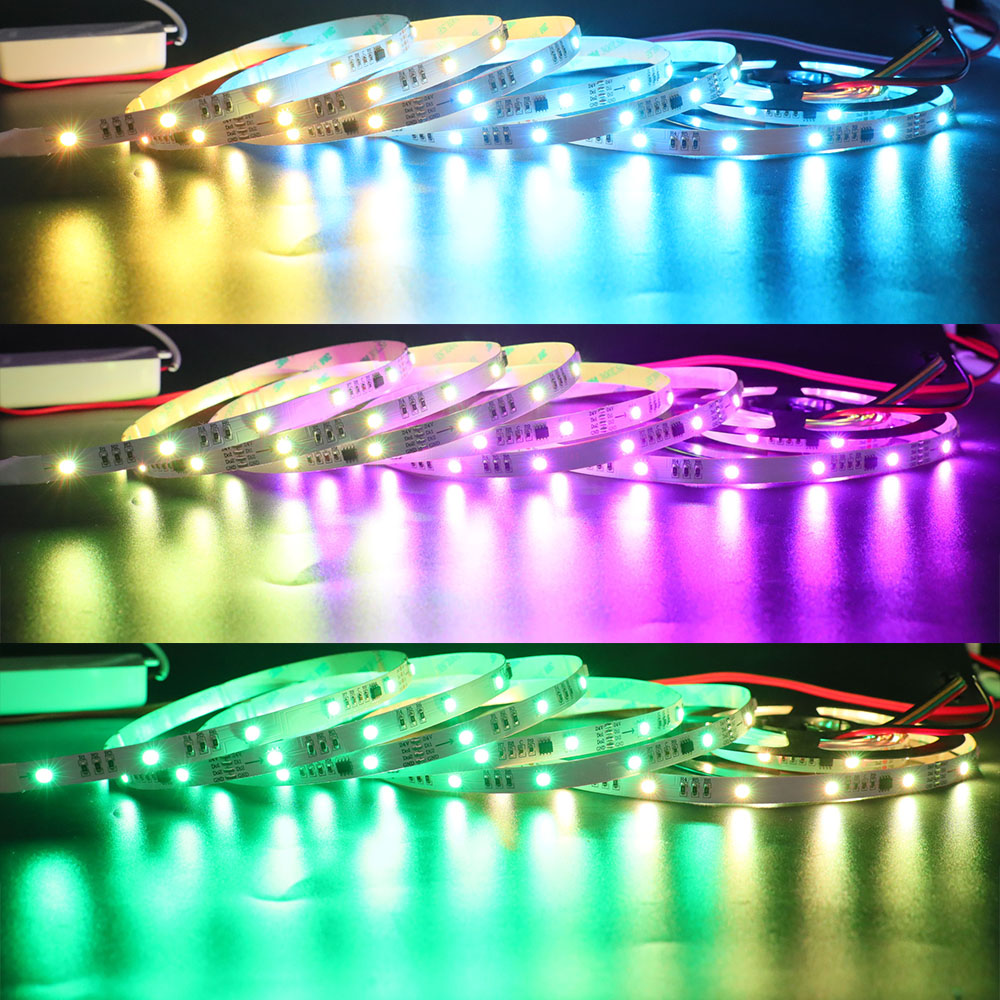

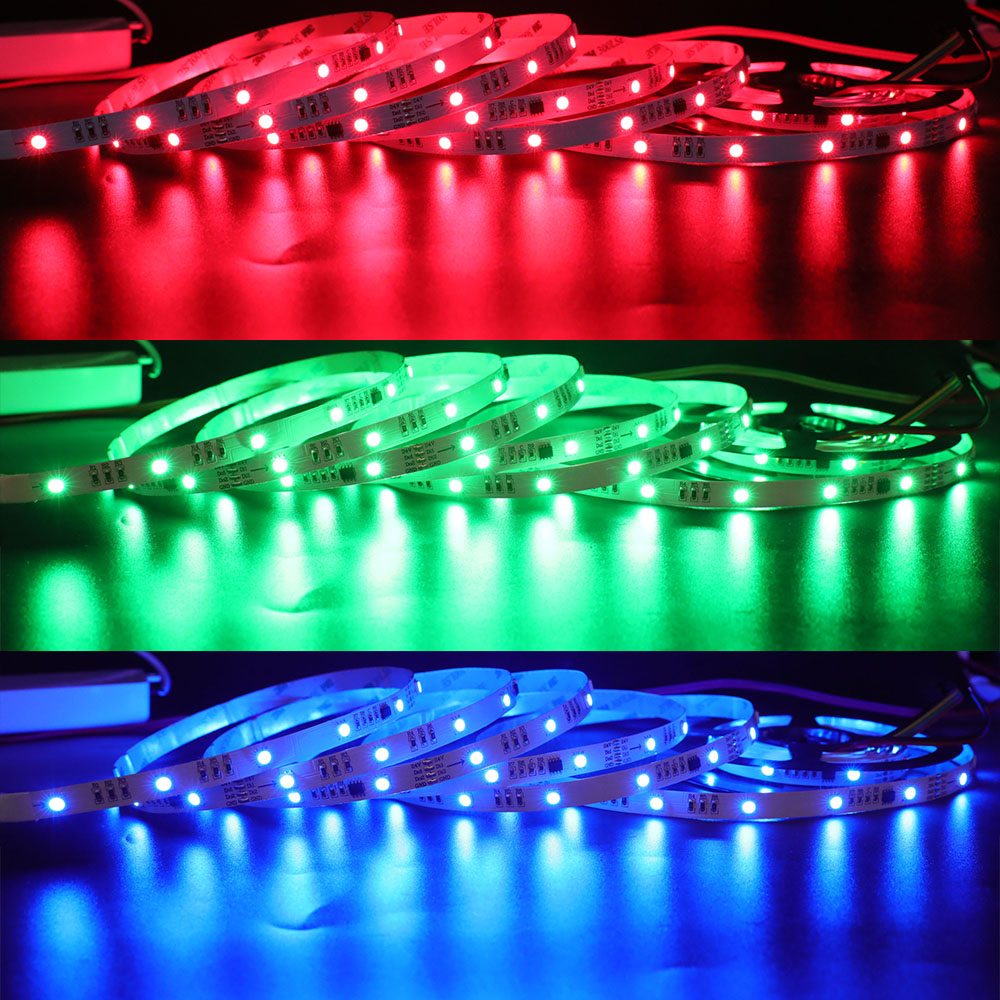

Colors: Full-color RGB, dream color changing;
Greyscale: 256
Average Life (hrs): 50000Hours+
Beam Angle: 120 degrees
Color Rendering Index(CRI): 80RA
Circuit Board: double-sided FPC electrolytic copper circuit board
LED Circuit: three/six LEDs one circuit
LED Quantities: 30 leds/m
Rated Power: 7.2W/m, 36W/Roll
Waterproof Rating: IP20(non-waterproof) IP65/67/68(waterproof)
Cutable: 3 LEDs cutable(DC12V)/6 LEDs cutable(DC24V)
IC Quantities: 10 IC/m(DC12V) 5 IC/m(DC24V)
Package List:
1*5m GS8206 30leds/m led strip light
Compatible Controller:

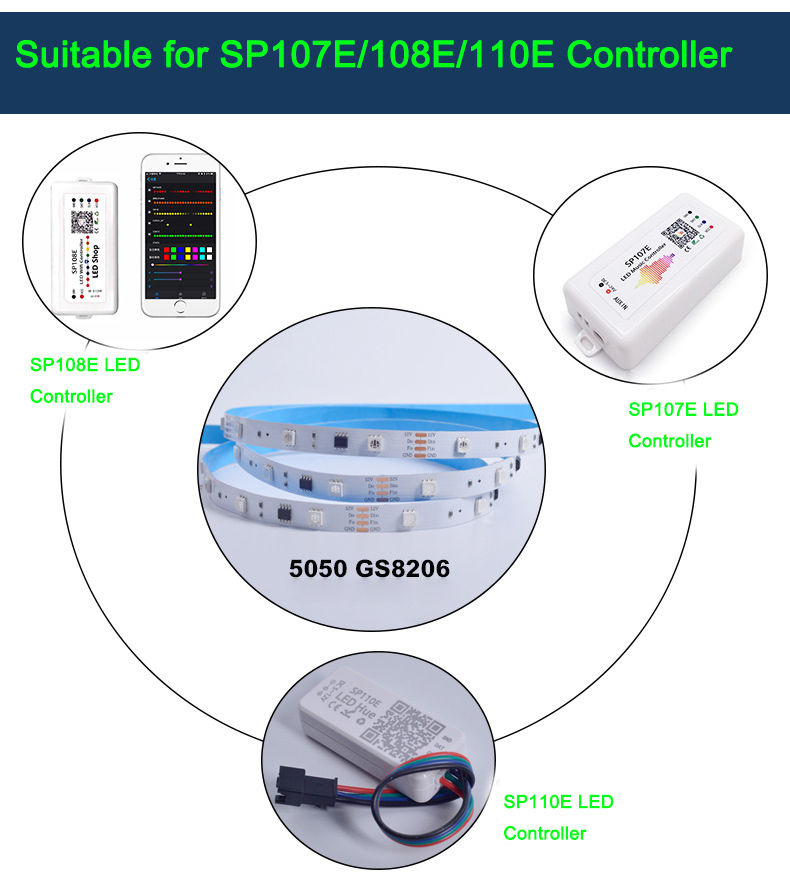

CONFULL-WIFI-MUSIC LED Controller

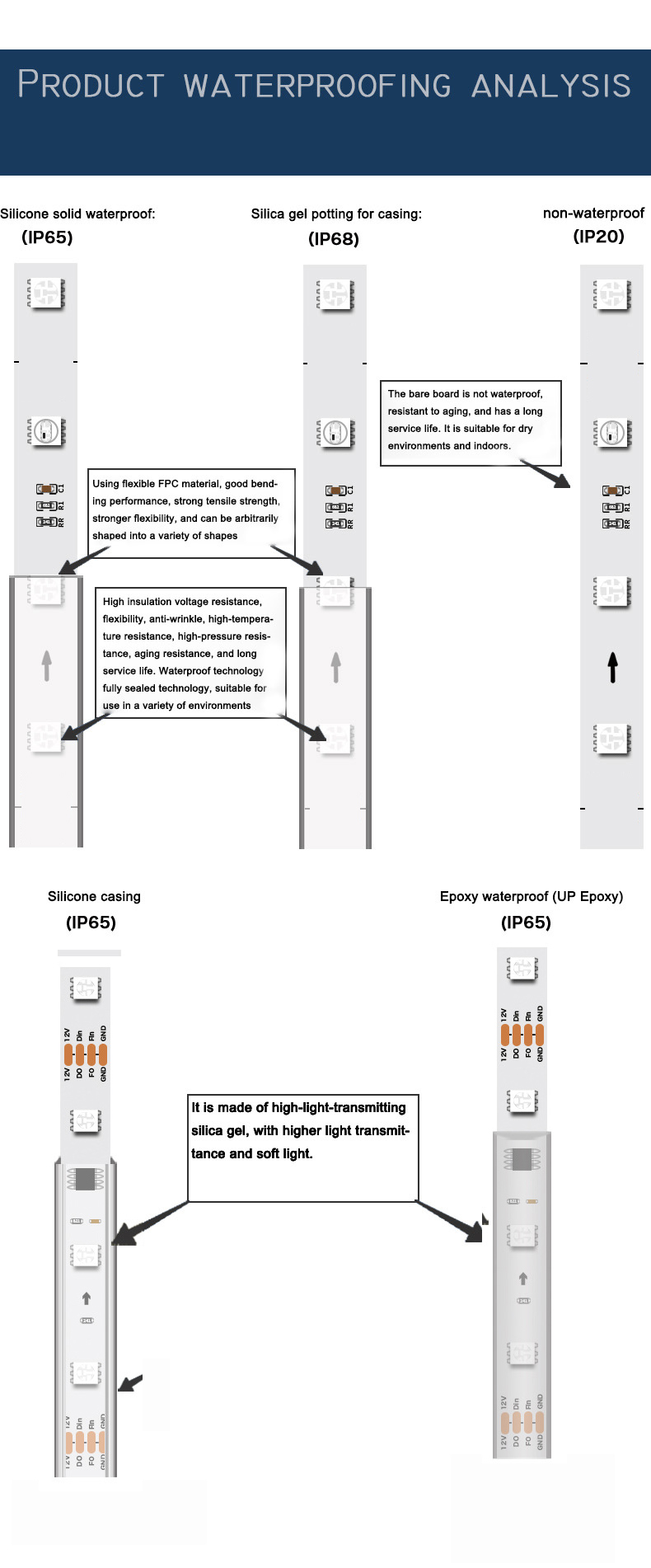

Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);

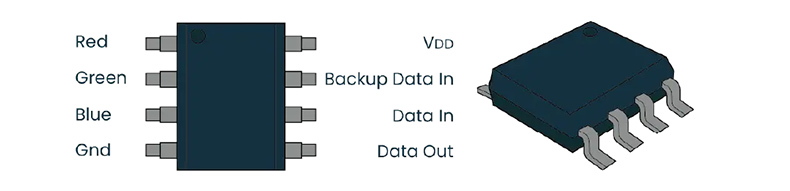

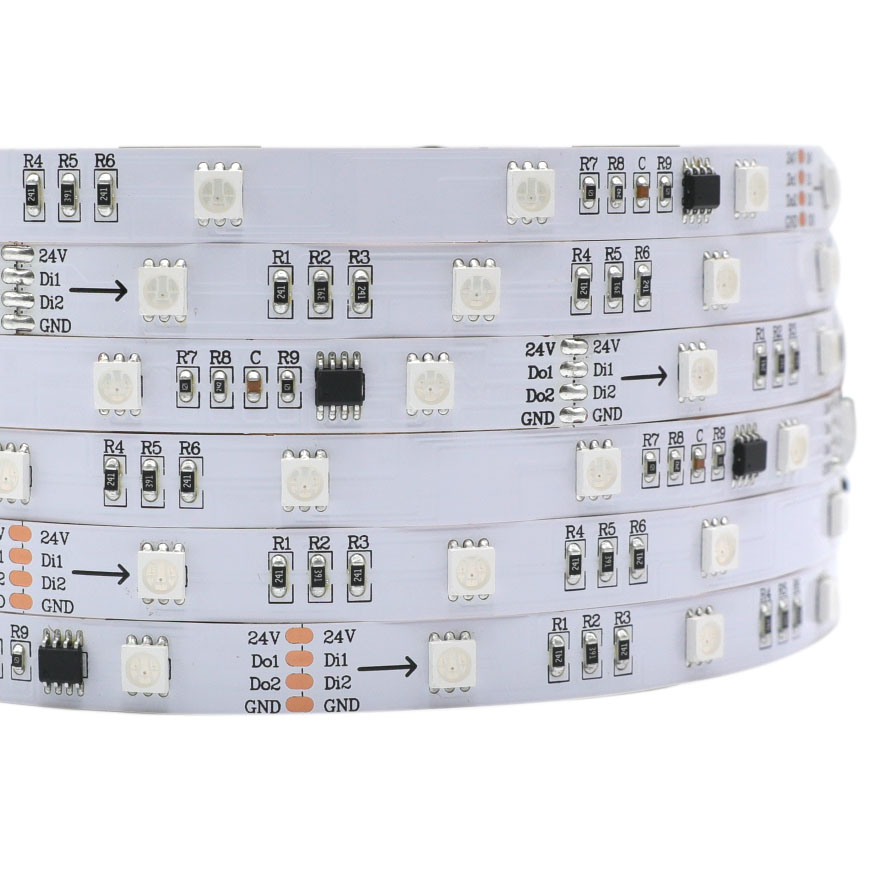

Pin Function
DO: Control data signal output
DI: Control data signal input
BO: Backup control data signal output
BI: a Backup control data signal input
GND: Data &Power Grounding

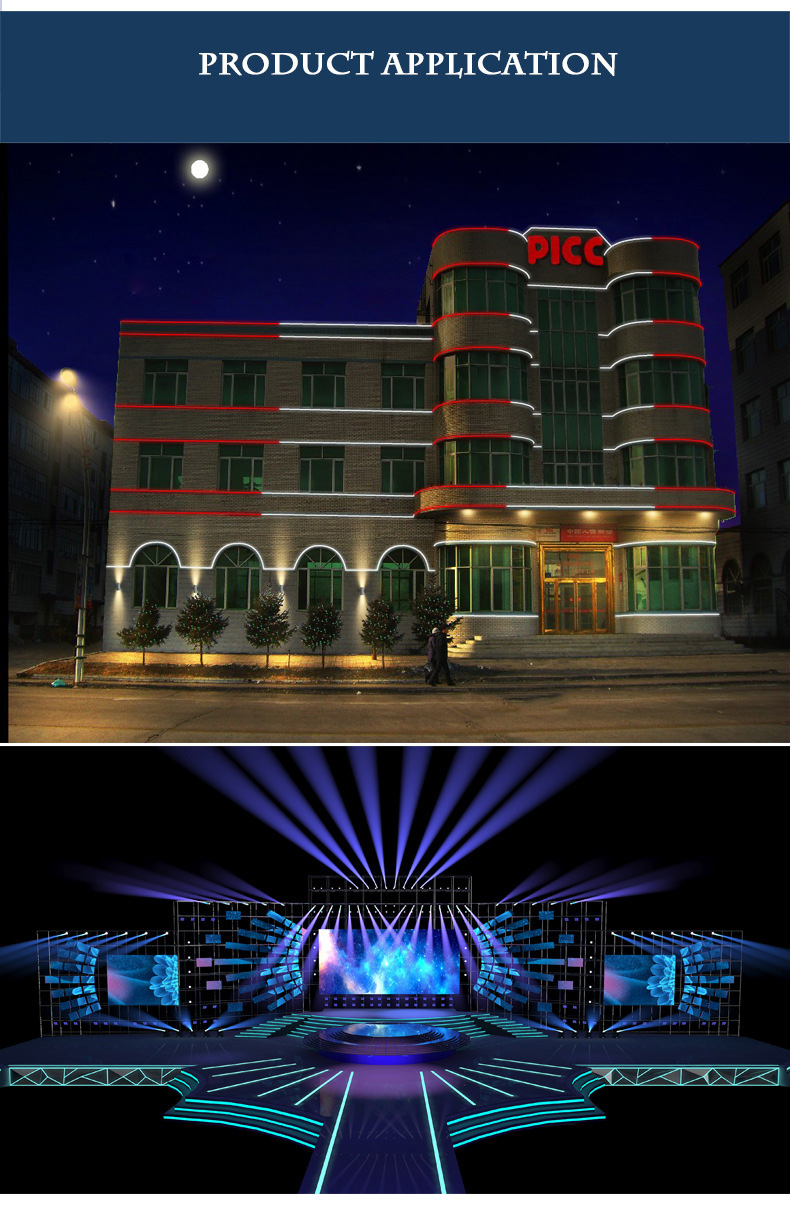

Applications
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Backlighting decoration
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,

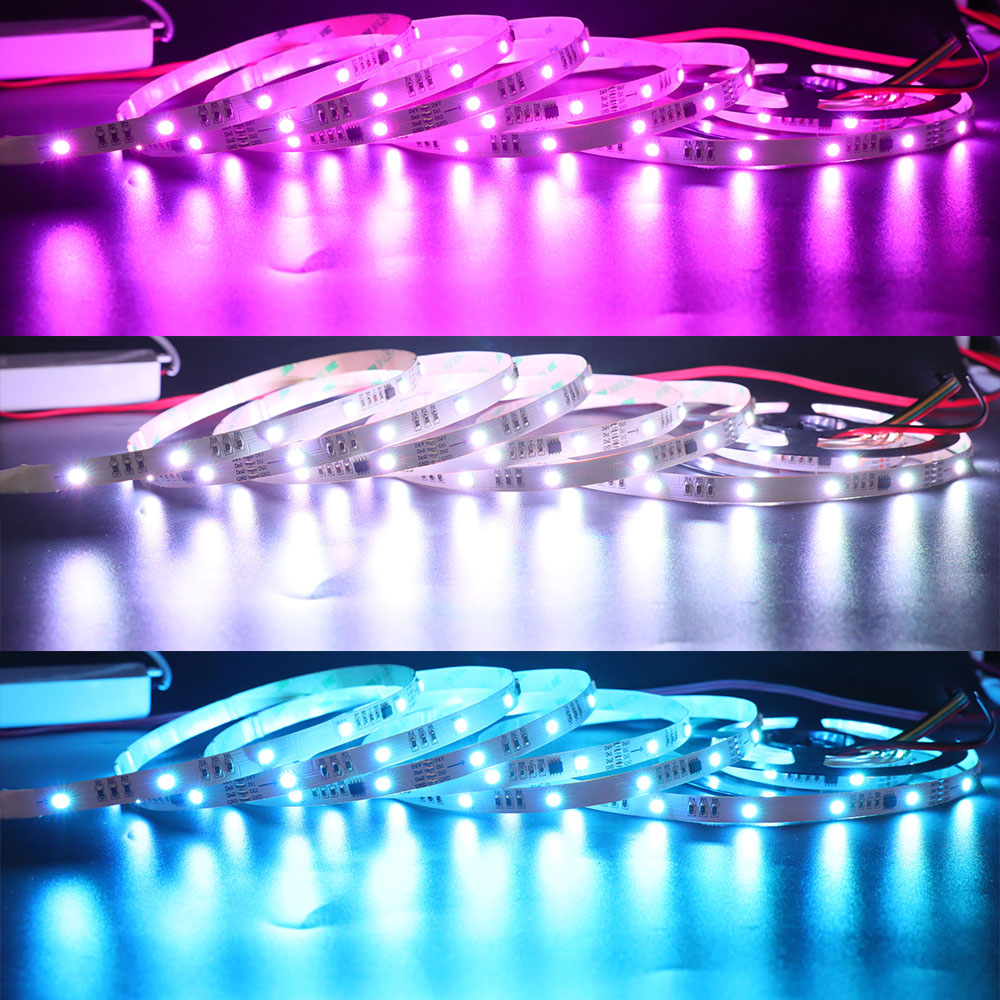

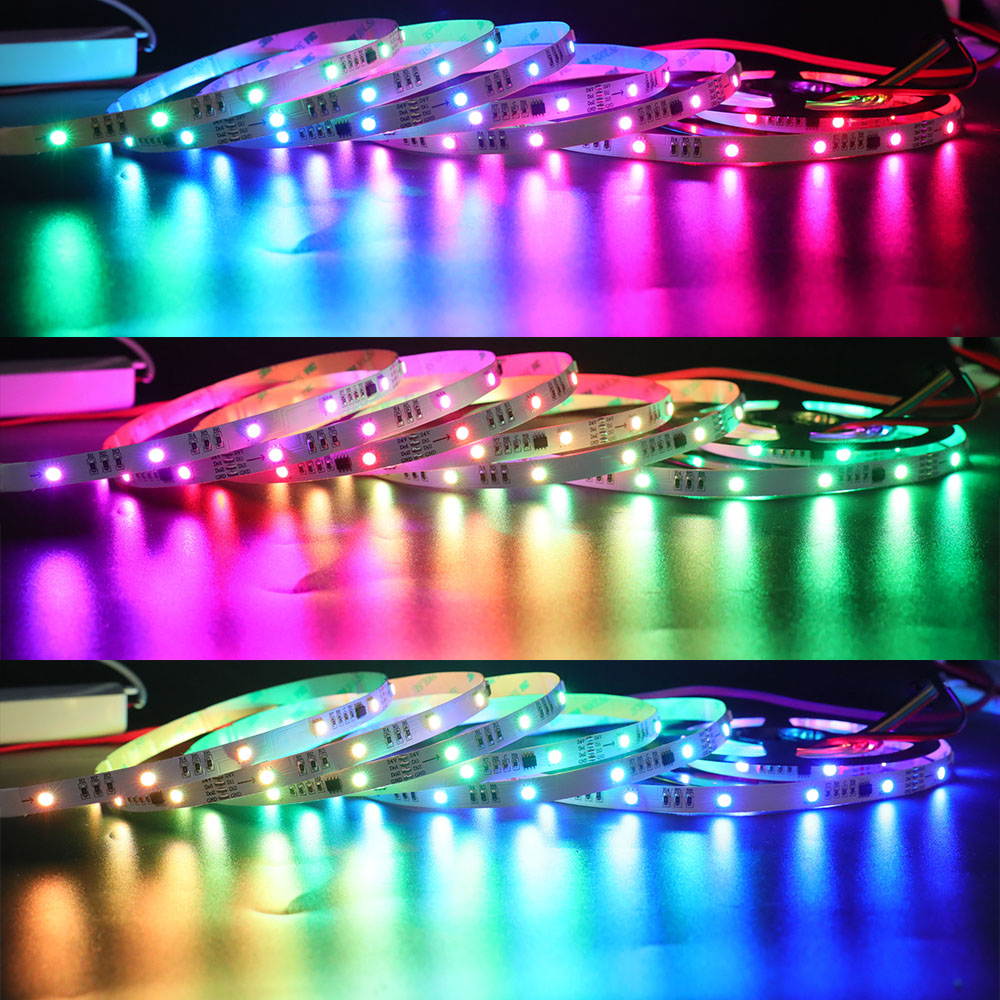

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
