Special Price: $5.99
The Hand Sweep Motion Sensor Light Switch is a convenient and practical solution for controlling DC12V-24V low-voltage small LED strip lights in cabinets, closets, wardrobes, book shelves, or other small spaces, with a maximum load capacity of 3A.

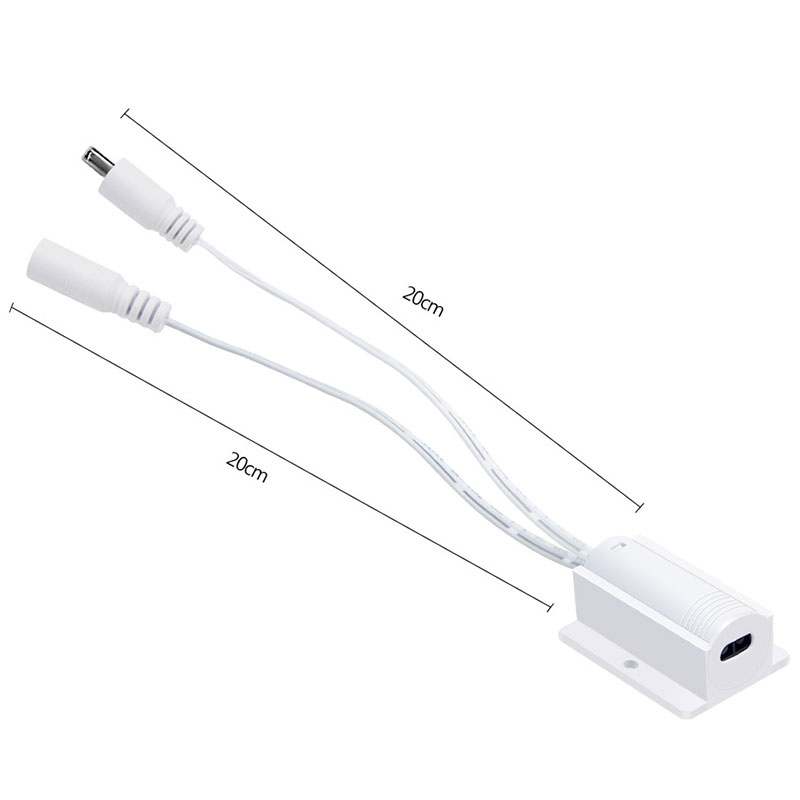

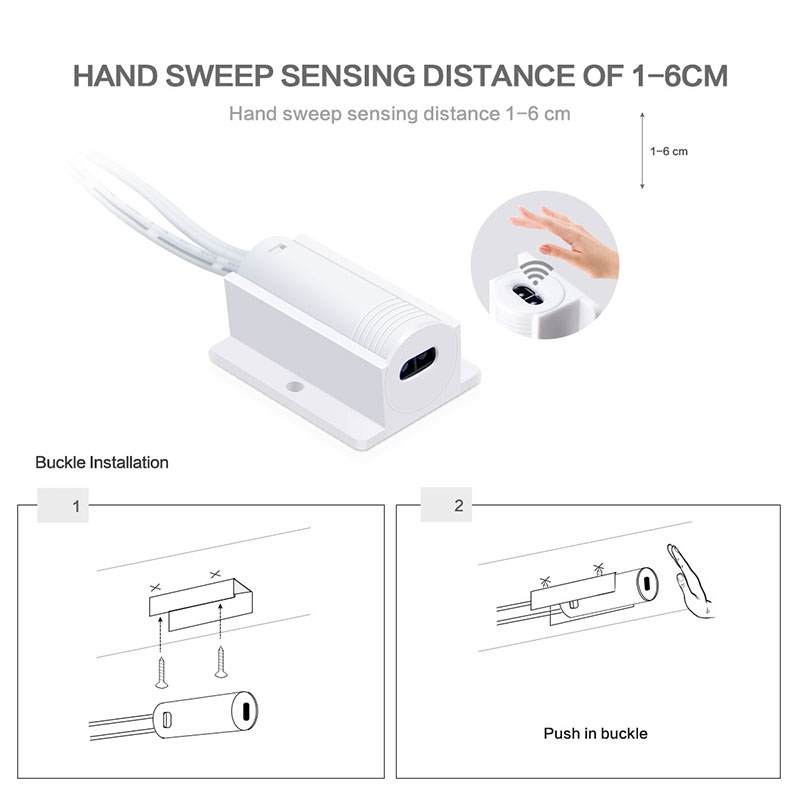

This IR sensor switch uses infrared technology to detect motion, which allows you to turn your LED lights on or off simply by waving your hand in front of the sensor of 1-6cm (0.4in-2.4in). Comes with DC interfaces (20cm/7.8in wire lengths), it can be easily installed and wired for use. You can paste the sensor switch to any place with double-sided tape.
Whether you're looking to upgrade your cabinet lighting or add some extra illumination to your closet or pantry, this hand sweep switch provides a reliable and easy-to-use option for DIY LED lighting projects. The compact size and design make it easy to install and use in a variety of settings.
LED Hand Sweep Sensor Switch Kit:
1m/3.28ft Kit: 1*hand sweep sensor swith + 1*1m/3.28ft 8mm dotless cob led tape + 1*power adapter (12V and 24V optional, 12V default)
2m/6.56ft Kit: 1*hand sweep sensor swith + 1*2m/6.56ft 8mm dotless cob led tape + 1*power adapter (12V and 24V optional, 12V default)
3m/9.84ft Kit: 1*hand sweep sensor swith + 1*3m/9.84ft 8mm dotless cob led tape + 1*power adapter (12V and 24V optional, 12V default)
4m/13ft Kit: 1*hand sweep sensor swith + 1*4m/13ft 8mm dotless cob led tape + 1*power adapter (24V only)
5m/16.4ft Kit: 1*hand sweep sensor swith + 1*5m/16.4ft 8mm dotless cob led tape + 1*power adapter (24V only)
Standards and Certifications
Product Specification
Product type: Hand sweep switch
Sensing mode: infrared induction
Sensing angle: 12°
Sensing distance: 1-6cm, 0.4in-2.4in
Rated voltage: 12~24VDC
Rated current: 3A
Load power: 36W-72W
Installation method: random paste
Color: White
Shell material: ABS
Weight: 30g
Application scope: interior decoration
Protection level: IP20
Mechanical life: 50,000 times
Note: Can not work in high temperature environment.
