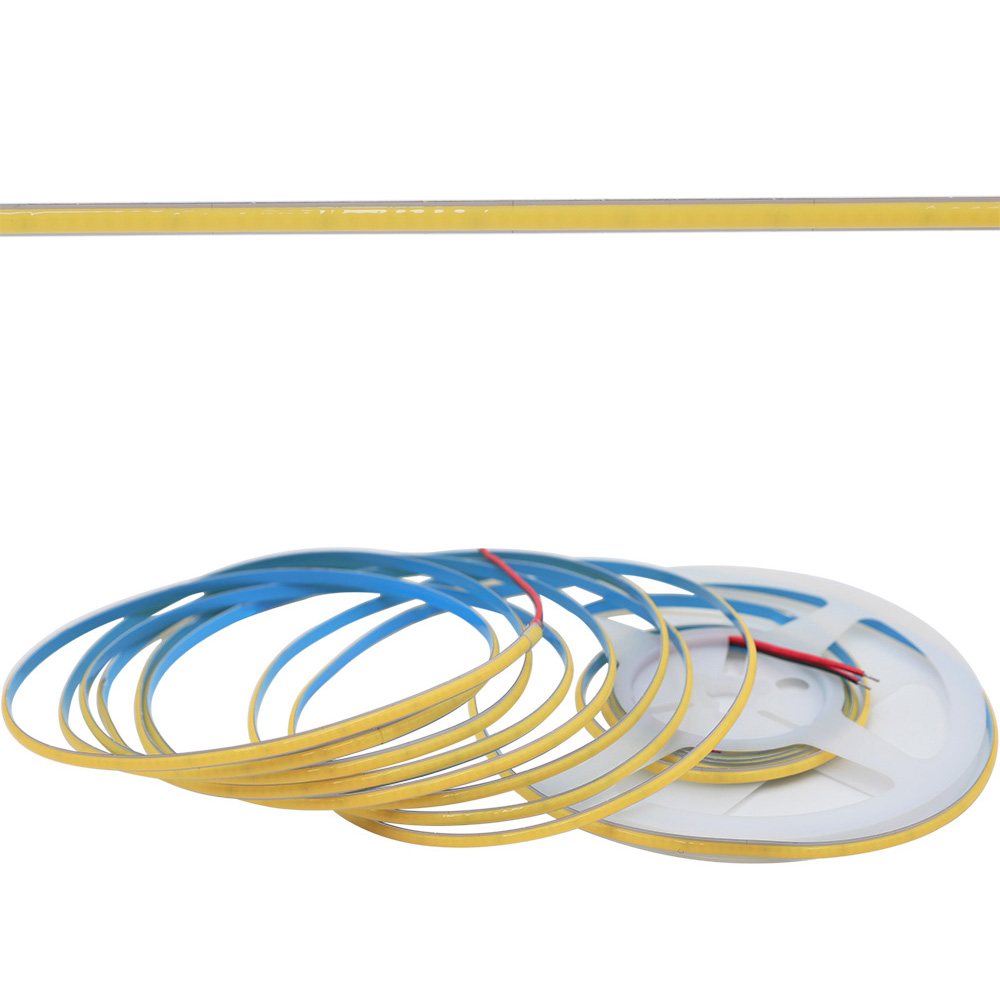

High CRI 90 5MM Ultra-narrow 384LEDs/M High-density White Color Light Flexible COB LED Strip Lights - DC12/24V - 16.4ft/5m per Roll
Related Products
High CRI 90 5MM...
$26.98 $12.9852% off
Mini LED Channel Aluminum...
$8.99
72W6A DC12V Plastic Shell...
$17.99
Single Color LED...
$19.98
72W3A DC24V Plastic Shell...
$17.99-
Special Price: $26.98 $12.9852% off

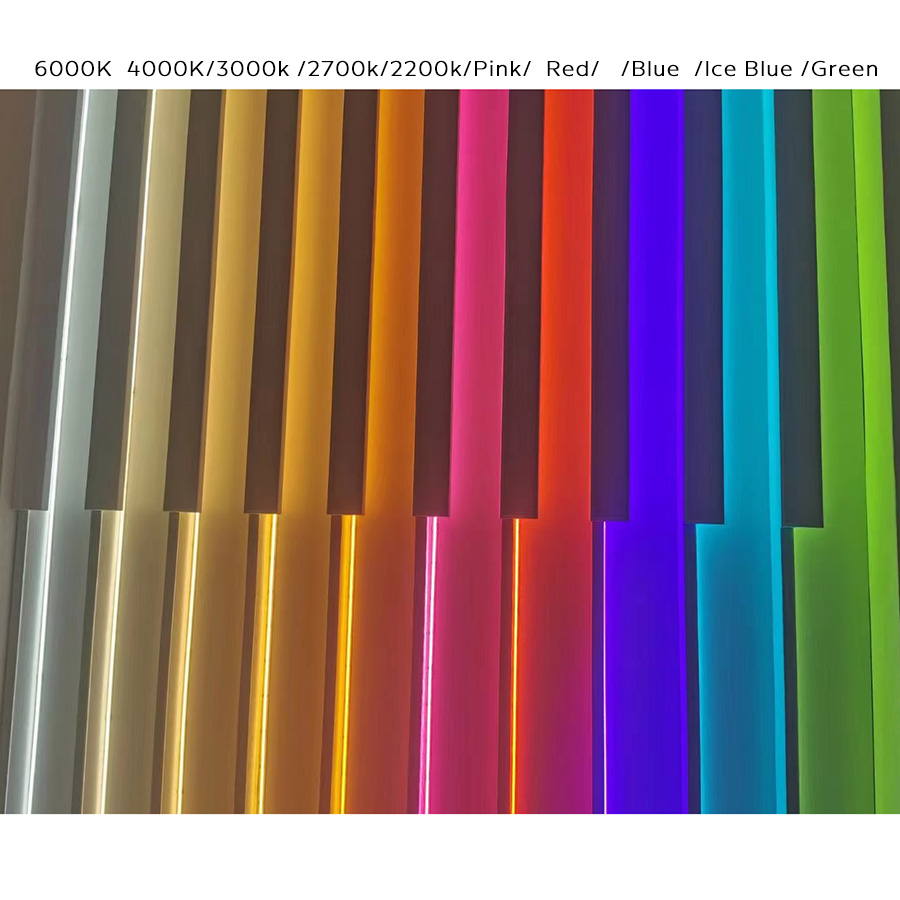

COB LED strip series are our hot sales products in 2020, super slim 5mm/0.20in, which can be installed in any narrow lighting environment, like the bookshlf, car lighting; warm white 3000K, natural white 4000K; daylight white 6500K, Red, Green, Blue, Golden Yellow, Pink, Ice Blue available, high CRI up to 90+. - 3000K warm white vs 4000K natural white vs 6500K daylight white.

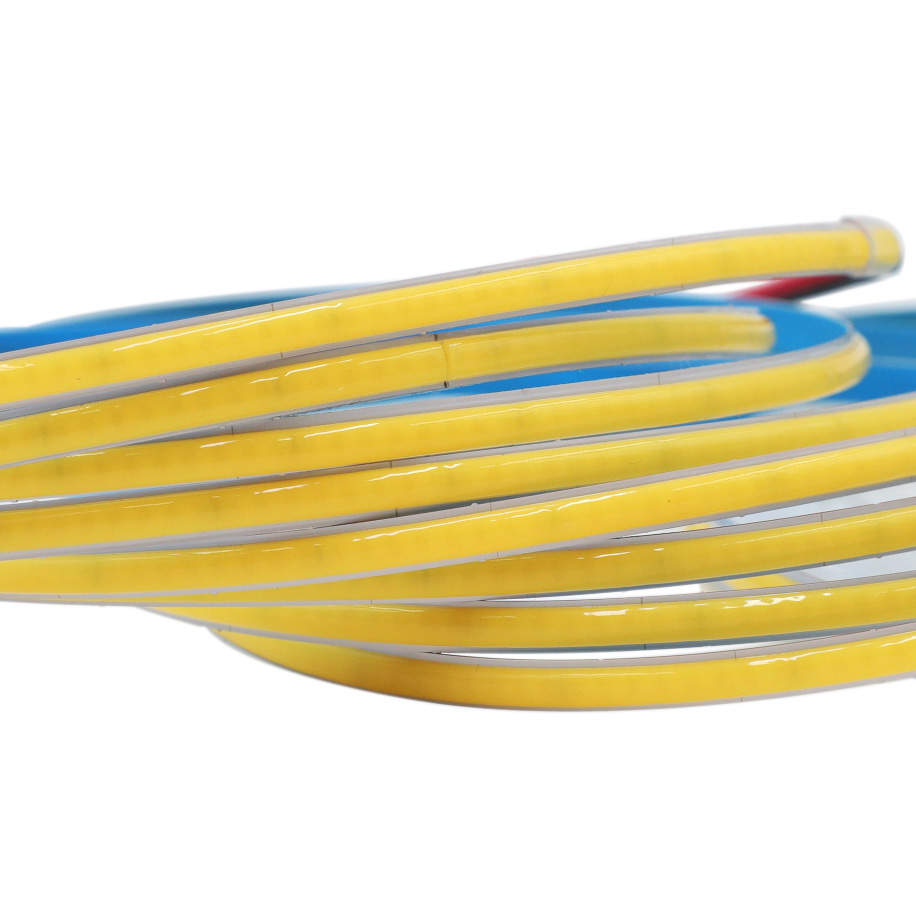

LED density of this white COB LED strip light is 384chips per meter, output 800-880lumens per roll, 180 degrees top lighting, sofely achieve without light spot in any direction; with good flexibility, you can bend at any angle.
For indoor & outdoor LED strip lighting, provide IP20 non-waterproof and IP67 waterproof optional, work with the transparent silicone tube, only increase 1-2mm for the wide.

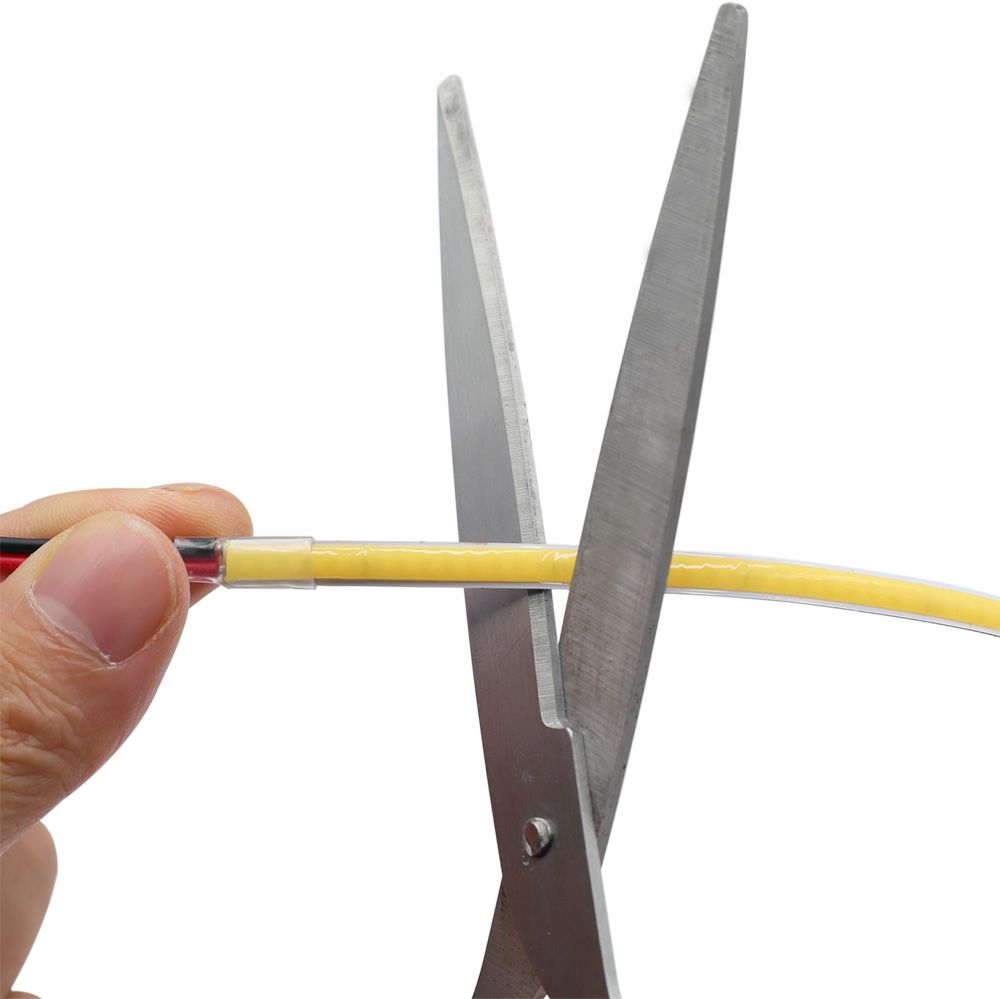

Every 41.5mm cuttable, please cut along the cut line, if you don't know how to cut the LED light strip, please read the following article: Can i cut the LED strip lights?
Please note, for the Golden yellow and Blue, we only have DC12V.
Standards and Certifications
Product Specification
| LED Strip Type |
COB LED (COB Flexible led strip light specification  ) |
| LED Chip | Epistar Chip |
| Input Voltage | DC12/24V |
| Lumen | 1152lm /m |
| Power | 10W/m; 50W/Roll |

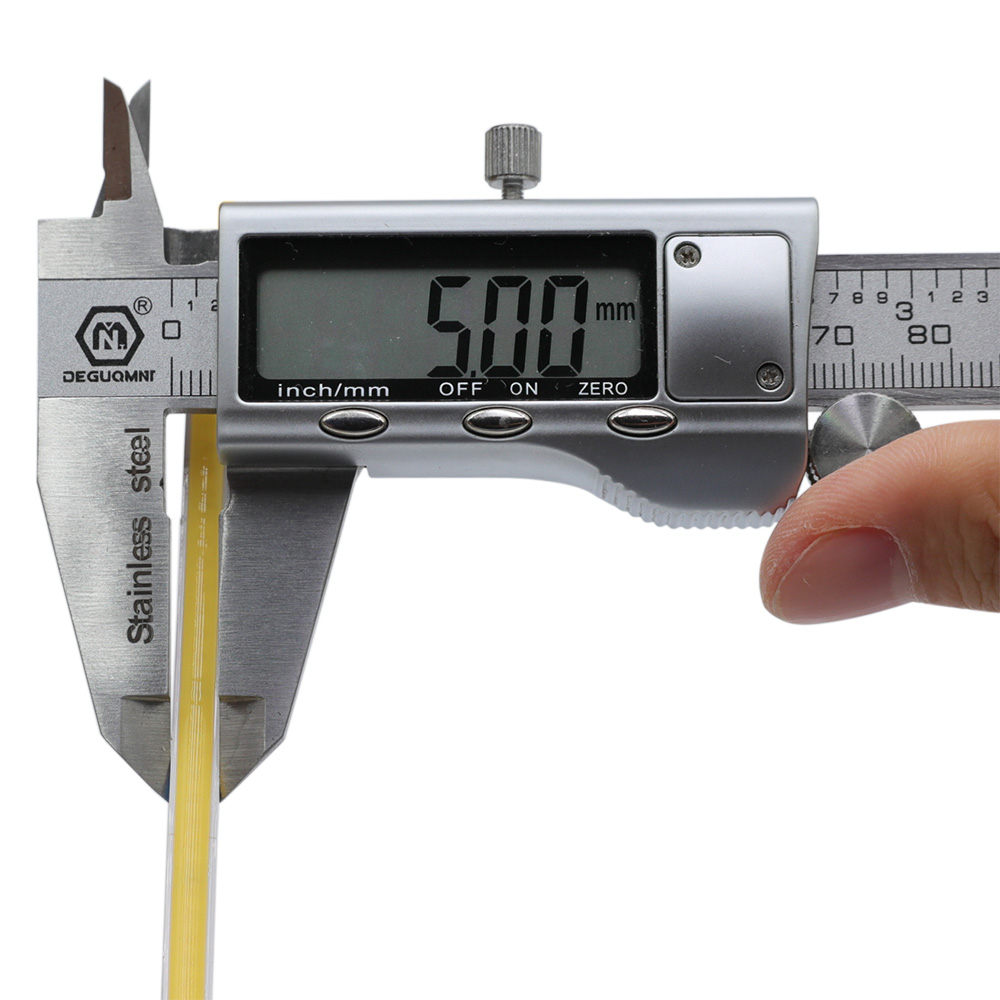

| PCB Width | 5mm/0.196in |
| LED Quantity | 384chips/m |
| Light Color | Warm white(3000K), Nature whtie(4000K), Daylight White(6000K), Red, Green, Blue, Ice Blue, Golden Yellow, Pink |

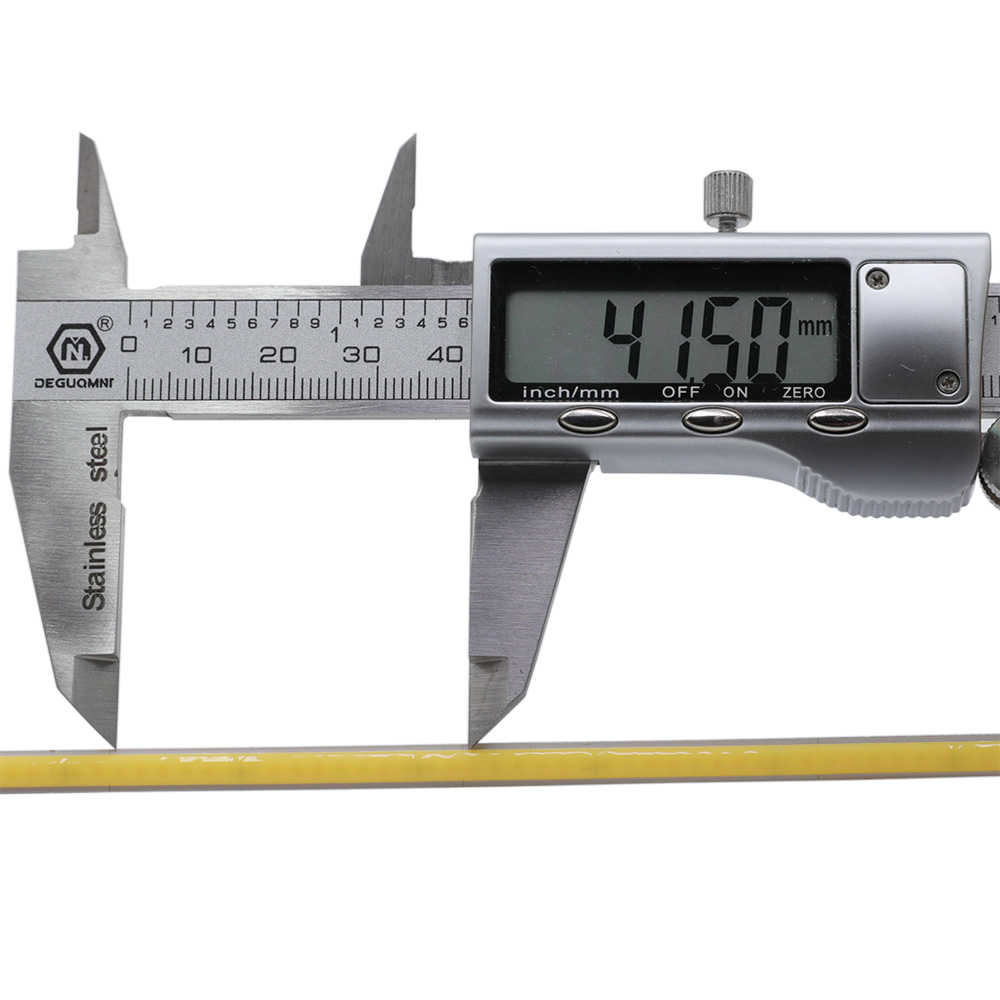

| Cut Length | 41.5mm/1.63in |
| PCB color | White |
| Color Rendering Index | Ra＞90 |
| Beam Angle | 180° |
| Dimensions | L500cm(196.8 in) x W0.5cm(0.196in) x H0.12cm(0.05 in) |
| CRI | 90+ |
| Lifespan | 50,000+hours |
| Output Lumen |
Warm white 3000K: 800 Lumens/m Nature white 4000K: 840 Lumens/m Daylight white 6500K: 880 Lumens/m |
| Waterproof Rating |
|
You can choose the controller or power supply or controller plus power option for this COB LED strip. Of course, only the COB LED light is also completely possible. The difference is whether you need to control the LED brightness change of the COB strip and whether you can supply power to the light strip.
In the following table, we list for you which products you will get if you choose the kit. If you have other needs, please check our product categories.
|
LED Strip |
Power | Voltage | Kit |
| 5m/16.4Ft COB Strip | 50W / Roll | DC12V |
Controller: V1 + RT1 Power supply: 12V 72W power supply adapter |
| DC24V |
Controller: V1 + RT1 Power supply: 24V 72W power supply adapter |
if you have any requirements for other types of the LED Controller, you can visit our Single Color Dimmer Series.
Don't know how to choose the correct LED power supply, please read the following article: How to calculate power for led strip lights?
When you purchase the LED power supply, please read the following article: How to choose led strip light power supply?
Color Temperature and CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose. Consider the look and feel you want your project to have.
• Warm white 3000K LED light is similar to the color of sunset, giving people a warm and comfortable feeling, suitable for installation in the living room, bedroom and other places.
• Natural white 4000K LED light is suitable for task lighting like kitchens or offices and is closer to white than 3000K. Requires more precision for lighting objects, 4000K light strips are more suitable for you than 3000K.
• Daylight white 6000K LED light shows more details and create a clear and transparent environment, suitable for working and task lighting.
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
Installation Instruction: How to Install LED Strip Lights?
|
|
|
|
|
|
|
|
|
Installation Diagram:
1. The required length of the COB light strip should be measured in advance.
2. COB light strip with interface plug cannot be reversed.
3. Place the COB light strips correctly.
4. Pay attention to the installation environment..
| Application | |
 Trademark lighting |
Logo lighting |
|
Channel letters lighting |
Lightboxes lighting |
|
Sign cabinets |
Channel lights |
|
Cove LED lighting |
Edge lit signs |
|
Canopy illumination |
Off-grid lighting |
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
