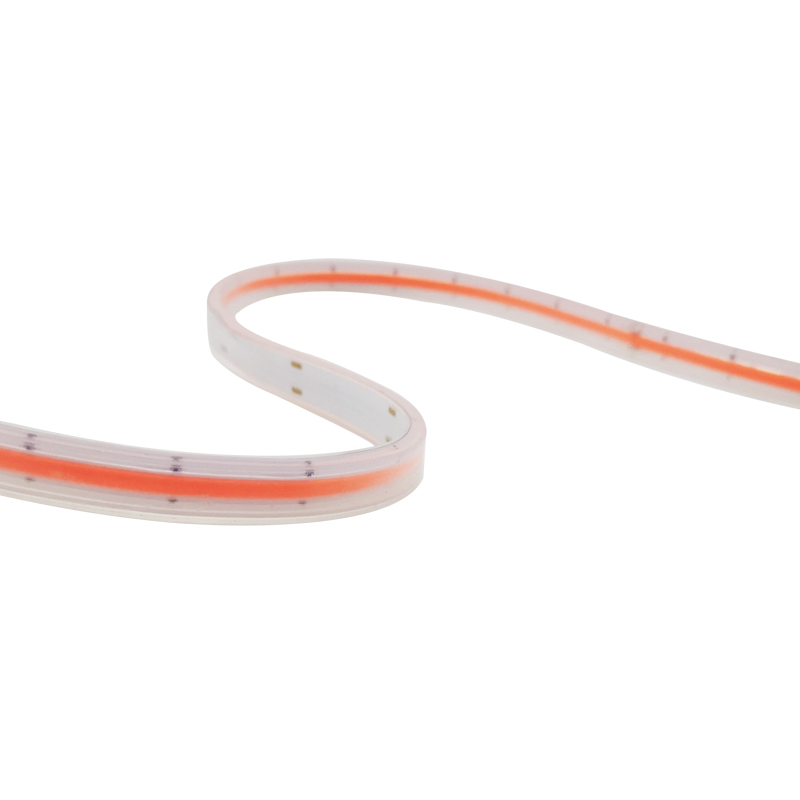

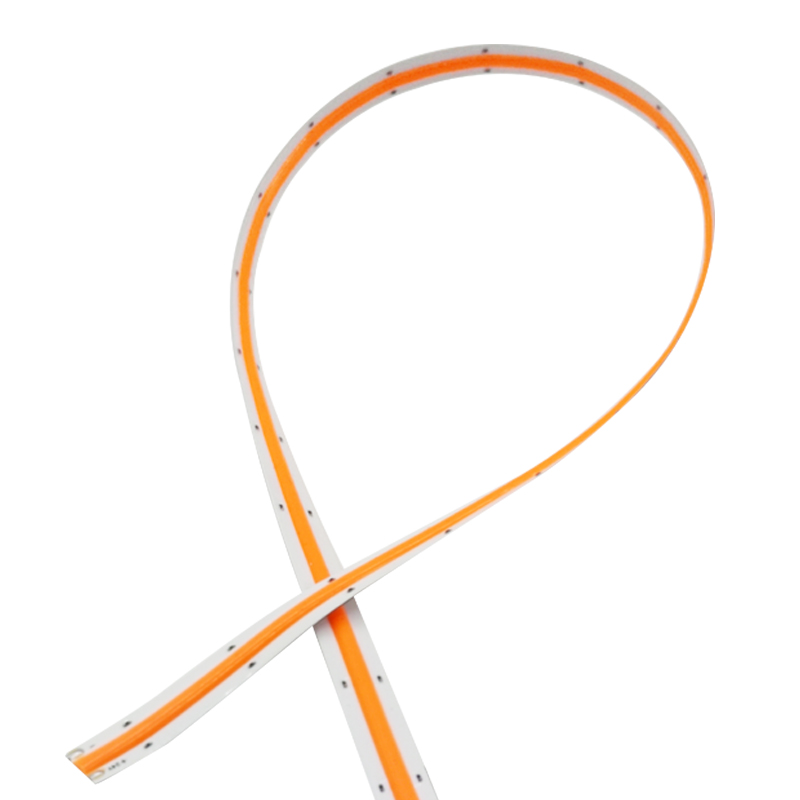

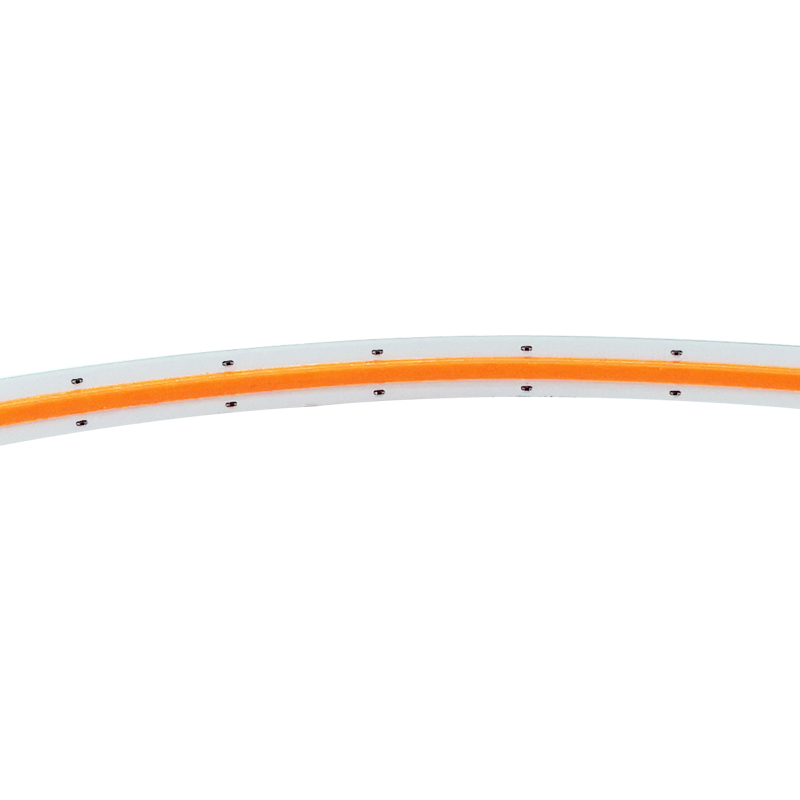

High CRI 90 SMD2110 3.28Ft 384/480Chips Optional Red Color Light Flexible COB LED Strip Lights - DC12/24V - 16.4ft/5m per Roll

Model: FSLCOB-24V-2110X3200-R
High CRI 90 SMD2110 3.28Ft 384/480Chips Optional Red Color Light Flexible COB LED Strip Lights - DC12/24V - 16.4ft/5m per Roll
  • High CRI 90 SMD2110 3.28Ft 384/480Chips Optional Red Color Light Flexible COB LED Strip Lights - DC12/24V - 16.4ft/5m per Roll
  • High CRI 90 SMD2110 3.28Ft 384/480Chips Optional Red Color Light Flexible COB LED Strip Lights - DC12/24V - 16.4ft/5m per Roll
  • High CRI 90 SMD2110 3.28Ft 384/480Chips Optional Red Color Light Flexible COB LED Strip Lights - DC12/24V - 16.4ft/5m per Roll
  • High CRI 90 SMD2110 3.28Ft 384/480Chips Optional Red Color Light Flexible COB LED Strip Lights - DC12/24V - 16.4ft/5m per Roll
  • High CRI 90 SMD2110 3.28Ft 384/480Chips Optional Red Color Light Flexible COB LED Strip Lights - DC12/24V - 16.4ft/5m per Roll
  • High CRI 90 SMD2110 3.28Ft 384/480Chips Optional Red Color Light Flexible COB LED Strip Lights - DC12/24V - 16.4ft/5m per Roll
  • High CRI 90 SMD2110 3.28Ft 384/480Chips Optional Red Color Light Flexible COB LED Strip Lights - DC12/24V - 16.4ft/5m per Roll
  • High CRI 90 SMD2110 3.28Ft 384/480Chips Optional Red Color Light Flexible COB LED Strip Lights - DC12/24V - 16.4ft/5m per Roll

Select Specifications:

Select LED Quantity:

Starting at: $40.00 $23.9840% off

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-9
$23.98
10-19
$22.78
20-29
$22.06
30+
$21.58
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    COB SMD Flexible FOB LED Strip Lights is the newest production in 2019.

    This versatile LED Strip Light is in 14.4W/M (4.39Watts foot). This LED Strip has very High-Density Lighting with 480 diodes per meter or (195/ft). It is cuttable every 0.98"(25mm) for 12/24VDC.

    The FPCB width of this led strip light is 8mm. And the COB width is 6mm. It is very suitable for aluminum profiles in a smaller size.

    Because of LED high density, the light through PC cover is fairly uniform without spot. If you seek a higher density, we can customize for you. Our PCB factory will make a quick response.



    Standards and Certifications

    DC12/24V CE FCC UL RoHS ISA SGS ISO LIFETIME warranty led factory



    Product Specification

    LED Strip Type Red COB LED Strip
    LED Chip Epistar Chip
    Input Voltage DC12/24V
    COB LED Size 2.1*1.0mm
    LED Chip COB LED chip
    Light Color Red; Plastic Pink
    Working Temperature -20℃~+45℃
    Storage Temperature -20℃~+60℃
    Power 12-14W/m, 60-70W/Roll
    PCB Width 8mm/0.31in
    LED Quantity 480 Chips per meter (3.28 ft)
    White Color Red(620-630nm)
    Cut Length 0.98"(25mm) /  1.97''(50mm)
    Beam Angle 180°
    Luminous Efficiency 950-1400LM/m
    PCB Length 5m/16.4Ft
    Wire Material copper foil
    Lifespan 50,000+hours
    Waterproof Rating

    IP20 IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);

    IP67 IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);



    How to choose LED strip lights kit?

    You can choose the controller or power supply or controller plus power option for this COB LED strip. Of course, only the COB LED light is also completely possible. The difference is whether you need to control the LED brightness change of the COB strip and whether you can supply power to the light strip.

    In the following table, we list for you which products you will get if you choose the kit. If you have other needs, please check our product categories.

    LED Strip

    Power Voltage Kit
    5m/16.4Ft 40-60W/Roll DC12V

    Controller: V1 + RT1, you can also visit Single Color Dimmer Series

    Power supply: 12V 72W power supply adapter

    More buy choice: 12V 75W MW power supply and 12V 80W waterproof power supply

    DC24V

    Controller: V1 + RT1, you can also visit Single Color Dimmer Series

    Power supply: 24V 72W power supply adapter

    More buy choice: 24V 75W MW power supply and 24V 80W waterproof power supply



    Don't know how to wire? please read the following articleHow to wire the single color LED strip light

    single color led strip light wiring diagram



    High CRI 90 SMD2110 3.28Ft 384/480Chips Optional Red Color Light Flexible COB LED Strip Lights - DC12/24V - 16.4ft/5m per Roll

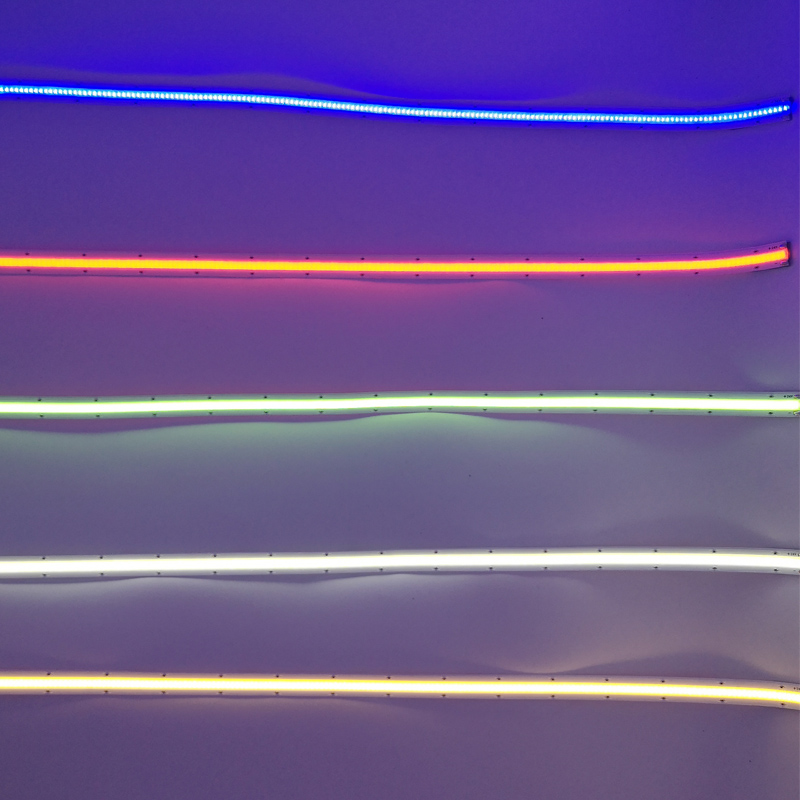

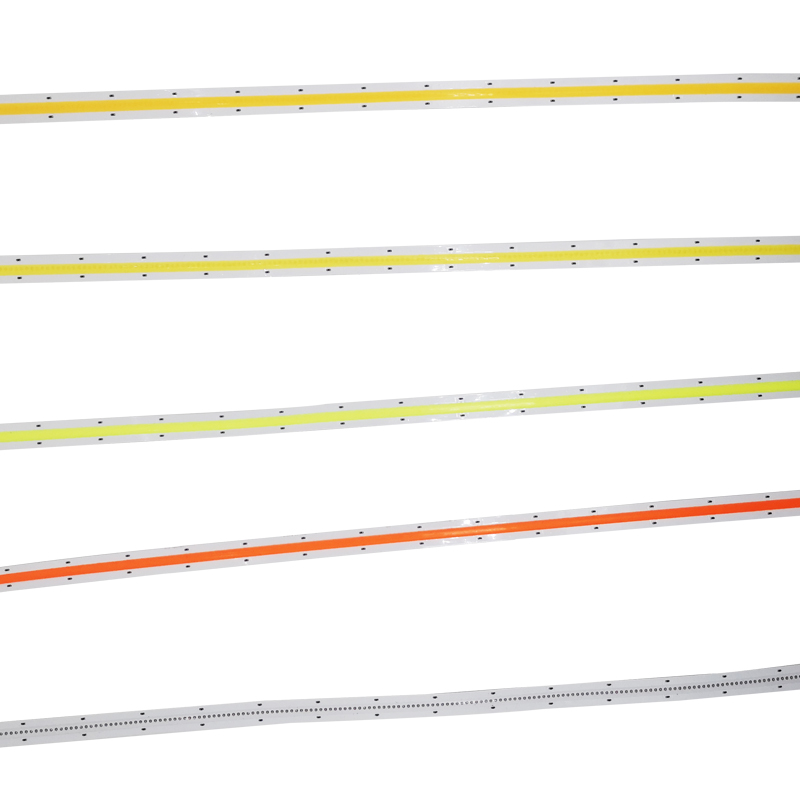

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
