High CRI95 3528SMD Quad Row Green LED Strips - DC24V Super Bright Flexible LED Lights
Related Products
High CRI95 3528SMD Quad...
$19.98 $12.9835% off
1CH*15A 12-48VDC CV...
$14.98
200W8.33A DC24V Constant...
$49.98
Mean Well LRS-200-24 ...
$39.00 $36.985% off
WiFi Gateway WiFi-Relay...
$24.98-
Special Price: $19.98 $12.9835% off

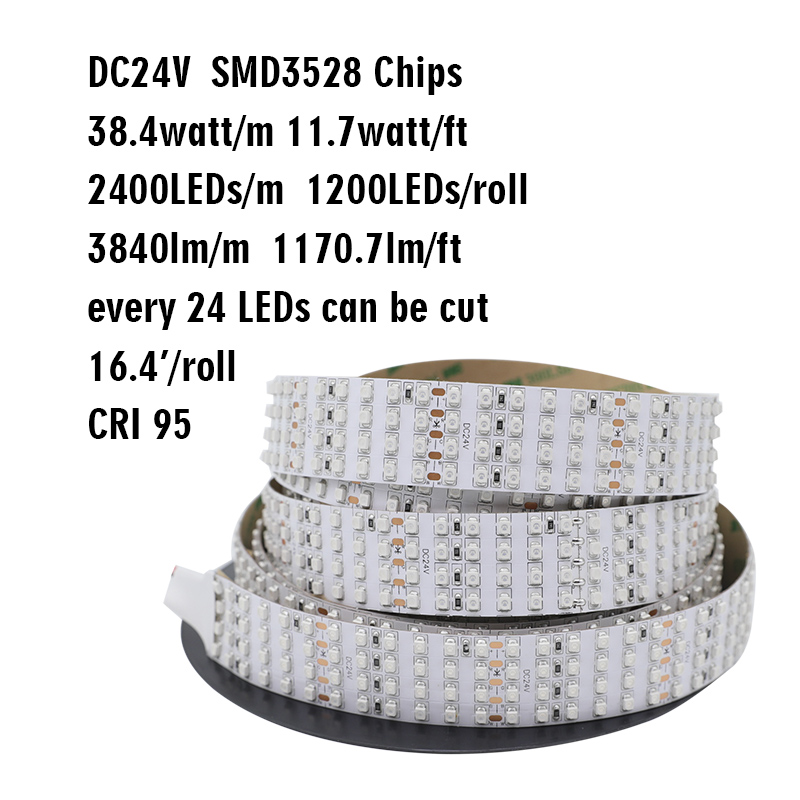

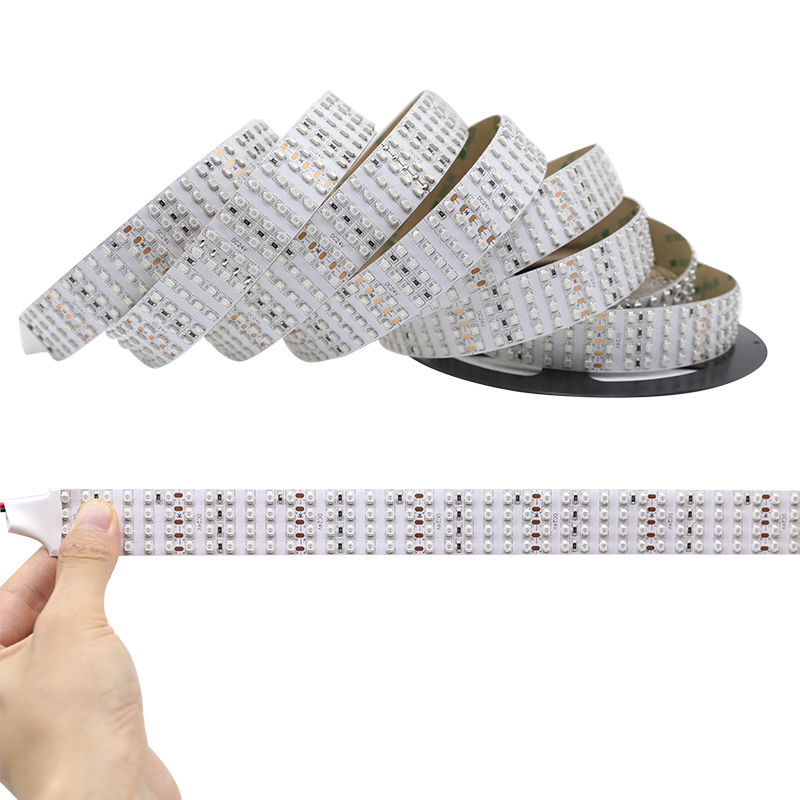

DC24V brightest green led strip lights with quad rows of 3528 SMD LEDs, 1-meter 3.28ft per roll. Universal Quad Row Nanometer Waterproof Single Color Super Bright High Density 3528 SMD Flexible LED light strips, Epistar chip, 2400LEDs/16.4ft, 16.4ft(5 meters) Per Reel.
Our brightest Flexible LED Solid Color light Strips soft and easy bended for installation. High Quality PCB with a nano film layer, IP20 nanometer , More conducive to Cooling，can be used under water. Super Bright 3528 SMD LED, low power, brilliant light output. All the light spread and completely smooth,luminous very even. Available in 5 meter (197 in) IP30 nanometer waterproof flexible light strips with adhesive backing and can be stuck just about anywhere. can be cut into 24-LED segments, so you could cut a different length for your project and request. The LED strips Suitable for the average home lighting as well as lighting professionals. 24VDC operation. Dimmable - Connect LED Smart Dimmers.
Note: When you order more than one strip at a time, we offer customization options for you.
If you purchase 20 pieces of 1m strips and select 'send separate 1m strips accordingly,' you will receive 20 individual 1m strips.
If you select 'send a single continuous strip accordingly,' we will ship a single 20m strip to you.
For customers who only want one 1m strip, please select the option 'only need one 1m strip'.
Standards and Certifications
Product Specification
LED Strip Type: SMD 3528 2400PCS/16.4ft
LED Chip: Epistar Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Green

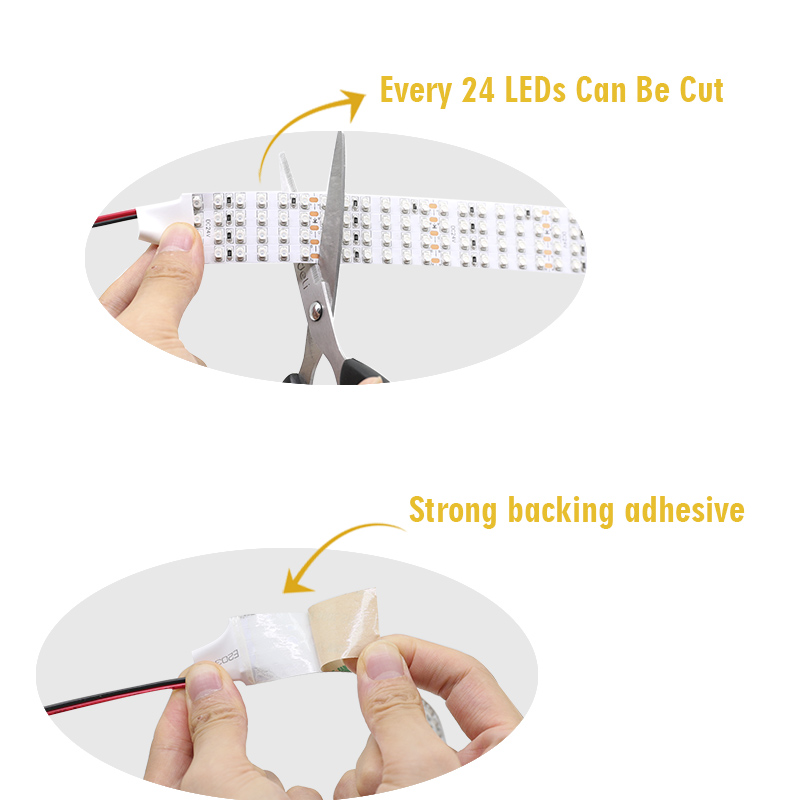

Dimension: 16.4ft/roll, every 24 PCS LED can be cut
LED Quantity: 480 LEDs per meter (3.28ft)
Lifespan: 50,000+hours
Warantty: 3 years
Dimensions: L500cm(196.8 in ) x W2.8cm(1.10 in ) x H0.20cm(0.08 in )
Input Voltage(V): 24VDC
Working Power: 8A 192W /16.4ft Max
Lamp Luminous Flux(lm): 7~8lm/LEDs 19200lm/16.4ft
Color Temperature CCT(White): Warm White(2700-3200k), Daylight White(4500-7000k), Cool White(8500-12000k)
Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Beam Pattern: 120 degree
Water Proof: Non-Waterproof IP20/ Waterproof IP67
Applications
-
Back lighting
-
Cove LED lighting
-
Accent decor lighting
-
Display case lighting
-
Under cabinet LED lighting
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare , with self-adhesive back, For Indoor);
IP30 Nanometer waterproof (Nano film layer, IP30 nanometer waterproof, can be used under water, with self-adhesive 3M back, For Outdoor & Indoor)
