HL-BAPL006-Height 16mm Corner Recessed Extruded Aluminum Channel Profile Good heatsink For Width 10mm LED Flexible Strip Lights
  • HL-BAPL006-Height 16mm Corner Recessed Extruded Aluminum Channel Profile Good heatsink For Width 10mm LED Flexible Strip Lights
  • HL-BAPL006-Height 16mm Corner Recessed Extruded Aluminum Channel Profile Good heatsink For Width 10mm LED Flexible Strip Lights
  • HL-BAPL006-Height 16mm Corner Recessed Extruded Aluminum Channel Profile Good heatsink For Width 10mm LED Flexible Strip Lights
  • HL-BAPL006-Height 16mm Corner Recessed Extruded Aluminum Channel Profile Good heatsink For Width 10mm LED Flexible Strip Lights
  • HL-BAPL006-Height 16mm Corner Recessed Extruded Aluminum Channel Profile Good heatsink For Width 10mm LED Flexible Strip Lights
  • HL-BAPL006-Height 16mm Corner Recessed Extruded Aluminum Channel Profile Good heatsink For Width 10mm LED Flexible Strip Lights

HL-BAPL006-Height 16mm Corner Recessed Extruded Aluminum Channel Profile Good heatsink For Width 10mm LED Flexible Strip Lights

Model: HL-BAPL006

Starting at: $6.29

Free Shipping Worldwide On Order Over $199

Please Choose:





Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

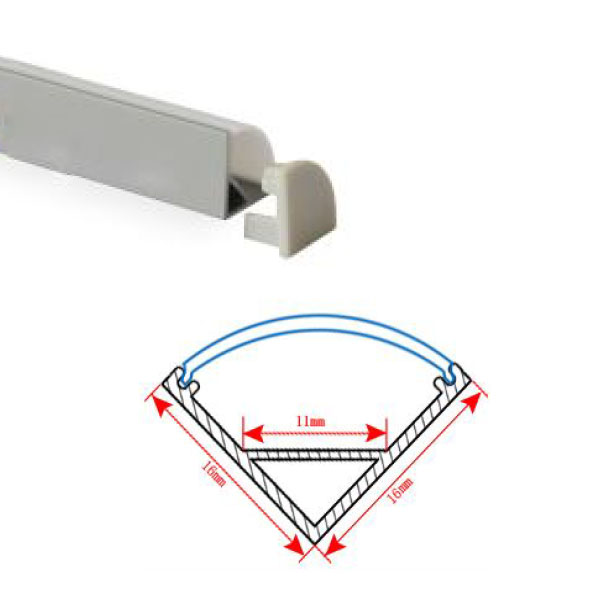

    Aluminum Profile BAPL006 is a slim, low-profile, Aluminum profile, channel, extrusion, for High to medium output flexible LED strip lights. Use this for professional LED light installations. LED Aluminum channels act as a heat sink to protect your high CRI LED strips from overheating. Aluminum extrusions for LED strips also waterproof RGB ribbon LED strips in outdoor installations. For added waterproofing use an IP65 or IP67 / IP68 LED Strip. This is Aluminum Channel comes with one pair of clips, end-caps, and one PC/PMMA lens. Provide 5 kinds of covers: PC and PMMA opal, semi-clear and clear cover.

    Note:

    As the 2 meter and 2.5 meter aluminum channel is too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum product itself is soft and easily damaged, so under normal circumstances, 2 meters and 2.5 meters of aluminum channel MOQ is 10 peice,

    If you need a full 20 meter aluminum channel, we recommend that you use 20 1 meter long aluminum profiles splicing with some channel connector, both sides of the product using industrial right angle cutting, after installation does not affect the appearance

    We also sell aluminum"=" "T" "L" "+" connectors, please check here to open link.

    If you are wholesaler please contact our Sales Manager.  we also have wholesaler price.




    Note:

    Under normal circumstances, 2 meters and 3 meters of aluminum channel MOQ is 10 peice,

    Because the 2 meters and 3 meters aluminum channel is too light too long, packaging volume is relatively large,  and shipping cost is expensive, the aluminum product itself is softand, easily damaged, the DHL express company will refuse delivery, so we do not assume the risk of product being deformed and damaged in transit !

    If your needs in 1-20 meters, we recommend that you use a 1 meter long aluminum channel splicing, both sides of the product using industrial right angle cutting, after installation does not affect the appearance.

    Model:     BAPL006

    Length:     1m(3.28')/2m(6.56')/2.5m(8.2')

    Width:   16mm/0.62"

    Height:   16mm/0.62"

    Surface process:   Anodic oxidation

    UV resistant:   Yes

    Lens:   Clear / Semi-clear / opal matte

    Diffuser material:   PC/PMMA

    Material:   Aluminum 6063

    Channel:   White

    Inside Width For Max Strip PCB:   0.39" (10mm)

    End cape material:   Aluminum 1070/ABS

    Clips material:   PC/SUS304

    Installation mode:   Embedded

    Warranty:   3 Years

    Weight:    0.4KGs



    Features

    1.High quality diffuser, placing/removing from front on click ,For indoor use only

    2.Made from anodizing aluminum

    3.Suitable for flexible 3528/5050/3014/2835/5630/5730/3535SMD flexible led strip lights

    4.Available with PC/PMMA opal matte diffuser, semi-clear matte diffuser, clear diffuser

    5.Not LED dots shows on opal diffuser (high density LED ribbon)

    6.Available length – 1m and 2m(MOQ:10PCS)

    7.UV resistant



    Applications

    1.  Furniture production (kitchen / office)

    2. Stores shelf LED lighting

    3. Heat sink and physical protection to the LEDs

    4. Independent LED lamp

    5. Interior light design (stairs / storage / floor)

    6. Exhibition boot LED lighting
