Special Price: $42.85

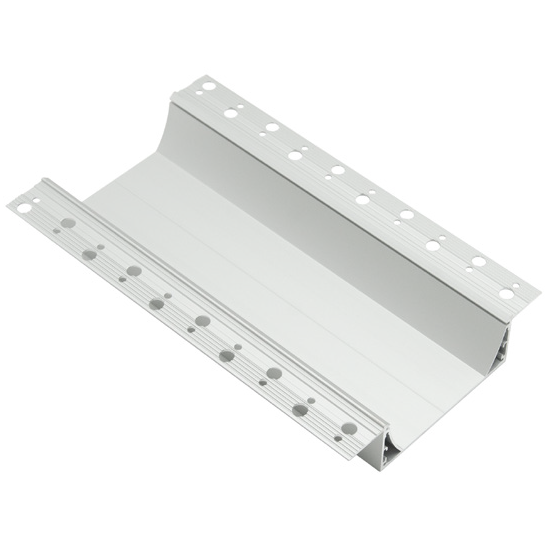

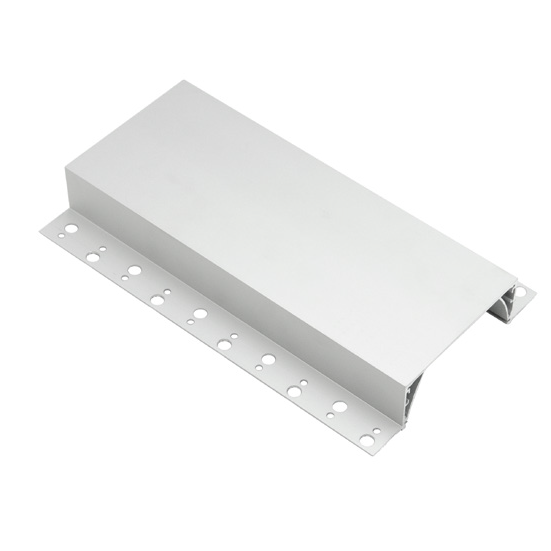

Large recessed led channel for led strip lighting, large light-emitting area, can be embeded into walls or ceilings, create a linear lighting. Made of 6063-T5 high-quality aluminum alloy, this led drywall channel provides additional heatsinking and mechanical protection for the led light strip. The PC matte diffuser cover makes the led lighting uniform and softer. Comes with end caps, the aluminum led diffuser channel is perfect for your residential and commercial LED light projects.
HL-A051 Specification download
Note:
As the 2m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip channel product itself is soft and easily damaged, so under normal circumstances, 2m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
| Material: | 6063-T5 Aluminum Alloy |
| Model: | HL-A051 |

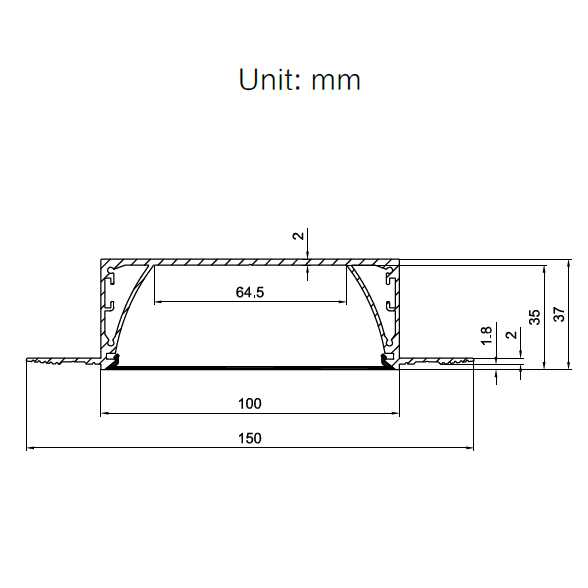

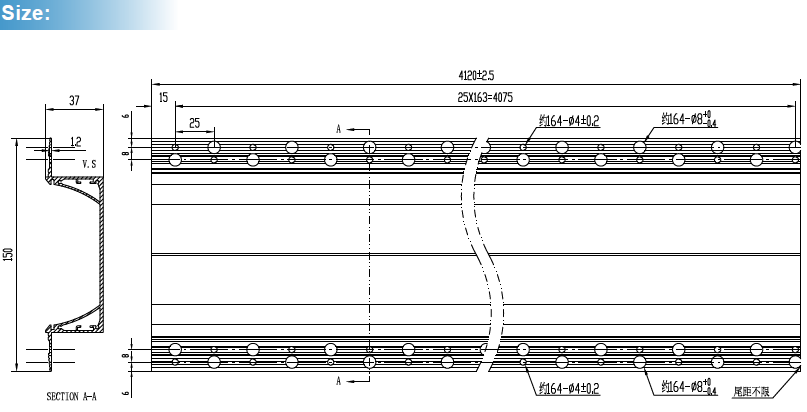

| Channel Size: | W150mm(5.9")*H37mm(1.45") |
| Inner Width: | 64.5mm(2.53") |
| Aluminum Color: | Silver |

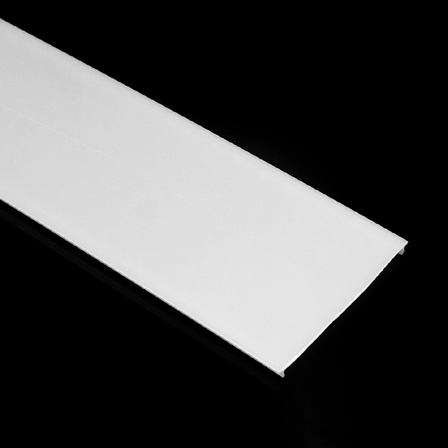

| LED Diffuser: | PC microprism diffuser |
| Length: | 1m(3.28ft) / 2m(6.56ft) |

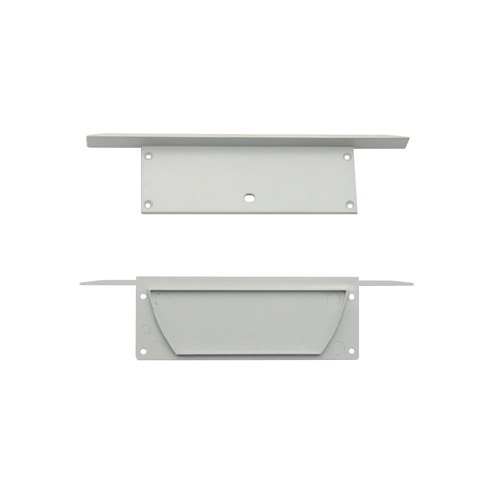

| Accessories: | End cap without hole, end cap with wire hole |
| Waterproof Rating: | Non-waterproof(Indoor use) |
| Apply to: | Flexible or rigid LED strip lights woth any color |

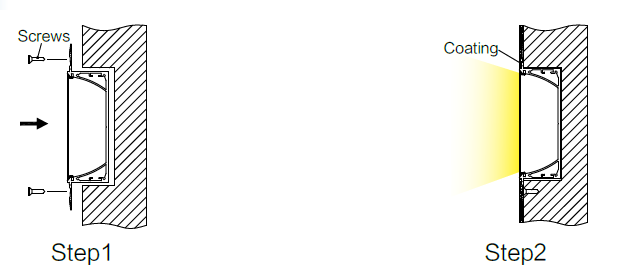

| Installation: | Recessed Mount |
Applications - Ultimate Guide to Aluminum LED Strip Channel
-
Residential lighting: wardrobe, cabinet, kitchen, furniture, etc.
-
Commercial lighting: office/supermarket/shopping Mall/retail store
-
Indoor illumination
-
Stores shelf LED lighting
-
Heat sink and physical protection to the LEDs
-
Interior light design (stairs / storage / floor)
-
Exhibition boot LED lighting
-
Backlight or supplementary lighting
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
