LED Lighting video Display Control System LT-600
LT-600 lighting control system is an advanced LED lighting products' video Display control system. LT-600 kernel is VLSI, realize computer simultaneously plays, offline video on demand, automatic timing control, WIFI wireless transmission, SPI/DMX512 signal outputs and it's exterior connect with DMX console to achieve the world's first six in one function. Achieve synchronization /offline seamlessly switch, no need any splitter. It needn't add DVI Graphics Cards and Send Cards in online synchronous play, easy to install, matching software's function adapter and send cards, Easy to install, matching software's function perfect. Easy to operate. Advanced color grey level processing technology, consistent with human eye's visual sensory, display. Let your LED lights effect performance thoroughly, one-upmanship!
Product Features
1、Controller collect 6 kinds of major function, which reached by previous multiple controllers.

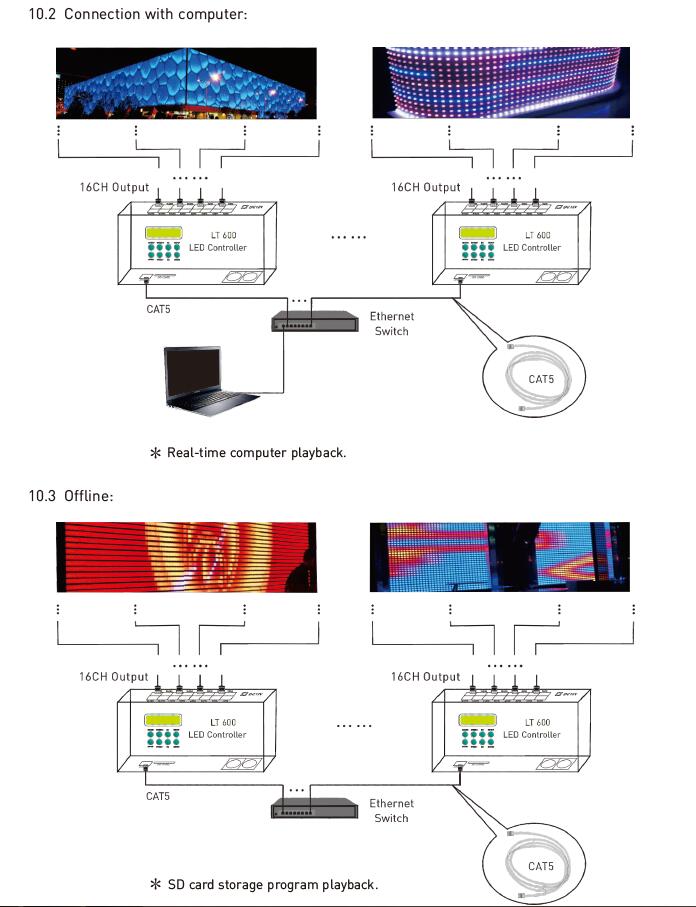

●Ethernet real-time computer control via the synchronous display.
●Offline SD card store request programme. Programming, speed, and other functions will be seen with half an eye on the LCD.
●DMX512 and SPI signal outputs are optional.

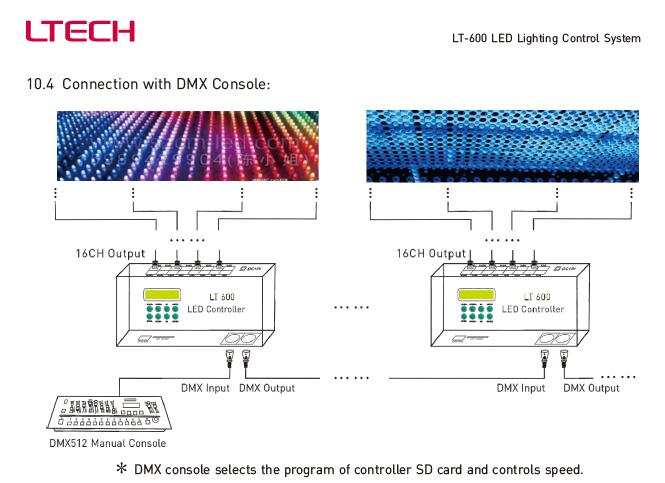

●Can be connected with DMX console to form the lighting control network.
●Supporting WiFi wireless transmission, For special occasions, No need wiring.
●Supporting timing display any time. Realize display different programs, No matter on working day or weekend.
2、DMX signal output directly, can also control LED fixtures with various driving chips. LED fixtures based on below driving IC can be controlled:
74HC595, 6B595, MBI5026, DM134, ZQ9712, LPD6803, LPD6813, LPD1101, D705, UCS6909, UCS6912, UCS1903, UCS1909,
UCS1912, UCS2903, UCS2909, UCS2912, WS2801, WS2803, WS2811, WS2812B, HL1609, SM16716, SD600, P9813, LPD8803,
LPD8806, LPD8809, LPD8812, TLS3001, TLS3002, TLS3003, TM1803, TM1804, TM1809, TM1812 IC etc.

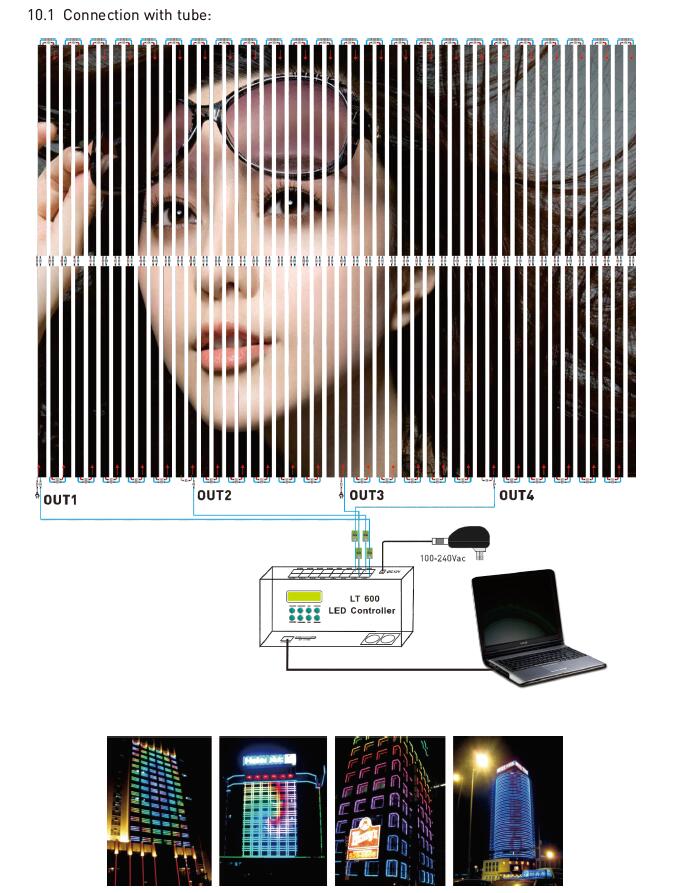

3、LED lights not only in accordance with the rule of cabling but also support a variety any cabling's abnormal lighting project.
4、Extra large control capability,16 channels signal output, max. control 30720 full-color pixels per LT-600. Support network. synchronization of multiple controllers,
5、On-line controlling adopt universal 10/100/1000MBPS network interface, with TCP/IP standard ethernet protocol, accommodate.to wide range. Reliable communication, support WiFi wireless network transmission and real-time simultaneous display. Also can use the internet's remote control to achieve real-time simultaneous display.
6、Adopting advanced image processing technology. It needn't add DVI Graphics Cards and Send Cards in online synchronous play, any desktop and laptop can control it, convenient for project's debugging and demonstration.
7、Adopting the way of network synchronization, synchronous controlling of multiple can be achieved through network switched.
8、Animation, video files converted generate ultra-fidelity off SD card's read files. ultra-small size, let the time of request programme longer. And the content more affluent; SD card is easy to play the animation, either pull down and then use the card reader to update, can also be updated remotely via ethernet.
9、Advanced color grey level processing technology, consistent with the human eye’s visual sensory, display effect will more vivid, higher brightness, richer color. Effectively remove the tooth angle produced by the floating line in the video. Show the smooth and natural image.
10、Perfect software function, simple to operate, own video display, support most media format. The user can compile various pictures, texts. Cartoon, video as the programme that will be present. Can input any text display in the process of play. Support viewfinder read the display on the screen directly. Breakthrough the restrictions to code stream format, play Random format file. Realize split screen the display can divide screen at will. Switching Chinese and English version freely.

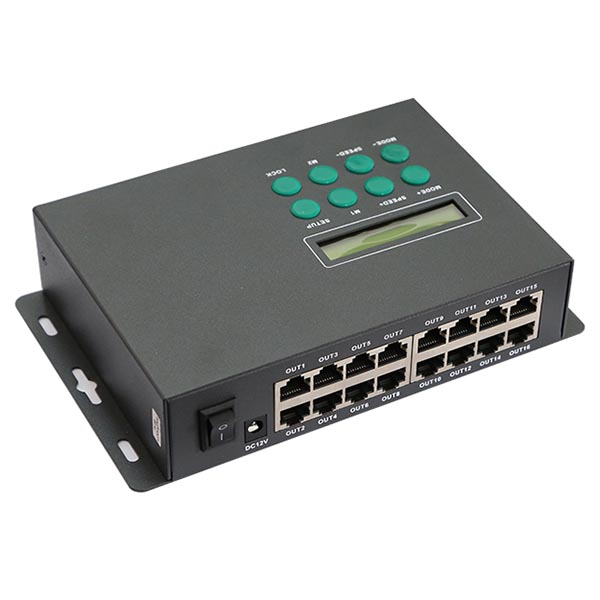

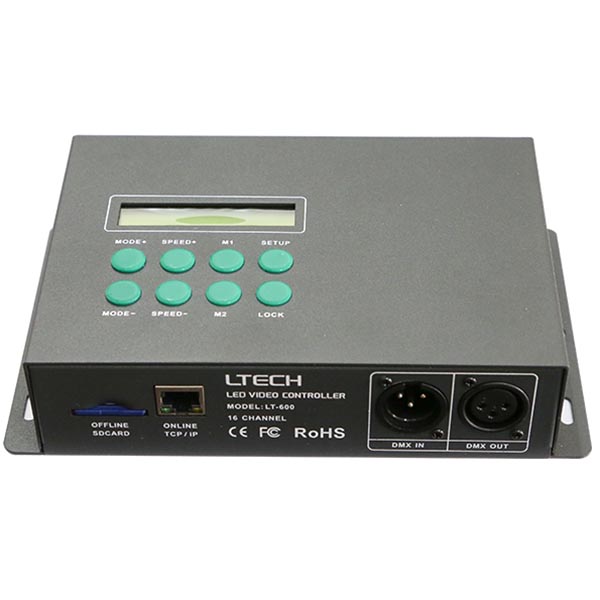

Product details: LT-600
Specification
Working voltage: DC12V
Output signal channels: 16 Channels
Loading capability per channel: 512-1920 pixels/channel
Off-line storage media: SD memory card
SD card capability: 2GB Max.
Grey level: Max. 65536 scale
Refreshing frequency: 60Hz～3000Hz
On-line transmission mode: TCP/IP standard internet protocol
Input&output interface :RJ45
Operating system: Windows 2000/2003/XP/Vista/Win7 Chinese / English edition
The 3rd interface: DMX512/1990 protocol
Product size: L203×W125×H47(mm)
Carton Size: L267×W138×H88(mm)
Weight :920g 1450g(G.W)
