LED WiFi 16 Zones Wireless Synchronization Group Controller Work With M12 RF Remote and APP WiFi-104
Related Products
LED WiFi 16 Zones...
$150.00 $124.9817% off
DC5-24V R4-5A CV Zone...
$56.00 $51.987% off
Brightest LED Color...
$39.98 $29.9825% off
RGB+White LED Color...
$28.98
DC12V-48V R4-CC CC Zone...
$51.98
RGBW Multi Color LED...
$69.98 $60.9813% off-
Special Price: $150.00 $124.9817% off
WIFI-104,4A*4CH 16A Max,Supports 12 Zones,High-end Controller Connection By Router,Flexibly Control SC,CT,RGB LED Lgihting fIxture,Warranty 5 years

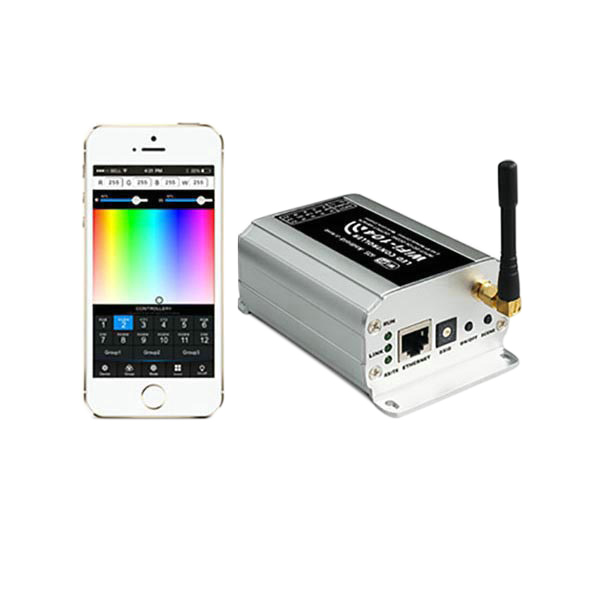

WiFi-104 is a versatile office/home lighting control system. Through WiFi function build-in mobile devices could control various types of LED lighting products after installing related software on our ios or Android phones, tablet PCs and other mobile devices. It makes the led lighting control more intelligence, networking and humanization.
WiFi-104 lighting control system integrated with four functional controls including dimming, color temperature adjusting, RGB and RGBW, which could be set as single color, color temperature(nature white+warm white and nature white+warm white+cool white), RGB and RGBW five types. It can simply control various of led lightings which has installed on WiFi software. Meanwhile, it supports max 12 zones control. We could do for you what you think!

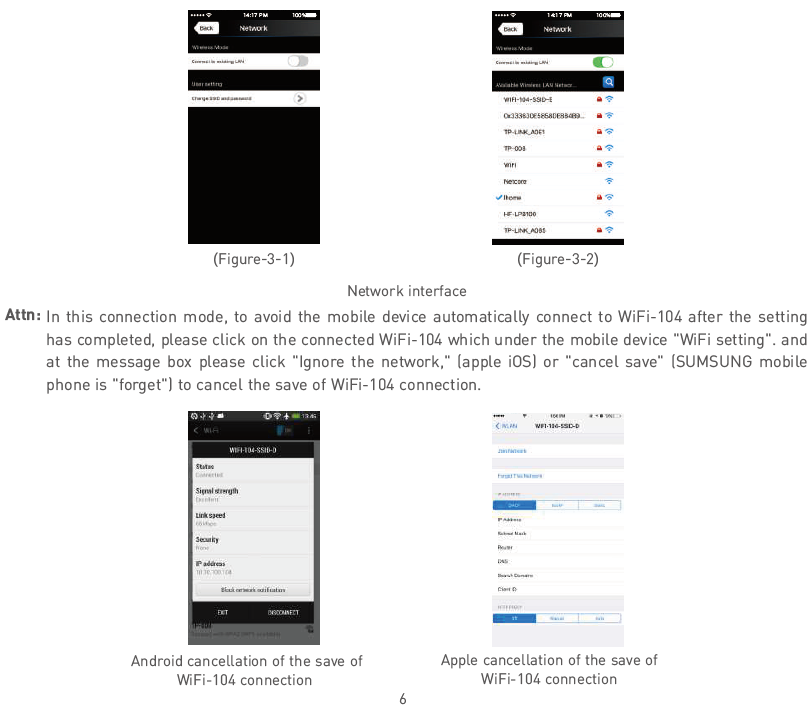

WiFi - 104 control system supports direct or through a router two network connection mode:
As a direct way, mobile phone, pad can directly control the WiFi - 104 controller + R4-5A or R4-CC a wireless control, without any third party of network equipment ;
Through a router connection, in addition to reach all the functions of direct connection, and will not affect the normal Internet access router at the same time, a more important role is to support the software interface to switch muti-control systems, control independent of each other systems more convenient , for example, there are two sets of systems, can support 24 areas.

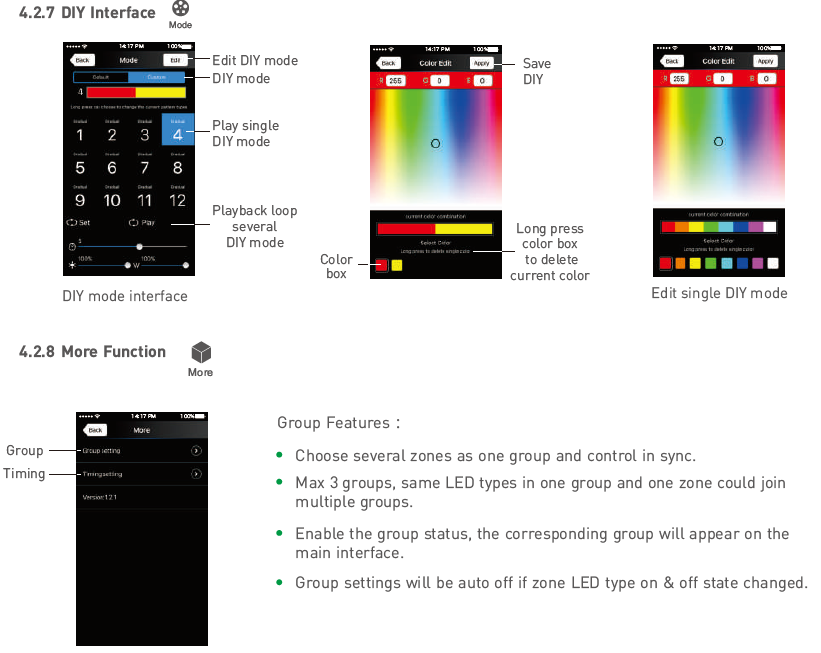

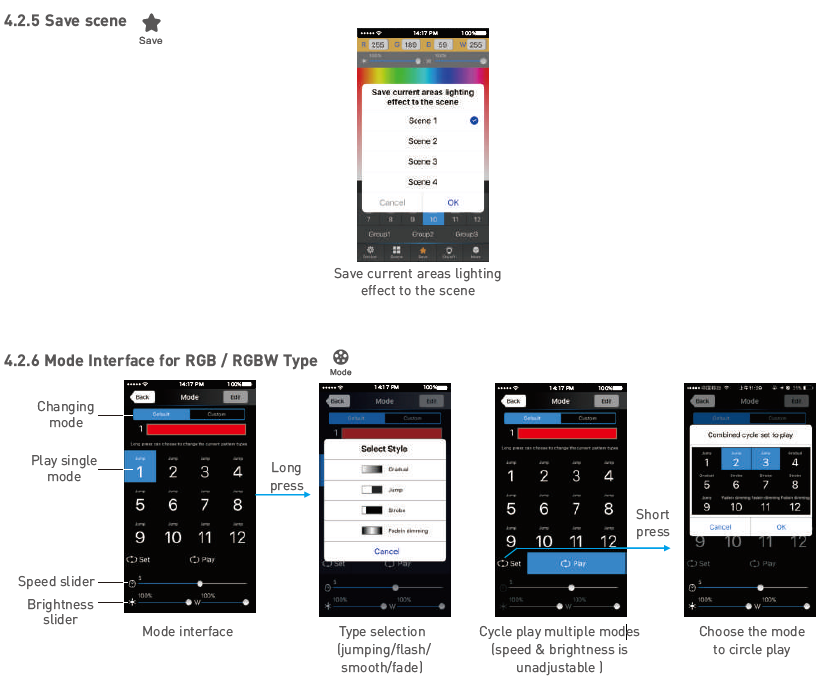

In addition, you can DIY the lighting on software according to your habits. You can DIY any color, any changing you like. It will let yourself relish in your sense of accomplishment for your special life colour.

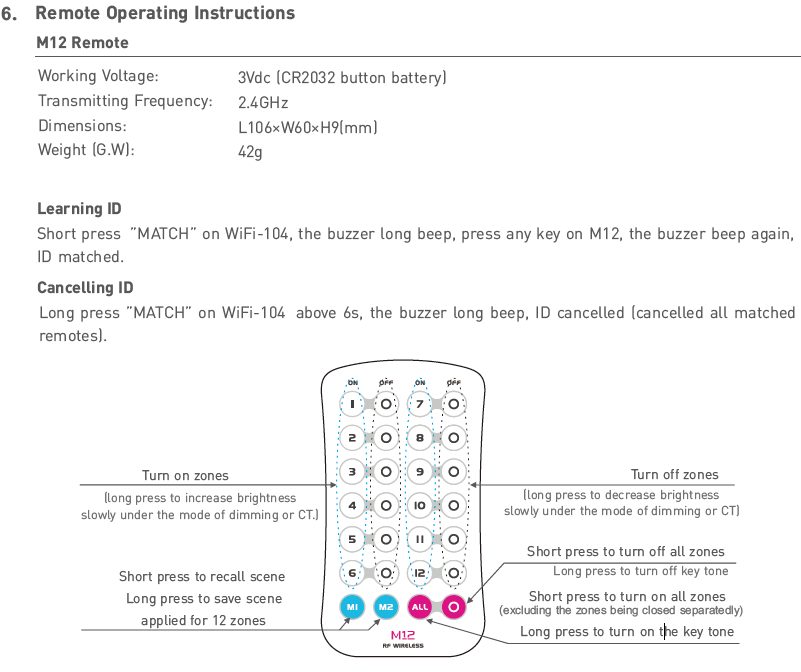

You can also use our 2.4G RF remote M12 if there is no software, more options for you.
Communication standard: 2.4GHz Wi-Fi, 802.11b/g/n protocol
Input voltage: DC12V~DC24V
Max current load: 4A x4CH Max 16A
Max output power: 192W/384W(12V/24V)
Control distance: 100m (Distance of cross-eyed)
Working temperature: -20℃～50℃

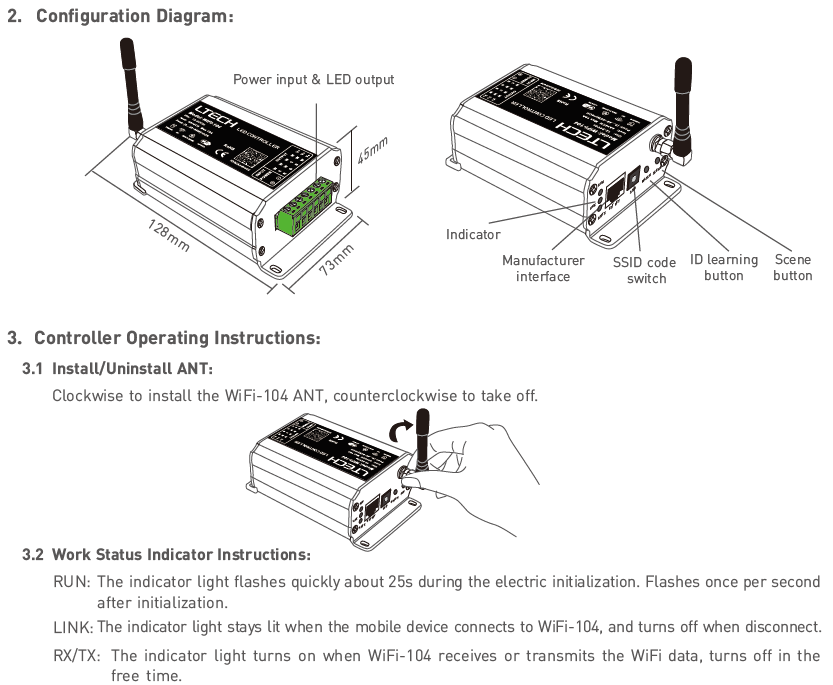

Dimensions: L128×W73×H45mm
Package size: L135×W80×H64mm
Weight (G.W.): 382g
Products Specifications Download
WiFi Series RGB/RGBW LED Controller
R4-5A CV Zone Receiving controller
|
Working Frequency |
2.4GHz |
|
Input voltage |
DC5V~DC24V |
|
Max current load |
5A x4CH Max 20A |
|
Max output power |
100W/240W/480W(5V/12V/24V) |
|
Remote Distance |
50m (line of sight) |
|
Working temperature |
-30℃～55℃ |
|
Dimensions |
L175×W44×H30mm |
|
Package size |
L178×W48×H33mm |
|
We |
150g |
R4-CC CC Zone Receiving controller
|
Working Frequency |
2.4GHz |
|
Input voltage |
DC12V~DC48V |
|
Output voltage |
DC3V~46V |
|
Output current |
CC 350/700/1050mA×4CH(3 in 1) |
|
Remote Distance |
50m (line of sight) |
|
Working temperature |
-30℃～55℃ |
|
Dimensions |
L175×W44×H30mm |
|
Output power |
1.05W-48.3W×4CH Max 193.2W |
|
We |
150g |

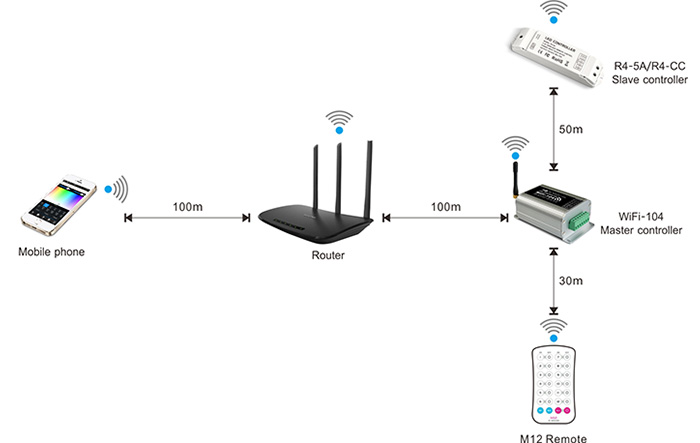

Remote distance reference
[Note]: The following distance is only effective in outdoor opening environment. If there have walls, reinforced concrete and some barriers indoor, the WiFi distance will be subject to the actual distance.

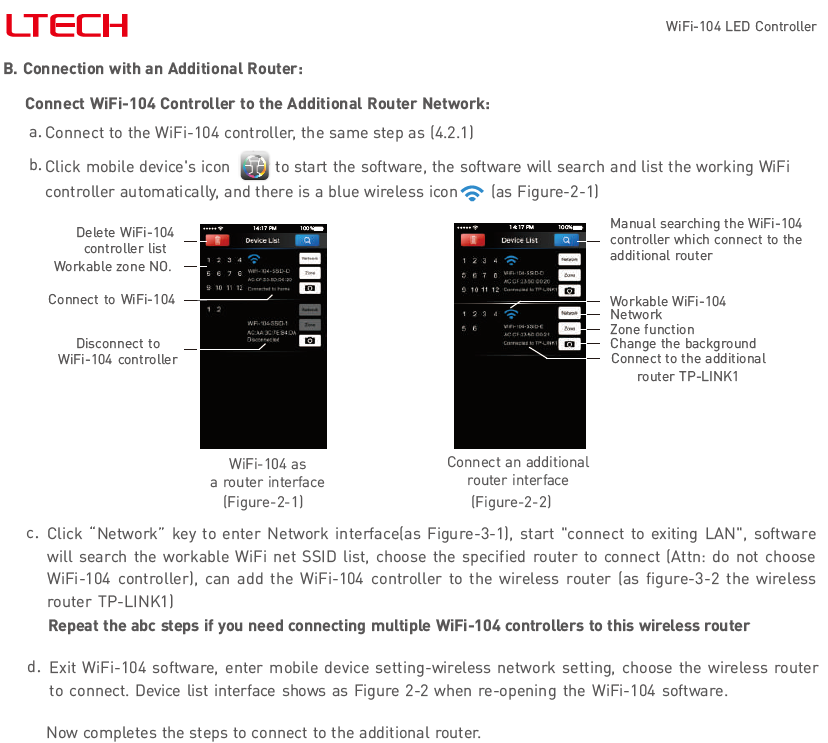

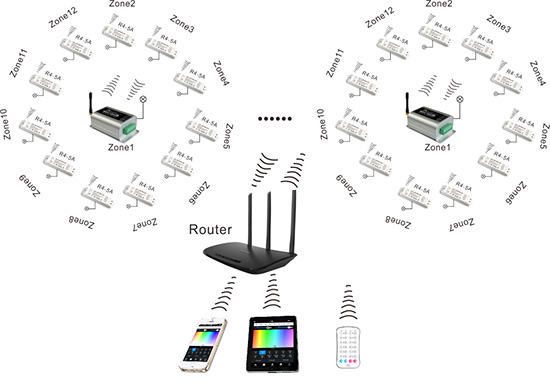

Supports direct or through a router two network connection mode
Through a router connection, in addition to reach all the functions of direct connection,and will not affect the normal Internet access router at the same time, a more important role is to support the software interface to switch muti-control systems, control independent of each other systems more convenient , for example, there are two sets of systems, can support 24 zones.

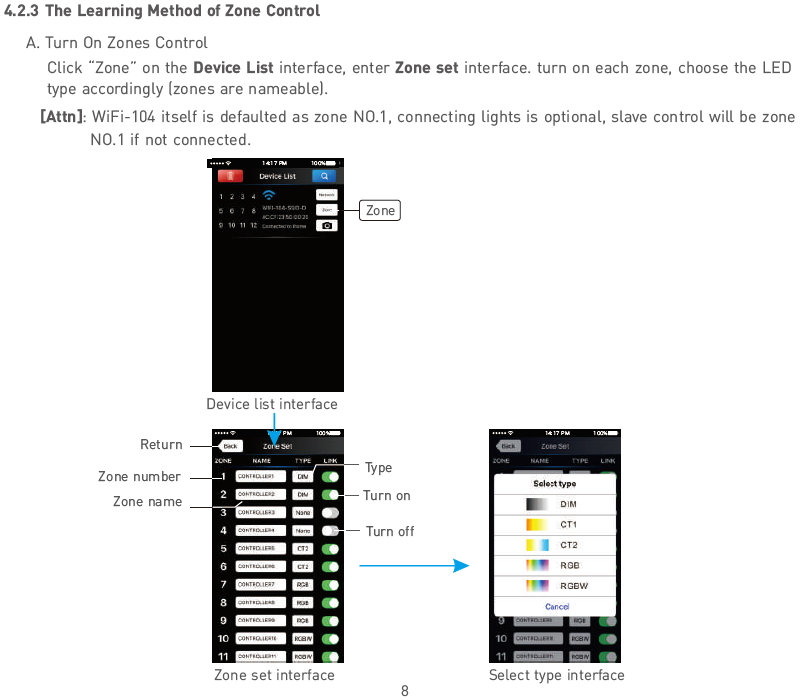

12 zones

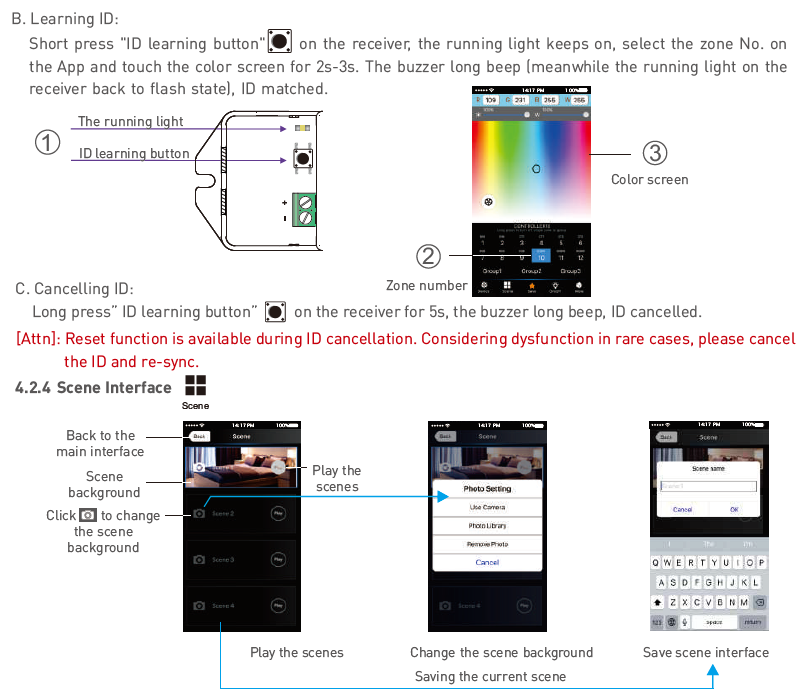

Working with wireless zone controller R4-5A/R4-CC, can support no more than 12 zones (WiFi-104 controller can connecte or not connecte the LED lamps and lanterns). Wireless installation between each zone.

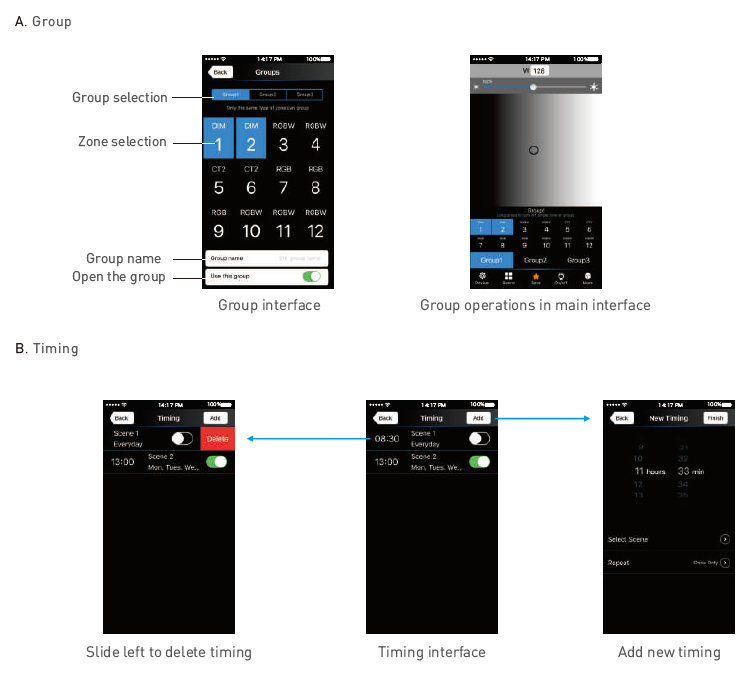

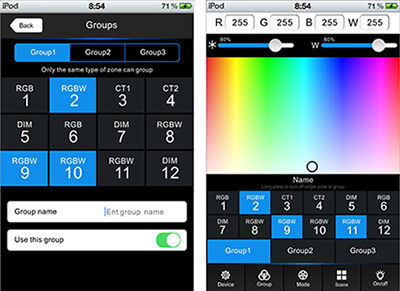

Group of zone
The same type of zone can sync control in one group, there is three groups,every zone can cross three groups (that is mean one zone can exist in multiple groups).
Products Specifications
| By : Mark Fultz Date Added: 05/17/2020 | |
| The grouping function is very powerful and needs to be used with the R4-5V wireless controller. I used an iPad to control 5 rooms | |
