LM070 6W RF LED RGB CCT Color Changing Recessed Downlight

Model: LM-LM070

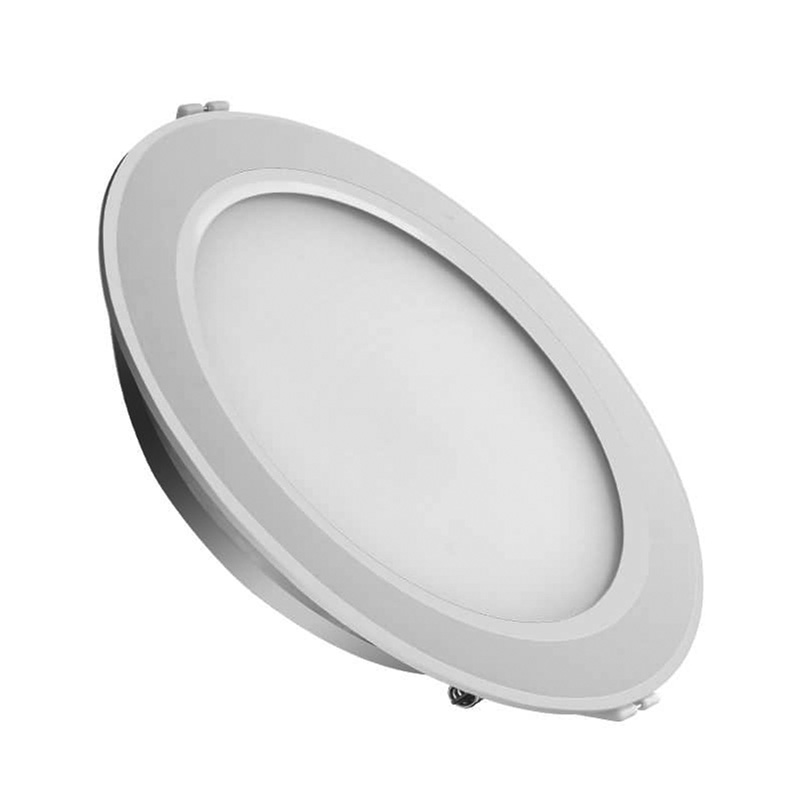

LM070 6W RF LED RGB CCT Color Changing Recessed Downlight
  • LM070 6W RF LED RGB CCT Color Changing Recessed Downlight
  • LM070 6W RF LED RGB CCT Color Changing Recessed Downlight
  • LM070 6W RF LED RGB CCT Color Changing Recessed Downlight

Select Specifications:

Starting at: $20.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-9
$20.98
10-99
$20.56
100-199
$19.93
200+
$19.09
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    The LM070 RGB CCT LED downlight offers a range of features including dimming from 1 to 100%, a selection of 16 million colors, and adjustable color temperature. When connected to 2.4G gateway, the dimmable LED downlights are compatible with well-known brand speakers, such as Alexa and googles assistant. This downlight LED 6W can also be controlled smartphone app with connection to a 2.4G gateway. Moreover, this downlight recessed lighting also supports direct control via RF remote, which is easy and convenient for user to operate.

    The Synchronization Mode of this recessed downlight LED allows Different downlights can work synchronously if they are controlled the same remote. Besides, a single downlight can relay signals from the remote control to another downlight within a 30-meter range, effectively extending the control distance to be virtually limitless, as long as there are downlights within a 30-meter reach of each other.

    In conclusion, this LED downlight 6W RGB CCT is an ideal choice for indoor application for soft illumination and multiple control ways.




    The RF remote control model number in our kit is LM-LM091.

    The 2.4GHz gateway model number in our kit is LM-GW01W.



    LM-LM070 Manual Download PDF





    Product Specification

    Model:  LM-LM070
    Input Voltage:
    AC100~240V 50/60Hz
    Power:
    6W
    Luminous Flux:
    600LM
    Luminous Efficiency:
    85LM/W
    Certification:
    CE/RoHS/FCC
    CRI:
    >80
    Lifespan:
    50000Hrs
    Beam Angle: 120°
    Control distance: 30m
    Hole size:
    φ90~95mm
    Controller Type:
    RF Remote/Voice Control/APP control(2.4G gateway is needed)
    Control Method:
    2.4G RF
    APP Name:
    Tuya Smart Life
    Warranty:
    3 years
    Color Temperature:
    2700K~6500K
    Working Temperature:
    -20~60℃
    Gross Weight:
    0.2kg

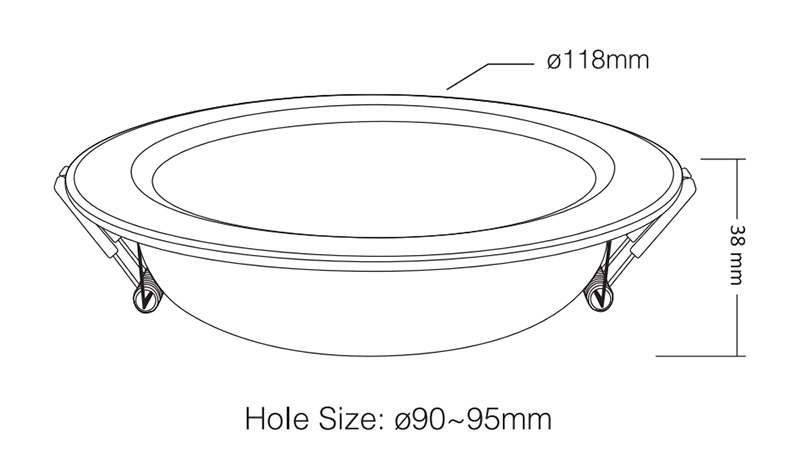

    Size

    LM070 6W RF LED RGB CCT Color Changing Recessed Downlight Size

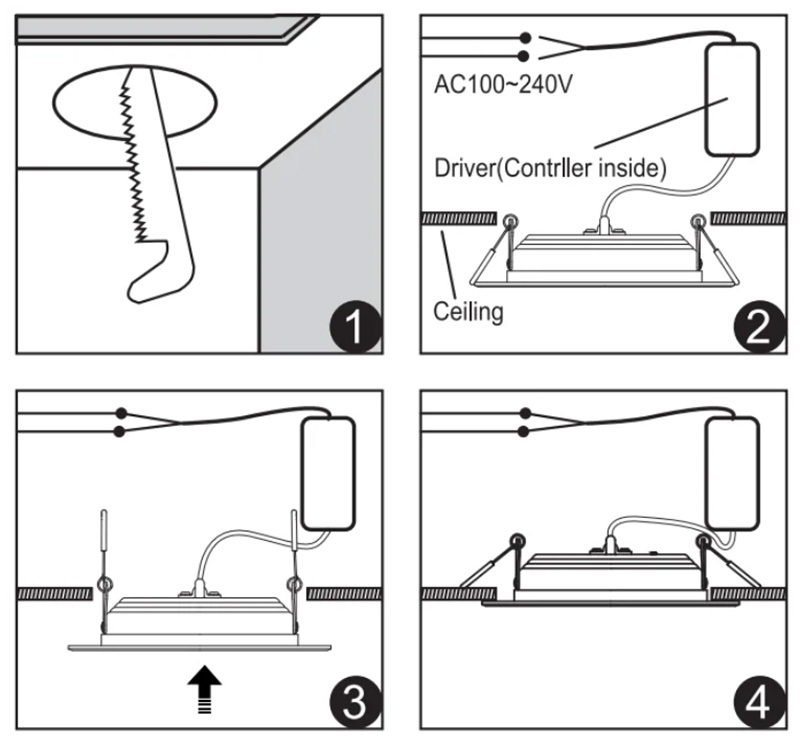

    Instructions

    LM070 6W RF LED RGB CCT Color Changing Recessed Downlight Instructions

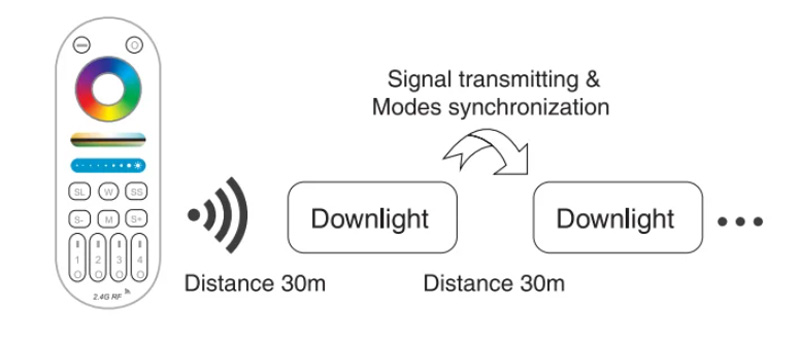

    Modes Synchronization and Signal Transmitting

    6W RF LED RGB CCT  Downlight Modes Synchronization and Signal Transmitting

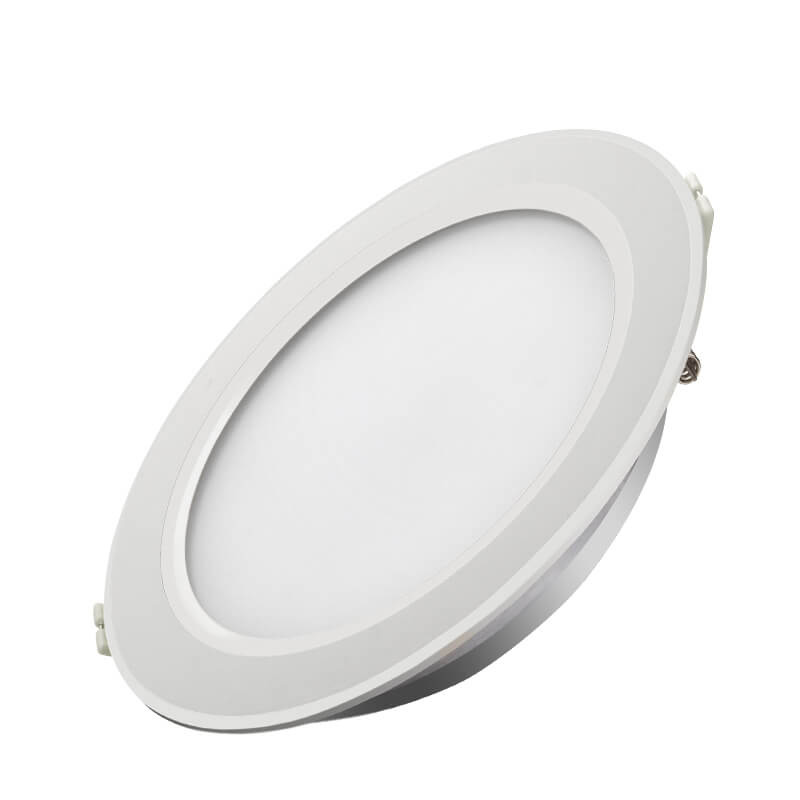

    LM070 6W RF LED RGB CCT Color Changing Recessed Downlight

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

    LM070 6W RF LED RGB CCT Color Changing Recessed DownlightLM070 6W RF LED RGB CCT Color Changing Recessed DownlightLM070 6W RF LED RGB CCT Color Changing Recessed Downlight
