LN-DALIMSENSOR DALI Multi-function Sensor Light Sensor, Intelligent Addressing Dimmer
DALI (Digital Addressable Lighting Interface) is an international standard and popular lighting control protocol bus. It has the features of digitally addressable dimming, stability, various dimming methods, easy installation, and compatibility with major manufacturers.
DALI multi-function sensor has a built-in human body sensor and light sensor. It adopts an advanced computer control chip to convert these sensor signals into corresponding DALI commands to control the DALI dimmer on the bus, making the DALI system more intelligent. The sensor supports our DALI touch screen controller and DALI network host to use software to configure the sensor parameters, simple to use, and more intelligent.
Technical Parameters
Working Temperature: -20-60 ℃
Power Supply: DALI bus power
Input Signal: human body induction, light induction signal
Output Signal: standard DALI signal
Input Current: ≤9mA
Gross Weight: 150g
Net Weight: 78.5g

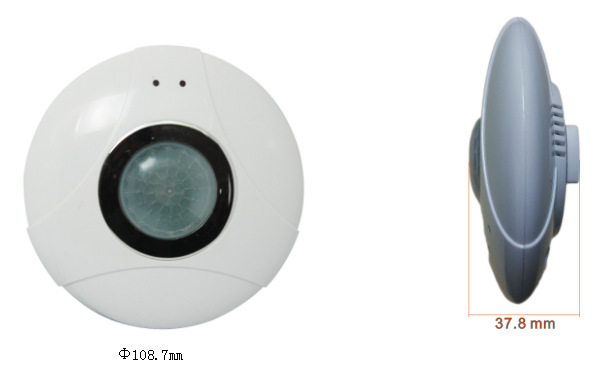

Dimensions: Φ108.7mm*37.8mm
Packing Size: L145*W145*H70mm
Inspection Range Installed at a height of 3-4 m: 5-8 m
Lighting Threshold Setting Range: 10-650lx
Specifications Download
Instructions
①Selection of human body and light sensor function: the human body sensor and light sensor function can be switched on and off independently, or can be turned off completely, making the sensor completely invalid
② Output control settings: the sensor output can be set to control a single device or group, broadcast control;
③ Output mode control: the sensor output control mode can be set to the minimum, maximum or automatic;
④Lighting threshold setting: 10-650lx;
Timing setting: 30s-60min;
⑤Sensor indicator light: when the sensor is powered on/restarted, the control command is received, and the sensor is effectively output, the indicator light above the sensor will flash; when the sensor is standby and there is no induction, the indicator light will be off;

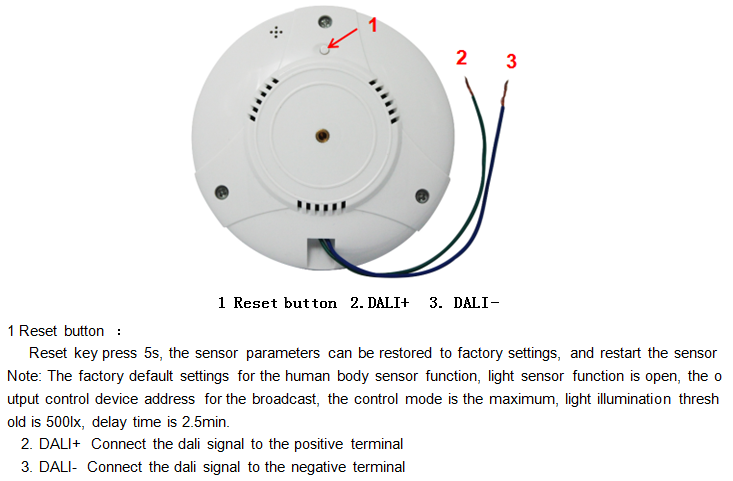

Interface description
Application note
1. When setting the light sensor control mode: When the external light intensity is less than the set threshold, the lamps in the controlled group will output the set output value: minimum value, maximum value, or automatic control (the sensor will be based on the measured The current ambient light value is added or subtracted to control the light output). When the external illuminance is continuously greater than the set threshold value, and the time exceeds the set delay-off value, the controlled lamp will go out.
2. When the human body induction control mode is set: when the movement of a person is sensed, the controlled lamp will be turned on, and when the movement of the human body is not sensed, the lamp will be turned off when the set delay time is reached.
3. When setting the human body sensor plus light sensor control mode: when the external light intensity is greater than the set threshold light intensity, the human body sensor is invalid; when the external light intensity is less than the set threshold light intensity, the human body sensor is effective.
Note: The three modes can be triggered repeatedly.

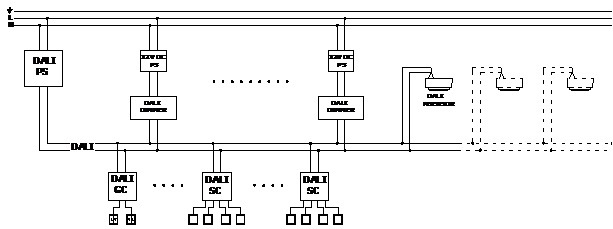

Typical application
Multiple sensors can exist simultaneously on a DALI bus, and DALI sensors can be activated by the external environment.
