CV Power Repeater LT-3060

CV Power Repeater LT-3060

Model: LT-3060


Free Shipping Worldwide On Order Over $199
Qty: -+

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

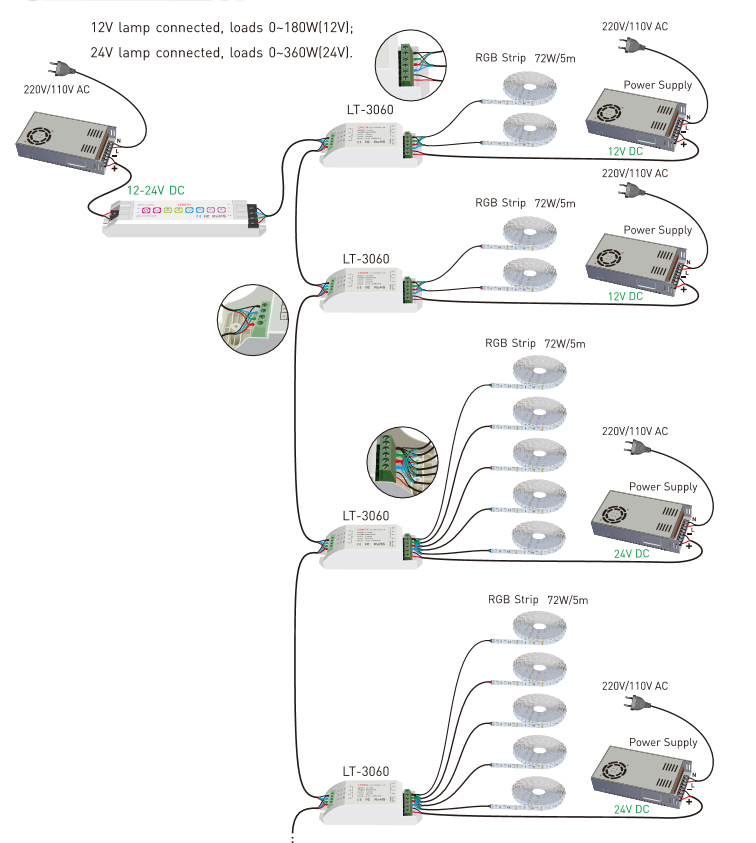

    LT-3060 CV Power Repeater

    Input signal :PWM

    Input voltage: DC5V~DC24V

    Max load current :5A ×3CH  Max 15A

    Max output power :75W/180W/360W(5V/12V/24V)

    Output signal :CV PWM

    working temperature: -30℃~55℃

    Dimension :L121×W39×H39(mm)

    Package Size :L123×W42×H42(mm)

    Weight (G.W): 100g


    LED Repeater LT-3060



    CV Power Repeater LT-3060

    CV Power Repeater LT-3060
