Input signal: PWM
Input voltage : DC12V~DC48V
Max load current : 8A ×3CH Max 24A
Max output power: 288W/576W/864W/1152W(12V/24V/36V/48V)
Output signal : CV PWM
Working temperature: -30℃~65℃
Dimension : L148×W87×H23(mm)
Package Size : L158×W94×H31(mm)
Weight (G.W) :380g

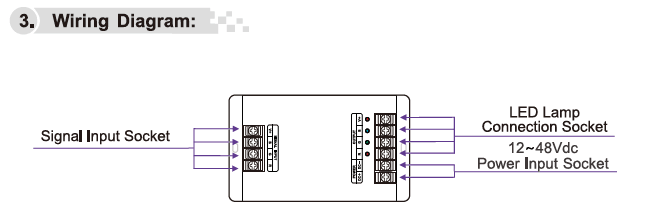

Conjunction diagram :
LED Repeater LT-3070-8A
