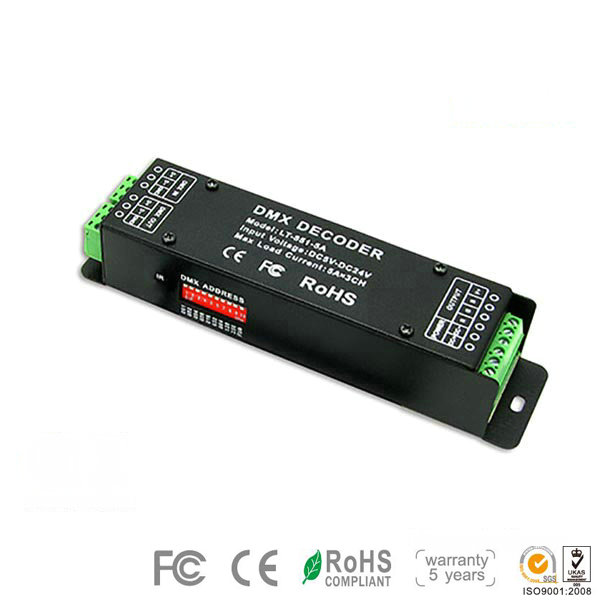

3CH CV DMX Decoder LT-851-5A

3CH CV DMX Decoder LT-851-5A

Model: LT-851-5A


Free Shipping Worldwide On Order Over $199
Qty: -+
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    LT-851-5A DMX-PWN decoder works to convert universal DMX512 digital signal to PWM signal, which controlled by DMX512 console, with 8bit gray scale output per channel. Realize 0-100% brightness and various changing effect. And can control single color, two color, RGB LED lights.


    Input Signal:   DMX512

    Input Voltage:   5~24VDC

    Max Current Load:   5A*3CH Max 15A

    Max Output Power:   75W/180W/360W(5V/12V/24V)

    Output Gray Scale:    256 Levels/CH(8bit/CH)

    DMX512 Socket:   Green Terminal

    Working Temperature:   -30℃~65℃

    Dimension:   L175×W42×H33mm

    Package Size:   L183×W48×H41mm

    Weight(G.W.):   310g


    DMX LED Controller         LT-851-5A
